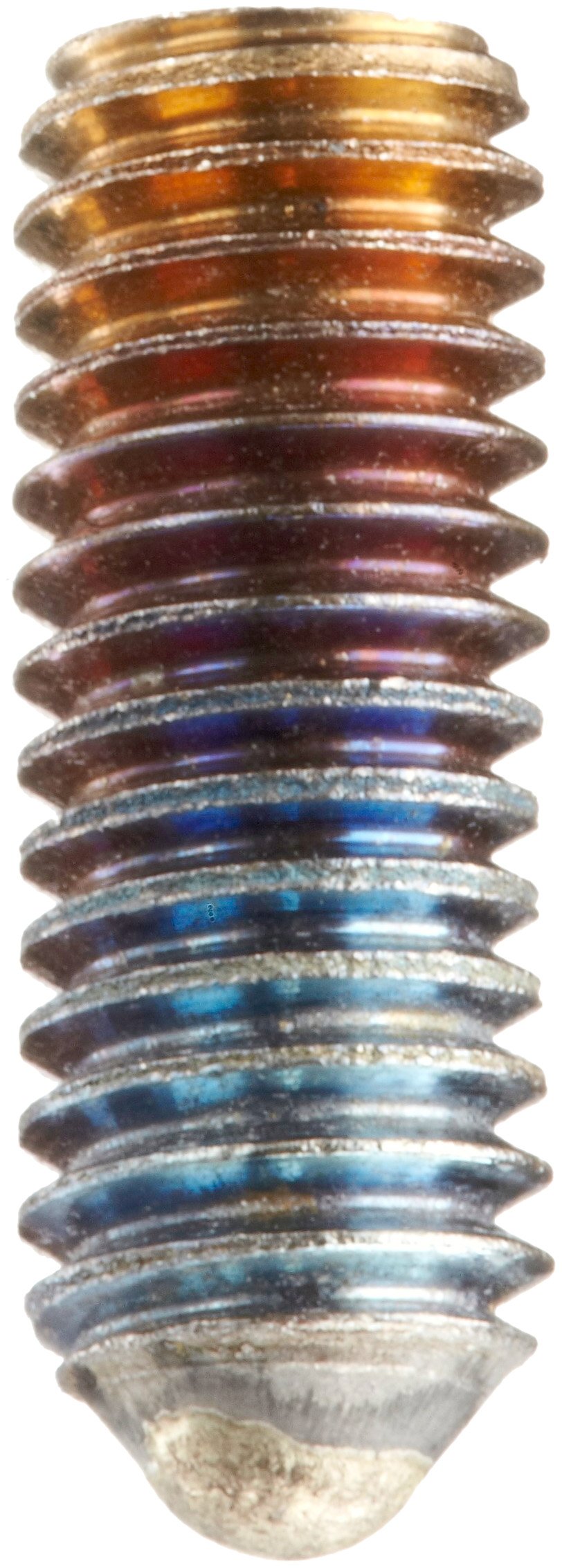

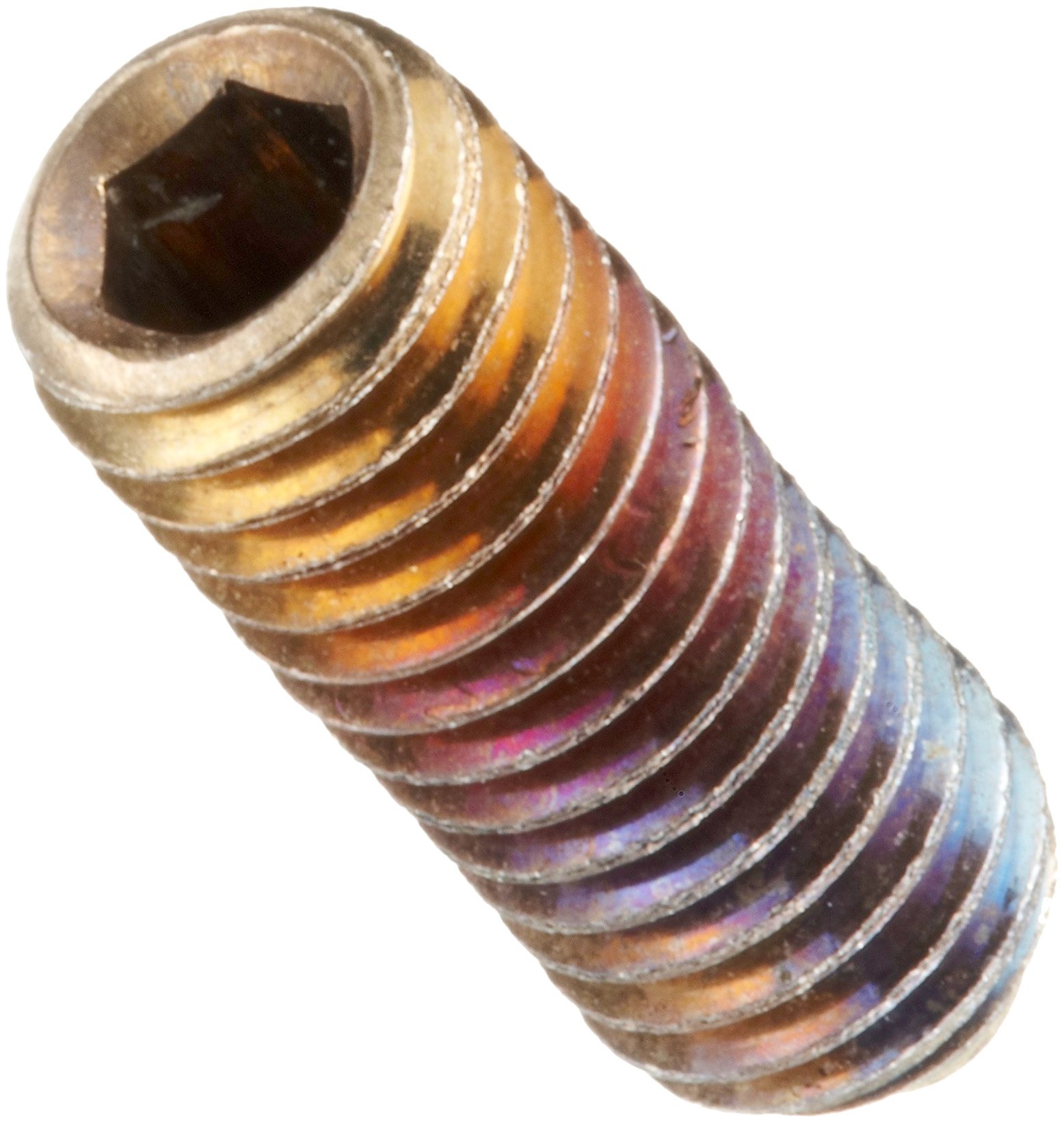

Stainless Steel Set Screw, Hex Socket Drive, Silver Tip (Metric)
Be the first to review this item
Product Specifications
- Brand Name
- Small Parts
- Color Name
- Silver
- Drive Style
- Hex Socket
- Exterior Finish
- Plain
- Head Style
- None
- Material Type
- Stainless Steel
- Part Number
- B003R7JEP0
- Point Style
- Silver Tip
- System of Measurement
- Metric
- Thread Style
- Right Hand
Free Standard Shipping! on orders over $50.00.
(limited-time offer, certain restrictions apply)
(Details)
Key Features
- Set Screws keep parts from turning relative to a shaft
- Stainless Steel is suitable where formability and cost are important considerations
- Do not have an external head
- Drive system is a hexagon-shaped hole
Product Description
Set Screws are often used for holding a pulley, gear, or other parts from turning relative to a shaft.
Stainless steels are used for their corrosion resistance, high-temperature strength, scaling resistance, and low-temperature toughness. These properties account for their extremely wide use in practically every industry. Austenitic Stainless Steels are alloys of iron and carbon that contain between 16% and 30% Chromium, a maximum of 0.15% carbon, along with Nickel (or Manganese), and other alloying elements. The chromium, which helps develop a passive surface oxide film, provides corrosion resistance in stainless steels. Austenitic Stainless Steels are designated by a 3 digit SAE Stainless Steel Grade beginning with the number 3 (e.g. 304, 316). Another common naming convention for Austenitic Stainless Steels are 18/8, 18/10, 18/0, etc. where the 18 refers to the % of Chromium and 8 to the % of Nickel contained in the material.
Hex socket drive systems are driven by hex wrenches or power tools with hexagonal bits. The Silver Tip features a small drop of silver that provides greater holding power and is softer than Brass. Rigid yet soft, it can conform to the texture and curves of a surface without marring, and is ideal for use on gears and collars.
A threaded fastener's size name includes information about the major external diameter (in millimeters), followed by the thread pitch (millimeters per thread), which indicates if it is coarse or fine.
