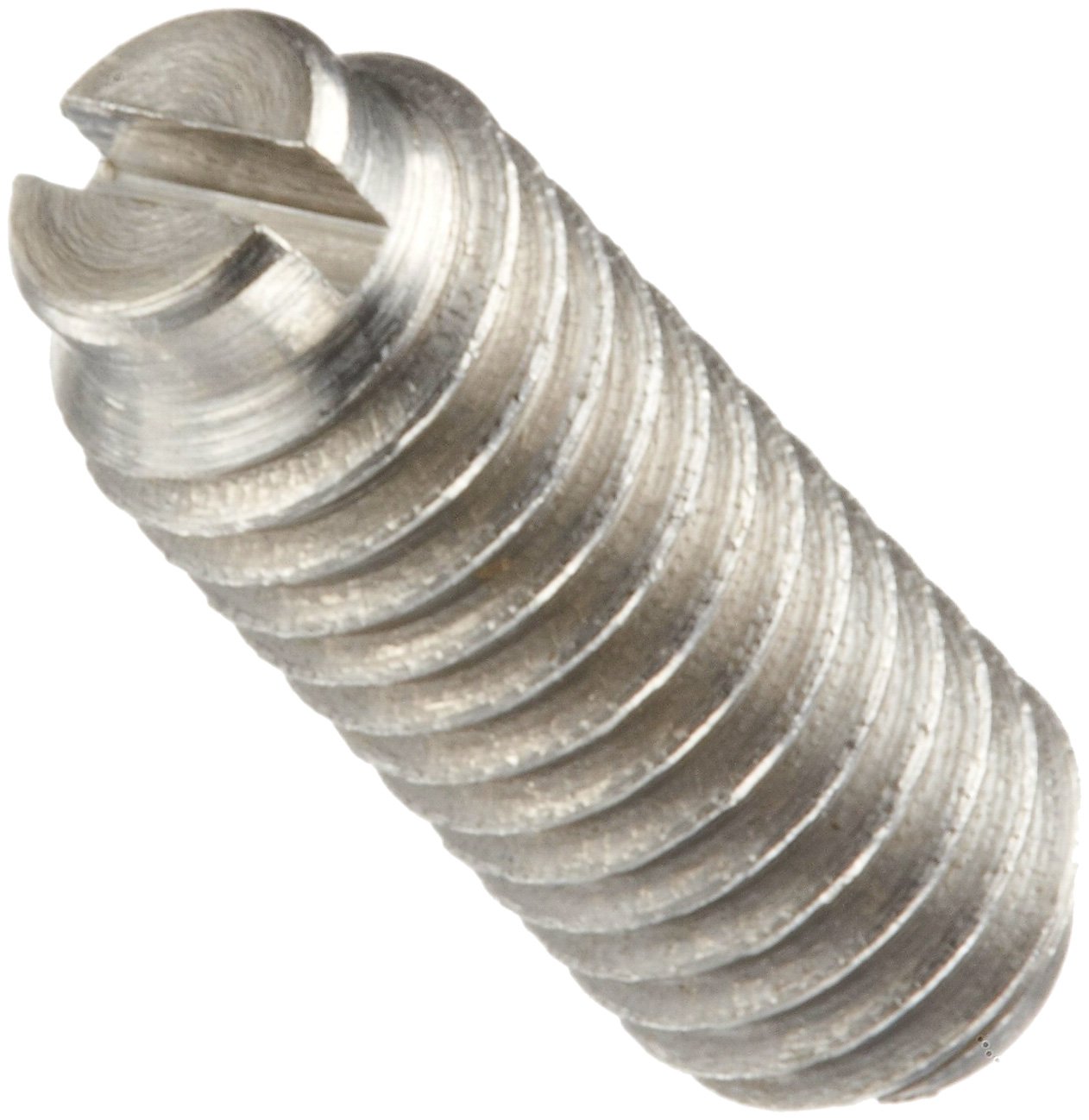

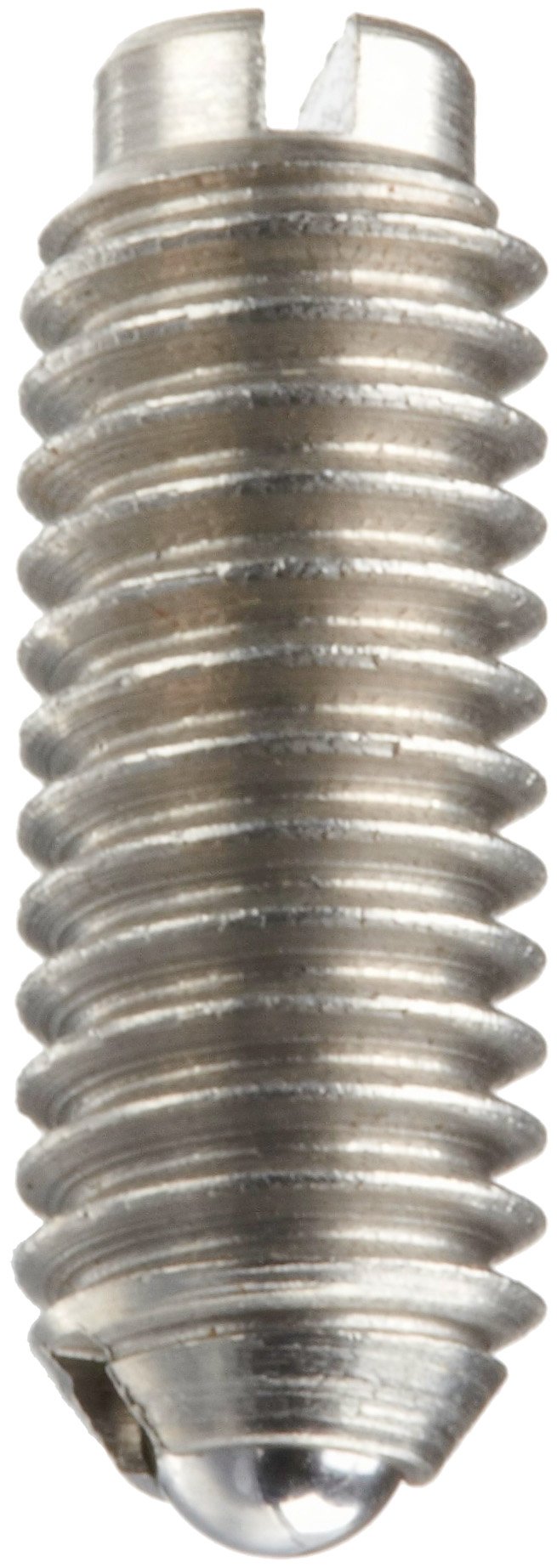

Stainless Steel 303 Set Screw with Spring Ball, Slotted Drive
Be the first to review this item
Product Specifications
- Brand Name
- Small Parts
- Drive Style
- Slotted
- Exterior Finish
- Plain
- Head Style
- None
- Material Type
- Stainless Steel 303
- Self Locking Mechanism
- None
- System of Measurement
- Inch
- Thread Style
- Right Hand
These items ship for FREE with 2-Day Shipping on orders over $50. (Details)
Want it delivered on Tuesday, May 29? Order in-stock items in the next 6 hours 50 minutes and choose One-Day Shipping at checkout.
Product Description
Set Screws are often used for holding a pulley, gear, or other parts from turning relative to a shaft.
Stainless steels are used for their corrosion resistance, high-temperature strength, scaling resistance, and low-temperature toughness. These properties account for their extremely wide use in practically every industry. Austenitic Stainless Steels are alloys of iron and carbon that contain between 16% and 30% Chromium, a maximum of 0.15% carbon, along with Nickel (or Manganese), and other alloying elements. The chromium, which helps develop a passive surface oxide film, provides corrosion resistance in stainless steels. Austenitic Stainless Steels are designated by a 3 digit SAE Stainless Steel Grade beginning with the number 3 (e.g. 304, 316).
Stainless Steel 303 contains 0.15% carbon, along with traces of sulfur and phosphorus which makes this a free machining alloy. Free machining refers to the ability to cut and finish the materials without heavy wear on the machining tools. Tensile Strength is 35000 psi (pounds per square inch).
Common applications for slotted screws include woodworking, although the drive style is not designed to be used with power drivers.
A threaded fastener's size name includes information about the major external diameter, followed by the threads per inch, which indicates if it is coarse or fine. Fine threads are preferable when working with harder materials or when threading into a thin material. They are also stronger in tension than coarse threads, and generally provide higher shear strengths.
