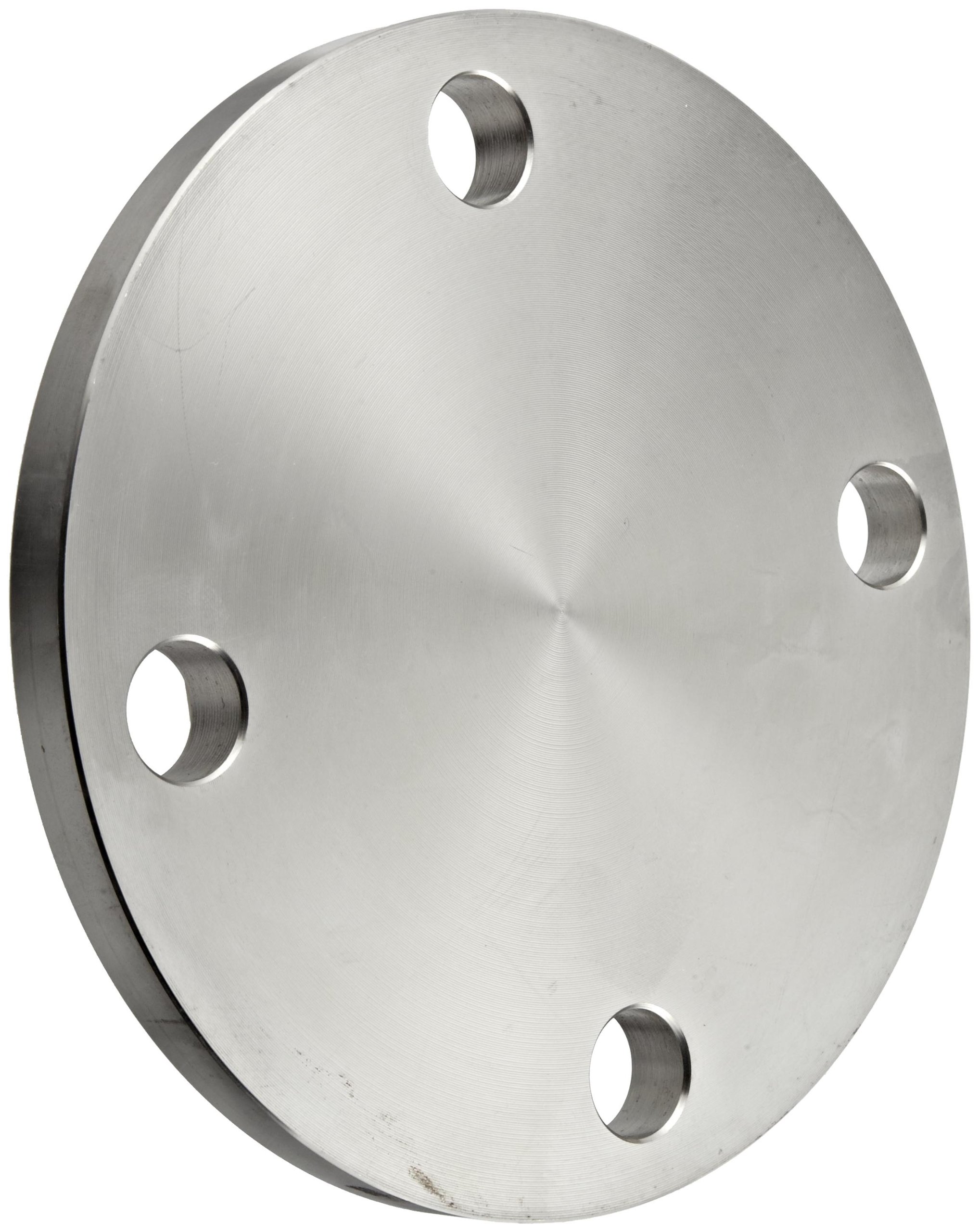

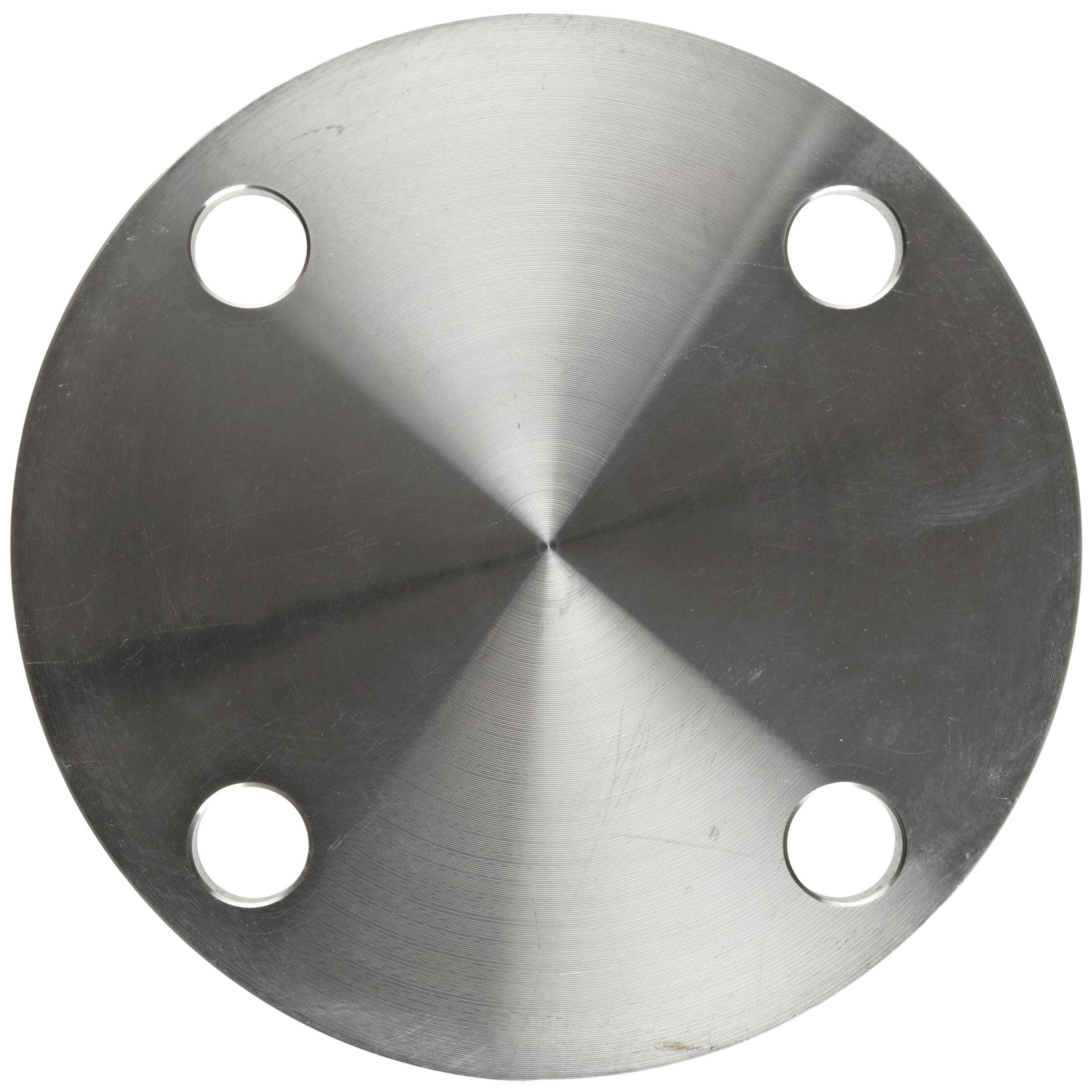

Click for larger image and other views Image is representative of the product family. Select individual products in the table below for more specific images and product specifications

How can we improve our images or Product Specifications?

Stainless Steel 316/316L Plate Pipe Fitting, Flange, Blind, Class 150

Be the first to review this item

Product Specifications
Item Shape
Flange
Specification Met
ASTM A182 , ASME SA182 , ANSI B16.5
Grade
316L
Material Type
Stainless Steel
Pressure Rating Class
150
Style Name
Blind
UNSPSC Code
40170000
System of Measurement
Inch

This item is no longer available

These items ship for FREE with 2-Day Shipping on orders over $50. (Details)

Want it delivered on Mon, Dec 1? Order in-stock items in the next 1 hr 29 mins and choose One-Day Shipping at checkout.

  • Share
Currently showing 1-11 of 11
Pipe Size Flange OD # of Bolts Required Bolt Hole Diameter Pkg Qty ASIN

The Amazon Standard Item Number (ASIN) uniquely identifies
the item in the AmazonSupply.com (and Amazon) catalog.

Available

If an item is currently out of stock, but has an estimated lead time, you can place an order now and we will ship it as soon as it is available.
You can also order more than we currently have in stock.
Read more about back orders in our help section.

Price
All All All All All
Currently showing 1-11 of 11
1" 4.25" 4 3.12 inches 1 B003ULOHBE yes $21.45 Buy Options
1-1/4" 4.62" 4 3.5 inches 1 B003ULOHGE yes $22.59 Buy Options
1-1/2" 5" 4 3.88 inches 1 B003ULOHHS yes $21.59 Buy Options
2" 6" 4 4.75 inches 1 B003ULOHJ6 yes $35.98 Buy Options
2-1/2" 7" 4 5.5 inches 1 B003ULOHKK yes $47.66 Buy Options
3" 7.5" 4 6 inches 1 B003ULOHM8 yes $64.55 Buy Options
4" 9" 8 7.5 inches 1 B003ULOHN2 yes $79.89 Buy Options
5" 10" 8 8.5 inches 1 B003ULOHOG yes $76.98 Buy Options
6" 11" 8 9.5 inches 1 B003ULOHPU yes $347.75 Buy Options
8" 13.5" 8 11.75 inches 1 B003ULOH9Q yes $57.28 Buy Options
10" 16" 12 14.25 inches 1 B003ULOHD2 yes $321.30 Buy Options

Key Features

  • Blind plate flange for closing the end of pipes, valves, or equipment nozzles
  • Bolt holes to connect to other bolted flanges or flat surfaces
  • Made of stainless steel 316/316L for strength
  • Lower carbon content to ensure greater resistance to corrosion
  • Meets standards ASTM A182 and ASME SA182 for quality assurance

Product Description

The Merit Brass blind plate flange is a class 150 stainless steel 316/316L pipe fitting used for closing the end of pipes, valves, or equipment nozzles. This blind plate flange has bolt holes to connect to flat surfaces or other flanges. Made of stainless steel 316L, the lower carbon content of this flange ensures corrosion resistance. This class 150 fitting meets steel 316 strength standards, 316L extra-low carbon standards, and specifications ASTM A182 and ASME SA182 for quality assurance. Class is a standard relating to tolerance, construction, dimension, and wall thickness, but it is not a direct measurement of maximum working pressure.

Pipe fittings are components used for connecting, terminating, controlling flow, and changing the direction of piping in many different industries. When purchasing pipe fittings, consider the application, as this will affect material type, shape, size and required durability. Fittings are available threaded or unthreaded, in many shapes, styles, sizes, and schedules (pipe wall thickness).

Merit Brass manufactures pipe nipples following ISO 9001 standards for quality assurance. The company, family-owned since 1937 and headquartered in Cleveland, OH, distributes pipe fittings in the United States and Canada.
