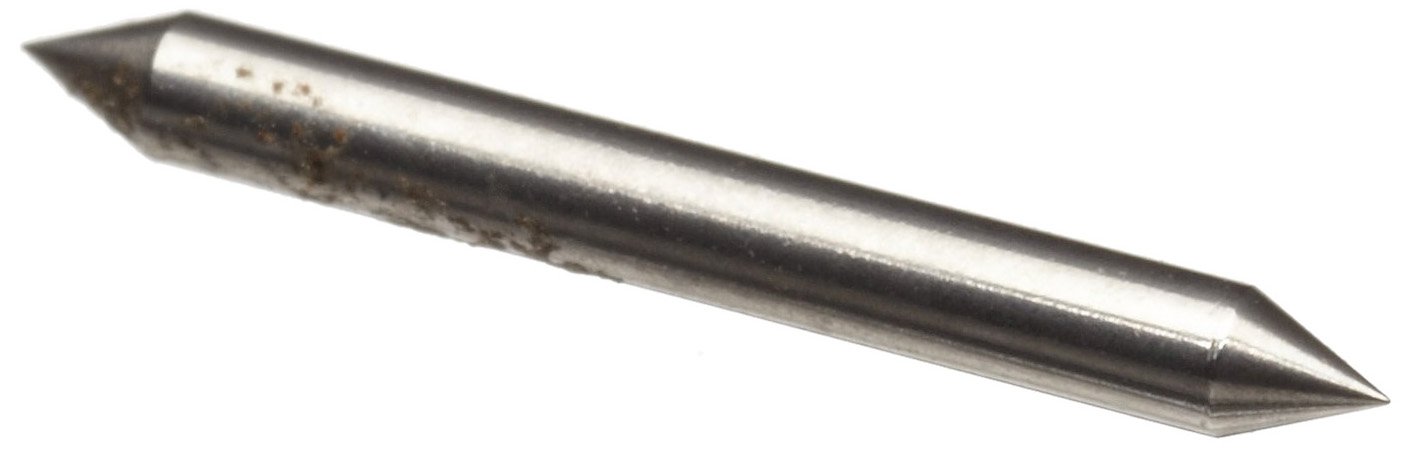

Stainless Steel Vee Jewel Pivots Angle 70 Degrees , .0397" - .0403" OD , .365" - .375" Length (Pack of 5)
Be the first to review this item
ASIN B0016JDJ7A
Specifications for this item
- Brand Name
- Small Parts
- Material Type
- Stainless Steel
- Mfr Part #
- VJPX-2D-05
- Number of Items
- 5
- System of Measurement
- Inch
In Stock (2)
This item ships for FREE with 2-Day Shipping on orders over $50. (Details)
Want it delivered on Tuesday, May 29? Order in-stock items in the next 6 hours 52 minutes and choose One-Day Shipping at checkout.
Key Features
- Radius .00069 - .00089
- Double-pointed pivots are used
- Stainless Steel
Package Details
Shipping Weight: 0.05 pounds
Product Description
These double-pointed pivots are used in conjunction with Vee Jewels in 75/85 Degrees (VJ-0469), 85/5 Degrees (VJ-0787 and VJ-0800) and 90/95 Degrees (VJ-1244) and Brass Vee Jewel Assemblies in 80/85 Degrees (VJA-1, VJA-3, and VJA-5) and 85/95 Degrees (VJA-7). Synthetic sapphires are next to diamonds in hardness which makes these highly polished bearings scratch and shock resistant. They also have a long wear life, and are highly resistant to heat, corrosion and distortion. In addition, sapphire bearings are nonmagnetic, dielectrically strong and provide good shaft end support and freedom of motion. They are especially well suited for use in delicate instruments such as ammeters, voltmeters, compasses and precision indicator devices. The jewel radius should be 2.5 to 3 times the pivot radius. In general, the greater the ratio between jewel and pivot, the greater the sensitivity and pivot roll. The contact area of the pivot should be highly polished and a finish of 2 to 3 micro-inch on the pivot radius is recommended.
