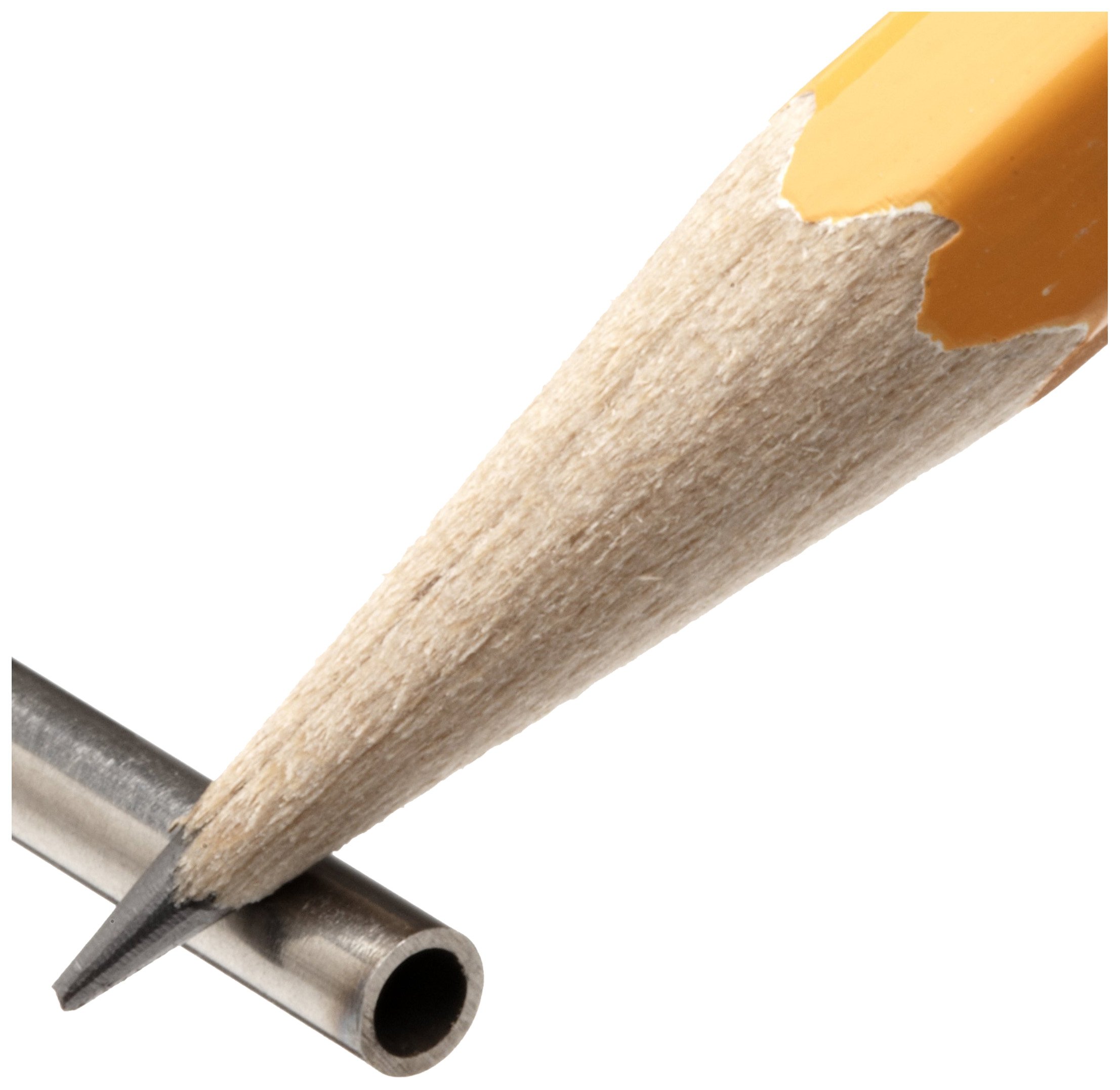

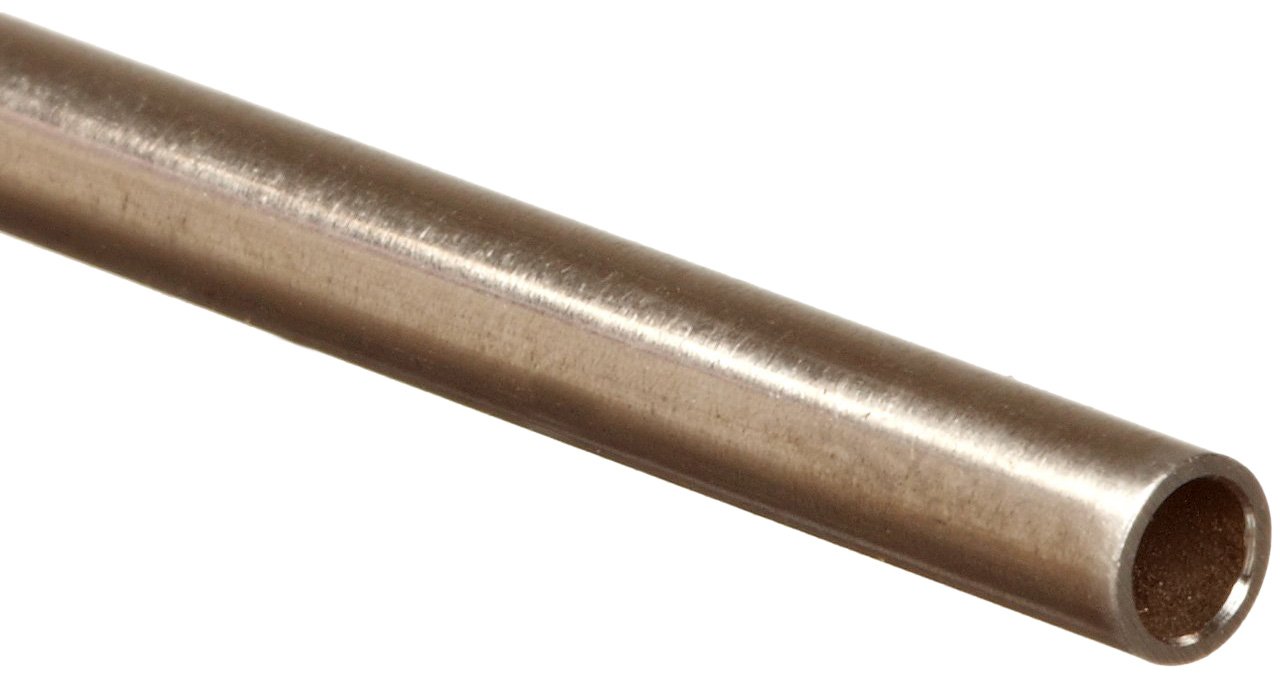

Click for larger image and other views Image is representative of the product family. Select individual products in the table below for more specific images and product specifications

How can we improve our images or Product Specifications?

Stainless Steel 304 Hypodermic Round Tubing

Be the first to review this item

Product Specifications
Item Shape
Round
Material Type
Stainless Steel
Structure Description
Welded
Brand Name
Small Parts
Compatible Material
Air, natural gas, oil water
Upper Temperature Range
600  Degrees Fahrenheit
Hardness
125 KPSI Min Full Hard Temper
Grade
304
UNSPSC Code
40180000
Metal Construction
Welded and Drawn
Special Features
Hypodermic
LowerTemperature Range
-425  Degrees Fahrenheit

This item is no longer available

Free Standard Shipping! on orders over $50.00.
(limited-time offer, certain restrictions apply) (Details)

  • Share
Currently showing 1-20 of 73 Next 20 »
Outside Diameter Gauge Inside Diameter Wall Thickness Length Pkg Qty ASIN

The Amazon Standard Item Number (ASIN) uniquely identifies
the item in the AmazonSupply.com (and Amazon) catalog.

Available

If an item is currently out of stock, but has an estimated lead time, you can place an order now and we will ship it as soon as it is available.
You can also order more than we currently have in stock.
Read more about back orders in our help section.

Price
All All All All All All
Currently showing 1-20 of 73 Next 20 »
0.010" 31 0.005" 0.00250" 36" 1 B000FMWKE2 28 $11.88 Buy Options
0.010" 31 0.005" 0.00250" 12" 1 B000FMYN38 28 $4.51 Buy Options
0.0143" 28 0.007" 0.00350" 36" 1 B000FMWK6A 12 $14.87 Buy Options
0.0163" 27 0.008" 0.00400" 36" 1 B000FN0TL2 6 $10.61 Buy Options
0.0163" 27 0.01025" 0.00300" 12" 1 B000FN3M7K 6 $4.05 Buy Options
0.0163" 27 0.01025" 0.00300" 36" 1 B000FN5R3M Usually ships in 3 to 4 weeks $11.98 Buy Options
0.0183" 26 0.01" 0.00400" 36" 1 B000FMWJW0 3 $11.26 Buy Options
0.0183" 26 0.01225" 0.00300" 12" 1 B000FMWJWK 1 $3.43 Buy Options
0.0183" 26 0.01225" 0.00300" 36" 1 B000FMYMQ6 13 $10.96 Buy Options
0.0223" 24 0.01625" 0.00300" 36" 1 B000FMZ9BS 19 $11.11 Buy Options
0.0223" 24 0.01625" 0.00300" 12" 1 B004WLMUAQ 18 $4.68 Buy Options
0.0253" 23 0.013" 0.00600" 60" 1 B00137QHNS 25 $12.26 Buy Options
0.0253" 23 0.01725" 0.00400" 12" 1 B000FN0SY0 47 $4.09 Buy Options
0.0283" 22 0.01975" 0.00400" 12" 1 B000FMYLZS 53 $4.33 Buy Options
0.0283" 22 0.01975" 0.00400" 36" 1 B000FMUP3U 1 $12.67 Buy Options
0.0323" 21 0.02525" 0.00350" 12" 1 B004WPPYQE 31 $4.09 Buy Options
0.0323" 21 0.02525" 0.00350" 36" 1 B000FMZ8YQ Usually ships in 3 to 4 weeks $13.29 Buy Options
0.0323" 21 0.0253" 0.00350" 60" 1 B00137ULZS 2 $13.35 Buy Options
0.0355" 20 0.0235" 0.00600" 12" 1 B004WPQOFE 14 $3.65 Buy Options
0.0358" 20 0.0235" 0.00600" 36" 1 B000FMYL8A 1 $10.85 Buy Options

Key Features

  • Welded and drawn construction
  • Full hard Temper
  • Stainless steel type 304 provides very good corrosion resistance
  • Tight tolerances

Product Description

Type 304 stainless steel full hard, TIG welded and drawn tubing is a hard-tempered, small-bore tubing used to make spacers, needles, guide wire assemblies, cannulas, capillary tubing and other products. It is widely applied in the medical, mechanical, electronic, chemical and aeronautical fields. Commonly called seamless because of its cosmetic appearance, Hypodermic Tubing 304 is actually welded and drawn and is full hard, but can be annealed in an inert atmosphere. The annealing point is 1,950 degree F 1,065 degree C. The dimensional tolerance is uniform over the piece length. Hypodermic tubing gauges are based on the Birmingham Gage, also known as Stubs Iron Wire Gage. It has a bright finish.
