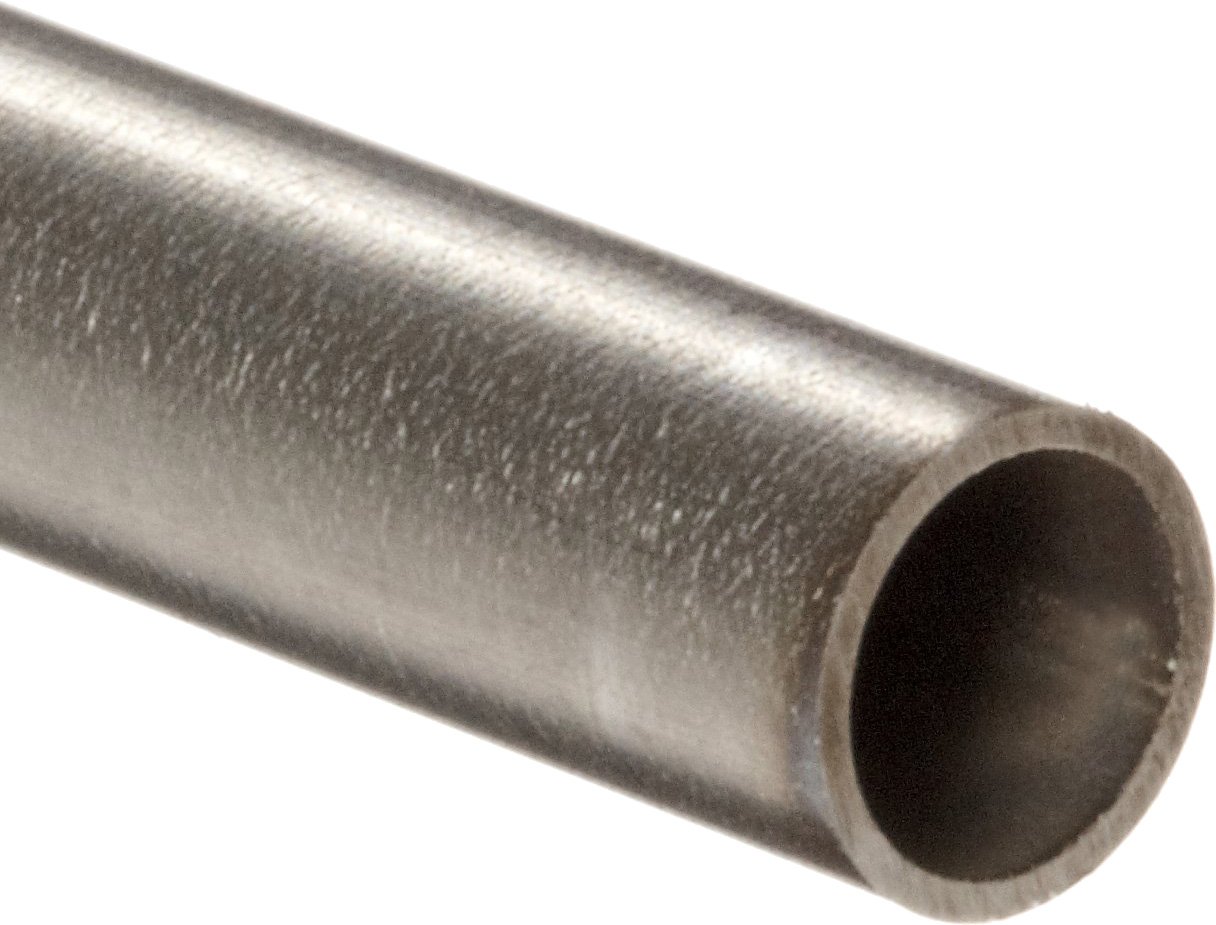

Stainless Steel 316 Hypodermic Round Tubing

Be the first to review this item

Product Specifications
Item Shape
Round
Material Type
Stainless Steel
Structure Description
Welded
Brand Name
Small Parts
Compatible Material
Air, natural gas, oil water
Upper Temperature Range
600  Degrees Fahrenheit
Hardness
125 KPSI Min Full Hard Temper
Grade
316
UNSPSC Code
40180000
Metal Construction
Welded and Drawn
Special Features
Hypodermic
LowerTemperature Range
-425  Degrees Fahrenheit

This item is no longer available

These items ship for FREE with 2-Day Shipping on orders over $50. (Details)

Want it delivered on Mon, Nov 3? Order in-stock items in the next 1 day 6 hrs 56 mins and choose One-Day Shipping at checkout.

  • Share
Currently showing 1-20 of 114 Next 20 »
Gauge string Inside diameter string Item diameter string Item length string ASIN

The Amazon Standard Item Number (ASIN) uniquely identifies
the item in the AmazonSupply.com (and Amazon) catalog.

Available

If an item is currently out of stock, but has an estimated lead time, you can place an order now and we will ship it as soon as it is available.
You can also order more than we currently have in stock.
Read more about back orders in our help section.

Price
All All All All
Currently showing 1-20 of 114 Next 20 »
10 0.106 inches 0.134 inches 12 inches B000FN1EGQ yes $6.56 Buy Options
10 0.106 inches 0.134 inches 36 inches B000FN1QPU yes $14.83 Buy Options
10 0.114 inches 0.134 inches 12 inches B000FMZ75Q yes $11.76 Buy Options
10 0.114 inches 0.134 inches 36 inches B000FN1EJ8 yes $28.75 Buy Options
10 0.118 inches 0.134 inches 12 inches B004UN8Q90 yes $12.27 Buy Options
10 0.118 inches 0.134 inches 36 inches B004UN8Q6I yes $24.99 Buy Options
11 0.094 inches 0.120 inches 12 inches B004UN9SVU yes $11.64 Buy Options
11 0.094 inches 0.120 inches 36 inches B000FMZ7A6 yes $27.42 Buy Options
11 0.1 inches 0.120 inches 12 inches B004UNF3P0 yes $10.51 Buy Options
11 0.1 inches 0.120 inches 36 inches B004UNF3C8 yes $23.05 Buy Options
12 0.085 inches 0.109 inches 12 inches B000FN1EOS yes $6.56 Buy Options
12 0.085 inches 0.109 inches 36 inches B000FN1QWI yes $15.67 Buy Options
12 0.091 inches 0.109 inches 12 inches B000FN3K8Q yes $11.44 Buy Options
12 0.091 inches 0.109 inches 36 inches B000FMZ7F6 yes $28.35 Buy Options
13 0.071 inches 0.095 inches 12 inches B004WPQ16G yes $8.73 Buy Options
13 0.071 inches 0.095 inches 36 inches B000FMZ7JM Usually ships in 4 to 6 weeks $16.87 Buy Options
13 0.077 inches 0.095 inches 12 inches B004UN8PSM yes $13.30 Buy Options
13 0.077 inches 0.095 inches 36 inches B004UN8POG yes $24.70 Buy Options
14 0.063 inches 0.083 inches 36 inches B000FN1R4K Usually ships in 4 to 6 weeks $12.18 Buy Options
14 0.063 inches 0.083 inches 12 inches B004WPQ28I yes $4.29 Buy Options

Key Features

  • Welded and drawn construction
  • Full hard Temper
  • Stainless steel type 316 provides excellent corrosion resistance
  • Extremely small outside and inside diameters for precision applications
  • Tight tolerances

Product Description

Type 316 stainless steel full hard, TIG welded and drawn tubing is a hard-tempered, small-bore tubing used to make spacers, needles, guide wire assemblies, cannulas, capillary tubing etc. It is widely applied in the medical, mechanical, electronic, chemical and aeronautical fields and is commonly called seamless because of its cosmetic appearance. Our stainless steel 316 hypodermic tubing is molybdenum bearing austenitic steel containing a higher percentage of nickel and a smaller percentage of chromium compared to 304. The higher corrosion resistance of 316 stainless vs. 304 stainless is particularly useful when working with phosphoric and acetic acids.
