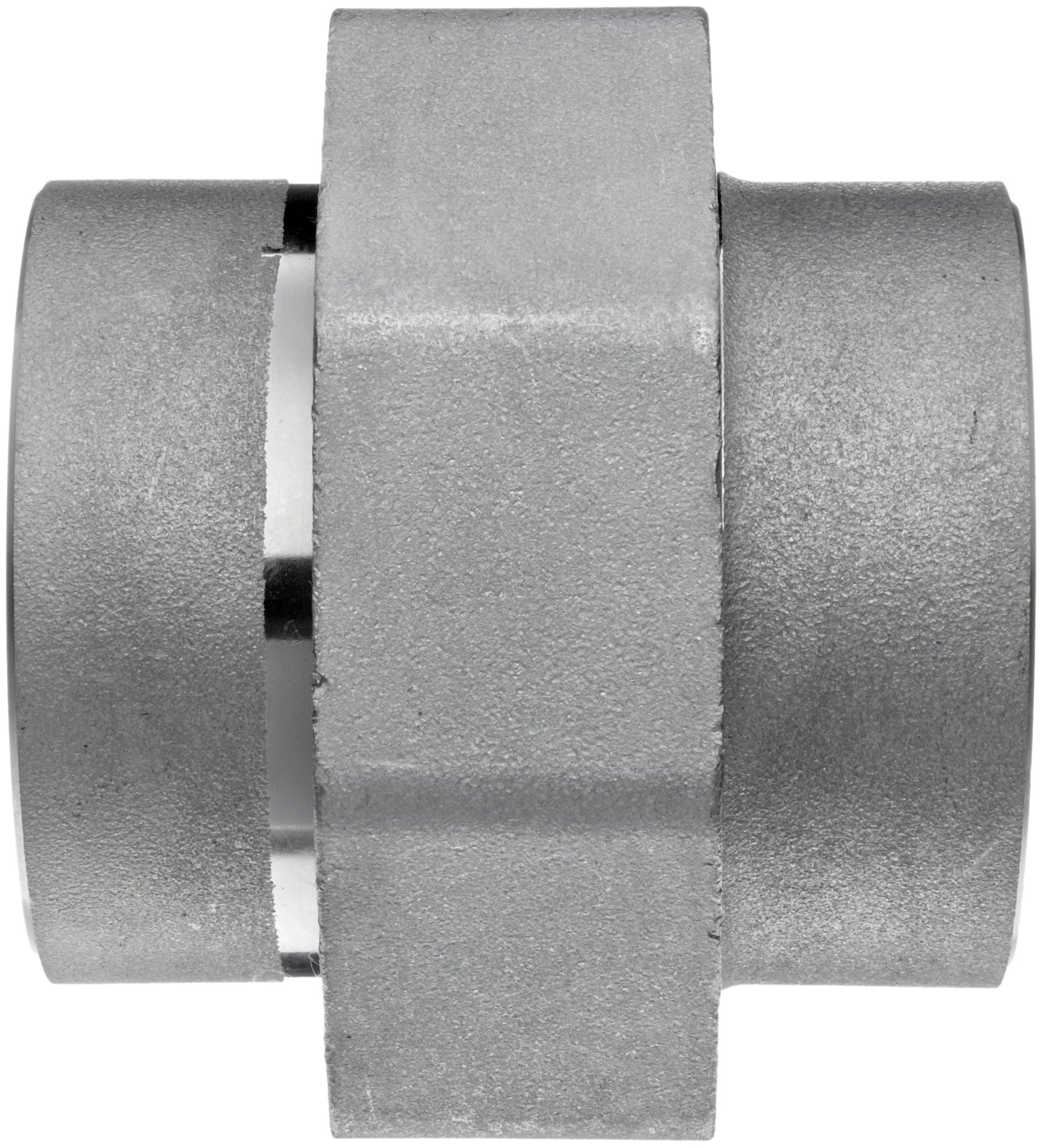

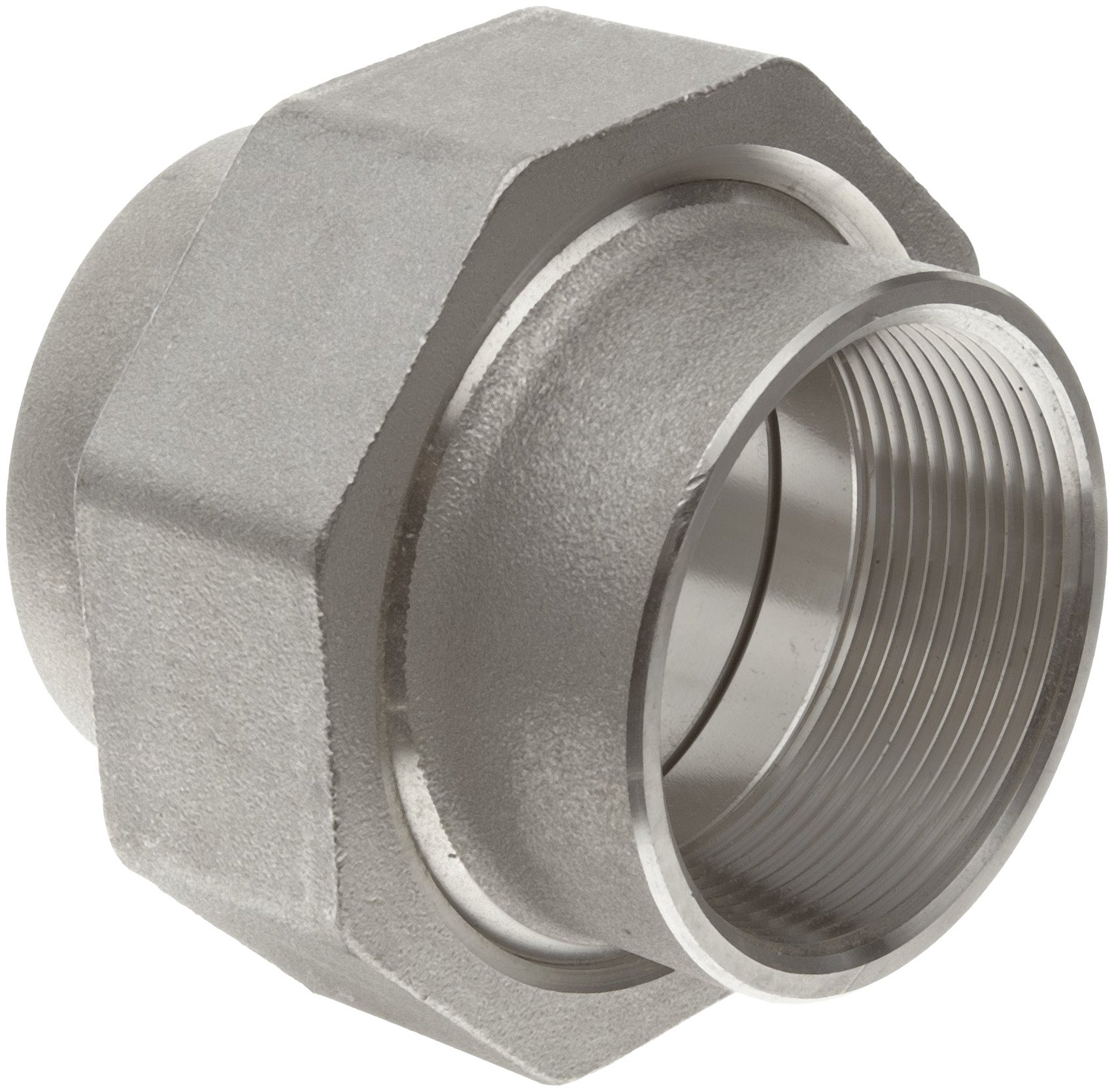

Stainless Steel 316 Pipe Fitting, Union, Class 1000, NPT Female

Be the first to review this item

Product Specifications
Item Shape
Union
Specification Met
ASTM , ASME A182 , SA182
Material Type
Stainless Steel 316
Pressure Rating Class
1000
Style Name
Threaded
System of Measurement
Inch

This item is no longer available

These items ship for FREE with 2-Day Shipping on orders over $50. (Details)

Want it delivered on Thu, Apr 24? Order in-stock items in the next 11 hrs 10 mins and choose One-Day Shipping at checkout.

  • Share
Currently showing 1-9 of 9
Pipe Size Length Pkg Qty ASIN

The Amazon Standard Item Number (ASIN) uniquely identifies
the item in the AmazonSupply.com (and Amazon) catalog.

Available

If an item is currently out of stock, but has an estimated lead time, you can place an order now and we will ship it as soon as it is available.
You can also order more than we currently have in stock.
Read more about back orders in our help section.

Price
All All All
Currently showing 1-9 of 9
1/8" 1-31/64" 1 B0043D27HY 1 $13.48 Buy Options
1/4" 1-31/64" 1 B0043D27II 2 $13.48 Buy Options
3/8" 1-39/64" 1 B0043D27JC 6 $16.91 Buy Options
1/2" 1-59/64" 1 B0043D27JW 11 $18.66 Buy Options
3/4" 1-15/16" 1 B0043D27K6 1 $25.99 Buy Options
1" 2-23/64" 1 B0043D27LA 6 $36.97 Buy Options
1-1/4" 2-39/64" 1 B0043D27LU 1 $57.61 Buy Options
1-1/2" 2-63/64" 1 B0043D27M4 3 $74.77 Buy Options
2" 3-1/16" 1 B0043D27ME 1 $90.68 Buy Options

Key Features

  • Union for connecting and extending two male pipes
  • Female National Pipe Taper (NPT) threads for connecting two male threaded pipes
  • Made from stainless steel 316 for strength
  • Higher corrosion resistance than stainless steel 304
  • Meets standards ASTM A182, ASME SA182, and ANSI B16.11 for quality assurance

Product Description

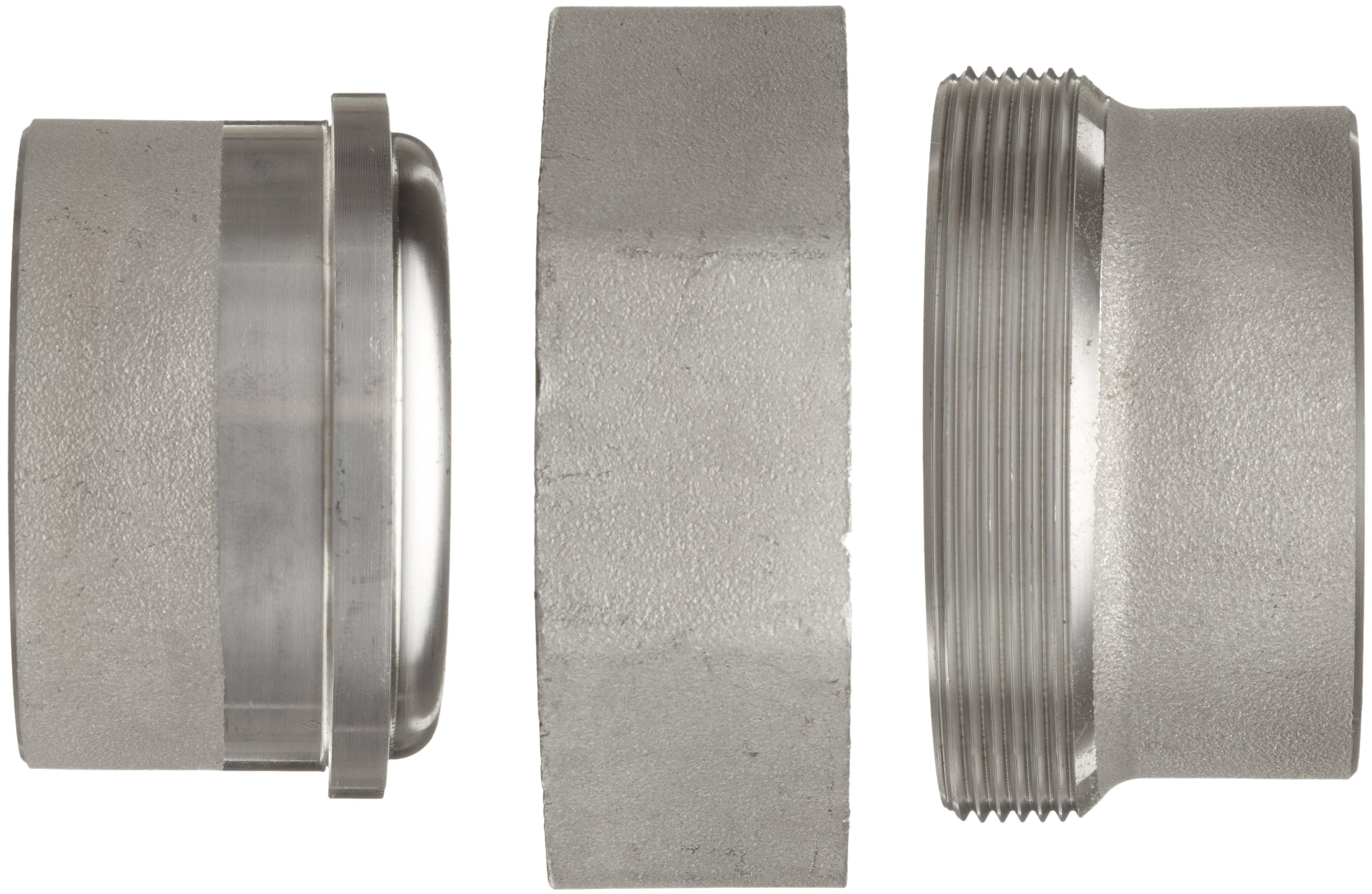

The Merit Brass union is a class 1000 stainless steel 316 cast pipe fitting with female National Pipe Taper (NPT) threads for connecting and extending two male threaded pipes. The union has three pieces and includes a threaded connection that can be screwed or unscrewed to connect or disconnect pipes more easily than couplings. It has NPT threads for creating tighter seals than straight threads. This union is made of stainless steel 316, which is higher strength and more corrosion resistant than stainless steel 304. This class 1000 fitting meets standards ASTM A182, ASME SA182, and ANSI B16.11 for quality assurance. Class is a standard relating to tolerance, construction, dimension, and wall thickness, but it is not a direct measurement of maximum working pressure.

Pipe fittings are components used for connecting, terminating, controlling flow, and changing the direction of piping in many different industries. When purchasing pipe fittings, consider the application, as this will affect material type, shape, size and required durability. Fittings are available threaded or unthreaded, in many shapes, styles, sizes, and schedules (pipe wall thickness).

Merit Brass manufactures pipe nipples following ISO 9001 standards for quality assurance. The company, family-owned since 1937 and headquartered in Cleveland, OH, distributes pipe fittings in the United States and Canada.
