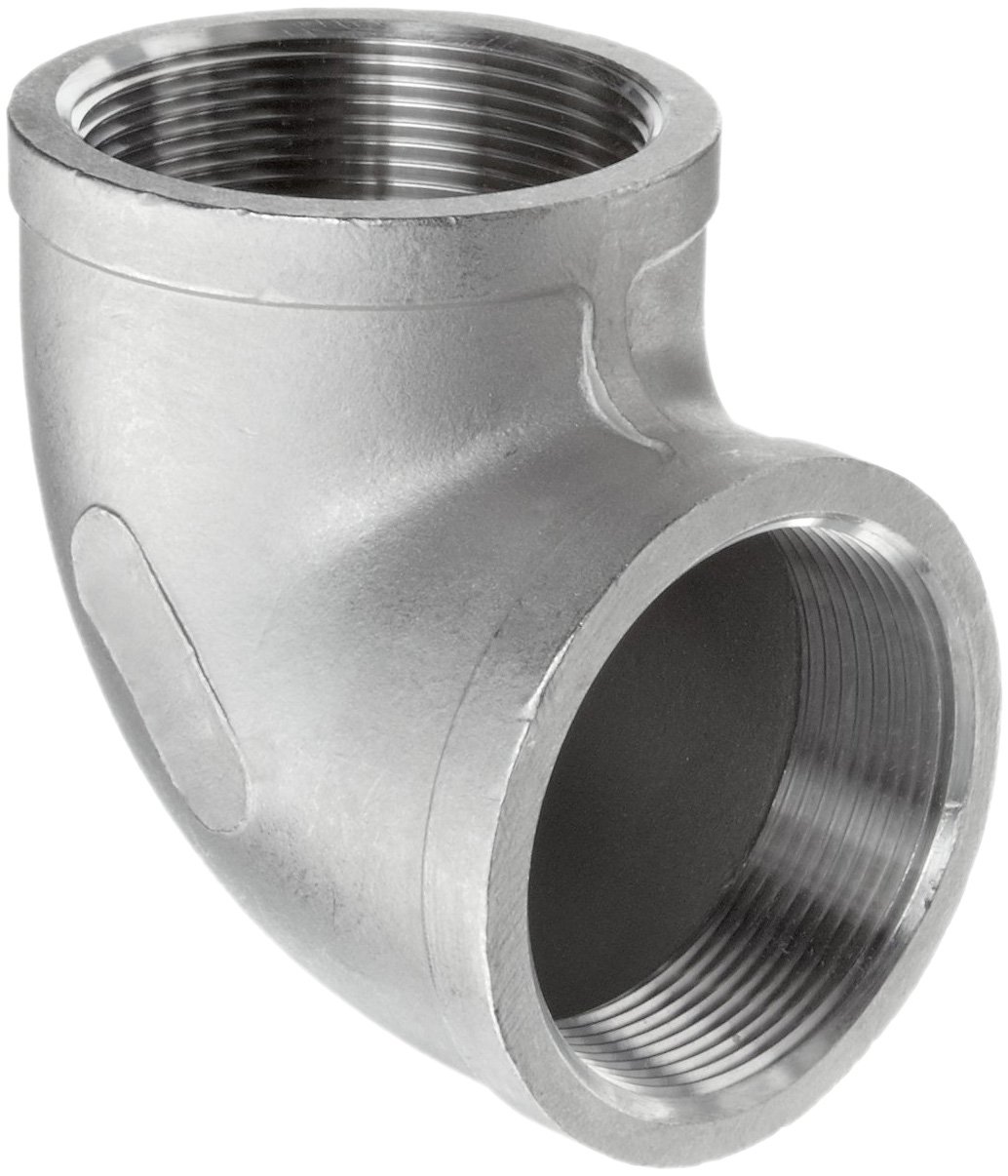

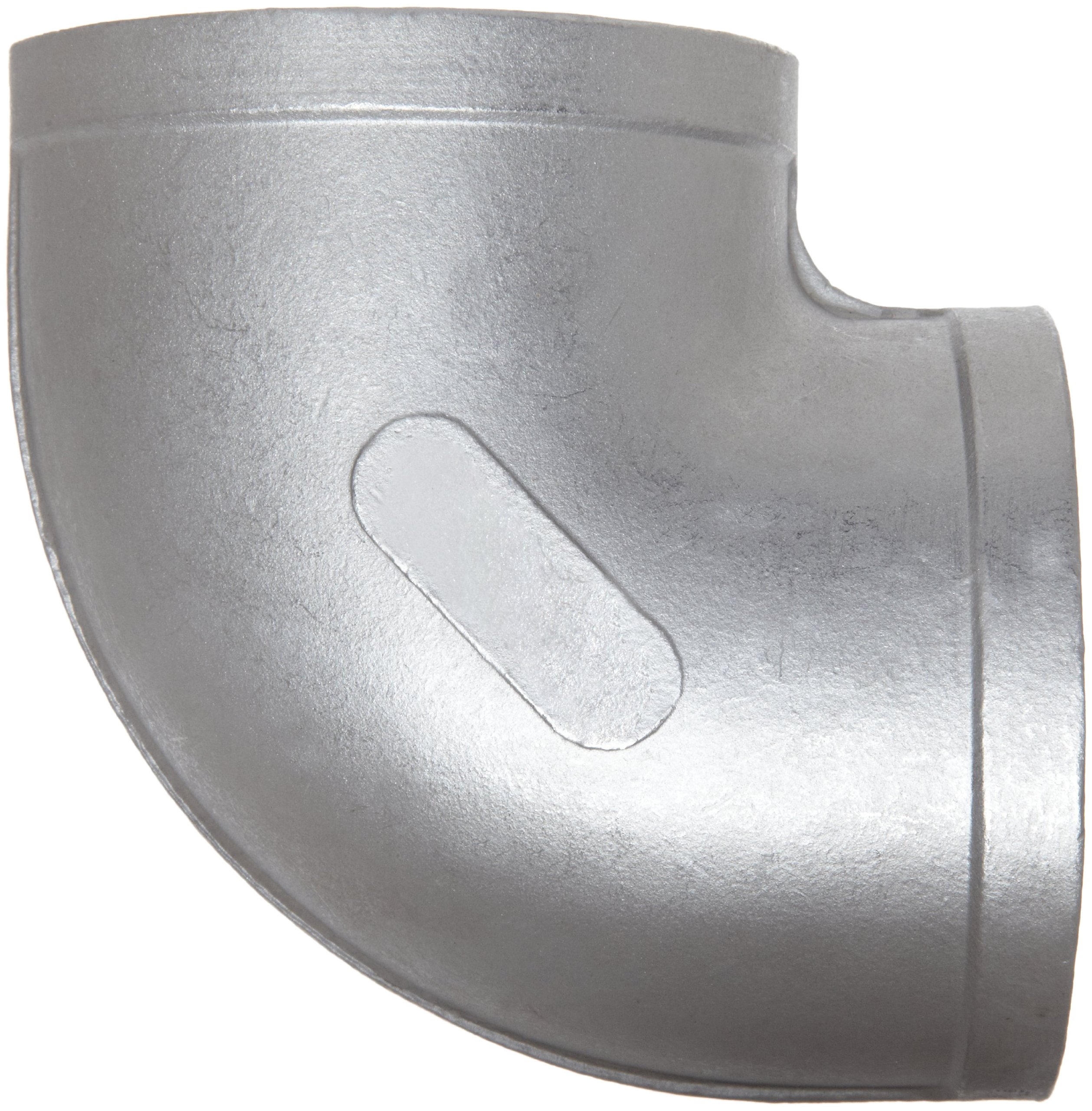

Stainless Steel 304 Cast Pipe Fitting, 90 Degree Elbow, Class 150, NPT Female

Be the first to review this item

Product Specifications
Specification Met
ISO 49 ANSI B1.20.1
Item Shape
90 Degree Elbow
Grade
304
Pressure Rating Class
150
Material Type
Stainless Steel
Style Name
Threaded
UNSPSC Code
40170000
Brand Name
Merit Brass
System of Measurement
Inch

This item is no longer available

These items ship for FREE with 2-Day Shipping on orders over $50. (Details)

Want it delivered on Thu, Oct 2? Order in-stock items in the next 4 hrs 12 mins and choose One-Day Shipping at checkout.

  • Share
Currently showing 1-10 of 10
Pipe Size Length Pkg Qty ASIN

The Amazon Standard Item Number (ASIN) uniquely identifies
the item in the AmazonSupply.com (and Amazon) catalog.

Available

If an item is currently out of stock, but has an estimated lead time, you can place an order now and we will ship it as soon as it is available.
You can also order more than we currently have in stock.
Read more about back orders in our help section.

Price
All All All
Currently showing 1-10 of 10
1/8"   1 B002082RK6 yes $2.38 Buy Options
3/8"   1 B002080Q22 yes $1.55 Buy Options
1" 1 7/64" 10 B00N9TUFPY Usually ships in 1 to 2 months $35.62 Buy Options
1"   1 B001VXXZI4 yes $3.40 Buy Options
1-1/4"   1 B0025PZMGU yes $6.00 Buy Options
1-1/2"   1 B001VXVZAE yes $8.10 Buy Options
2"   1 B00207XAL2 yes $10.50 Buy Options
2-1/2"   1 B0027SH6W8 yes $22.75 Buy Options
3"   1 B003GSKWVU yes $31.95 Buy Options
4"   1 B003GSKWWY yes $47.21 Buy Options

Key Features

  • 90-degree elbow for changing flow direction
  • Female National Pipe Taper (NPT) threads for connecting two pipes
  • Made of stainless steel 304 for strength
  • Lower carbon content for greater resistance to corrosion
  • Class 150 fittings conform to standards ANSI B1.20.1 and ISO 49 for quality assurance

Product Description

The Merit Brass stainless steel 304 cast pipe fitting is a 90-degree elbow with female National Pipe Taper (NPT) threads and is used to change flow direction between two pipes. Made of stainless steel 304, this class 150 elbow ensures higher corrosion resistance than 302 grade steel and it meets standards ANSI B1.20.1 and ISO 49 for quality assurance. Class is a standard relating to tolerance, construction, dimension and wall thickness but is not a direct measurement of maximum working pressure.

Pipe fittings are components used for connecting, terminating, controlling flow, and changing the direction of piping in many different industries. When purchasing pipe fittings, consider the application, as this will affect material type, shape, size and required durability. Fittings are available threaded or unthreaded, in many shapes, styles, sizes, and schedules (pipe wall thickness).

Merit Brass manufactures pipe nipples following ISO 9001 standards for quality assurance. Family-owned since 1937, the company is based in Cleveland, OH. Merit Brass distributes pipe fittings to the United States and Canada.
