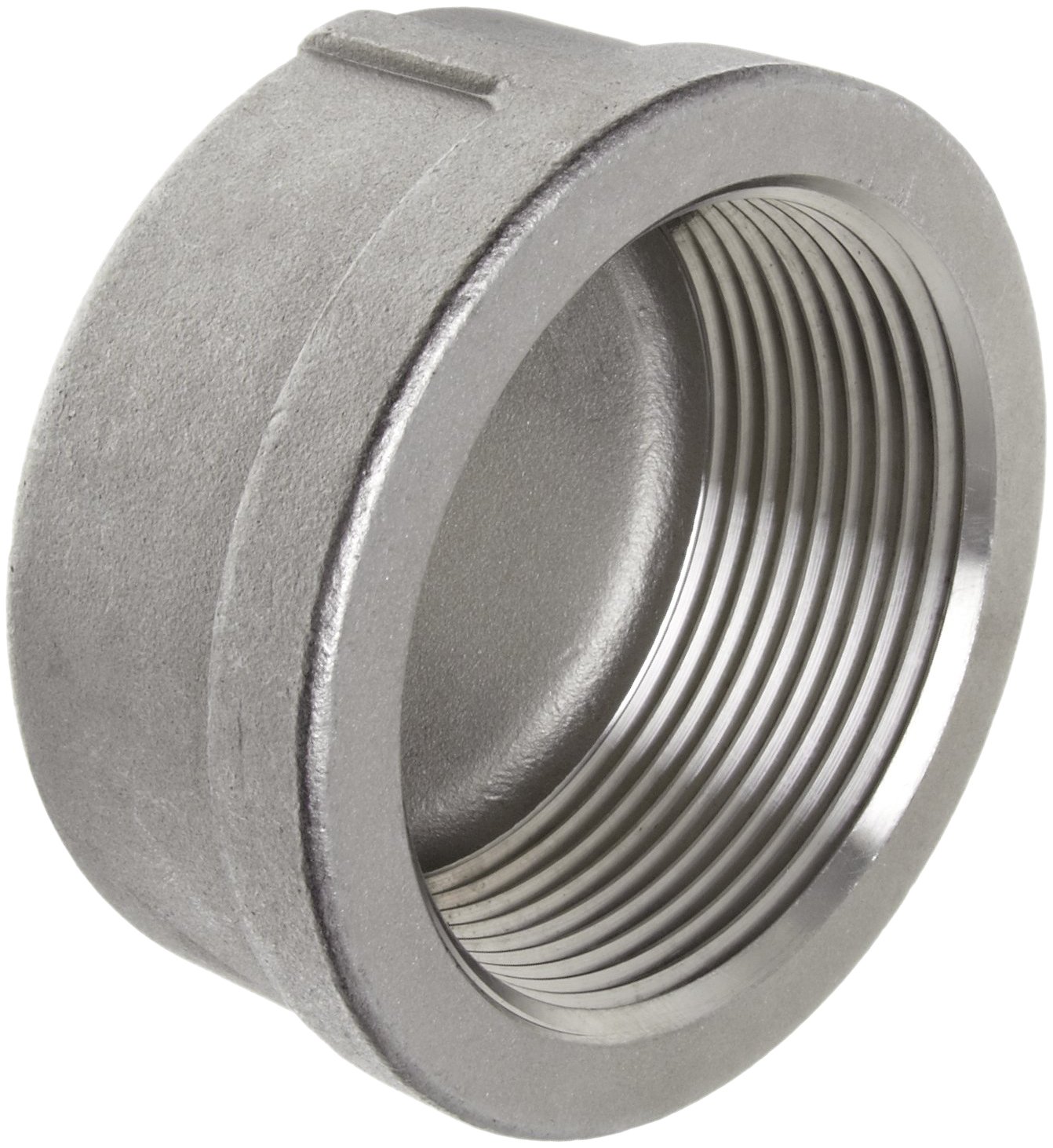

Stainless Steel 304 Cast Pipe Fitting, Cap, Class 150, NPT Female

Be the first to review this item

Product Specifications
Specification Met
ISO 49 ANSI B1.20.1
Item Shape
Cap
Grade
304
Pressure Rating Class
150
Material Type
Stainless Steel
Style Name
Threaded
UNSPSC Code
40170000
Brand Name
Merit Brass
System of Measurement
Inch

This item is no longer available

These items ship for FREE with 2-Day Shipping on orders over $50. (Details)

Want it delivered on Mon, Sep 22? Order in-stock items in the next 23 hrs 35 mins and choose One-Day Shipping at checkout.

  • Share
Currently showing 1-15 of 15
Pipe Size Length Pkg Qty ASIN

The Amazon Standard Item Number (ASIN) uniquely identifies
the item in the AmazonSupply.com (and Amazon) catalog.

Available

If an item is currently out of stock, but has an estimated lead time, you can place an order now and we will ship it as soon as it is available.
You can also order more than we currently have in stock.
Read more about back orders in our help section.

Price
All All All
Currently showing 1-15 of 15
1/8" 11/16" 1 B003GSKZQW yes $0.64 Buy Options
1/4" 11/16" 1 B003GSKZR6 yes $0.90 Buy Options
3/8" 1 1/8" 25 B00N9TDYL6 Usually ships in 3 to 6 weeks $27.45 Buy Options
3/8" 13/16" 1 B003GSKZRQ yes $1.05 Buy Options
3/4" 1-3/64" 1 B003GSKZSU Usually ships in 3 to 6 weeks $1.40 Buy Options
1"   10 B00N9TTXFM Usually ships in 3 to 6 weeks $22.60 Buy Options
1" 1-19/64" 1 B003GSKZT4 yes $2.10 Buy Options
1-1/4" 1-5/8" 1 B003GSKZTO Usually ships in 3 to 6 weeks $3.79 Buy Options
1-1/2"   10 B00N9TNKOC Usually ships in 3 to 6 weeks $49.37 Buy Options
1-1/2" 1-5/8" 1 B003GSKZU8 yes $5.00 Buy Options
2" 2 1/2" 10 B00N9TRHEQ Usually ships in 3 to 6 weeks $66.26 Buy Options
2" 1-49/64" 1 B003GSKZUS Usually ships in 3 to 6 weeks $6.40 Buy Options
2-1/2" 2" 1 B003GSKZV2 yes $11.50 Buy Options
3" 2-17/64" 1 B003GSKZVM yes $15.75 Buy Options
4" 2-27/64" 1 B003GSKZW6 yes $29.95 Buy Options

Key Features

  • Cap for closing the end of a pipe
  • Female National Pipe Taper (NPT) threads for connecting to male pipes
  • Made of stainless steel 304 for greater strength than 302 grade steel
  • Lower carbon content for greater resistance to corrosion
  • Class 150 fittings conform to standards ANSI B1.20.1 and ISO 49 for quality assurance

Product Description

The Merit Brass class 150 cap is a stainless steel 304 cast pipe fitting with female National Pipe Taper (NPT) threads for closing the end of a male pipe. The cap fits over the end of a male pipe and is made of stainless steel 304 for ensuring higher corrosion resistance than 302 grade steel. The class 150 fitting meets standards ANSI B1.20.1 and ISO 49 for quality assurance. Class is a standard relating to tolerance, construction, dimension, and wall thickness, but it is not a direct measurement of maximum working pressure.

Pipe fittings are components used for connecting, terminating, controlling flow, and changing the direction of piping in many different industries. When purchasing pipe fittings, consider the application, as this will affect material type, shape, size and required durability. Fittings are available threaded or unthreaded, in many shapes, styles, sizes, and schedules (pipe wall thickness).

Merit Brass manufactures pipe nipples following ISO 9001 standards for quality assurance. Family-owned since 1937, the company is based in Cleveland, OH. Merit Brass distributes pipe fittings to the United States and Canada.
