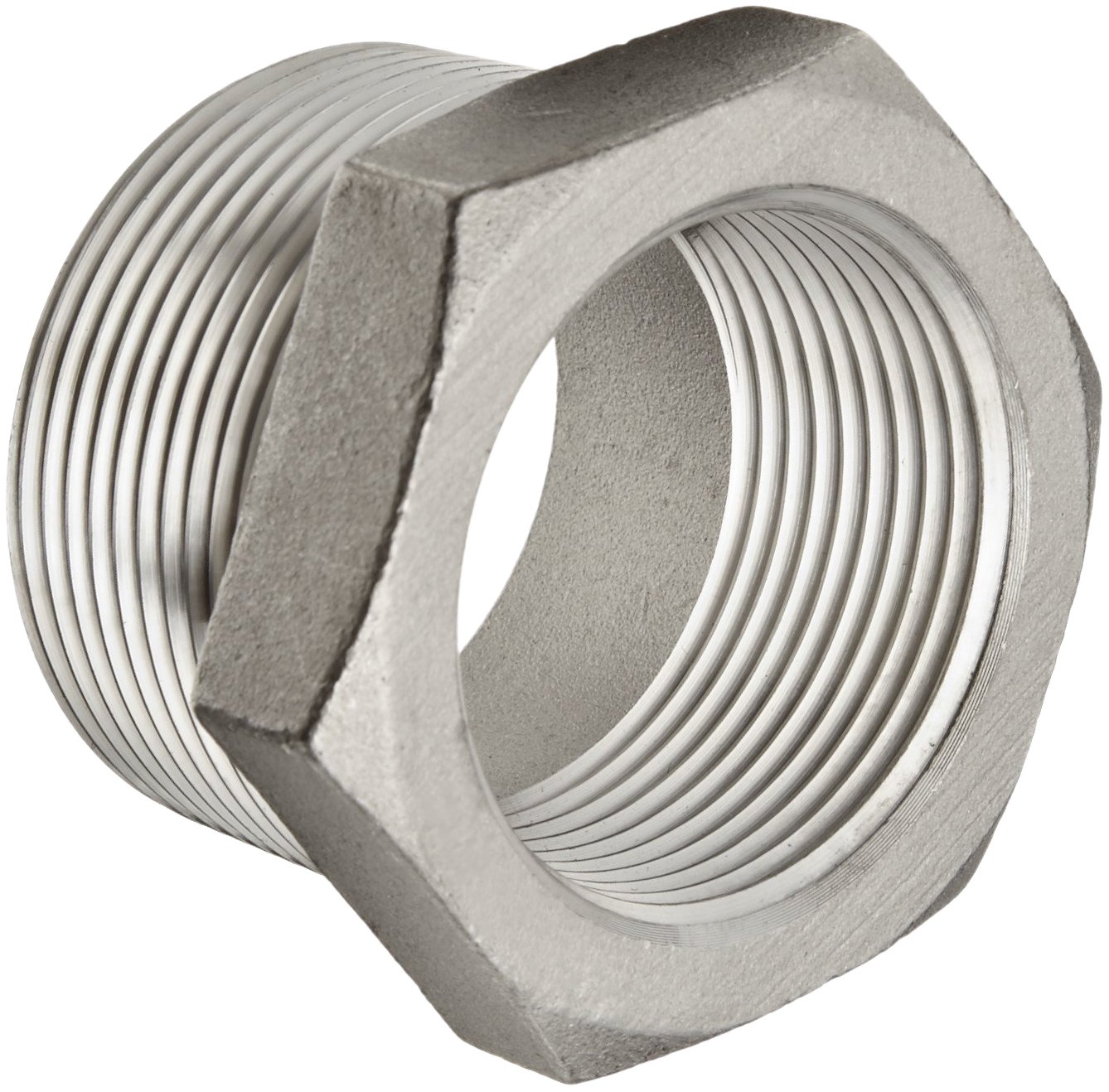

Stainless Steel 316 Cast Pipe Fitting, Hex Bushing, Class 150, NPT Male X NPT Female

Be the first to review this item

Product Specifications
Item Shape
Bushing
Specification Met
ISO 49 ANSI B1.20.1
Material Type
Stainless Steel 316
Pressure Rating Class
150
Style Name
Threaded
Brand Name
Merit Brass
System of Measurement
Inch

This item is no longer available

These items ship for FREE with 2-Day Shipping on orders over $50. (Details)

Want it delivered on Fri, Apr 25? Order in-stock items in the next 19 hrs 59 mins and choose One-Day Shipping at checkout.

  • Share
Currently showing 1-20 of 52 Next 20 »
Pipe Size Length Pkg Qty ASIN

The Amazon Standard Item Number (ASIN) uniquely identifies
the item in the AmazonSupply.com (and Amazon) catalog.

Available

If an item is currently out of stock, but has an estimated lead time, you can place an order now and we will ship it as soon as it is available.
You can also order more than we currently have in stock.
Read more about back orders in our help section.

Price
All All All
Currently showing 1-20 of 52 Next 20 »
1/4" x 1/8" 3/4" 1 B003GSL32W 4 $3.56 Buy Options
3/8" x 1/8" 25/32" 1 B003GSL33G 25 $4.45 Buy Options
3/8" x 1/4" 25/32" 1 B003GSL34A Usually ships in 1 to 2 months $4.05 Buy Options
1/2" x 1/8" 55/64" 1 B003GSL34U 5 $5.24 Buy Options
1/2" x 1/4" 55/64" 25 B00ICIW34I Usually ships in 1 to 2 months $30.75 Buy Options
1/2" x 1/4" 55/64" 1 B003GSL35O 18 $1.23 Buy Options
1/2" x 3/8" 55/64" 25 B00ICIW54G 2 $32.44 Buy Options
1/2" x 3/8" 55/64" 1 B003GSL368 71 $3.55 Buy Options
3/4" x 1/8" 31/32" 1 B003GSL36S 14 $1.84 Buy Options
3/4" x 1/4" 31/32" 1 B003GSL37C Usually ships in 1 to 2 months $1.87 Buy Options
3/4" x 3/8" 31/32" 1 B003GSL37W 17 $1.84 Buy Options
3/4" x 1/2" 31/32" 25 B00ICIU78C Usually ships in 1 to 2 months $46.00 Buy Options
3/4" x 1/2" 31/32" 1 B003GSL38Q 66 $1.84 Buy Options
1" x 1/8" 1-5/32" 1 B003GSL39A 23 $8.51 Buy Options
1" x 1/4" 1-5/32" 1 B003GSL39U 3 $2.60 Buy Options
1-1/4" x 1/8" 1-7/32" 1 B003GSL3C2 25 $9.90 Buy Options
1-1/4" x 3/8" 1-7/32" 1 B003GSL3D6 23 $10.33 Buy Options
1-1/4" x 1/2" 1-7/32" 1 B003GSL3E0 Usually ships in 1 to 2 months $5.20 Buy Options
1-1/4" x 3/4" 1-7/32" 1 B003GSL3EK 29 $9.83 Buy Options
1-1/4" x 1" 1-7/32" 1 B003GSL3F4 18 $5.20 Buy Options

Key Features

  • Bushing for connecting pipes of two different sizes
  • Male and female National Pipe Taper (NPT) threads for connecting pipes
  • Made from stainless steel 316 for strength
  • Higher corrosion resistance than stainless steel 304
  • Class 150 fittings conform to standards ANSI B1.20.1 and ISO 49 for quality assurance

Product Description

The Merit Brass class 150 hex bushing is a stainless steel 316 cast pipe fitting with male National Pipe Taper (NPT) threads on one end and female NPT threads on the other end for connecting pipes of different sizes. It has a hexagonal head for increased leverage and use with a wrench and is made of stainless steel 316, which is higher strength and more corrosion resistant than stainless steel 304. The class 150 fitting meets standards ANSI B1.20.1 and ISO 49 for quality assurance. Class is a standard relating to tolerance, construction, dimension, and wall thickness, but it is not a direct measurement of maximum working pressure.

Pipe fittings are components used for connecting, terminating, controlling flow, and changing the direction of piping in many different industries. When purchasing pipe fittings, consider the application, as this will affect material type, shape, size and required durability. Fittings are available threaded or unthreaded, in many shapes, styles, sizes, and schedules (pipe wall thickness).

Merit Brass manufactures pipe nipples following ISO 9001 standards for quality assurance. Family-owned since 1937, the company is based in Cleveland, OH. Merit Brass distributes pipe fittings to the United States and Canada.
