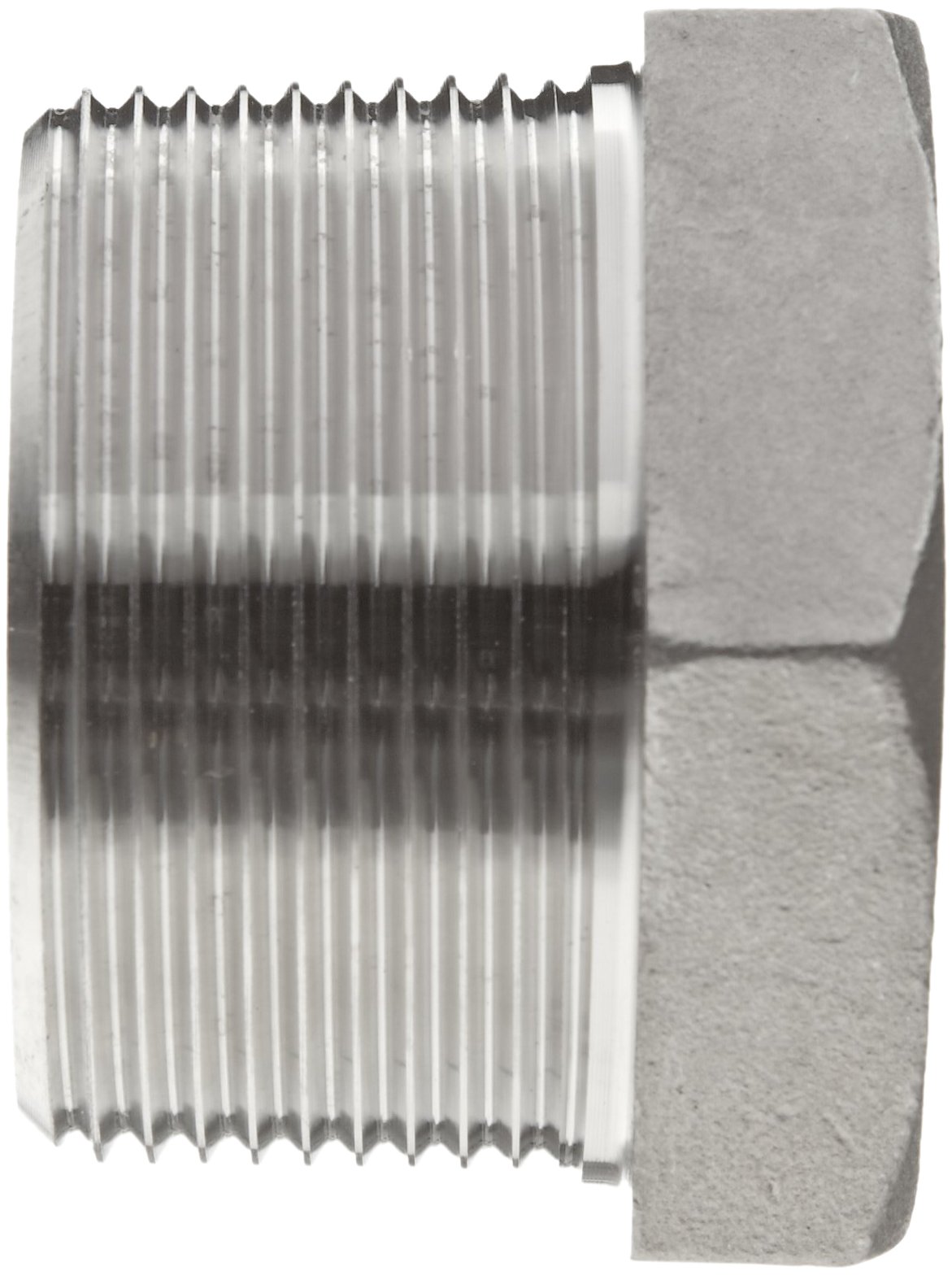

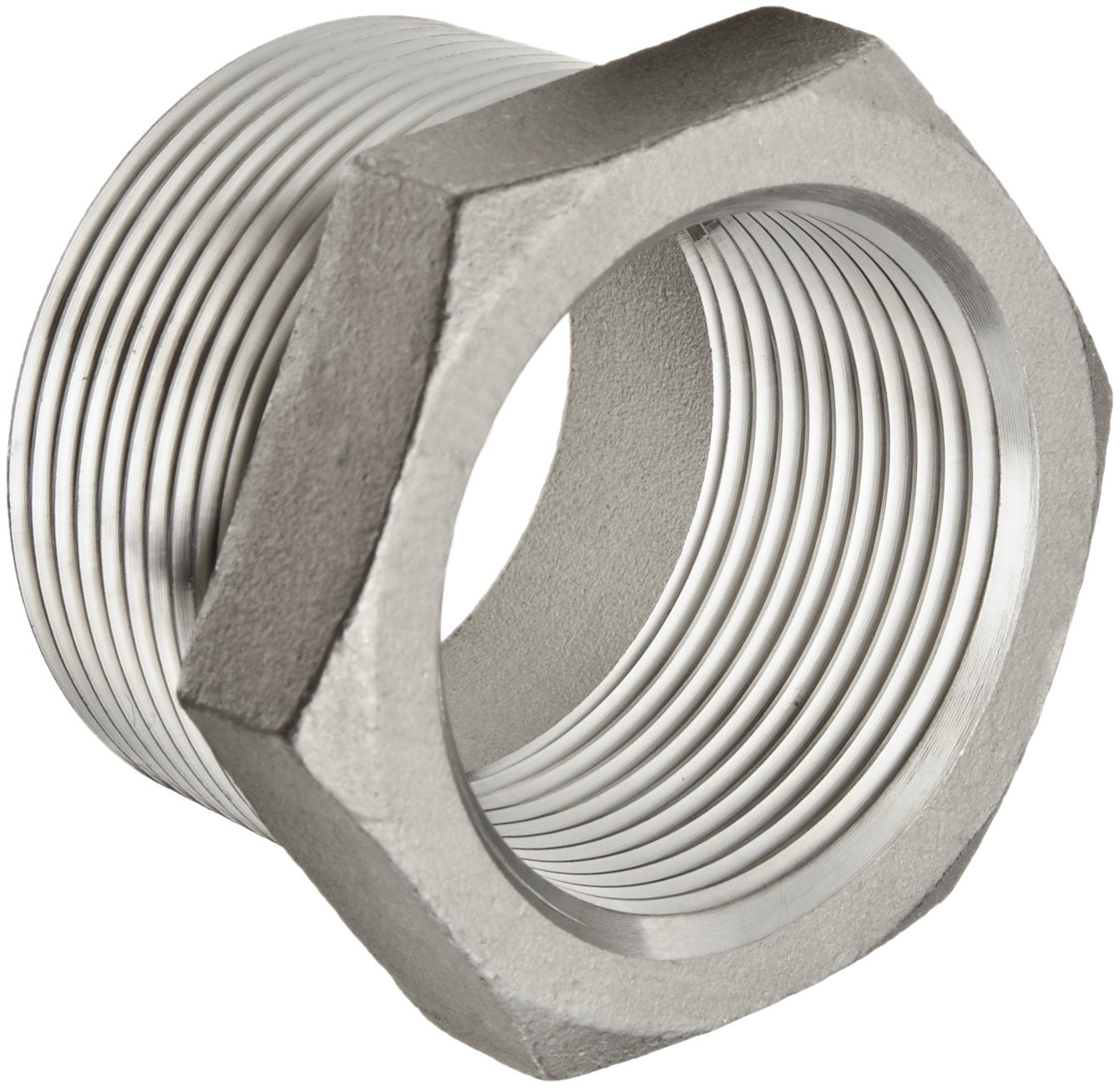

Stainless Steel 304 Cast Pipe Fitting, Hex Bushing, Class 150, NPT Male X Female

Be the first to review this item

Product Specifications
Specification Met
ISO 49 ANSI B1.20.1
Item Shape
Bushing
Grade
304
Pressure Rating Class
150
Material Type
Stainless Steel
Style Name
Threaded
UNSPSC Code
40170000
Brand Name
Merit Brass
System of Measurement
Inch

This item is no longer available

These items ship for FREE with 2-Day Shipping on orders over $50. (Details)

Want it delivered on Tue, Jul 29? Order in-stock items in the next 18 hrs 32 mins and choose One-Day Shipping at checkout.

  • Share
Currently showing 1-20 of 46 Next 20 »
Pipe Size Pkg Qty ASIN

The Amazon Standard Item Number (ASIN) uniquely identifies
the item in the AmazonSupply.com (and Amazon) catalog.

Available

If an item is currently out of stock, but has an estimated lead time, you can place an order now and we will ship it as soon as it is available.
You can also order more than we currently have in stock.
Read more about back orders in our help section.

Price
All All
Currently showing 1-20 of 46 Next 20 »
1/4" x 1/8" 1 B003GSKYZ4 12 $0.80 Buy Options
3/8" x 1/8" 1 B003GSKYZO 9 $0.90 Buy Options
3/8" x 1/4" 1 B003GSKZ08 25 $7.12 Buy Options
1/2" x 1/8" 1 B003GSKZ12 13 $1.15 Buy Options
1/2" x 3/8" 1 B003GSKZ26 11 $6.86 Buy Options
3/4" x 1/8" 1 B003GSKZ2G 16 $1.65 Buy Options
3/4" x 1/4" 1 B003GSKZ30 21 $1.70 Buy Options
3/4" x 3/8" 1 B003GSKZ3K 18 $6.69 Buy Options
1" x 1/8" 1 B003GSKZ4Y 4 $2.30 Buy Options
1" x 1/4" 1 B003GSKZ58 3 $2.30 Buy Options
1-1/4" x 1/8" 1 B003GSKZ7Q 22 $9.56 Buy Options
1-1/4" x 1/4" 1 B003GSKZ8K 10 $9.59 Buy Options
1-1/4" x 3/8" 1 B003GSKZ94 16 $9.57 Buy Options
1-1/4" x 1/2" 1 B003GSKZ9E 11 $9.64 Buy Options
1-1/4" x 3/4" 1 B003GSKZA8 14 $4.20 Buy Options
1" x 3/8" 1 B003GSKZ62 3 $2.30 Buy Options
1" x 1/2" 1 B003GSKZ6M 4 $2.30 Buy Options
1-1/2" x 1/4" 1 B003GSKZBM 8 $4.88 Buy Options
1-1/2" x 3/8" 1 B003GSKZCG 23 $4.88 Buy Options
1-1/2" x 1/2" 1 B003GSKZD0 4 $5.00 Buy Options

Key Features

  • Hex bushing for connecting pipes of different sizes
  • Male and female National Pipe Taper (NPT) threads for connecting two pipes
  • Made of stainless steel 304 for greater strength than 302 grade steel
  • Lower carbon content for greater resistance to corrosion
  • Class 150 fittings conform to standards ANSI B1.20.1 and ISO 49 for quality assurance

Product Description

The Merit Brass class 150 hex bushing is a stainless steel 304 cast pipe fitting with male National Pipe Taper (NPT) threads on one end and female NPT threads on the other end for connecting pipes of different sizes. It has a hexagonal head for increased leverage and use with a wrench. This class 150 fitting is made of stainless steel 304 to ensure higher corrosion resistance than 302 grade steel and it meets standards ANSI B1.20.1 and ISO 49 for quality assurance. Class is a standard relating to tolerance, construction, dimension, and wall thickness, but it is not a direct measurement of maximum working pressure.

Pipe fittings are components used for connecting, terminating, controlling flow, and changing the direction of piping in many different industries. When purchasing pipe fittings, consider the application, as this will affect material type, shape, size and required durability. Fittings are available threaded or unthreaded, in many shapes, styles, sizes, and schedules (pipe wall thickness).

Merit Brass manufactures pipe nipples following ISO 9001 standards for quality assurance. Family-owned since 1937, the company is based in Cleveland, OH. Merit Brass distributes pipe fittings to the United States and Canada.
