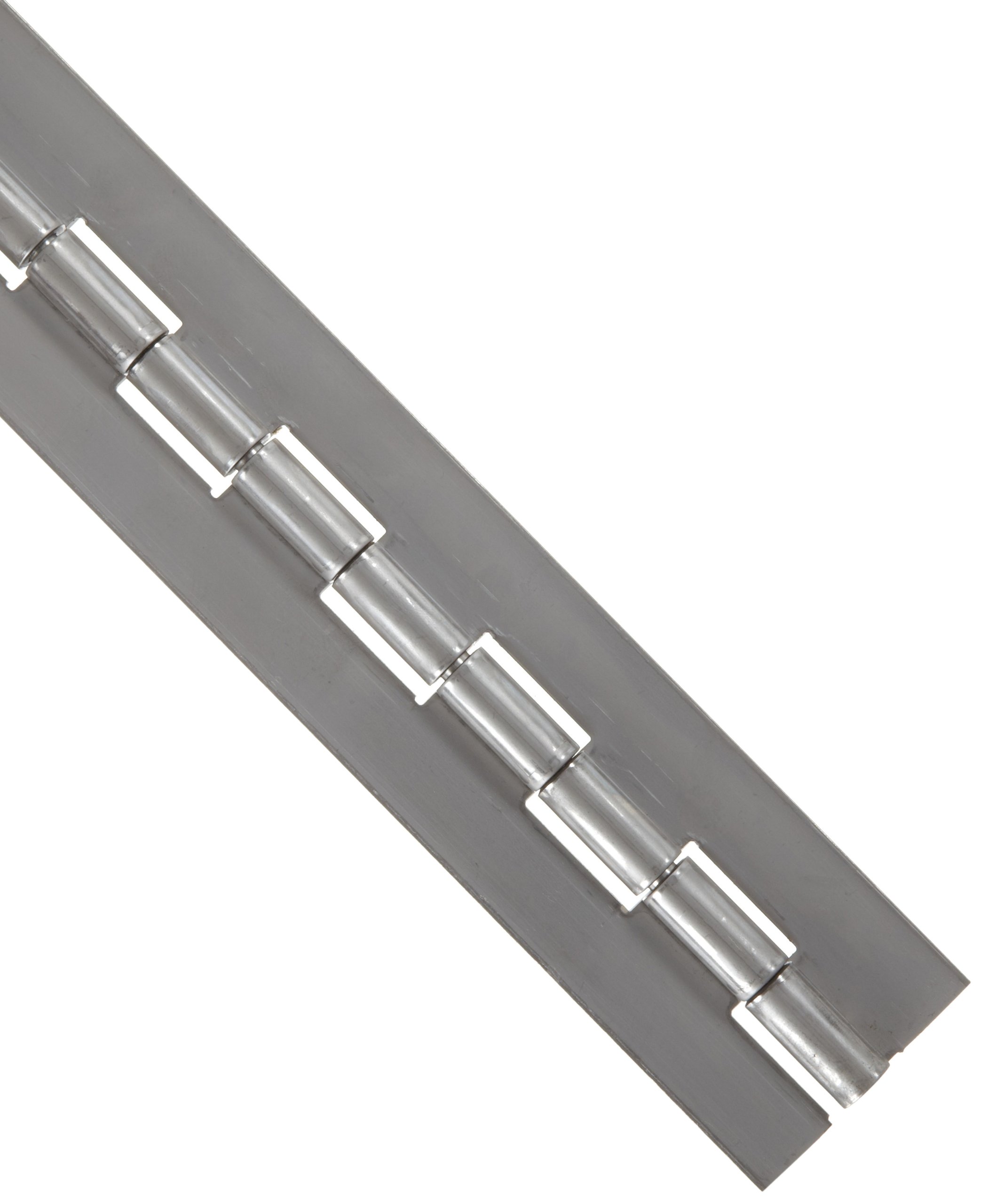

Click for larger image and other views Image is representative of the product family. Select individual products in the table below for more specific images and product specifications

How can we improve our images or Product Specifications?

Stainless Steel 316 Continuous Hinge Without Holes, Unfinished

Be the first to review this item

Product Specifications
Cross Section Shape
Flat
Exterior Finish
Unfinished
Mounting Type
Surface Mount
Material Type
stainless_steel_316
Style Name
Without Holes
UNSPSC Code
31162403
Brand Name
Small Parts
Screw Size
N/A

This item is no longer available

These items ship for FREE with 2-Day Shipping on orders over $50. (Details)

Want it delivered on Mon, Dec 22? Order in-stock items in the next 2 days 3 hrs 55 mins and choose One-Day Shipping at checkout.

  • Share
Currently showing 1-20 of 24 Next 4 »
Leaf Thickness Open Width Pin Diameter Knuckle Length Length Pkg Qty ASIN

The Amazon Standard Item Number (ASIN) uniquely identifies
the item in the AmazonSupply.com (and Amazon) catalog.

Available

If an item is currently out of stock, but has an estimated lead time, you can place an order now and we will ship it as soon as it is available.
You can also order more than we currently have in stock.
Read more about back orders in our help section.

Price
All All All All All All
Currently showing 1-20 of 24 Next 4 »
0.072" 3" 1/4" 1" 7 ft 1 B007XZGORI Temporarily out of stock. Order now and we'll deliver when available. $206.25 Buy Options
0.072" 3" 1/4" 1" 2 ft 1 B007XZGOK0 Temporarily out of stock. Order now and we'll deliver when available. $159.54 Buy Options
0.072" 3" 1/4" 1" 1 ft 1 B007XZGOBY Temporarily out of stock. Order now and we'll deliver when available. $150.37 Buy Options
0.072" 2" 1/4" 1" 7 ft 1 B007XZGO6Y Temporarily out of stock. Order now and we'll deliver when available. $188.68 Buy Options
0.072" 2" 1/4" 1" 2 ft 1 B007XZGO1O Temporarily out of stock. Order now and we'll deliver when available. $153.39 Buy Options
0.072" 2" 1/4" 1" 1 ft 1 B007XZGNU6 yes $20.76 Buy Options
0.072" 3" 1/4" 1" 8 ft 1 B005J0LHNU yes $107.12 Buy Options
0.072" 3" 1/4" 1" 6 ft 1 B005J0LEJ2 yes $112.94 Buy Options
0.072" 3" 1/4" 1" 5 ft 1 B005J0LS5C yes $70.11 Buy Options
0.072" 3" 1/4" 1" 4 ft 1 B005J0LQZ4 yes $58.88 Buy Options
0.072" 3" 1/4" 1" 3 ft 1 B005J0LPSM yes $43.13 Buy Options
0.072" 2" 1/4" 1" 8 ft 1 B005J0KV14 yes $90.58 Buy Options
0.072" 2" 1/4" 1" 6 ft 1 B005J0KT20 yes $64.59 Buy Options
0.072" 2" 1/4" 1" 5 ft 1 B005J0L5QO yes $56.98 Buy Options
0.072" 2" 1/4" 1" 4 ft 1 B005J0L4D8 yes $45.62 Buy Options
0.072" 2" 1/4" 1" 3 ft 1 B005J0L38Y yes $35.67 Buy Options
0.09" 2" 1/4" 1" 8 ft 1 B005J0M09A yes $88.09 Buy Options
0.09" 2" 1/4" 1" 6 ft 1 B005J0LYWY yes $68.70 Buy Options
0.09" 2" 1/4" 1" 4 ft 1 B005J0M2OI Usually ships in 3 to 5 weeks $53.20 Buy Options
0.09" 2" 1/4" 1" 2 ft 1 B005J0M8MY yes $23.33 Buy Options

Key Features

  • Surface-mounted for applications requiring continuous support along the full length of the hinge, such as appliance doors, industrial kitchen equipment, and metal storage cabinets
  • Stainless steel 316 has greater corrosion resistance than stainless steel 304 and is stronger than steel and aluminum
  • No holes allow this hinge to be spot welded in place or drilled for use with screws and rivets
  • Unfinished for projects with less exposure to corrosive environments

Product Description

The unfinished stainless steel 316 continuous hinge has no holes and is suitable for surface-mounted applications requiring uninterrupted support along the full length of the pieces being joined, such as appliance doors, industrial kitchen equipment, and metal storage cabinets. Stainless steel 316 is more corrosion resistant than stainless steel 304 and is stronger than aluminum and steel. This hinge can be customized for various surface-mounting needs because it does not have pre-drilled holes; it must be spot welded in place, or drilled for use with screws and rivets. Since this hinge is unfinished, it is suited for applications that will not be exposed to corrosive environments. The range of motion for this hinge is 270 degrees from the folded position.

Continuous hinges, also called piano hinges, provide support to run the full length of the doors, panels, or pieces being joined together. They are manufactured in a variety of materials and sizes, with or without holes, finished or unfinished, and can be cut to specific sizes. They also vary by knuckle length, pin diameter, leaf thickness, and open width. The knuckle is the tubular part of the hinge through which the pin passes, and knuckle length is the measurement of an individual section. The pin runs the length of the hinge holding the leaves together. The leaf is the flat metal portion of the hinge that extends laterally from the knuckle and revolves around the pin. Open width is the dimension from the outer edge of one leaf to the outer edge of the other when the hinge is fully open.
