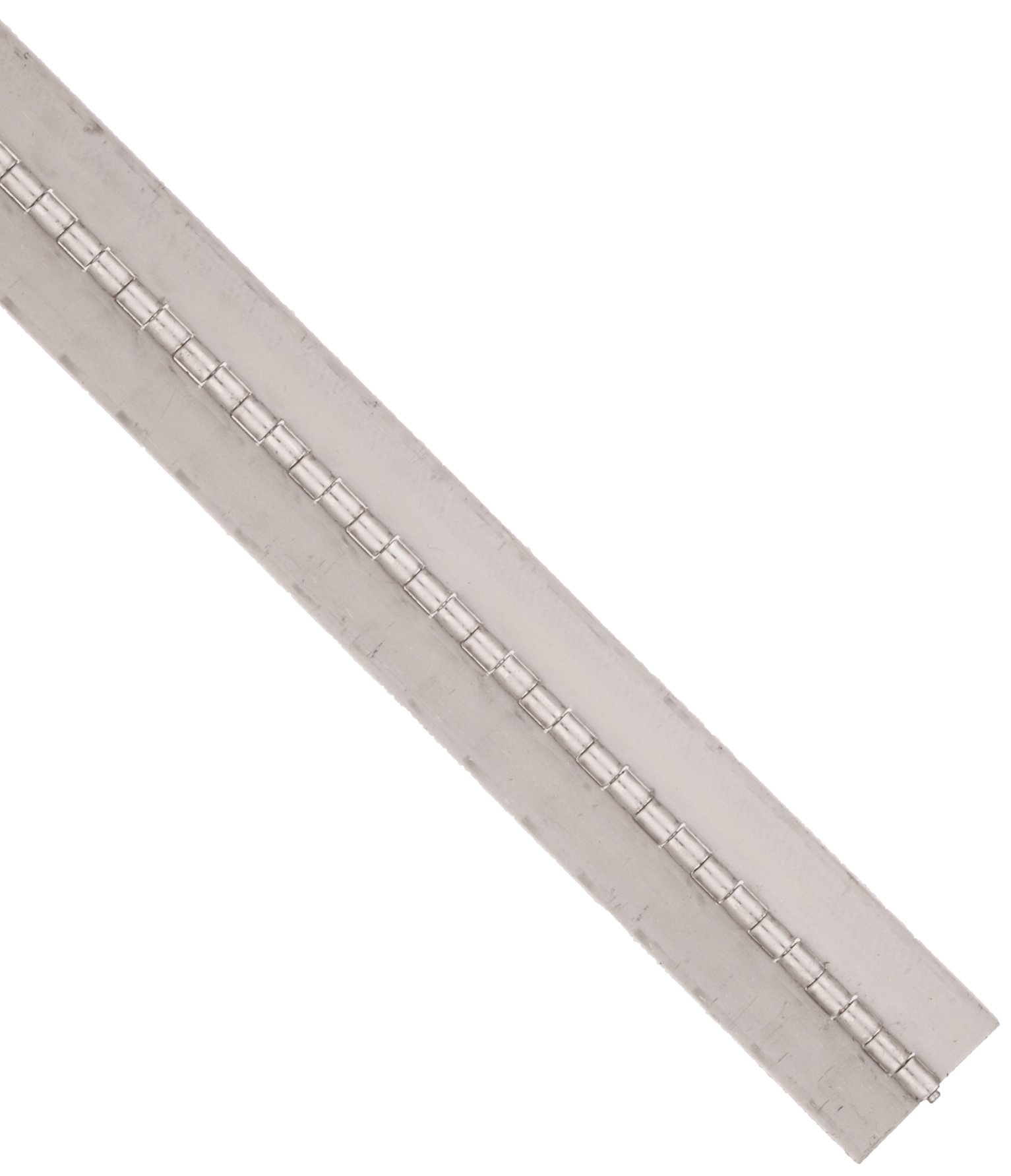

Stainless Steel 304 Continuous Hinge Without Holes, Unfinished

Be the first to review this item

Product Specifications
Cross Section Shape
Flat
Exterior Finish
Unfinished
Mounting Type
Surface Mount
Material Type
stainless_steel_304
Style Name
Without Holes
UNSPSC Code
31162403
Brand Name
Small Parts
Screw Size
N/A

This item is no longer available

Free Standard Shipping! on orders over $50.00.
(limited-time offer, certain restrictions apply) (Details)

  • Share
Currently showing 1-20 of 410 Next 20 »
Leaf Thickness Open Width Pin Diameter Knuckle Length Length Pkg Qty ASIN

The Amazon Standard Item Number (ASIN) uniquely identifies
the item in the AmazonSupply.com (and Amazon) catalog.

Available

If an item is currently out of stock, but has an estimated lead time, you can place an order now and we will ship it as soon as it is available.
You can also order more than we currently have in stock.
Read more about back orders in our help section.

Price
All All All All All All
Currently showing 1-20 of 410 Next 20 »
0.035" 1-1/2" 5/64" 1/4" 5 ft 1 B007HBO7MC yes $14.21 Buy Options
0.035" 2" 5/64" 1/4" 5 ft 1 B007HBOGNM Temporarily out of stock. Order now and we'll deliver when available. $15.45 Buy Options
0.035" 2" 5/64" 1/4" 4 ft 1 B007HBOFME yes $13.33 Buy Options
0.035" 2" 5/64" 1/4" 8 ft 1 B007HBOIR6 Temporarily out of stock. Order now and we'll deliver when available. $20.03 Buy Options
0.035" 2" 5/64" 1/4" 3 ft 1 B007HBOEGG Temporarily out of stock. Order now and we'll deliver when available. $13.09 Buy Options
0.035" 2" 5/64" 1/4" 7 ft 1 B007HBOI4O yes $19.76 Buy Options
0.035" 1-1/2" 5/64" 1/4" 4 ft 1 B007HBO6UU yes $12.71 Buy Options
0.035" 1-1/2" 5/64" 1/4" 8 ft 1 B007HBO8SA Temporarily out of stock. Order now and we'll deliver when available. $17.81 Buy Options
0.035" 1-1/2" 5/64" 1/4" 7 ft 1 B007HBO8DU Temporarily out of stock. Order now and we'll deliver when available. $16.65 Buy Options
0.035" 2" 5/64" 1/4" 6 ft 1 B005QSKU1U yes $16.86 Buy Options
0.035" 1-3/64" 1/16" 1/4" 8 ft 1 B006892T9M Temporarily out of stock. Order now and we'll deliver when available. $39.45 Buy Options
0.035" 1-3/64" 1/16" 1/4" 5 ft 1 B006892R6C yes $31.10 Buy Options
0.035" 1-3/64" 1/16" 1/4" 3 ft 1 B006892PQO yes $15.11 Buy Options
0.035" 1-1/4" 1/16" 1/4" 8 ft 1 B006892X4S Temporarily out of stock. Order now and we'll deliver when available. $43.97 Buy Options
0.035" 1-1/4" 1/16" 1/4" 3 ft 1 B006892US2 yes $19.01 Buy Options
0.035" 1-1/2" 5/64" 1/4" 6 ft 1 B005QSKTEI Temporarily out of stock. Order now and we'll deliver when available. $15.02 Buy Options
0.035" 1-1/2" 1/16" 1/4" 5 ft 1 B0068930CM Temporarily out of stock. Order now and we'll deliver when available. $37.23 Buy Options
0.035" 1-1/2" 1/16" 1/4" 3 ft 1 B006892YM4 yes $20.57 Buy Options
0.035" 1-1/4" 1/16" 1/4" 5 ft 1 B006892VNQ yes $32.71 Buy Options
0.035" 1-1/2" 1/16" 1/4" 8 ft 1 B0068932KW yes $48.03 Buy Options

Key Features

  • Surface-mounted for applications requiring continuous support along the full length of the hinge, such as appliance doors, industrial kitchen equipment, and metal storage cabinets
  • Stainless steel 304 is corrosion resistant up to 1,500 degrees F (though less resistant to corrosion than stainless steel 316), weldable, and stronger than steel and aluminum
  • No holes allow this hinge to be spot welded in place, or drilled for use with screws and rivets
  • Unfinished for applications with less exposure to corrosive environments

Product Description

The unfinished stainless steel 304 continuous hinge has no holes and is suitable for surface-mounted applications requiring uninterrupted support along the full length of the pieces being joined, such as appliance doors, industrial kitchen equipment, and metal storage cabinets. Stainless steel 304 resists corrosion up to 1,500 degrees F, but is not as resistant to corrosion as stainless steel 316. Since this hinge is unfinished, it is suited for applications that will not be exposed to corrosive environments. A weldable material, stainless steel 304 is stronger than steel and aluminum. This hinge can be customized for various surface-mounting needs because it does not have pre-drilled holes; it must be spot welded in place, or drilled for use with screws and rivets. The range of motion for this hinge is 270 degrees from the folded position.

Continuous hinges, also called piano hinges, provide support to run the full length of the doors, panels, or pieces being joined together. They are manufactured in a variety of materials and sizes, with or without holes, finished or unfinished, and can be cut to specific sizes. They also vary by knuckle length, pin diameter, leaf thickness, and open width. The knuckle is the tubular part of the hinge through which the pin passes, and knuckle length is the measurement of an individual section. The pin runs the length of the hinge holding the leaves together. The leaf is the flat metal portion of the hinge that extends laterally from the knuckle and revolves around the pin. Open width is the dimension from the outer edge of one leaf to the outer edge of the other when the hinge is fully open.
