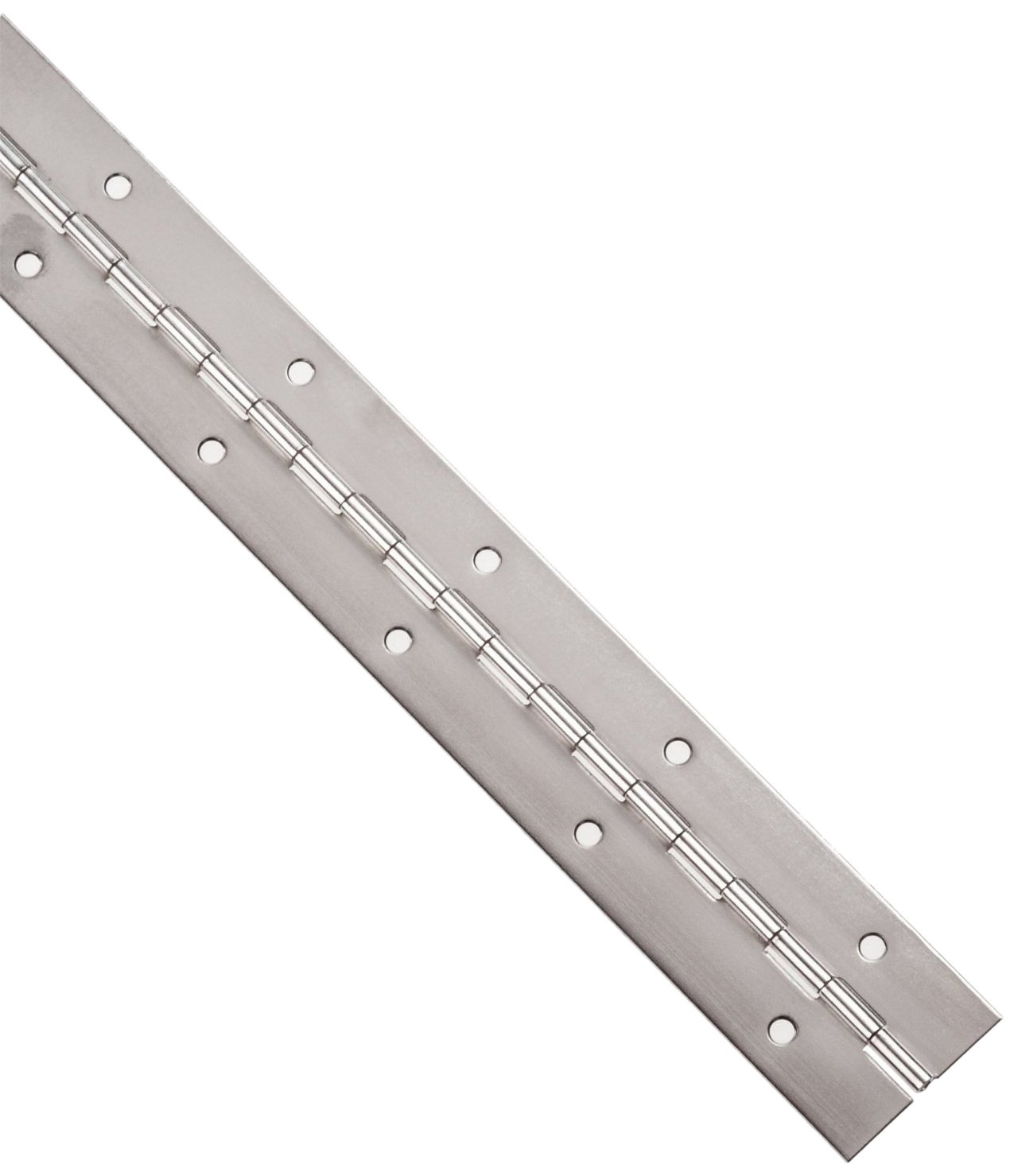

Stainless Steel 304 Continuous Hinge With Holes, Polished Finish

Be the first to review this item

Product Specifications
Cross Section Shape
Flat
Exterior Finish
Polished
Mounting Type
Surface Mount
Material Type
stainless_steel_304
Style Name
With Holes
UNSPSC Code
31162403
Brand Name
Small Parts

This item is no longer available

These items ship for FREE with 2-Day Shipping on orders over $50. (Details)

Want it delivered on Tue, Oct 28? Order in-stock items in the next 1 day 14 hrs 42 mins and choose One-Day Shipping at checkout.

  • Share
Currently showing 1-20 of 42 Next 20 »
Leaf Thickness Open Width Pin Diameter Knuckle Length Screw Size Length Pkg Qty ASIN

The Amazon Standard Item Number (ASIN) uniquely identifies
the item in the AmazonSupply.com (and Amazon) catalog.

Available

If an item is currently out of stock, but has an estimated lead time, you can place an order now and we will ship it as soon as it is available.
You can also order more than we currently have in stock.
Read more about back orders in our help section.

Price
All All All All All All All
Currently showing 1-20 of 42 Next 20 »
0.042" 1-1/2" 3/32" 1/2" #6 7 ft 1 B007XZGDZ6 yes $26.08 Buy Options
0.042" 1-1/4" 3/32" 1/2" #5 8 ft 1 B007XZGEPK yes $33.77 Buy Options
0.042" 1-1/4" 3/32" 1/2" #5 7 ft 1 B007XZGELO yes $24.64 Buy Options
0.042" 1-1/4" 3/32" 1/2" #5 5 ft 1 B007XZGEEG yes $20.18 Buy Options
0.042" 1-1/2" 3/32" 1/2" #6 8 ft 1 B007XZGE78 yes $16.77 Buy Options
0.042" 1-1/2" 3/32" 1/2" #6 5 ft 1 B007XZGDTM yes $21.95 Buy Options
0.042" 1-1/2" 3/32" 1/2" #6 2 ft 1 B007XZGDME yes $15.19 Buy Options
0.042" 1-1/16" 3/32" 1/2" #5 8 ft 1 B007XZGDDI Temporarily out of stock. Order now and we'll deliver when available. $111.83 Buy Options
0.042" 1-1/16" 3/32" 1/2" #5 7 ft 1 B007XZGD8I Temporarily out of stock. Order now and we'll deliver when available. $110.31 Buy Options
0.042" 1-1/16" 3/32" 1/2" #5 5 ft 1 B007XZGD38 Temporarily out of stock. Order now and we'll deliver when available. $103.84 Buy Options
0.042" 2" 3/32" 1/2" #6 8 ft 1 B007XZGFZ4 yes $37.19 Buy Options
0.042" 2" 3/32" 1/2" #6 7 ft 1 B007XZGFUY yes $32.71 Buy Options
0.042" 2" 3/32" 1/2" #6 5 ft 1 B007XZGFRW yes $35.00 Buy Options
0.042" 2" 3/32" 1/2" #6 4 ft 1 B007XZGFN6 yes $19.14 Buy Options
0.042" 2" 3/32" 1/2" #6 2 ft 1 B007XZGEX2 yes $15.61 Buy Options
0.042" 1-1/4" 3/32" 1/2" #5 3 ft 1 B005J0IW92 yes $21.03 Buy Options
0.042" 1-1/2" 3/32" 1/2" #6 6 ft 1 B005J0IXBY Temporarily out of stock. Order now and we'll deliver when available. $24.71 Buy Options
0.042" 1-1/2" 3/32" 1/2" #6 3 ft 1 B005J0J4KS yes $18.15 Buy Options
0.042" 1-1/2" 3/32" 1/2" #6 1 ft 1 B005J0J62E yes $15.56 Buy Options
0.042" 1-1/16" 3/32" 1/2" #5 6 ft 1 B005J0IIHS yes $24.87 Buy Options

Key Features

  • Surface-mounted for applications requiring continuous support along the full length of the hinge, such as appliance doors, industrial kitchen equipment, and metal storage cabinets
  • Stainless steel 304 is corrosion resistant up to 1,500 degrees F (though less resistant to corrosion than stainless steel 316), weldable, and stronger than steel and aluminum
  • Countersunk holes for convenience when mounting
  • Polished finish for additional corrosion resistance and a reflective decorative quality

Product Description

The stainless steel 304 continuous hinge has countersunk holes and is suitable for surface-mounted applications requiring uninterrupted support along the full length of the pieces being joined, such as appliance doors, industrial kitchen equipment, and metal storage cabinets. Stainless steel 304 resists corrosion up to 1,500 degrees F and is suitable for equipment used in corrosive environments, though not as resistant to corrosion as stainless steel 316. A weldable material, stainless steel 304 is stronger than steel and aluminum. The polished finish provides additional corrosion resistance and a reflective decorative quality. The range of motion for this hinge is 270 degrees from the folded position.

Continuous hinges, also called piano hinges, provide support to run the full length of the doors, panels, or pieces being joined together. They are manufactured in a variety of materials and sizes, with or without holes, finished or unfinished, and can be cut to specific sizes. They also vary by knuckle length, pin diameter, leaf thickness, and open width. The knuckle is the tubular part of the hinge through which the pin passes, and knuckle length is the measurement of an individual section. The pin runs the length of the hinge holding the leaves together. The leaf is the flat metal portion of the hinge that extends laterally from the knuckle and revolves around the pin. Open width is the dimension from the outer edge of one leaf to the outer edge of the other when the hinge is fully open.
