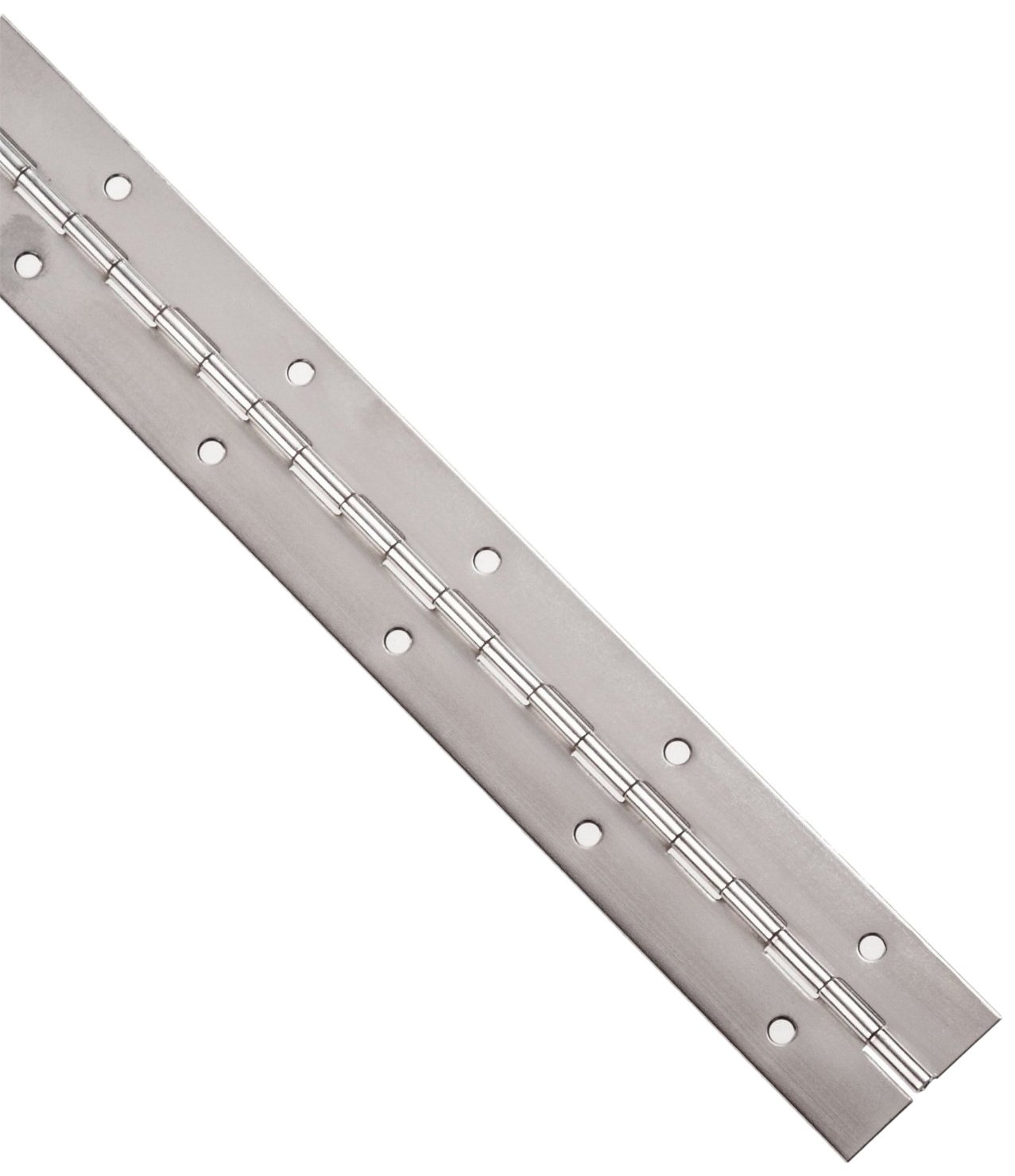

Click for larger image and other views Image is representative of the product family. Select individual products in the table below for more specific images and product specifications

How can we improve our images or Product Specifications?

Stainless Steel 304 Continuous Hinge With Holes, Unfinished

Be the first to review this item

Product Specifications
Brand Name
Small Parts
Cross Section Shape
Flat
Exterior Finish
Unfinished
Material Type
304 Stainless Steel
Mounting Type
Surface Mount
Style Name
With Holes

0 items added

To add items,
choose from the table below



Free Standard Shipping! on orders over $50.00.
(limited-time offer, certain restrictions apply) (Details)

  • Share
Currently showing 20 of 61 Show All
Leaf Thickness Open Width Pin Diameter Knuckle Length Screw Size Length Pkg Qty ASIN

The Amazon Standard Item Number (ASIN) uniquely identifies
the item in the AmazonSupply.com (and Amazon) catalog.

 Available

If an item is currently out of stock, but has an estimated lead time, you can place an order now and we will ship it as soon as it is available.
You can also order more than we currently have in stock.
Read more about back orders in our help section.

 Price Quantity
All All All All All All All
Currently showing 20 of 61 Show All
0.042" 2" 3/32" 1/2" #4 8 ft 1 B007XZGJSW In Stock (21) $25.99
0.042" 2" 3/32" 1/2" #4 7 ft 1 B007XZGJMI Usually ships in 1 to 2 weeks $30.77
0.042" 2" 3/32" 1/2" #4 5 ft 1 B007XZGJGO Usually ships in 1 to 2 weeks $28.01
0.042" 2" 3/32" 1/2" #4 4 ft 1 B007XZGJAA Usually ships in 1 to 2 weeks $24.72
0.042" 1-1/4" 3/32" 1/2" #4 8 ft 1 B007XZGIY2 Usually ships in 4 to 6 weeks $24.90
0.042" 1-1/4" 3/32" 1/2" #4 7 ft 1 B007XZGIVA Usually ships in 4 to 6 weeks $25.32
0.042" 1-1/4" 3/32" 1/2" #4 5 ft 1 B007XZGIP6 Usually ships in 4 to 6 weeks $24.91
0.042" 1-1/4" 3/32" 1/2" #4 4 ft 1 B007XZGIJM Usually ships in 4 to 6 weeks $21.16
0.042" 1-1/2" 3/32" 1/2" #4 8 ft 1 B007XZGICY Usually ships in 1 to 2 weeks $28.75
0.042" 1-1/2" 3/32" 1/2" #4 7 ft 1 B007XZGI9M Usually ships in 1 to 2 weeks $27.28
0.042" 1-1/2" 3/32" 1/2" #4 6 ft 1 B007XZGI6U Usually ships in 4 to 6 weeks $26.56
0.042" 1-1/2" 3/32" 1/2" #4 5 ft 1 B007XZGI38 In Stock (38) $26.09
0.042" 1-1/2" 3/32" 1/2" #4 4 ft 1 B007XZGHZM Usually ships in 1 to 2 weeks $24.32
0.042" 1-1/16" 3/32" 1/2" #4 8 ft 1 B007XZGHR0 Usually ships in 4 to 6 weeks $38.33
0.042" 1-1/16" 3/32" 1/2" #4 7 ft 1 B007XZGHNY Usually ships in 4 to 6 weeks $32.75
0.042" 1-1/16" 3/32" 1/2" #4 5 ft 1 B007XZGHJI Usually ships in 4 to 6 weeks $22.08
0.042" 1-1/16" 3/32" 1/2" #4 4 ft 1 B007XZGHGG Usually ships in 4 to 6 weeks $23.83
0.042" 2" 3/32" 1/2" #4 3 ft 1 B005J0J8WC In Stock (24) $24.96
0.042" 1-1/2" 3/32" 1/2" #4 3 ft 1 B005J0J3FO In Stock (7) $17.74
0.042" 2" 3/32" 1/2" #4 1 ft 1 B005J0WTLO In Stock (63) $5.99

Key Features

  • Surface-mounted for applications requiring continuous support along the full length of the hinge, such as cabinet lids, folding partitions, and metal storage cabinets
  • Stainless steel 304 is corrosion resistant up to 1,500 degrees F (though less resistant to corrosion than stainless steel 316), weldable, and stronger than steel and aluminum
  • Countersunk holes for convenience when mounting
  • Unfinished for projects with less exposure to corrosive environments

Product Description

The stainless steel 304 continuous hinge has countersunk holes and is suitable for surface-mounted applications requiring uninterrupted support along the full length of the pieces being joined, such as appliance doors, industrial kitchen equipment, and metal storage cabinets. Stainless steel 304 resists corrosion up to 1,500 degrees F and is suitable for applications used in corrosive environments, though not as resistant to corrosion as stainless steel 316. A weldable material, stainless steel 304 is stronger than steel and aluminum. Since this hinge is unfinished, it is suited for applications that will not be exposed to corrosive environments. The range of motion for this hinge is 270 degrees from the folded position.

Continuous hinges, also called piano hinges, provide support to run the full length of the doors, panels, or pieces being joined together. They are manufactured in a variety of materials and sizes, with or without holes, finished or unfinished, and can be cut to specific sizes. They also vary by knuckle length, pin diameter, leaf thickness, and open width. The knuckle is the tubular part of the hinge through which the pin passes, and knuckle length is the measurement of an individual section. The pin runs the length of the hinge holding the leaves together. The leaf is the flat metal portion of the hinge that extends laterally from the knuckle and revolves around the pin. Open width is the dimension from the outer edge of one leaf to the outer edge of the other when the hinge is fully open.
