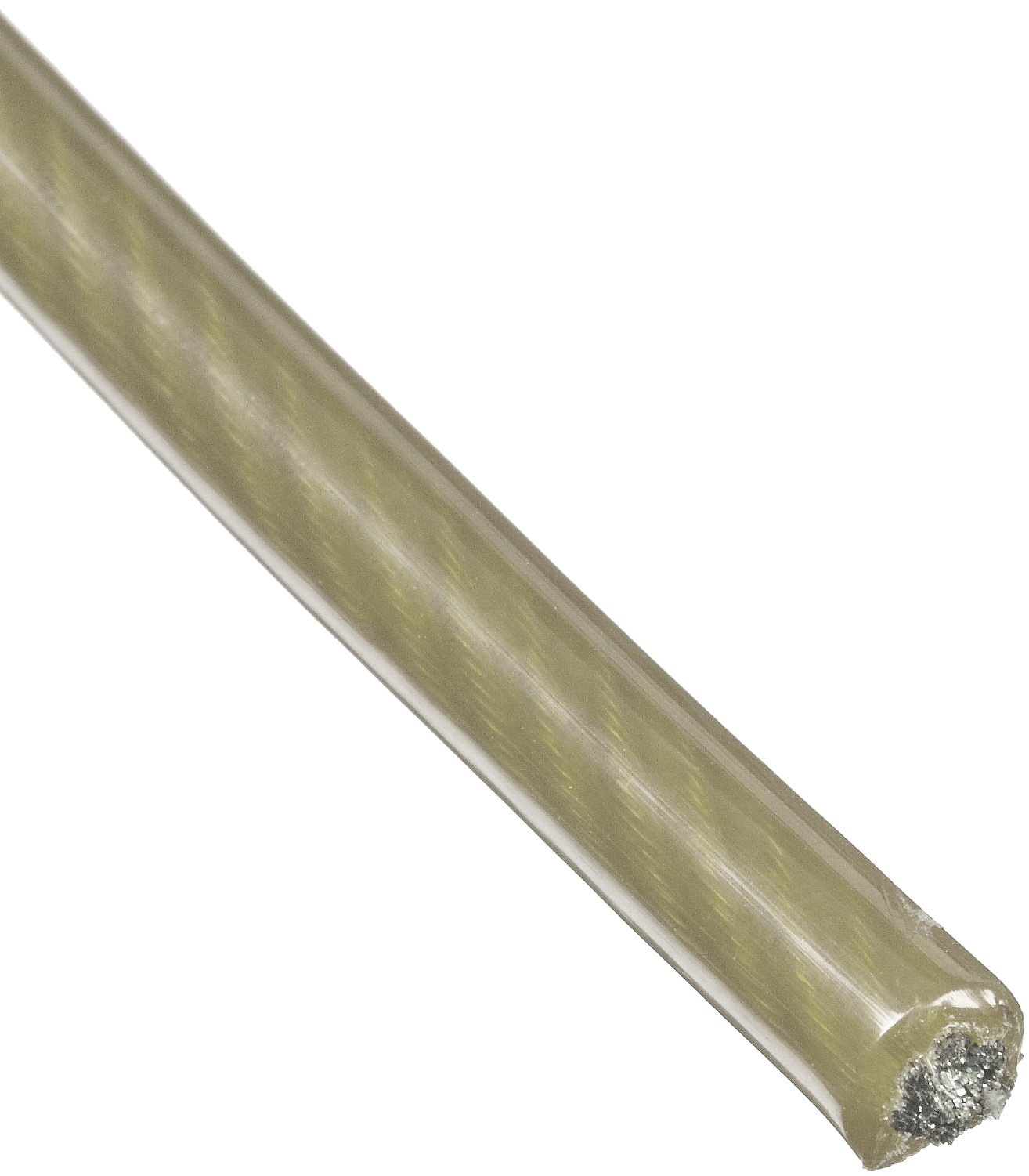

Loos Stainless Steel 302/304 Wire Rope, Nylon Coated, 7x19 Strand Core, Natural

Be the first to review this item

Product Specifications
Number of Items
1
Exterior Finish
Nylon Coated
Standard Construction
7x19 Strand Core
Grade
302/304
Material Type
Stainless Steel
Color Name
Natural
UNSPSC Code
31150000
Brand Name
Loos & Co.
System of Measurement
Inch

This item is no longer available

These items ship for FREE with 2-Day Shipping on orders over $50. (Details)

Want it delivered on Fri, Oct 3? Order in-stock items in the next 16 hrs 31 mins and choose One-Day Shipping at checkout.

  • Share
Currently showing 1-11 of 11
Bare OD Coated OD Length Breaking Strength ASIN

The Amazon Standard Item Number (ASIN) uniquely identifies
the item in the AmazonSupply.com (and Amazon) catalog.

Available

If an item is currently out of stock, but has an estimated lead time, you can place an order now and we will ship it as soon as it is available.
You can also order more than we currently have in stock.
Read more about back orders in our help section.

Price
All All All All
Currently showing 1-11 of 11
1/8" 7/32" 10 ft 1760 lbs B0013HCG7O yes $3.74 Buy Options
1/8" 3/16" 50 ft 1760 lbs B0013HGN7S yes $33.05 Buy Options
1/8" 3/16" 10 ft 1760 lbs B0013HCG56 yes $8.33 Buy Options
1/8" 7/32" 50 ft 1760 lbs B0013HGNAK yes $10.97 Buy Options
3/16" 1/4" 25 ft 3700 lbs B0013HCGDS yes $10.11 Buy Options
3/16" 1/4" 50 ft 3700 lbs B0013HIEAC yes $13.92 Buy Options
3/16" 1/4" 10 ft 3700 lbs B0013HJZIC yes $4.32 Buy Options
3/16" 5/16" 250 ft 3700 lbs B0013HCGGK yes $249.17 Buy Options
1/4" 5/16" 25 ft 6400 lbs B0013HJZOG yes $35.64 Buy Options
3/8" 15/32" 10 ft 12000 lbs B0013HIEM0 yes $32.33 Buy Options
3/8" 15/32" 100 ft 12000 lbs B0013HJZVE yes $265.14 Buy Options

Key Features

  • Natural-colored wire rope for ease of recognition
  • Stainless steel 18-8 is corrosion-resistant, and withstands high temperatures for a wide range of operation
  • Stainless steel is a versatile material, commonly used in a wide variety of applications, and in saline atmospheres
  • Nylon coating has excellent abrasion-resistance, and resists crushing and cracking
  • 7x19 strand core is more flexible and fatigue-resistant than 7x7 class construction

Product Description

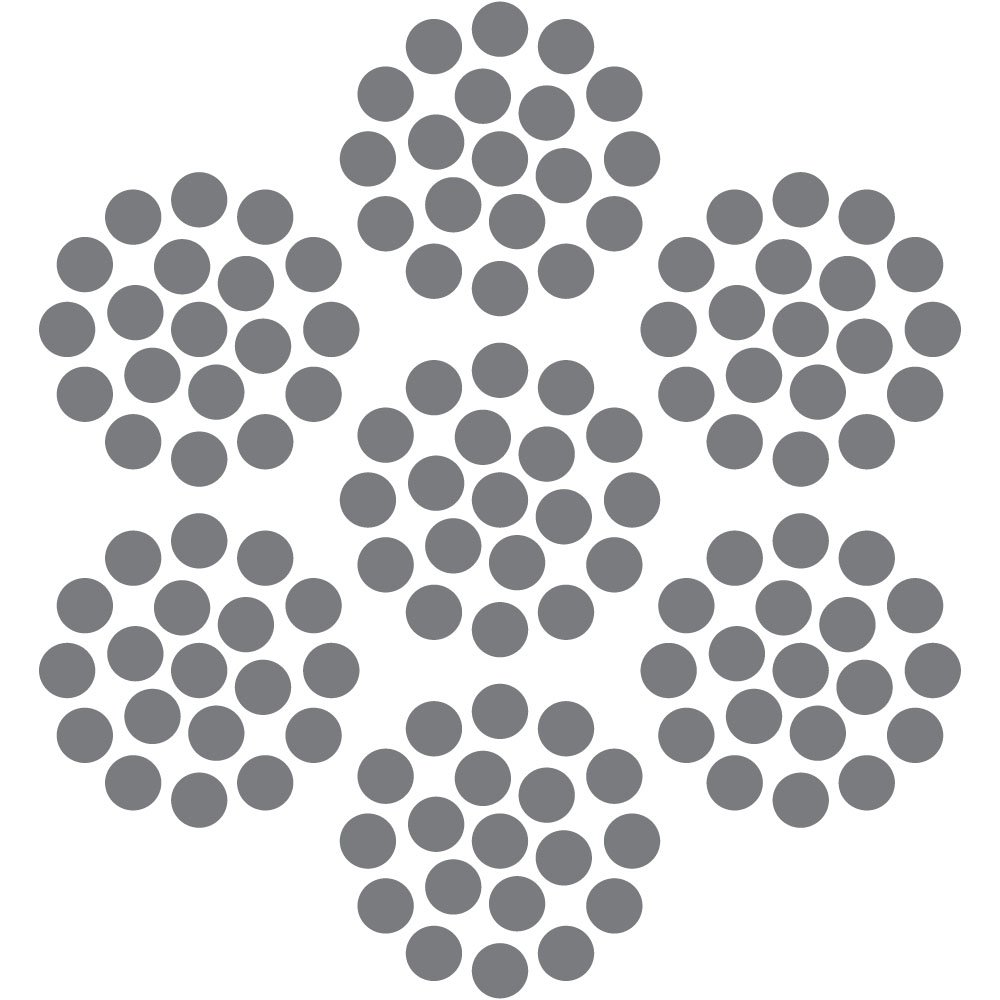

Nylon-coated, stainless steel wire rope with 7x19 standard construction can be used over pulleys, rigging, winches, in exercise equipment, garage door mechanics, and for yachting ropes and control cables. This wire rope has a natural-colored hue for ease of recognition. Stainless steel 304, also called 18-8, is corrosion-resistant, resists scaling, and withstands high temperatures for a wide range of operation. Stainless steel is a versatile material, commonly used in a wide variety of applications, and in saline atmospheres. Nylon-coating is very strong, lightweight, and flexible, has excellent abrasion-resistance, and resists crushing and cracking. 7x19 strand core has seven strands of wire rope with nineteen wires in each strand formed helically around a strand core. 7x19 strand is more flexible, and fatigue-resistant than 7x7 class construction.

Wire rope, also called wire cable, is an assembly of wire strands formed helically around a central core. It is used for pulling, lifting, rigging, hoisting, and motion-control applications most commonly found in the manufacturing, marine, oil, mining, fiber-optics, aircraft, automotive accessory, and construction industries. A combination of characteristics including material, finish, construction, diameter, length, and breaking strength combines to give each rope its performance ability. Wire rope materials are selected for properties such as strength, elasticity, conductivity, and chemical- and weather-resistance. For strength purposes, most wire rope is made of bright (uncoated or bare) wire. However, it is also produced in a variety of finishes, such as polypropylene (PE), vinyl (PVC), or nylon. These coatings can increase overall durability and strength, and allow for specific use. The breaking strength for wire rope is the strength at which new wire rope will fail under a stationary load. Breaking strength is not considered safe working load (SWL) limit.
