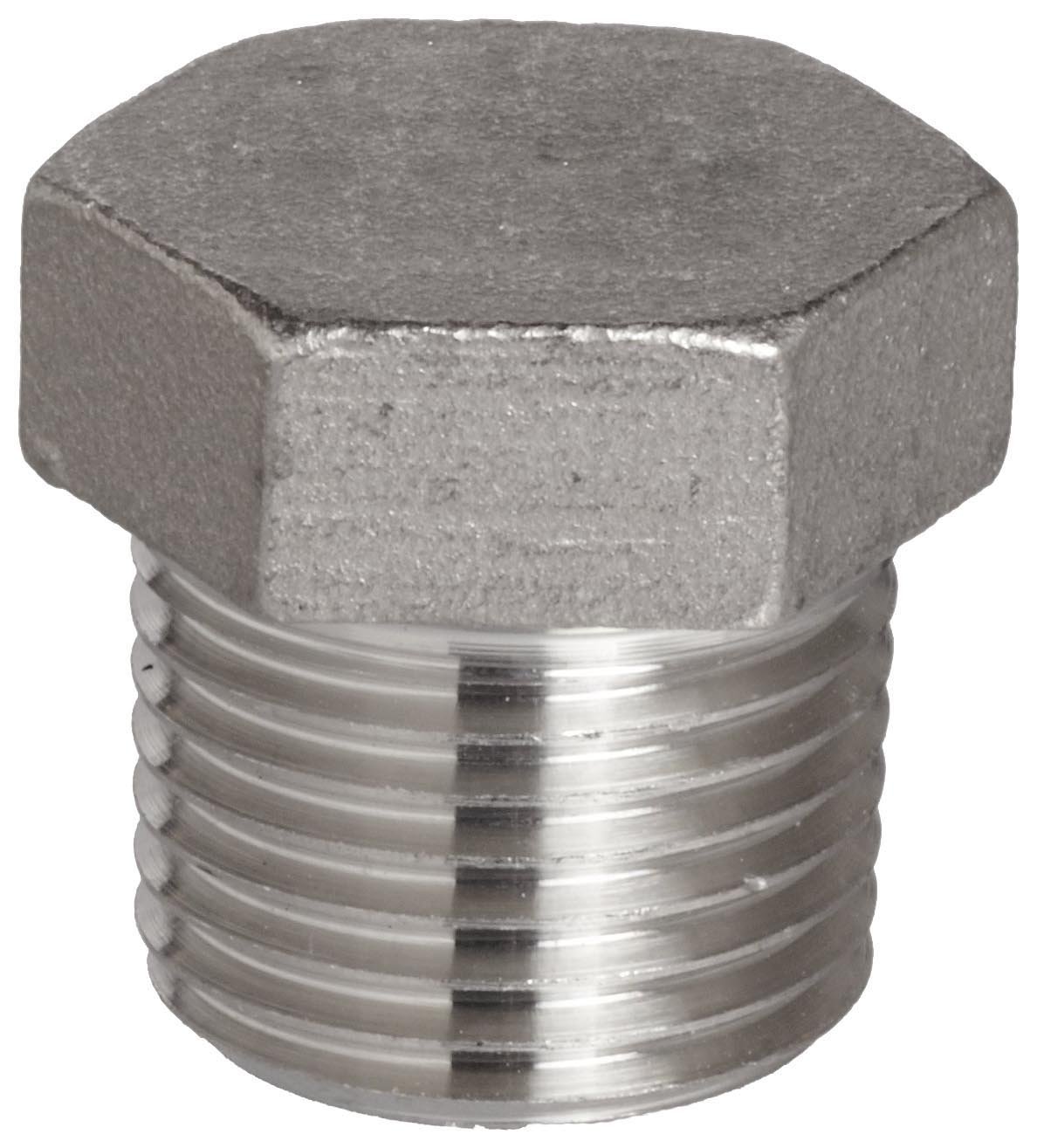

Stainless Steel 316 Cast Pipe Fitting, Hex Head Plug, Class 150, NPT Male

Be the first to review this item

Product Specifications
Specification Met
ISO 49 ANSI B1.20.1
Item Shape
Plug
Grade
316
Pressure Rating Class
150
Material Type
Stainless Steel
Style Name
Threaded
UNSPSC Code
40170000
Brand Name
Merit Brass
System of Measurement
Inch

This item is no longer available

These items ship for FREE with 2-Day Shipping on orders over $50. (Details)

Want it delivered on Fri, Dec 19? Order in-stock items in the next 10 hrs 13 mins and choose One-Day Shipping at checkout.

  • Share
Currently showing 1-10 of 10
Pipe Size Length Pkg Qty ASIN

The Amazon Standard Item Number (ASIN) uniquely identifies
the item in the AmazonSupply.com (and Amazon) catalog.

Available

If an item is currently out of stock, but has an estimated lead time, you can place an order now and we will ship it as soon as it is available.
You can also order more than we currently have in stock.
Read more about back orders in our help section.

Price
All All All
Currently showing 1-10 of 10
3/4"   25 B00N9SULUO Temporarily out of stock. Order now and we'll deliver when available. $44.37 Buy Options
3/4" 57/64" 1 B003GSL4DU yes $1.79 Buy Options
1"   25 B00N9TS8EY yes $67.54 Buy Options
1" 1-5/64" 1 B003GSL4EO Usually ships in 1 to 2 months $2.80 Buy Options
1-1/4" 1-3/16" 1 B003GSL4F8 yes $4.84 Buy Options
1-1/2" 1-7/32" 1 B003GSL4FS yes $5.80 Buy Options
2" 1-17/64" 1 B003GSL4GC yes $8.30 Buy Options
2-1/2" 1-11/16" 1 B003GSL4GM yes $13.50 Buy Options
3" 1-25/32" 1 B003GSL4HG yes $17.25 Buy Options
4" 1-29/32" 1 B003GSL4HQ yes $77.90 Buy Options

Key Features

  • Hexagonal head plug for closing and terminating the end of a pipe
  • Male National Pipe Taper (NPT) threads for use with female threaded pipes
  • Hexagonal head for increased leverage and use with a wrench
  • Made from stainless steel 316 for strength
  • Meets standards ANSI B1.20.1 and ISO 49 for quality assurance

Product Description

The Merit Brass hex head plug is a class 150 stainless steel 316 cast pipe fitting with male National Pipe Taper (NPT) threads for closing the end of a female threaded pipe. The plug inserts into female pipes or fittings and connects with NPT threads, which create a tighter seal than straight threads, and it has a hexagonal head for increased leverage and use with a wrench during installation and disassembly. The plug is made of stainless steel 316, which is higher strength and more corrosion resistant than stainless steel 304. This class 150 fitting meets standards ANSI B1.20.1 and ISO 49 for quality assurance. Class is a standard relating to tolerance, construction, dimension, and wall thickness, but it is not a direct measurement of maximum working pressure.

Pipe fittings are components used for connecting, terminating, controlling flow, and changing the direction of piping in many different industries. When purchasing pipe fittings, consider the application, as this will affect material type, shape, size and required durability. Fittings are available threaded or unthreaded, in many shapes, styles, sizes, and schedules (pipe wall thickness).

Merit Brass manufactures pipe nipples following ISO 9001 standards for quality assurance. The company, family-owned since 1937 and headquartered in Cleveland, OH, distributes pipe fittings in the United States and Canada.
