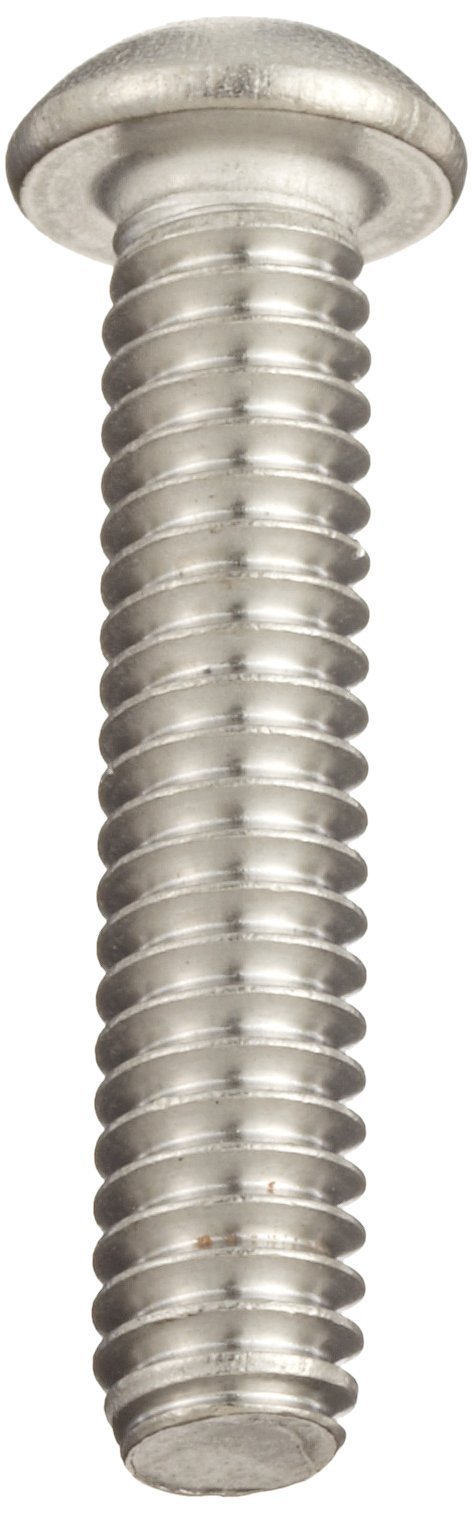

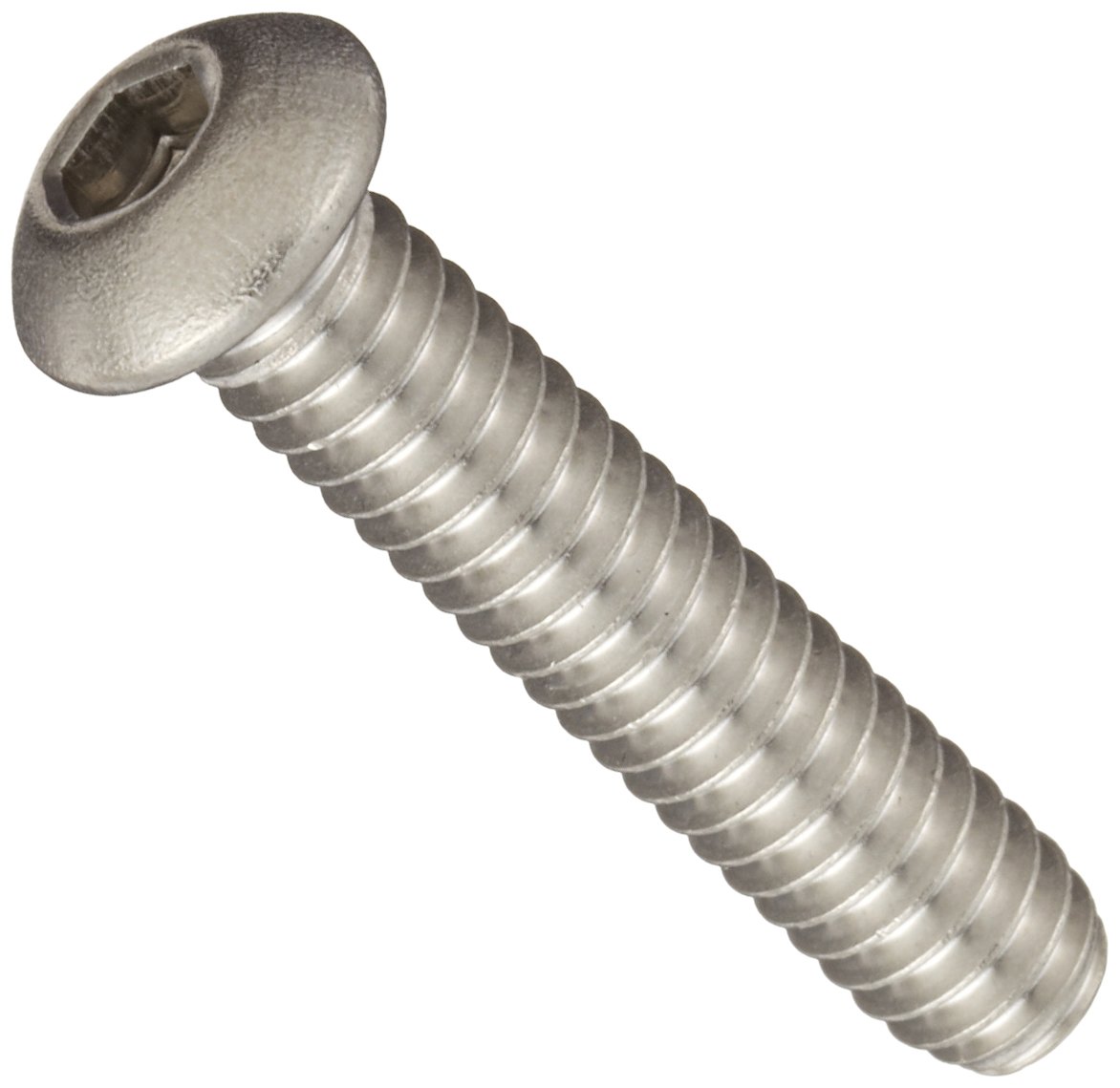

Click for larger image and other views Image is representative of the product family.

How can we improve our images or Product Specifications?

See all products in this Product Family

18-8 Stainless Steel Socket Cap Screw, Plain Finish, Button Head, Internal Hex Drive, Meets ASME B18.3/ASTM F879, 1/4" Length, Fully Threaded, #4-40 UNC Threads, Imported (Pack of 100)

Be the first to review this item

ASIN B005DS38LC

Product Specifications
Brand Name
Small Parts
Part Number
B005DS38LC
Head Diameter
0.361  inches
Head Height
0.101  inches
Length
1/4  inches
Fastener Size
#4-40
Thread Size
#4-40
Thread Coverage
Fully Threaded
Hex Wrench
3/32  inches
Import Designation
Imported
Pkg Qty
100
Thread Class
2A
Thread Style
UNC
Specification for this product family (See all  products)
Drive Style
Internal Hex
Exterior Finish
Plain
Specification Met
ASME B18.3 , ASTM F879
Grade
18-8
Material Type
Stainless Steel
Head Style
Button
UNSPSC Code
31161500
Thread Style
Right Hand
System of Measurement
Inch

This item is no longer available

This item ships for FREE with 2-Day Shipping on orders over $50. (Details)

Want it delivered on Thu, Jul 31? Order in-stock items in the next 6 hrs 14 mins and choose One-Day Shipping at checkout.

  • Share

This item has already been added to

Update Quantity Cancel

Select a List Create New List


You can add a description later

Key Features

  • 18-8 stainless steel provides good corrosion resistance and strength
  • Plain surface has no finish or coating
  • Button head has a rounded, low-profile top that is suitable for light duty applications
  • Internal hex drive has a hexagonal slot that turns using an Allen key driver
  • Meets ASME B18.3 and ASTM F879 specifications

Package Details

Shipping Weight: 0.1 pounds
Package Size: 3.1 x 2.6 x 1.7 inches

Product Description

The 18-8 stainless steel socket cap screw has a plain finish and a button head with an internal hex drive, and meets American Society of Mechanical Engineers ASME B18.3 and American Society for Testing and Materials ASTM F879 specifications. The 18-8 stainless steel material provides strength and offers good corrosion resistance in many environments. The material may be slightly magnetic. The button head is round with a low profile and short vertical sides, and is suitable for light duty applications. The internal hex drive, also known as a hex-socket drive, has a hexagonal slot that requires an Allen key driver, also known as a hex key or Allen wrench.

Socket cap screws are threaded fasteners that have a cap head with an internal socket drive for installing in areas with limited side clearance. These screws are available with a variety of head shapes, which determine how the screw interacts with the mating surface, and drive styles, which determine the type of tool required to install the screw.
