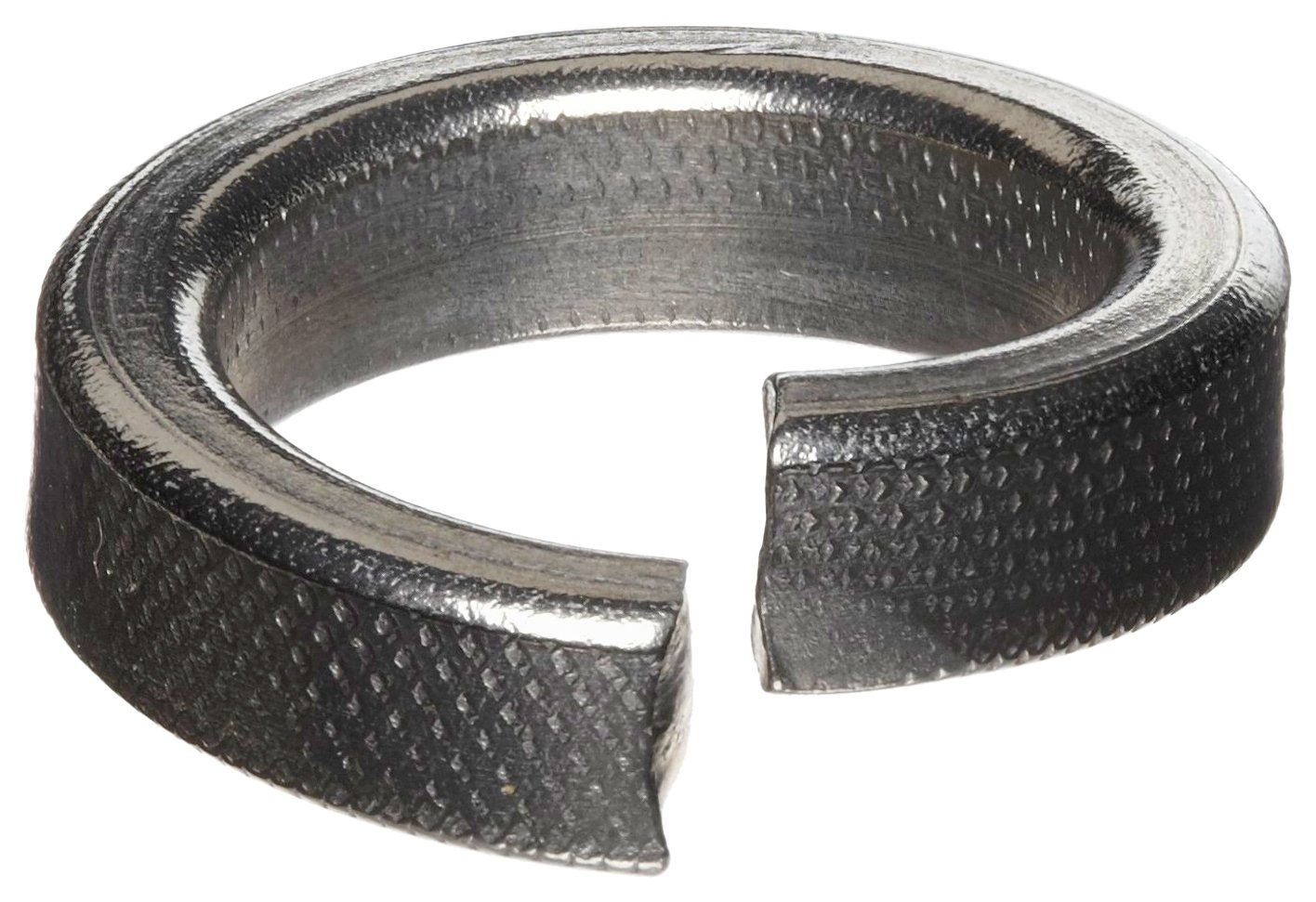

Stainless Steel 18-8 Split Lock Washer, ANSI

Be the first to review this item

Product Specifications
Material Type
Stainless Steel 18-8
Specification Met
ANSI
System of Measurement
Inch

These items ship for FREE with 2-Day Shipping on orders over $50. (Details)

0 items added

To add items,
choose from the table below

  • Share

You must be logged in to use this feature.

Cancel
Currently showing 5 of 5
Size Inside Diameter Outside Diameter Thickness Pkg Qty ASIN

The Amazon Standard Item Number (ASIN) uniquely identifies
the item in the AmazonSupply.com (and Amazon) catalog.

 Available

If an item is currently out of stock, but has an estimated lead time, you can place an order now and we will ship it as soon as it is available.
You can also order more than we currently have in stock.
Read more about back orders in our help section.

 Price Quantity
All All All All
Currently showing 5 of 5
#2 0.0880" 0.1720" 0.0200" 100 B000FMWIYY In Stock (269) $6.04
#4 0.1140" 0.2090" 0.0250" 100 B000FMUOZ4 In Stock (1) $6.05
1/2" 0.5120" 0.7330" 0.1720" 100 B000FPJDIU In Stock (32) $8.48
M2.0 2.1 mm 4.4 mm 0.5 mm 100 B000FN0JC6 In Stock (32) $4.31
M4.0 4.1 mm 7.6 mm 0.9 mm 100 B000FMYPH2 In Stock (2) $6.52

Key Features

  • Lock Washers ensure a tight assembly
  • Stainless Steel is suitable where formability and cost are important considerations
  • For applications with clearance limitations
  • Size Name corresponds to matching screw or bolt size

Product Description

Helical Spring Split Lock Stainless Steel 18-8 Washers: These washers have comparatively smaller outside diameters for placement in confined areas, but are thick enough to provide performance comparable to a Regular Series Type. They are normally used with socket head cap screws or other smaller-head screws, and for applications with clearance limitations. Stainless Steel construction offers high corrosion resistance and a hard bearing surface. All dimensions correspond to standards for Hi-Collar Helical Spring Lock Washers under ANSI/ASME B18.21.1 1994.
