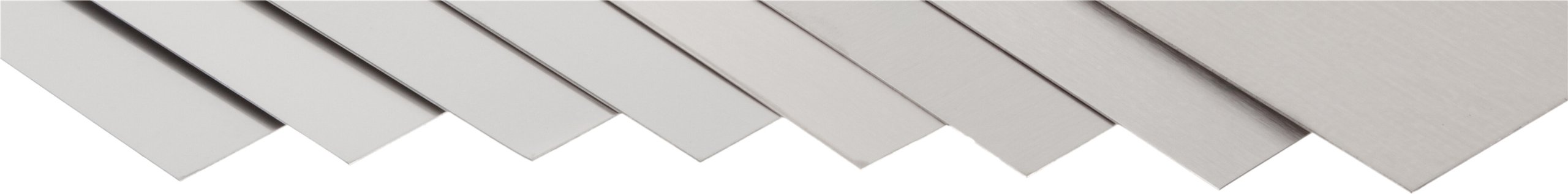

304 Stainless Steel Sheet Sample Pack, Unpolished (Mill) Finish, Annealed, ASTM A240/ASME SA240, Varying Thicknesses, 4" Width, 4" Length (Pack of 4)

Be the first to review this item

ASIN B000HKNGKE

Product Specifications
Brand Name
Small Parts
Part Number
7746
Thickness
(Multiple)  inches
Overall Width
4  inches
Width Tolerance
+0.125/-0  inches
Overall Length
4  inches
Length Tolerance
+0.125/-0  inches
Indentation Hardness
70  Rockwell B
Number of Items
4
Production Method
Annealed
Tensile Strength Max
73200  PSI
Upper Temperature Range
1550  Degrees Fahrenheit
Specification for this product family (See all  products)
Exterior Finish
Unpolished (Mill)
Item Shape
Sheet
Specification Met
ASTM A240 , ASME SA240
Material Composition
Solid
Grade
304
Material Type
Stainless Steel
UNSPSC Code
30000000
System of Measurement
Inch

This item is no longer available

This item ships for FREE with 2-Day Shipping on orders over $50. (Details)

Want it delivered on Thu, Aug 28? Order in-stock items in the next 4 hrs 47 mins and choose One-Day Shipping at checkout.

  • Share

This item has already been added to

Update Quantity Cancel

Select a List Create New List


You can add a description later

Key Features

  • 304 stainless steel is the most commonly used grade of stainless steel due to its combination of corrosion resistance, weldability, and formability
  • Unpolished (mill) surface has no finish
  • Meets ASTM A240 and ASME SA240 specifications
  • Annealed after shaping to modify the metal's properties
  • Standard tolerance; The thicknesses in this pack are: 0.018" (26 ga.), 0.024" (24 ga.), 0.03" (22 ga.), 0.036" (20 ga.)

Package Details

Shipping Weight: 1 pounds
Package Size: 4 x 4 x 0.4 inches

Product Description

The 304 stainless steel sheet has an unpolished (mill) surface, has been annealed, meets American Society for Testing and Materials International ASTM A240 and American Society of Mechanical Engineers ASME SA240 specifications, and has a standard tolerance. The 304 stainless steel grade is a general-purpose material that combines corrosion resistance, weldability, and formability, making it the most commonly used grade of stainless steel. An austenitic stainless steel that is one of the 18-8 grades, 304 can be cold worked to increase its hardness and strength while maintaining most of its formability. The material is typically nonmagentic but may become slightly magnetic when cold worked. The material has been annealed, a method of heating and cooling metal to modify its properties, such as increasing its formability and toughness or decreasing its strength, after it has been shaped.

Stainless steel is an iron alloy with resistance to staining and rusting in many environments where steel would typically degrade. The chemical composition of each grade creates a grain structure that falls into one of five classes: austenitic, duplex, ferritic, martensitic, and precipitation hardening. The austenitic class contains the most formable, weldable, and corrosion-resistant stainless steel grades, but they cannot be heat treated. The duplex class offers high resistance to pitting and chloride stress corrosion cracking. Duplex grades are heat treatable and roughly twice as strong as austenitic grades. The ferritic class contains moderately formable and corrosion-resistant grades compared to other stainless steel classes, but they cannot be heat treated. The martensitic class includes some of the hardest and strongest stainless steel grades that also offer mild corrosion resistance, high hardness, and good formability. Martensitic grades can be heat treated. The precipitation-hardening (PH) class can be heat treated after fabrication to achieve some of the highest hardness ratings in stainless steel.

Tensile strength, used to indicate the material’s overall strength, is the peak stress it can withstand before it breaks. Corrosion resistance describes the material's ability to prevent deterioration caused by atmosphere, moisture, or other medium. Wear resistance indicates the ability to prevent surface damage caused by contact with other surfaces. Toughness describes the material's ability to absorb energy before breaking, while hardness (commonly measured as indentation hardness) describes its resistance to permanent surface deformation. Formability indicates how easily the material can be permanently shaped. Machinability describes how easily it can be cut, shaped, finished, or otherwise machined, while weldability characterizes the ability to be welded. Magnetism characterizes how much the material is repelled by or attracted to a magnet.
