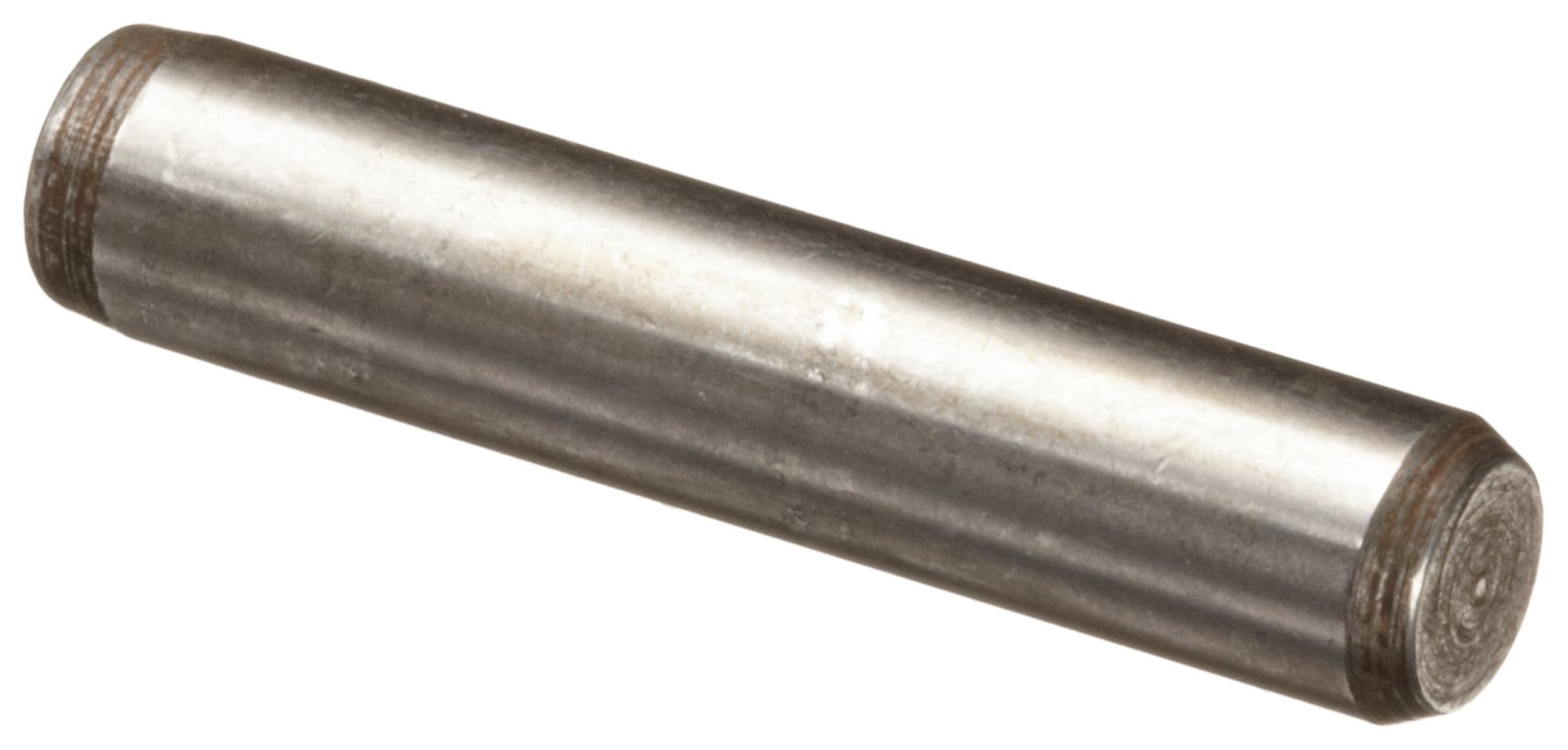

Click for larger image and other views Image is representative of the product family. Select individual products in the table below for more specific images and product specifications

How can we improve our images or Product Specifications?

Dowel Pins, Stainless Steel 416, Plain, Inch, Meets MS16555 Specifications

Be the first to review this item

Product Specifications
Brand Name
Small Parts
Material Type
Stainless Steel 416
Specification Met
MS16555
System of Measurement
Inch

0 items added

To add items,
choose from the table below



These items ship for FREE with 2-Day Shipping on orders over $50. (Details)

Want it delivered on Thursday, May 23? Order in-stock items in the next 16 hours 11 minutes and choose One-Day Shipping at checkout.

  • Share
Currently showing 20 of 56 Show All
Nominal Diameter Length Pkg Qty ASIN

The Amazon Standard Item Number (ASIN) uniquely identifies
the item in the AmazonSupply.com (and Amazon) catalog.

 Available

If an item is currently out of stock, but has an estimated lead time, you can place an order now and we will ship it as soon as it is available.
You can also order more than we currently have in stock.
Read more about back orders in our help section.

 Price Quantity
All All All
Currently showing 20 of 56 Show All
1/16" 1/2" 10 B001OBPQAI In Stock (8) $2.69
1/16" 3/4" 10 B001OBPQB2 In Stock (2) $7.56
1/16" 5/8" 10 B001OBPQAS In Stock (13) $6.90
1/16" 7/16" 10 B001OBRTOY In Stock (15) $6.79
1/16" 3/16" 10 B001OBSV78 In Stock (110) $4.79
1/16" 3/8" 10 B001OBLTE0 In Stock (3) $6.68
1/16" 5/16" 10 B001OBNT9I In Stock (2) $2.64
1/16" 1/4" 10 B001OBNT8O In Stock (3) $3.30
5/64" 1/4" 10 B001OBPUGS In Stock (9) $7.24
3/32" 7/8" 10 B001OBPQE4 In Stock (12) $7.91
3/32" 3/8" 10 B001OBPQBM In Stock (5) $8.46
3/32" 5/16" 10 B001OBRTQ2 In Stock (3) $3.06
3/32" 1/2" 10 B001OBLTH2 In Stock (2) $7.13
3/32" 3/4" 10 B001OBLTHW In Stock (4) $7.24
3/32" 1" 10 B001OBLTIG In Stock (3) $7.24
3/32" 7/16" 10 B001OBNTCK In Stock (11) $9.36
3/32" 5/8" 10 B001OBNTDO In Stock (2) $7.13
1/8" 1" 10 B001OBPQHG In Stock (10) $7.26
1/8" 3/4" 10 B001OBPQGC In Stock (1) $7.29
1/8" 1/2" 10 B001OBPQFS In Stock (9) $3.06

Key Features

  • Commonly used to retain parts in a fixed position or to preserve alignment
  • Passivated 416 stainless steel provides corrosion resistance, with higher strength than type 316 and 18-8 stainless steel
  • Slightly oversized for a tight fit and chamfered at both ends for easy insertion
  • Meets MIL-Spec MIL-MS16555

Product Description

Passivated 416 stainless steel dowel pin meets MIL-Spec MIL-MS16555 and is commonly used as a joining and locating device, pivot, hinge, shaft, jig, and fixture in machine tool fabrication. Pin is slightly oversized for a tight fit. Both ends are chamfered for easy insertion.

Passivated stainless steel 416 is stronger than both type 316 and 18-8 stainless steel, and is magnetic. Minimum Rockwell hardness is C36. Stainless steels are used for their corrosion resistance, high-temperature strength, scaling resistance, and low-temperature toughness. These properties account for their wide use in practically every industry. Pin’s outer diameter tolerance is +0.0001" to -0.0001”

The dowel pin, also known as a parallel pin, is commonly used to retain parts in a fixed position or to preserve alignment. They are often used as precise locating devices in machinery and may have a smaller or larger diameter than their designation hole, which allows them to fit freely or tightly.
