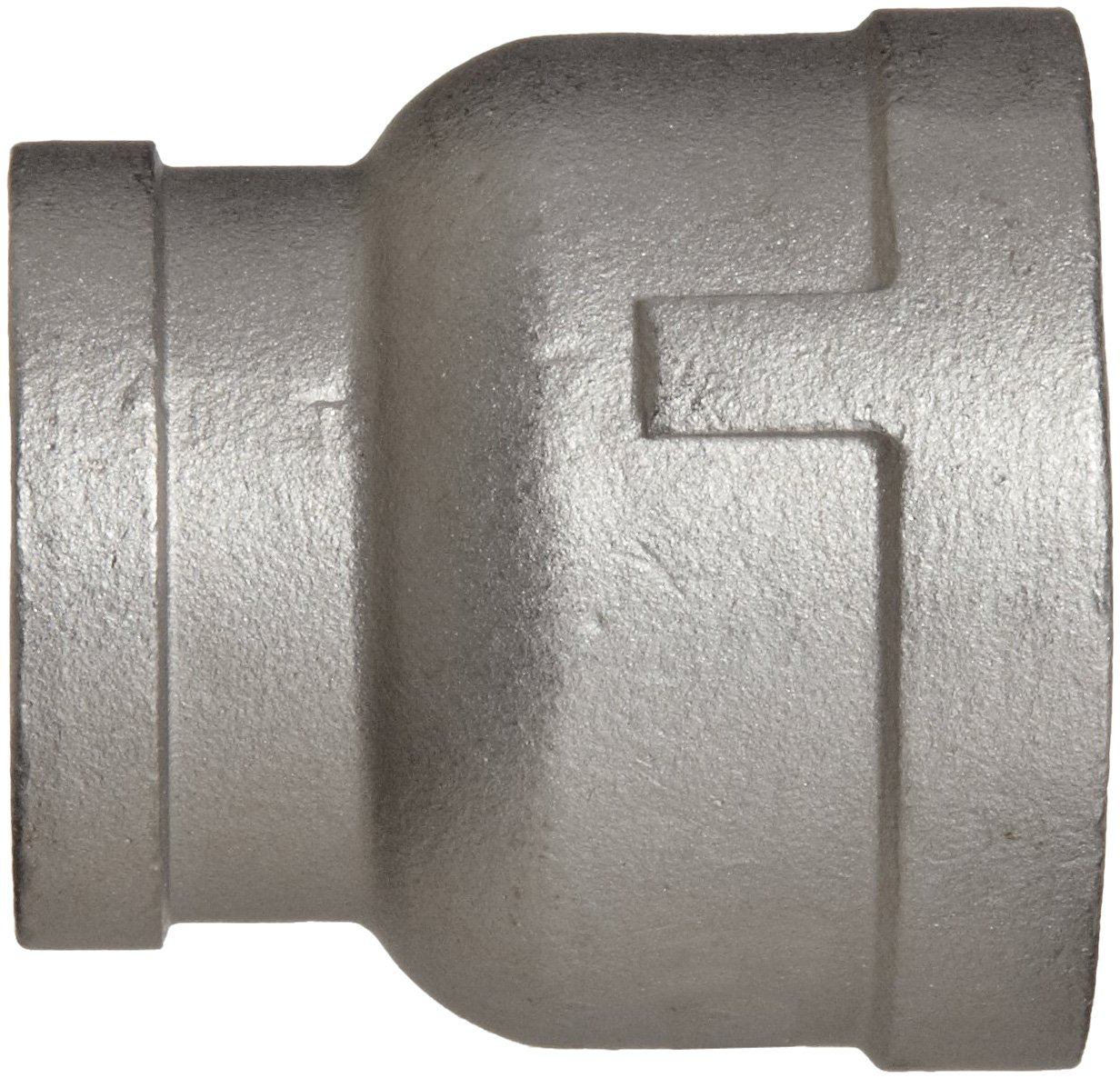

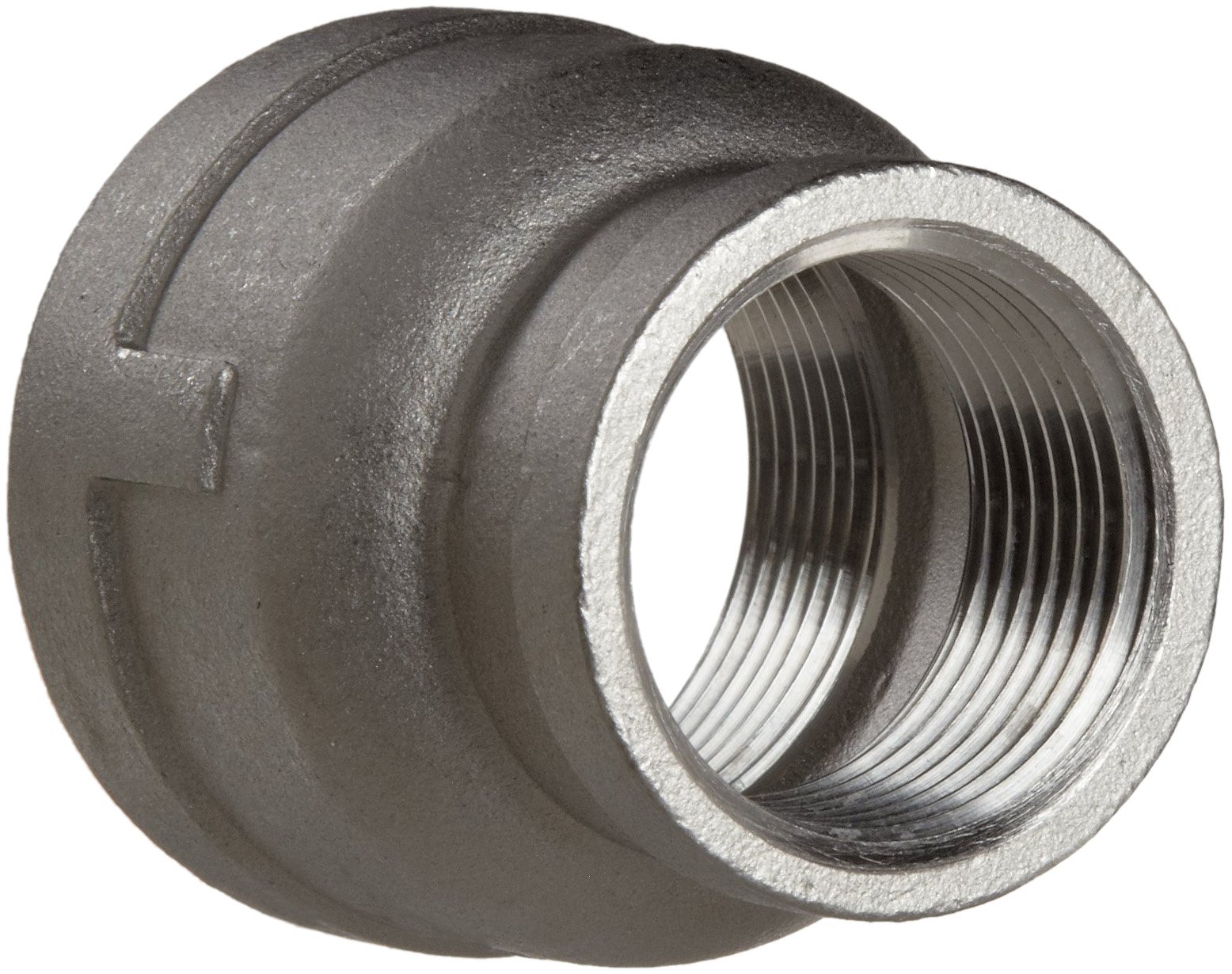

Stainless Steel 304 Cast Pipe Fitting, Reducing Coupling, Class 150, NPT Female

Be the first to review this item

Product Specifications
Specification Met
ISO 49 ANSI B1.20.1
Item Shape
Coupling
Grade
304
Pressure Rating Class
150
Material Type
Stainless Steel
Style Name
Threaded
UNSPSC Code
40170000
Brand Name
Merit Brass
System of Measurement
Inch

This item is no longer available

These items ship for FREE with 2-Day Shipping on orders over $50. (Details)

Want it delivered on Wed, Sep 3? Order in-stock items in the next 15 mins and choose One-Day Shipping at checkout.

  • Share
Currently showing 1-20 of 40 Next 20 »
Pipe Size Length Pkg Qty ASIN

The Amazon Standard Item Number (ASIN) uniquely identifies
the item in the AmazonSupply.com (and Amazon) catalog.

Available

If an item is currently out of stock, but has an estimated lead time, you can place an order now and we will ship it as soon as it is available.
You can also order more than we currently have in stock.
Read more about back orders in our help section.

Price
All All All
Currently showing 1-20 of 40 Next 20 »
1/4" x 1/8" 1-1/128" 1 B003GSKY8Q Usually ships in 1 to 2 months $1.31 Buy Options
3/8" x 1/8" 1-1/8" 1 B003GSKY9A yes $1.44 Buy Options
3/8" x 1/4" 1-1/8" 1 B003GSKY9U yes $1.44 Buy Options
1/2" x 1/8" 1-13/32" 1 B003GSKYAE yes $1.38 Buy Options
1/2" x 1/4" 1-13/32" 1 B003GSKYB8 yes $1.38 Buy Options
1/2" x 3/8" 1-13/32" 1 B003GSKYBS yes $1.38 Buy Options
3/4" x 1/8" 1-33/64" 1 B003GSKYCC yes $2.08 Buy Options
3/4" x 1/4" 1-33/64" 1 B003GSKYCW yes $2.08 Buy Options
3/4" x 3/8" 1-33/64" 1 B003GSKYDQ yes $2.08 Buy Options
1" x 1/8" 1-5/8" 1 B003GSKYEK yes $2.85 Buy Options
1" x 1/4" 1-5/8" 1 B003GSKYF4 yes $2.85 Buy Options
1-1/4" x 3/8" 2-1/64" 1 B003GSKYHC yes $4.67 Buy Options
1-1/4" x 1/2" 2-1/64" 1 B003GSKYI6 yes $4.14 Buy Options
1-1/4" x 3/4" 2-1/64" 1 B003GSKYIQ Usually ships in 1 to 2 months $4.14 Buy Options
1-1/4" x 1" 2-1/64" 1 B003GSKYJK yes $4.14 Buy Options
1" x 3/8" 1-5/8" 1 B003GSKYFO yes $2.85 Buy Options
1" x 1/2" 1-5/8" 1 B003GSKYG8 yes $2.85 Buy Options
1-1/2" x 3/8" 2-11/64" 1 B003GSKYKE yes $6.10 Buy Options
1-1/2" x 1/2" 2-11/64" 1 B003GSKYKY yes $6.10 Buy Options
1-1/2" x 3/4" 2-1/8" 1 B003GSKYM2 yes $6.20 Buy Options

Key Features

  • Reducing coupling for connecting and extending pipes of different sizes
  • Female National Pipe Taper (NPT) threads on both ends for connecting male pipes
  • Made of stainless steel 304 for strength
  • Lower carbon content for greater resistance to corrosion
  • Meets standards ANSI B1.20.1 and ISO 49 for quality assurance

Product Description

The Merit Brass reducing coupling is a class 150 stainless steel 304 cast pipe fitting with female National Pipe Taper (NPT) threads on both ends for connecting male pipes. This reducing coupling has one end that is smaller than the other for connecting different sizes of pipes going in the same direction. It has NPT threads for creating tighter seals than straight threads and is made of stainless steel 304 for higher corrosion resistance than 302 grade steel. This class 150 reducing coupling meets standards ANSI B1.20.1 and ISO 49 for quality assurance. Class is a standard relating to tolerance, construction, dimension, and wall thickness, but it is not a direct measurement of maximum working pressure.

Pipe fittings are components used for connecting, terminating, controlling flow, and changing the direction of piping in many different industries. When purchasing pipe fittings, consider the application, as this will affect material type, shape, size and required durability. Fittings are available threaded or unthreaded, in many shapes, styles, sizes, and schedules (pipe wall thickness).

Merit Brass manufactures pipe nipples following ISO 9001 standards for quality assurance. Family-owned since 1937, the company is based in Cleveland, OH. Merit Brass distributes pipe fittings to the United States and Canada.
