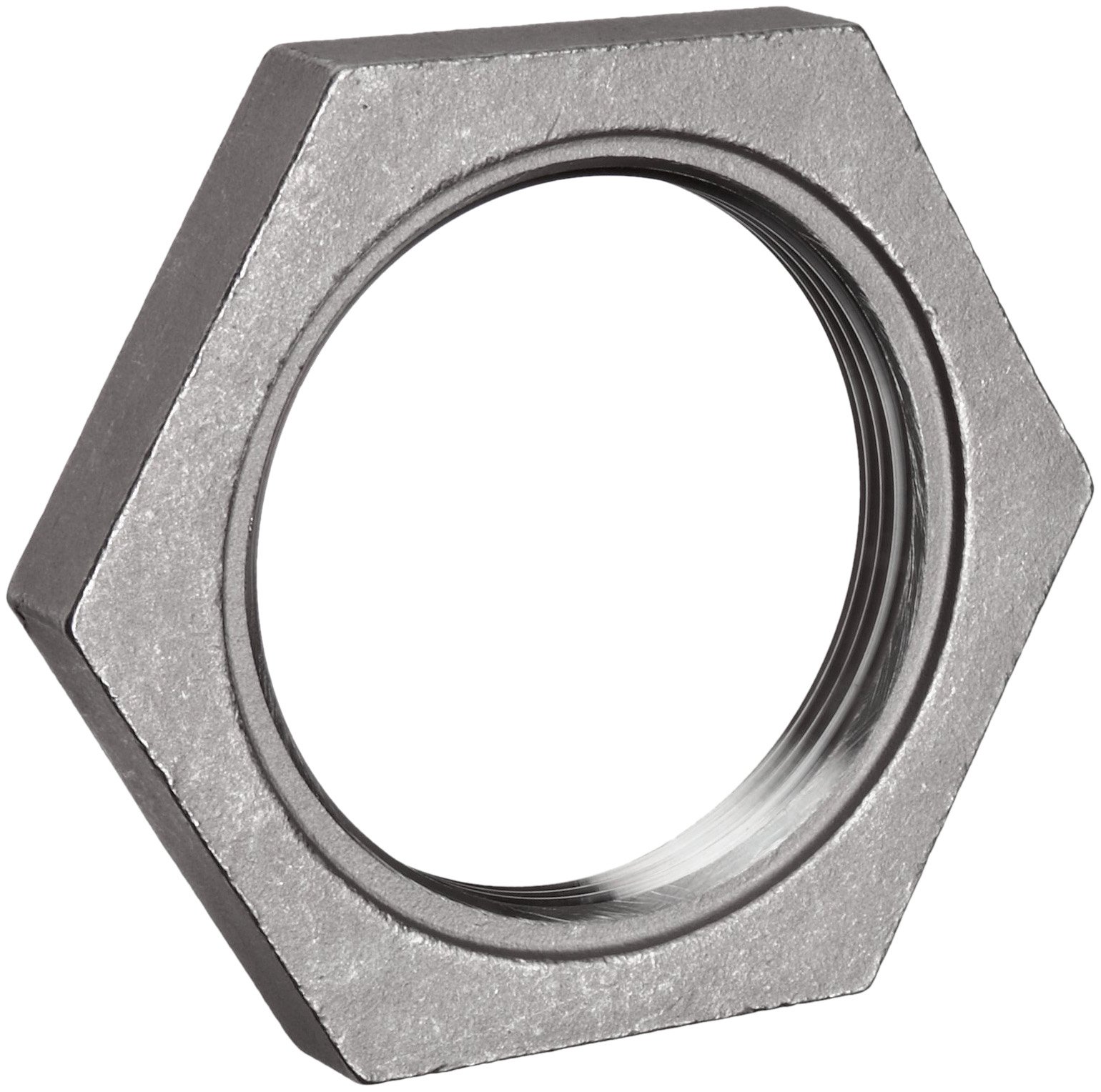

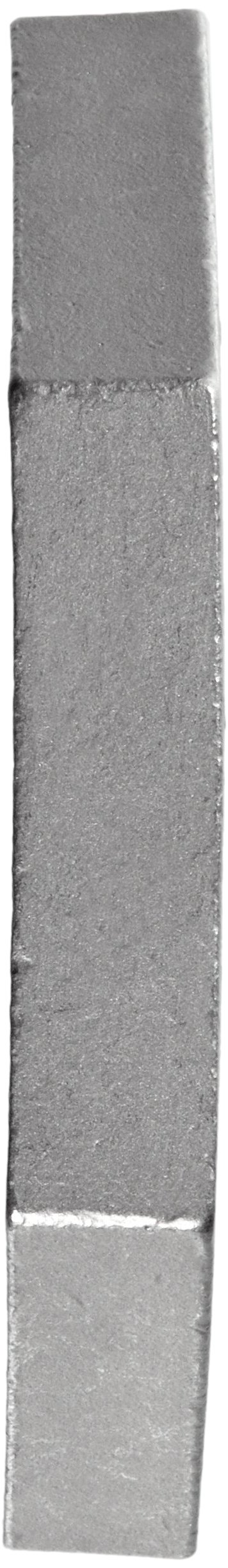

Stainless Steel 316 Cast Pipe Fitting, Hex Locknut, MSS SP-114, NPT Female

Be the first to review this item

Product Specifications
Specification Met
ASTM A351 , MSS SP-114 , ANSI B1.20.1
Item Shape
Locknut
Grade
316
Pressure Rating Class
150
Material Type
Stainless Steel
Style Name
Threaded
UNSPSC Code
40170000
Brand Name
Merit Brass
System of Measurement
Inch

This item is no longer available

These items ship for FREE with 2-Day Shipping on orders over $50. (Details)

Want it delivered on Mon, Oct 27? Order in-stock items in the next 4 hrs 57 mins and choose One-Day Shipping at checkout.

  • Share
Currently showing 1-13 of 13
Pipe Size Length Pkg Qty ASIN

The Amazon Standard Item Number (ASIN) uniquely identifies
the item in the AmazonSupply.com (and Amazon) catalog.

Available

If an item is currently out of stock, but has an estimated lead time, you can place an order now and we will ship it as soon as it is available.
You can also order more than we currently have in stock.
Read more about back orders in our help section.

Price
All All All
Currently showing 1-13 of 13
1/8"   1 B003GXF6Q6 yes $4.87 Buy Options
1/4"   1 B003GXF6QG yes $7.40 Buy Options
3/8"   1 B003GXF6QQ yes $6.09 Buy Options
1/2"   1 B003GXF6R0 yes $4.61 Buy Options
3/4" 2 27/64" 25 B00N9TIKAG Usually ships in 1 to 2 months $98.64 Buy Options
3/4"   1 B003GXF6RA yes $6.70 Buy Options
1"   25 B00N9TNNIA Usually ships in 1 to 2 months $109.81 Buy Options
1"   1 B003GXF6RU yes $6.84 Buy Options
1-1/4"   1 B003GXF6SE yes $12.23 Buy Options
1-1/2"   1 B003GXF6SO yes $11.25 Buy Options
2"   1 B003GXF6SY yes $13.05 Buy Options
2-1/2"   1 B003GXF6T8 Usually ships in 1 to 2 months $25.54 Buy Options
3"   1 B003GXF6TI yes $17.77 Buy Options

Key Features

  • Hex locknut locks two threaded fittings into place for stability and reduced vibrations
  • Female National Pipe Taper (NPT) threads for use with male threaded pipes and fittings
  • Made from stainless steel 316 for strength
  • Higher corrosion resistance than stainless steel 304
  • Meets standards MSS SP-114, ANSI B1.20.1, and ASTM A351 for quality assurance

Product Description

The Merit Brass hex locknut is a stainless steel 316 cast fitting with female National Pipe Taper (NPT) threads for locking two fittings into place for stability and reduced vibrations. The locknut has NPT threads for creating tighter seals than straight threads. The hexagonal shape provides increased leverage for use with a wrench during installation and disassembly. This locknut is made of stainless steel 316, which is higher strength and more corrosion resistant than stainless steel 304. This locknut meets standards MSS SP-114, ANSI B1.20.1, and ASTM A351 for quality assurance.

Pipe fittings are components used for connecting, terminating, controlling flow, and changing the direction of piping in many different industries. When purchasing pipe fittings, consider the application, as this will affect material type, shape, size and required durability. Fittings are available threaded or unthreaded, in many shapes, styles, sizes, and schedules (pipe wall thickness).

Merit Brass manufactures pipe nipples following ISO 9001 standards for quality assurance. Family-owned since 1937, the company is based in Cleveland, OH. Merit Brass distributes pipe fittings to the United States and Canada.
