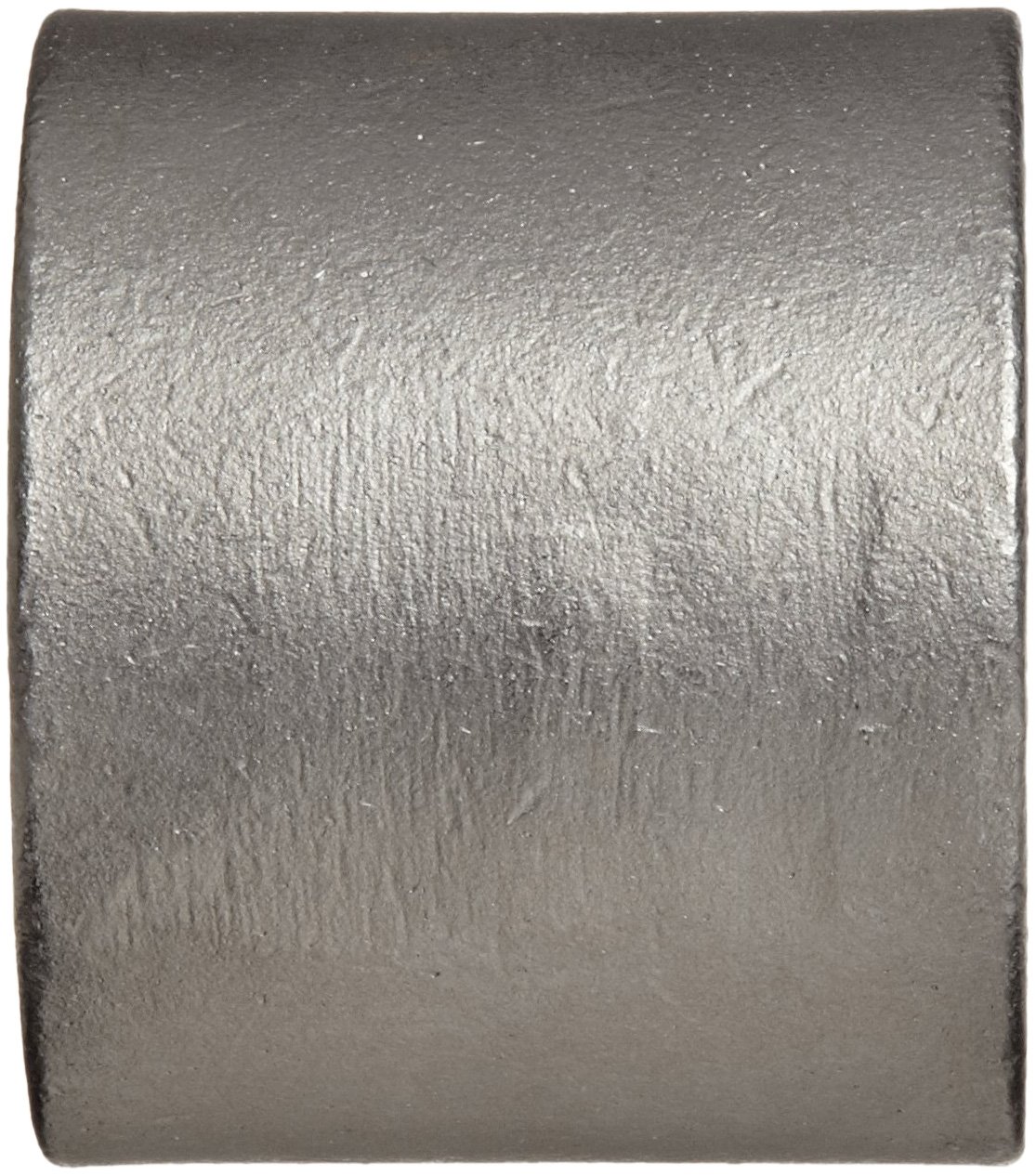

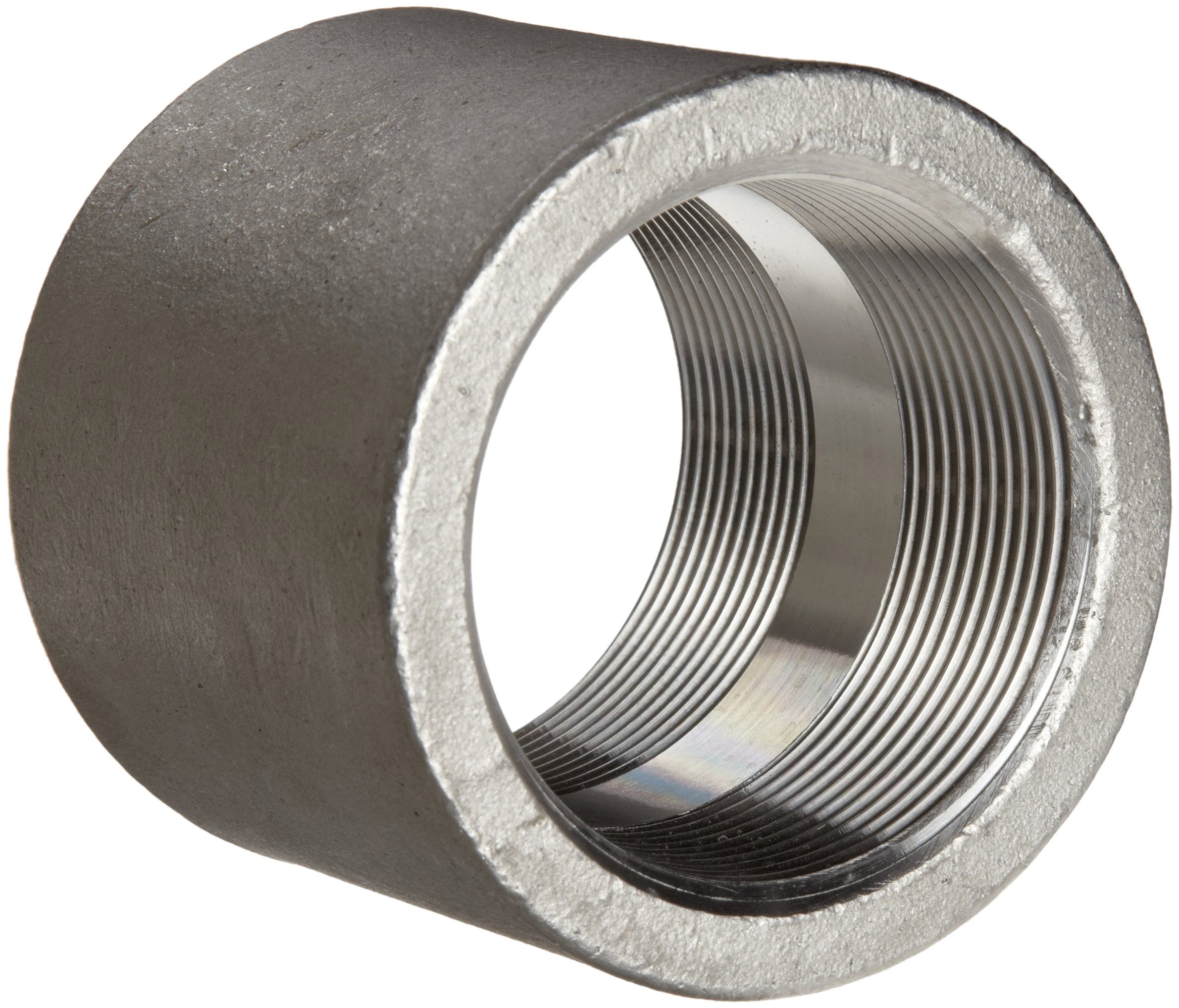

Stainless Steel 304 Cast Pipe Fitting, Full Coupling, MSS SP-114, NPT Female

Be the first to review this item

Product Specifications
Specification Met
ASTM A351 , MSS SP-114 , ANSI B1.20.1
Item Shape
Coupling
Grade
304
Pressure Rating Class
150
Material Type
Stainless Steel
Style Name
Threaded
UNSPSC Code
40170000
Brand Name
Merit Brass
System of Measurement
Inch

This item is no longer available

These items ship for FREE with 2-Day Shipping on orders over $50. (Details)

Want it delivered on Fri, Oct 24? Order in-stock items in the next 10 hrs 51 mins and choose One-Day Shipping at checkout.

  • Share
Currently showing 1-14 of 14
Pipe Size Length Pkg Qty ASIN

The Amazon Standard Item Number (ASIN) uniquely identifies
the item in the AmazonSupply.com (and Amazon) catalog.

Available

If an item is currently out of stock, but has an estimated lead time, you can place an order now and we will ship it as soon as it is available.
You can also order more than we currently have in stock.
Read more about back orders in our help section.

Price
All All All
Currently showing 1-14 of 14
1/8"   1 B003GXF4XG yes $3.92 Buy Options
1/4"   1 B003GXF4XQ yes $4.26 Buy Options
3/8"   25 B00N9TMU34 Usually ships in 1 to 2 months $40.89 Buy Options
3/8"   1 B003GXF4Y0 yes $3.57 Buy Options
3/4" 1 3/8" 25 B00N9TMCDM Usually ships in 1 to 2 months $82.78 Buy Options
3/4"   1 B003GXF4YK yes $4.41 Buy Options
1" 2" 25 B00N9SWUPI Usually ships in 1 to 2 months $124.93 Buy Options
1"   1 B003GXF4Z4 yes $4.95 Buy Options
1-1/4"   1 B003GXF4ZE yes $11.22 Buy Options
1-1/2"   1 B003GXF4ZO yes $9.40 Buy Options
2"   1 B003GXF4ZY yes $17.01 Buy Options
2-1/2"   1 B003GXF508 yes $23.43 Buy Options
3"   1 B003GXF50S yes $40.52 Buy Options
4"   1 B003GXF512 yes $18.26 Buy Options

Key Features

  • Coupling for connecting and extending pipes going in the same direction
  • Female National Pipe Taper (NPT) threads for connecting to male pipes
  • Made of stainless steel 304 for strength
  • Low carbon content for resistance to corrosion
  • Conforms to standards MSS SP-114, ANSI B1.20.1, and ASTM A351, for quality assurance

Product Description

The Merit Brass full coupling is a stainless steel 304 cast pipe fitting with female National Pipe Taper (NPT) threads for connecting and extending pipes going in the same direction. The female NPT threads create tighter seals to male pipes and fittings than straight threads. Made of stainless steel 304, the lower carbon content of this fitting ensures higher corrosion resistance than 302 grade steel. This fitting meets standards MSS SP-114, ANSI B1.20.1, and ASTM A351 for quality assurance.

Pipe fittings are components used for connecting, terminating, controlling flow, and changing the direction of piping in many different industries. When purchasing pipe fittings, consider the application, as this will affect material type, shape, size and required durability. Fittings are available threaded or unthreaded, in many shapes, styles, sizes, and schedules (pipe wall thickness).

Merit Brass manufactures pipe nipples following ISO 9001 standards for quality assurance. Family-owned since 1937, the company is based in Cleveland, OH. Merit Brass distributes pipe fittings to the United States and Canada.
