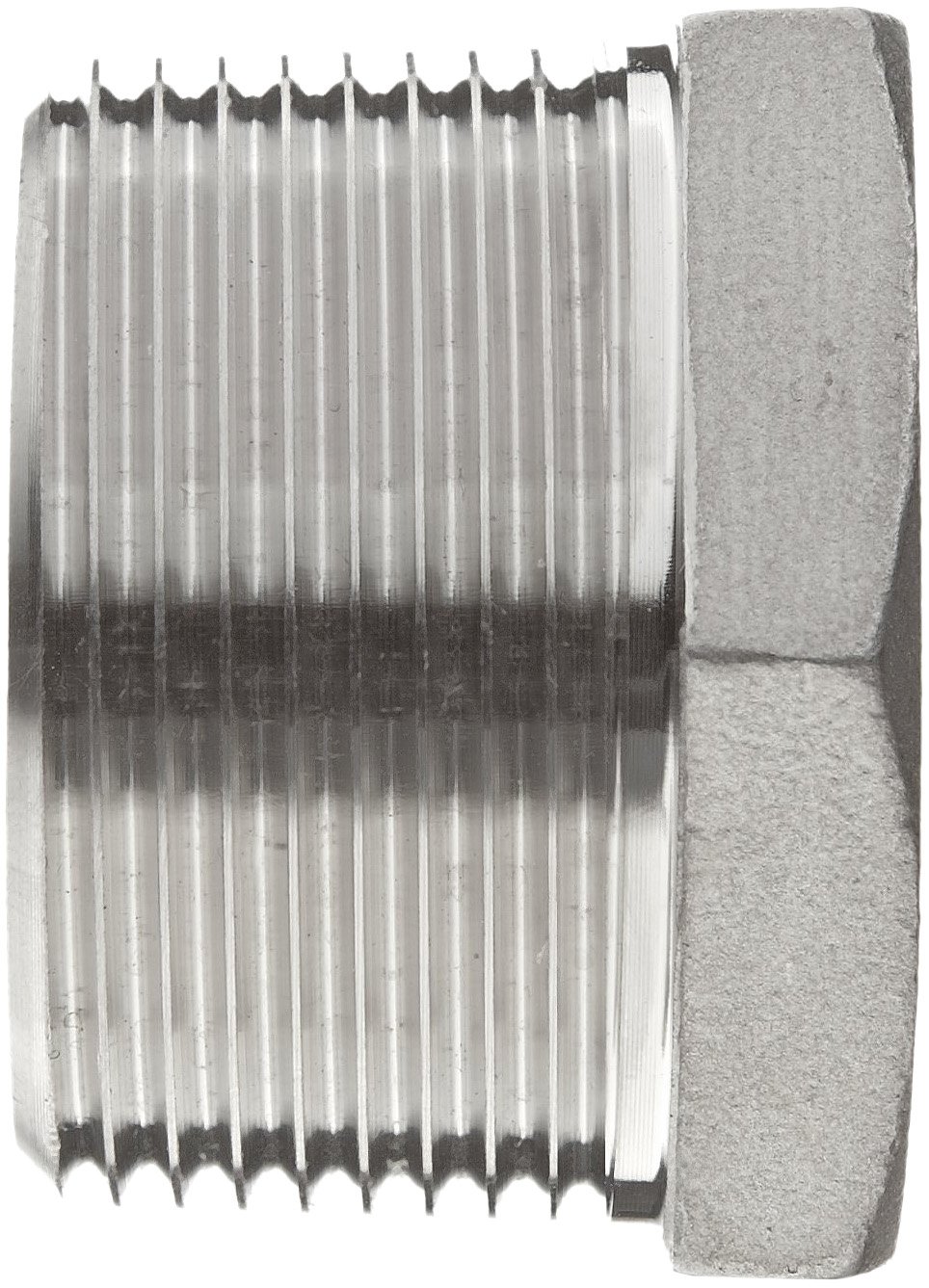

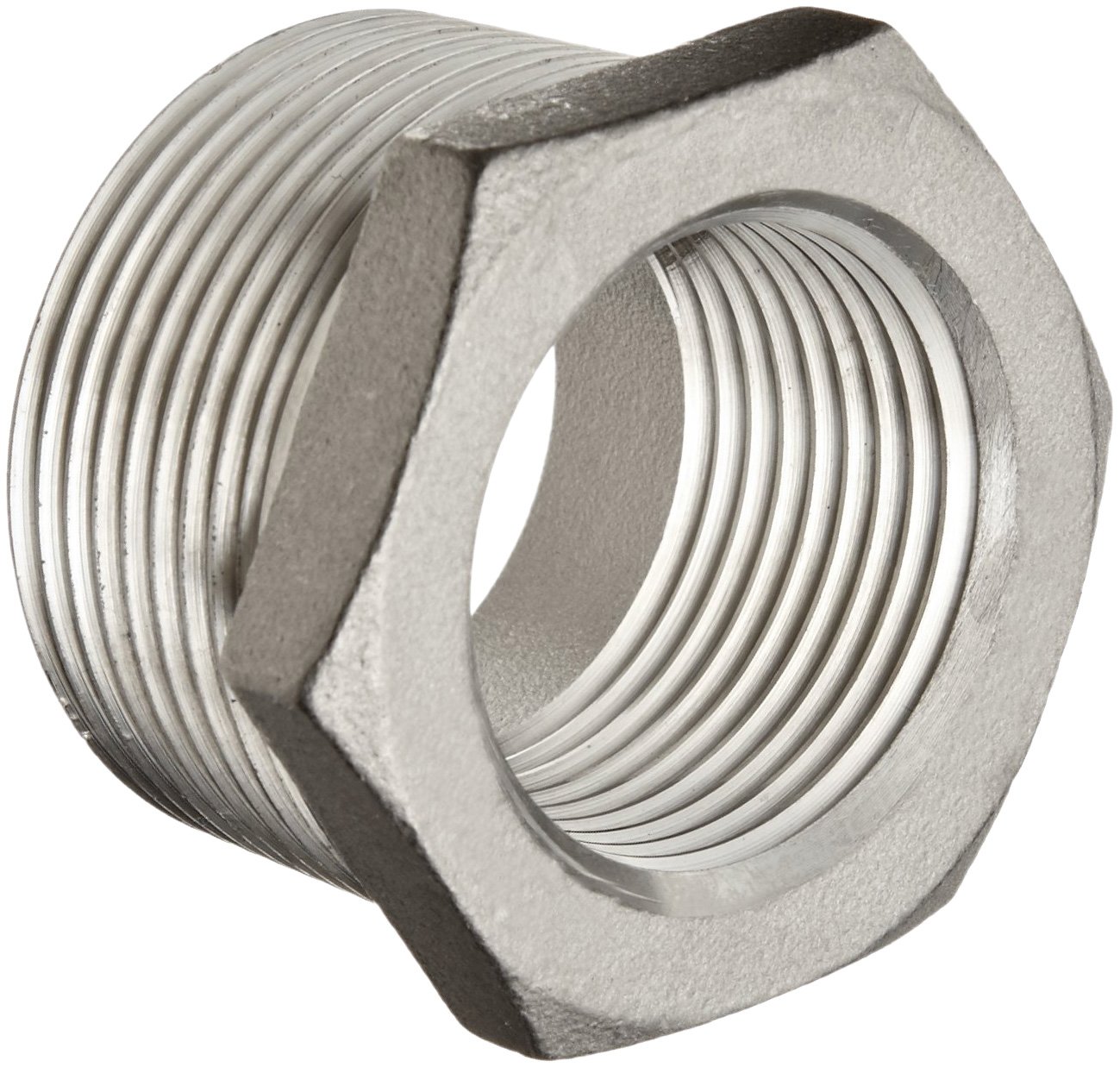

Stainless Steel 304 Cast Pipe Fitting, Hex Bushing, MSS SP-114, NPT Male X Female

Be the first to review this item

Product Specifications
Specification Met
ASTM A351 , MSS SP-114 , ANSI B1.20.1
Item Shape
Bushing
Grade
304
Pressure Rating Class
150
Material Type
Stainless Steel
Style Name
Threaded
UNSPSC Code
40170000
Brand Name
Merit Brass
System of Measurement
Inch

This item is no longer available

These items ship for FREE with 2-Day Shipping on orders over $50. (Details)

Want it delivered on Mon, Sep 22? Order in-stock items in the next 1 day 5 hrs 2 mins and choose One-Day Shipping at checkout.

  • Share
Currently showing 1-20 of 51 Next 20 »
Pipe Size Length Pkg Qty ASIN

The Amazon Standard Item Number (ASIN) uniquely identifies
the item in the AmazonSupply.com (and Amazon) catalog.

Available

If an item is currently out of stock, but has an estimated lead time, you can place an order now and we will ship it as soon as it is available.
You can also order more than we currently have in stock.
Read more about back orders in our help section.

Price
All All All
Currently showing 1-20 of 51 Next 20 »
1/4" 35/64" 25 B00N9T9UDM Usually ships in 3 to 6 weeks $19.85 Buy Options
1/4" x 1/8"   25 B00N9T7FE8 Usually ships in 3 to 6 weeks $25.25 Buy Options
1/4" x 1/8"   1 B003H05FP0 yes $4.35 Buy Options
3/8" 1 49/64" 25 B00N9TRDTA Usually ships in 1 to 2 months $23.68 Buy Options
3/8" x 1/8"   1 B003H05FPU yes $3.43 Buy Options
3/8" x 1/4"   1 B003H05F28 yes $3.43 Buy Options
1/2" x 1/8"   25 B00N9TCX0O Usually ships in 3 to 6 weeks $33.79 Buy Options
1/2" x 1/8"   1 B003H05FR8 yes $3.57 Buy Options
1/2" x 3/8"   1 B003H05I70 yes $3.70 Buy Options
3/4" x 1/8"   1 B003H05FRS yes $4.02 Buy Options
3/4" x 1/4"   1 B003H05F3W yes $4.02 Buy Options
3/4" x 3/8"   25 B00N9TKDP6 Usually ships in 3 to 6 weeks $48.65 Buy Options
3/4" x 3/8"   1 B003H05I7A yes $1.34 Buy Options
3/4" x 1/2"   25 B00N9T3HCW Usually ships in 3 to 6 weeks $47.14 Buy Options
3/4" x 1/2"   1 B003H05EFG yes $5.19 Buy Options
1" x 1/8" 1-5/32" 1 B003H05FSW yes $4.86 Buy Options
1" x 1/4" 1-5/32" 1 B003H05F4G yes $7.96 Buy Options
1-1/4" x 1/4"   1 B003H05F50 yes $10.84 Buy Options
1-1/4" x 3/8"   1 B003H05I7U yes $7.46 Buy Options
1-1/4" x 1/2" 1" 25 B00N9TT0E6 Usually ships in 3 to 6 weeks $124.92 Buy Options

Key Features

  • Hex bushing for connecting pipes of two different sizes
  • Male and female National Pipe Taper (NPT) threads for connecting two pipes
  • Made of stainless steel 304 for strength
  • Lower carbon content for greater resistance to corrosion
  • Conforms to standards MSS SP-114, ANSI B1.20.1, and ASTM A351, for quality assurance

Product Description

The Merit Brass hex bushing is a stainless steel 304 cast pipe fitting with male National Pipe Taper (NPT) threads on one end and female NPT threads on the other end for connecting pipes of different sizes. It has a hexagonal head for increased leverage and use with a wrench and is made of stainless steel 304 to ensure higher corrosion resistance than 302 grade steel. This hex bushing meets standards MSS SP-114, ANSI B1.20.1, and ASTM A351 for quality assurance.

Pipe fittings are components used for connecting, terminating, controlling flow, and changing the direction of piping in many different industries. When purchasing pipe fittings, consider the application, as this will affect material type, shape, size and required durability. Fittings are available threaded or unthreaded, in many shapes, styles, sizes, and schedules (pipe wall thickness).

Merit Brass manufactures pipe nipples following ISO 9001 standards for quality assurance. Family-owned since 1937, the company is based in Cleveland, OH. Merit Brass distributes pipe fittings to the United States and Canada.
