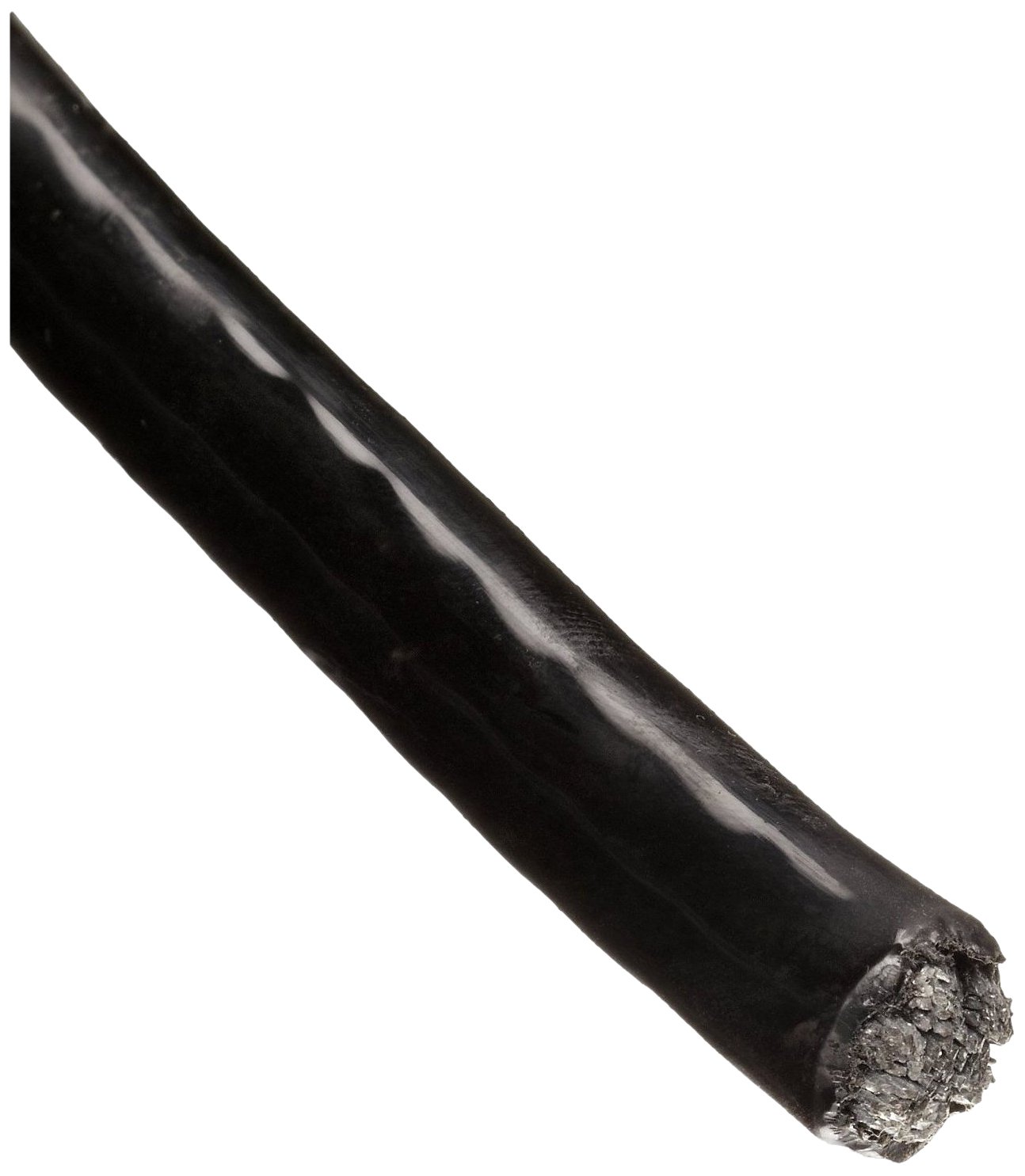

Loos Stainless Steel 302/304 Wire Rope, Nylon Coated, 7x7 Strand Core, Black

Be the first to review this item

Product Specifications
Number of Items
1
Exterior Finish
Nylon Coated
Standard Construction
7x7 Strand Core
Grade
302/304
Material Type
Stainless Steel
Color Name
Black
UNSPSC Code
31150000
Brand Name
Loos & Co.
System of Measurement
Inch

This item is no longer available

These items ship for FREE with 2-Day Shipping on orders over $50. (Details)

Want it delivered on Tue, Oct 28? Order in-stock items in the next 1 day 18 hrs 26 mins and choose One-Day Shipping at checkout.

  • Share
Currently showing 1-15 of 15
Bare OD Coated OD Length Breaking Strength ASIN

The Amazon Standard Item Number (ASIN) uniquely identifies
the item in the AmazonSupply.com (and Amazon) catalog.

Available

If an item is currently out of stock, but has an estimated lead time, you can place an order now and we will ship it as soon as it is available.
You can also order more than we currently have in stock.
Read more about back orders in our help section.

Price
All All All All
Currently showing 1-15 of 15
3/64" 4/64" 50 ft 270 lbs B0013HJZAU yes $6.26 Buy Options
3/64" 4/64" 250 ft 270 lbs B0013HCG74 yes $40.05 Buy Options
3/64" 4/64" 100 ft 270 lbs B0013HELPY yes $19.58 Buy Options
2/32" 4/32" 50 ft 480 lbs B0013HGNCS yes $16.03 Buy Options
2/32" 3/32" 50 ft 480 lbs B0013HGNAU yes $12.03 Buy Options
2/32" 4/32" 25 ft 480 lbs B0013HJZFA yes $8.72 Buy Options
2/32" 4/32" 100 ft 480 lbs B0013HGNDM yes $10.18 Buy Options
2/32" 3/32" 100 ft 480 lbs B0013HGNB4 yes $22.51 Buy Options
3/32" 6/32" 50 ft 920 lbs B0013HIE16 yes $23.67 Buy Options
3/32" 3/16" 25 ft 920 lbs B0013HJZ5K yes $13.34 Buy Options
3/32" 6/32" 100 ft 920 lbs B0013HGN6E yes $38.56 Buy Options
3/32" 5/32" 100 ft 920 lbs B0013HGN3M yes $33.16 Buy Options
3/32" 5/32" 50 ft 920 lbs B0013HIDYY yes $6.40 Buy Options
3/32" 4/32" 50 ft 920 lbs B0013HIDWG yes $18.57 Buy Options
3/32" 4/32" 100 ft 920 lbs B0013HELFE yes $29.30 Buy Options

Key Features

  • Black-colored wire rope for ease of recognition
  • Stainless steel 18-8 is corrosion-resistant, and withstands high temperatures for a wide range of operation
  • Stainless steel is a versatile material, commonly used in a wide variety of applications, and in saline atmospheres
  • Nylon coating has excellent abrasion-resistance, and resists crushing and cracking
  • 7x7 strand core is stronger but less flexible than 6x19 and 6x36 class constructions

Product Description

Nylon-coated, stainless steel wire rope with 7x7 standard construction is commonly used in pulleys, and in aircraft and automotive controls. This wire rope is black-colored for ease of recognition. Stainless steel 304, also called 18-8, is corrosion-resistant, resists scaling, and withstands high temperatures for a wide range of operation. Stainless steel is a versatile material, commonly used in a wide variety of applications, and in saline atmospheres. Nylon coating is very strong, lightweight, and flexible, has excellent abrasion-resistance, and resists crushing and cracking. 7x7 strand core has seven strands of wire rope with seven wires in each strand formed helically around a strand core. 7x7 strand core is stronger but less flexible than 6x19 and 6x36 class constructions.

Wire rope, also called wire cable, is an assembly of wire strands formed helically around a central core. It is used for pulling, lifting, rigging, hoisting, and motion-control applications most commonly found in the manufacturing, marine, oil, mining, fiber-optics, aircraft, automotive accessory, and construction industries. A combination of characteristics including material, finish, construction, diameter, length, and breaking strength combines to give each rope its performance ability. Wire rope materials are selected for properties such as strength, elasticity, conductivity, and chemical- and weather-resistance. For strength purposes, most wire rope is made of bright (uncoated or bare) wire. However, it is also produced in a variety of finishes, such as polypropylene (PE), vinyl (PVC), or nylon. These coatings can increase overall durability and strength, and allow for specific use. The breaking strength for wire rope is the strength at which new wire rope will fail under a stationary load. Breaking strength is not considered safe working load (SWL) limit.
