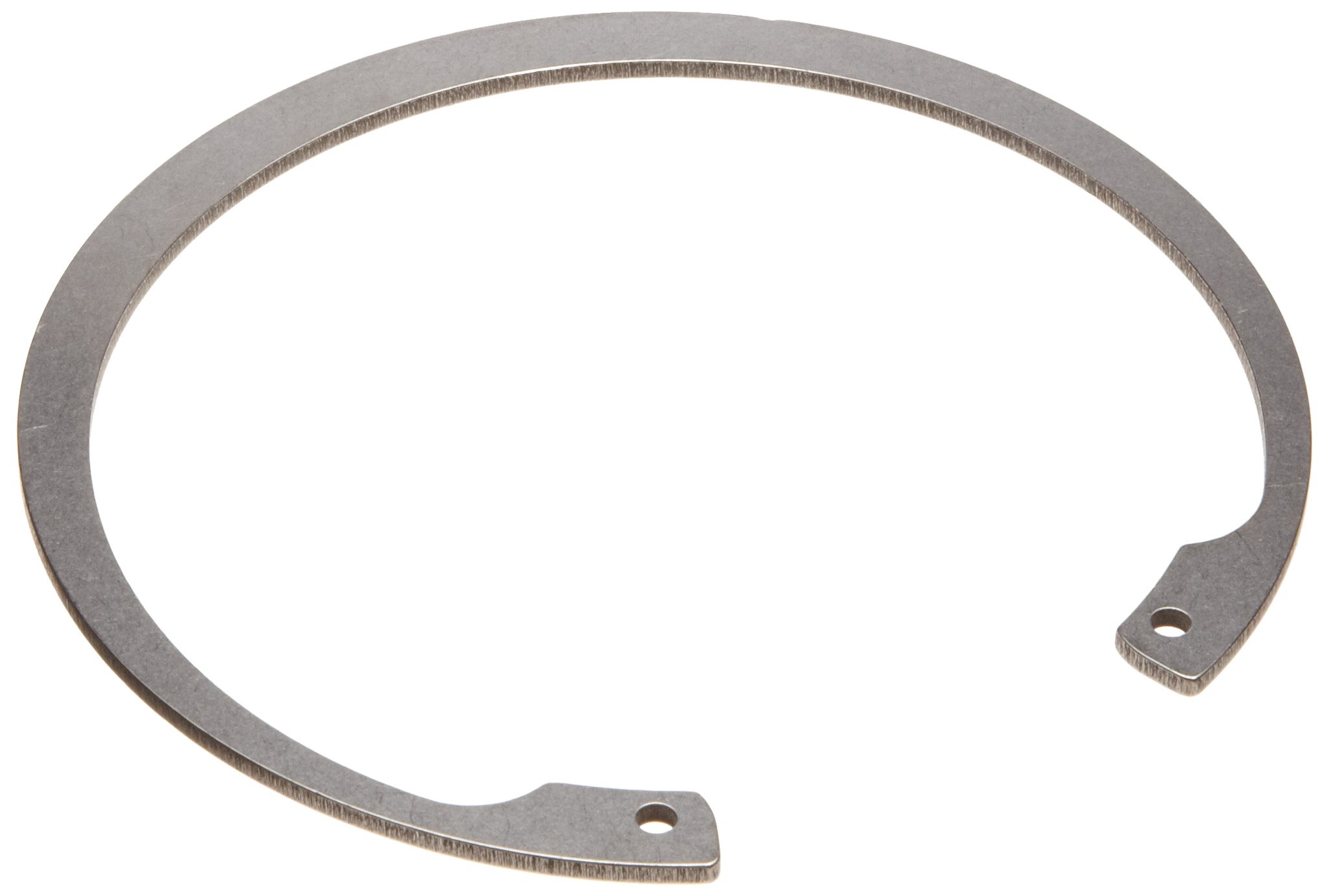

Standard Internal Retaining Ring, Tapered Section, DIN 1.4122 Stainless Steel, Passivated Finish, Meets DIN 472 Specifications, 16mm Bore Diameter, 1mm Thick, Made in US (Pack of 5)

Be the first to review this item

ASIN B0062O20CY

Product Specifications
Compatible Groove Depth
0.4  millimeters
Compatible Groove Diameter
16.8  millimeters
Compatible Groove Width
1.1  millimeters
Compatible With Inside Diameter
16  millimeters
Indentation Hardness
63 rockwell_30N
Item Shape
Standard
Number of Items
5
Outside Diameter
17.3  millimeters
Outside Diameter
17.3  millimeters
Outside Diameter Tolerance
+0.36 mm/-0.10  millimeters
Thickness
1  millimeters
Thickness Tolerance
-0.06  millimeters
Specification for this product family (See all  products)
Material Type
Stainless Steel
Body Style
Standard
Part Number
B00D2B6YB8
Brand Name
Small Parts
Manufacturer Series Number
DHO
Exterior Finish
Passivated
Specification Met
DIN 472
Grade
DIN 1.4122
Style Name
Tapered Section
UNSPSC Code
31163202
Import Designation
Made in US
System of Measurement
Metric

This item is no longer available

This item ships for FREE with 2-Day Shipping on orders over $50. (Details)

Want it delivered on Wed, Dec 24? Order in-stock items in the next 2 hrs 7 mins and choose One-Day Shipping at checkout.

  • Share

This item has already been added to

Update Quantity Cancel

Select a List Create New List


You can add a description later

Package Details

Shipping Weight: 0.01 pounds
Package Size: 1 x 1 x 0.2 inches

Product Description

Retaining rings attach to a shaft (external) or install in a bore (internal), creating a shoulder to maintain component positioning within an assembly. While most rings install into a machined groove either on the inside or outside diameter of a shaft, self-locking rings attach to a shaft by using friction from means such as teeth and notches to maintain placement. Retaining rings should fit tightly enough into the groove or onto the shaft so they won't experience any movement.
