Stainless Steel 316LVM Wire, Straightened, Bright, Spring Temper, Precision Tolerance, ASTM A313, ASTM F138

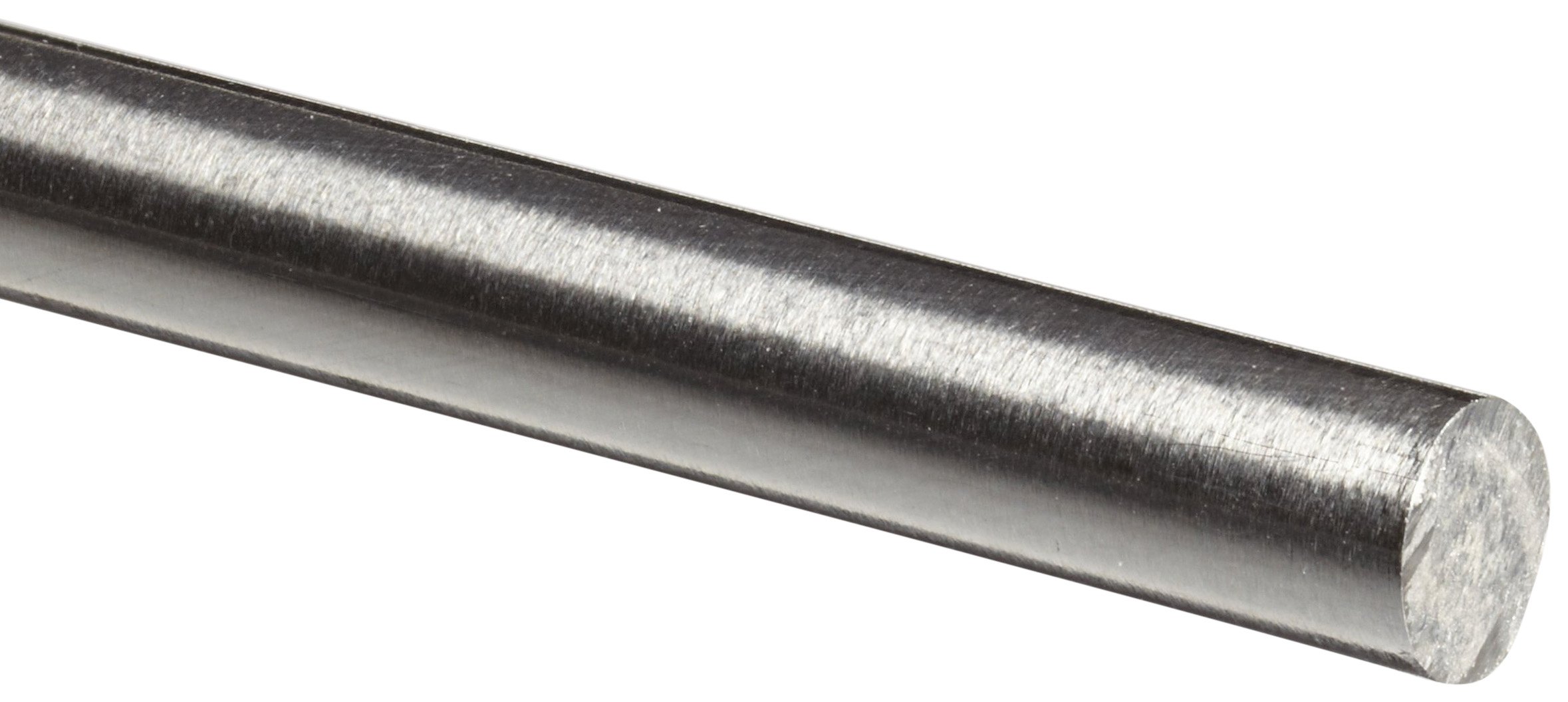

Image is representative of the product family. Select individual products in the table below for more specific images and product specifications

How can we improve our images or Product Specifications

Stainless Steel 316LVM Wire, Straightened, Bright, Spring Temper, Precision Tolerance, ASTM A313, ASTM F138

Be the first to review this item

Product Specifications

Brand Name: Small Parts
Exterior Finish: Bright
Item Shape: Wire
Material Type: Stainless Steel 316

Specification Met: ASTM A313, ASTM F138
System of Measurement: Inch
Temper: Spring Temper
Tolerance Held: Precision

These items ship for FREE with 2-Day Shipping on orders over $50. (Details)

Want it delivered on Tuesday, May 29? Order in-stock items in the next 11 hours 25 minutes and choose One-Day Shipping at checkout.

Javascript is disabled in your browser. Please enable Javascript for your browser or visit our non JavaScript version of the page with limited functionality.

Currently showing 20 of 78 Show All
Diameter	Length	Pkg Qty	ASIN The Amazon Standard Item Number (ASIN) uniquely identifies the item in the AmazonSupply.com (and Amazon) catalog.	Available If an item is currently out of stock, but has an estimated lead time, you can place an order now and we will ship it as soon as it is available. You can also order more than we currently have in stock. Read more about back orders in our help section.	Price
All	All			In Stock Only
Currently showing 20 of 78 Show All
0.005"	60"	5	B001385HCY	In Stock (31)	$25.90
0.005"	60"	1	B000FN0KXO	In Stock (33)	$17.30
0.006"	60"	5	B001387M90	In Stock (25)	$29.40
0.007"	60"	5	B001385HG0	In Stock (15)	$14.92
0.0075"	60"	10	B000RMO8CC	In Stock (38)	$3.89
0.008"	60"	5	B001383E6K	In Stock (17)	$25.90
0.008"	30"	5	B001381C0U	In Stock (14)	$22.55
0.0085"	60"	5	B00138936U	In Stock (124)	$4.59
0.009"	60"	5	B001381C50	In Stock (9)	$28.47
0.01"	60"	5	B001381C8M	In Stock (18)	$22.27
0.011"	60"	5	B001383ECO	In Stock (8)	$22.26
0.011"	60"	10	B000RMTMKK	In Stock (9)	$31.15
0.012"	60"	5	B001387MOU	In Stock (30)	$11.90
0.013"	60"	5	B001387MQI	In Stock (15)	$24.93
0.013"	60"	1	B000FMWBZK	In Stock (277)	$11.92
0.015"	60"	5	B001387MUO	In Stock (18)	$24.92
0.015"	60"	10	B000RMTMLY	In Stock (7)	$31.11
0.015"	60"	1	B000FMWC0Y	In Stock (2)	$15.14
0.016"	60"	5	B001381CJ6	In Stock (211)	$3.19
0.016"	60"	1	B000FMUI1E	In Stock (17)	$15.12

0.005"(2)
0.006"(1)
0.007"(1)
0.0075"(1)
0.008"(2)
0.0085"(1)
0.009"(1)
0.01"(1)
0.011"(2)
0.012"(1)
0.013"(2)
0.015"(3)
0.016"(2)
0.017"(1)
0.018"(1)
0.019"(2)
0.02"(1)
0.021"(1)
0.022"(1)
0.023"(1)
0.024"(1)
0.025"(1)
0.026"(2)
0.027"(2)
0.028"(1)
0.029"(1)
0.03"(2)
0.031"(1)
0.032"(2)
0.033"(1)
0.034"(1)
0.035"(2)
0.036"(1)
0.037"(1)
0.038"(1)
0.039"(2)
0.04"(2)
0.044"(1)
0.045"(1)
0.051"(1)
0.052"(1)
0.053"(1)
0.054"(1)
0.056"(1)
0.058"(1)
0.068"(1)
0.072"(1)
0.074"(1)
0.080"(2)
0.081"(1)
0.084"(1)
0.085"(1)
0.086"(1)
0.087"(2)
0.089"(1)
0.091"(1)
0.092"(1)
0.093"(1)
0.096"(1)
0.101"(1)
0.102"(1)

Key Features

ASTM F138
Ultra Clean Vacuum Arc Remelted
Spring Temper
Precision Drawn
Straightened

Product Description

Stainless Steel 316LVM Wire (ASTM F138 Chemistry Only) is 316L (VM is Vacuum Arc Remelted). The wire is spring tempered, drawn, straightened, cut and cleaned with a bright finish. The wire only meets chemistry of ASTM F138 due to loss in tensile strength as a result of the straightening process yielding a 10% loss in strength. It does however meet ASTM A313 for tensile strength. 316LVM is formulated similar to commercial quality stainless steel, but has been refined by melting or re-melting in a vacuum, a process that segregates the melt from oxygen, nitrogen and other ambient gases, resulting in a cleaner, higher-quality, more pure stainless steel. 316LVM Stainless Steel offers high corrosion resistance for many conditions, particularly when working with phosphoric and acetic acids. This wire comes gun-barrel straight and clean with a bright finish. Many of the sizes listed fit inside diameters of our Hypodermic Tubing. NOTE: When ordering wire, always specify exact dimensions in decimals. Stating gage sizes can lead to confusion, since wire diameters may conform to various gaging systems. Hypodermic tubing gage sizes are based on the Birmingham Gage, also known as Stub's Iron Wire Gage.
