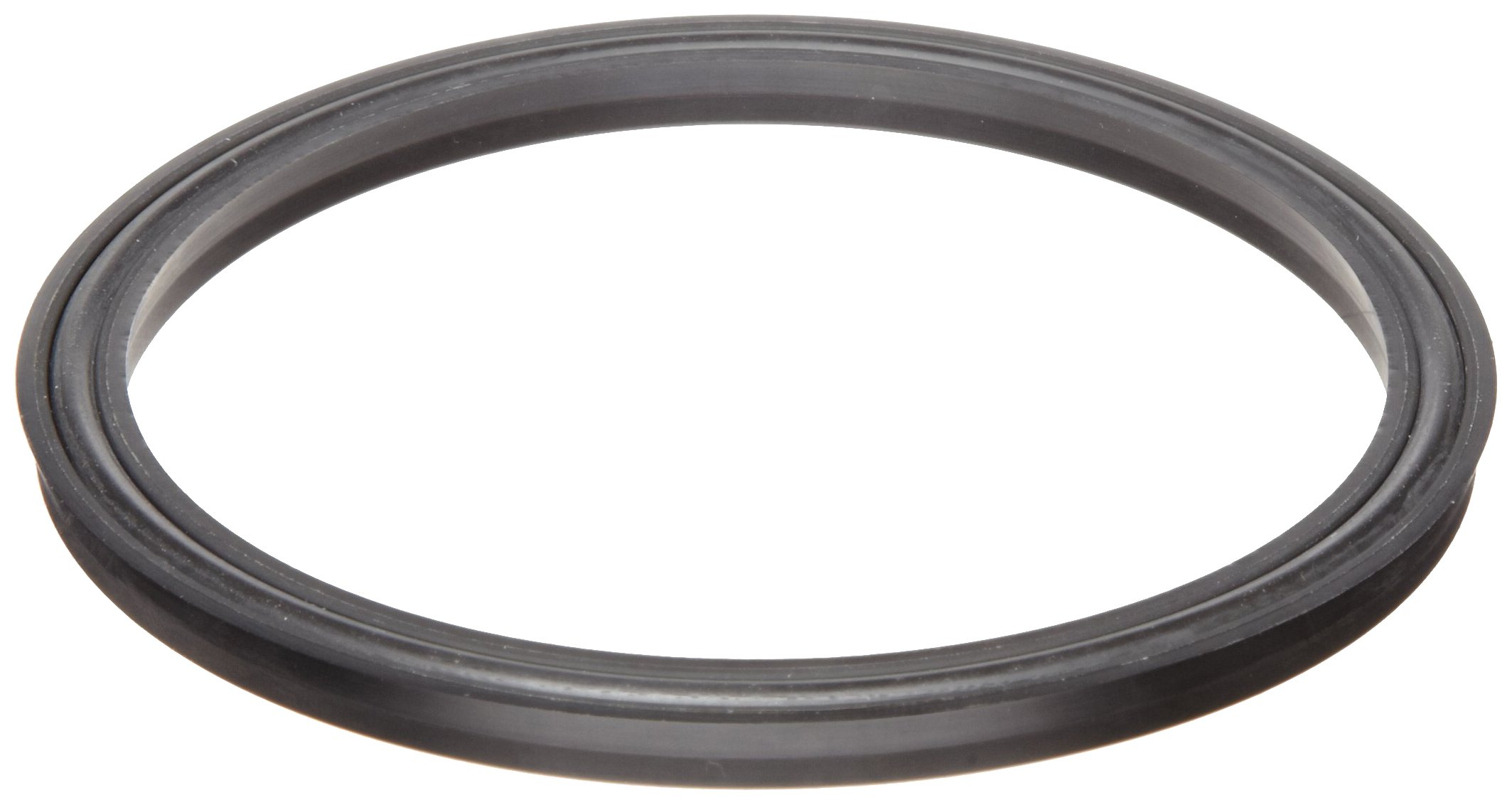

Click for larger image and other views Image is representative of the product family. Select individual products in the table below for more specific images and product specifications

How can we improve our images or Product Specifications?

Lip Seal, Square Profile, Buna-N O-Ring Loaded, Urethane

Be the first to review this item

Product Specifications
Upper Temperature Range
200  Degrees Fahrenheit
Item Shape
Square
Hardness
92 A Durometer
Material Type
Urethane
Color Name
Black
Maximum Pressure
5000  PSI
Brand Name
Small Parts
System of Measurement
Inch
LowerTemperature Range
-40  Degrees Fahrenheit

This item is no longer available

These items ship for FREE with 2-Day Shipping on orders over $50. (Details)

Want it delivered on Thu, Apr 17? Order in-stock items in the next 9 hrs 54 mins and choose One-Day Shipping at checkout.

  • Share
Currently showing 1-20 of 71 Next 20 »
Height Width Inside Diameter Outer Diameter Pkg Qty ASIN

The Amazon Standard Item Number (ASIN) uniquely identifies
the item in the AmazonSupply.com (and Amazon) catalog.

Available

If an item is currently out of stock, but has an estimated lead time, you can place an order now and we will ship it as soon as it is available.
You can also order more than we currently have in stock.
Read more about back orders in our help section.

Price
All All All All All
Currently showing 1-20 of 71 Next 20 »
1/8" 1/8" 1" 1-1/4" 1 B005M2OZPC Usually ships in 3 to 4 weeks $5.87 Buy Options
1/8" 1/8" 7/8" 1-1/8" 1 B005M2OYXU 1 $5.72 Buy Options
1/8" 1/8" 3/4" 1" 1 B005M2OYGC 4 $5.76 Buy Options
1/8" 1/8" 5/8" 7/8" 1 B005M2OXTA 2 $5.71 Buy Options
1/8" 1/8" 1/4" 1/2" 1 B005M2NGS4 1 $5.67 Buy Options
1/8" 1/8" 1/2" 3/4" 1 B005M2OX4U 1 $5.70 Buy Options
1/8" 1/8" 3/8" 5/8" 1 B005M2OWIW Usually ships in 3 to 4 weeks $2.68 Buy Options
5/32" 5/32" 1-3/8" 1-11/16" 1 B005M2P1WS 1 $4.22 Buy Options
5/32" 5/32" 1-3/16" 1-1/2" 1 B005M2P1FA 1 $6.36 Buy Options
5/32" 5/32" 1" 1-5/16" 1 B005M2P0QA 1 $6.62 Buy Options
3/16" 3/16" 1-5/8" 2" 1 B005M2P7HM 1 $6.46 Buy Options
3/16" 3/16" 1-3/8" 1-3/4" 1 B005M2P67S 1 $6.39 Buy Options
3/16" 3/16" 1-1/4" 1-5/8" 1 B005M2P5OC 1 $6.38 Buy Options
3/16" 3/16" 1-1/8" 1-1/2" 1 B005M2P5DS 1 $6.22 Buy Options
3/16" 3/16" 1" 1-3/8" 1 B005M2P51U 1 $6.13 Buy Options
3/16" 3/16" 7/8" 1-1/4" 1 B005M2P4P2 1 $6.07 Buy Options
3/16" 3/16" 3/4" 1-1/8" 1 B005M2P4D4 1 $6.05 Buy Options
3/16" 3/16" 5/8" 1" 1 B005M2P3XK 1 $5.47 Buy Options
3/16" 3/16" 1/2" 7/8" 1 B005M2P3GC 1 $5.99 Buy Options
3/16" 3/16" 3/8" 3/4" 1 B005M2P31W 2 $5.85 Buy Options

Key Features

  • Loaded lip seal for providing a hydraulic-cylinder seal under pressures up to 5,000 pounds per square inch (psi)
  • Square profile to provide a static seal
  • Lip seal made from urethane for flexibility and resistance to impact, abrasion, and hydrocarbons
  • O-ring made of Buna-nitrile (also called Buna-N) for use with a variety of fluids from petroleum to aliphatic hydrocarbons
  • Functions in temperatures from - 40 to 200 degrees F and has a durometer of 92A

Product Description

This loaded lip seal has a square profile, is made of black urethane, has a black Buna-nitrile (Buna-N) O-ring, provides a seal under pressures up to 5,000 pounds per square inch (psi), functions in temperatures from – 40 to 200 degrees F and has a durometer of 92A.

Urethane is a lightweight plastic with impact, abrasion, weather, electrical, and hydrocarbon resistance. It is available in different levels of hardness depending on the application, and performs well up to about 90 degrees C (194 F). Buna-nitrile can have high tensile strength, and has abrasion, tear, and compression set resistance. It is compatible for use with petroleum, hexafluoroacetone (HFA), hexafluoro-2-butyne (HFB) and hydrofluorocarbon (HFC) fluids, vegetable oil, alcohol, acids, and aliphatic hydrocarbons. Buna-nitrile is vulnerable to acetone, ethers, esters, ozone, sunlight and weathering, and should not be used in ozone-generating electric motors, welding equipment, or in applications with exposure to UV light.

The durometer hardness of this lip seal is 92A. Durometers measure the hardness of a material and its resistance to permanent indentation. A higher durometer value indicates greater resistance to indentation. On a scale of 0 to 100, a value of 0 indicates that a sample was completely penetrated, while a value of 100 shows no indentation in the sample. The letter following the number identifies the shore scale, which is either shore A or D. Shore A is used for softer plastics, while shore D is used for harder plastics.

Square profile lip seals, also known as polypacks, provide a pressure and fluid seal for rod and piston seals in low pressure hydraulic applications. They are circular in shape, with a square cross section for providing a static seal under high pressure, and a u-shaped indentation for holding an O-ring (which helps alleviate pressure on the inner and outer diameter seal surface and to prevent leakage in dynamic applications at lower pressures). O-rings provide a pressure and fluid seal between cylindrically shaped, overlapping mating surfaces and are commonly seen in engines, faucets, flanges, valves, and various cylinders. They are circular in shape, with a round cross section, and a hole in the center, similar to a doughnut. Lip seals are available in different heights, widths, and with different inside and outer diameters
