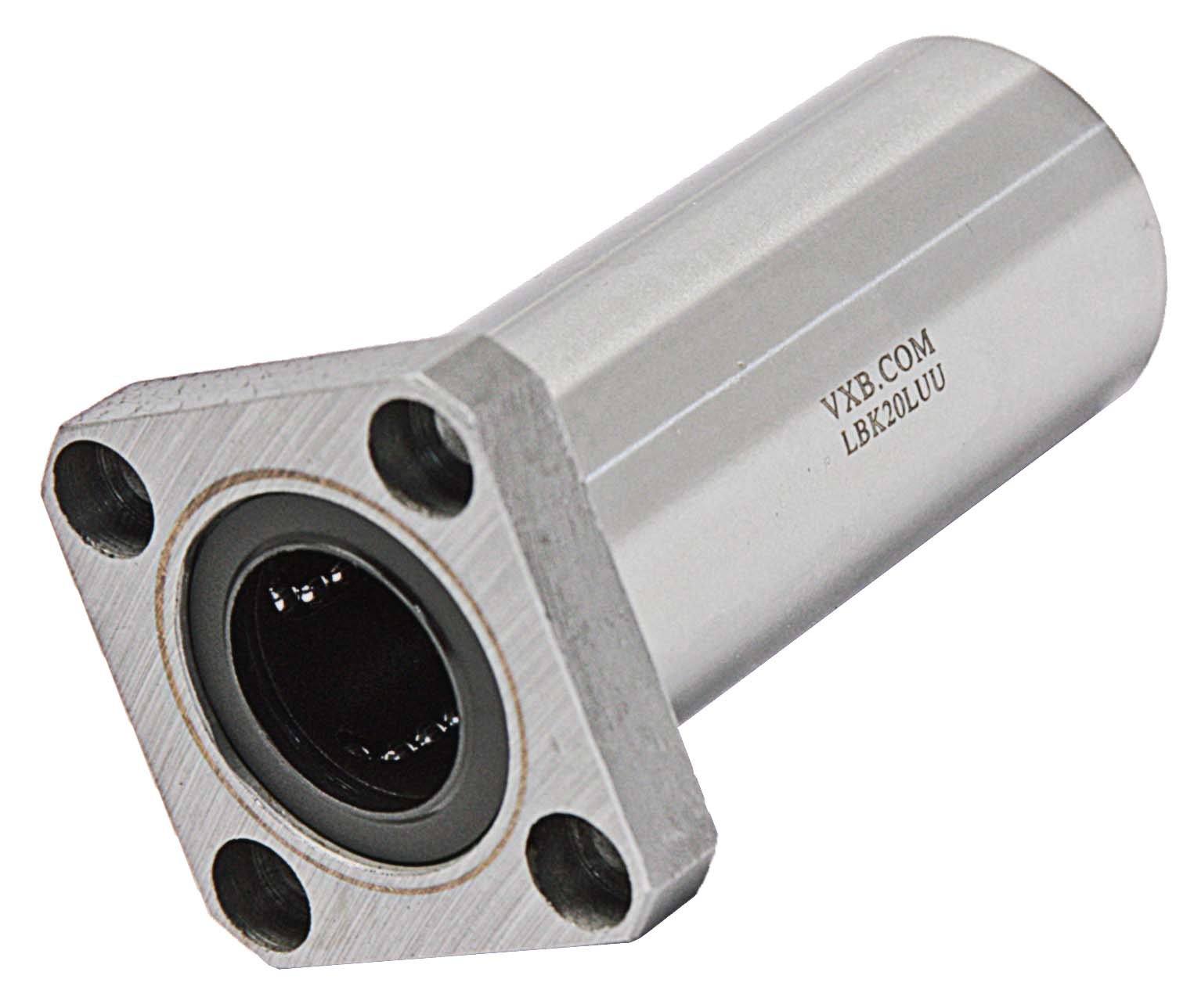

LBK20LUU Linear Motion 20 mm Flange Mount Ball Bushing, Square Flange, Long, Closed Type, Metric

Be the first to review this item

ASIN B002BBH2ES

Specifications for this item
Number of Items
1
Part Number
Kit7274
Outside Diameter
20  millimeters
Brand Name
VXB
UNSPSC Code
31171504

This item is no longer available

This item ships for FREE with 2-Day Shipping on orders over $50. (Details)

Want it delivered on Tue, Oct 28? Order in-stock items in the next 2 days 1 hr 49 mins and choose One-Day Shipping at checkout.

  • Share

This item has already been added to

Update Quantity Cancel

Select a List Create New List


You can add a description later

Key Features

  • Closed type ball bushing for use in linear motion applications where shaft support clearance is not a factor
  • High-carbon chromium steel flanged bushing case for strength and rigidity
  • Tandem synthetic resin retainer plates for accurate ball guidance and low noise
  • Five rows of recirculating balls inside the ball bushing for smooth running
  • Integral lip seals to retain lubricant and protect against contamination

Package Details

Shipping Weight: 0.3 pounds
Package Size: 3.4 x 1.7 x 1 inches

Product Description

This linear motion closed type ball bushing has a 20 mm bore, a double length case, and a square case flange, and is suitable for use in a mounted slide unit to carry components in precision linear motion applications, such as in printing machines and computer numerical control (CNC) equipment. This ball bushing insert is used where shaft support clearance is not a factor and it compensates for misalignment caused by tolerance defects and mounting errors. The linear motion ball bushing has a flanged chromium steel case for strength and rigidity, two synthetic resin retainer plates set in tandem for accurate ball guidance and low noise, five rows of recirculating balls guided by each retainer plate for smooth running, seals at each end to retain lubricant and protect against contamination, and a maximum operating temperature of 80 degrees Celsius/176 degrees Fahrenheit. As part of a linear motion system, this long ball bushing can carry a load accurately along a straight line and is suitable for use in applications, such as measuring systems, printing equipment, and CNC tools.

Specifications

Inside diameter20 mm
Outside diameter28 mm
Length70 mm

Mounted bearings combine a bearing mounted inside a housing unit. The bearing housing replaces the need for a casting or weldment to position the bearing securely for reliable operation, and its design determines the type of insert bearing. Insert bearings use rolling elements (ball, cylindrical, spherical, barrel, needle, spindled, or tapered) to maintain the separation between moving parts to reduce rotational friction, and to support radial and axial loads. Available in a variety of materials and mounting configurations, mounted bearings can be one- or two-piece, they can have an extended inner ring and locking device, and they can have seals and end caps that retain lubrication and protect the working parts of the bearing from environmental debris. Mounted bearings support shafts in a variety of mounting configurations (flange block, hanger, pillow block, and take-up block), and are used in a range of applications from light duty shaft guidance on conveyors to road building equipment and crushers.
