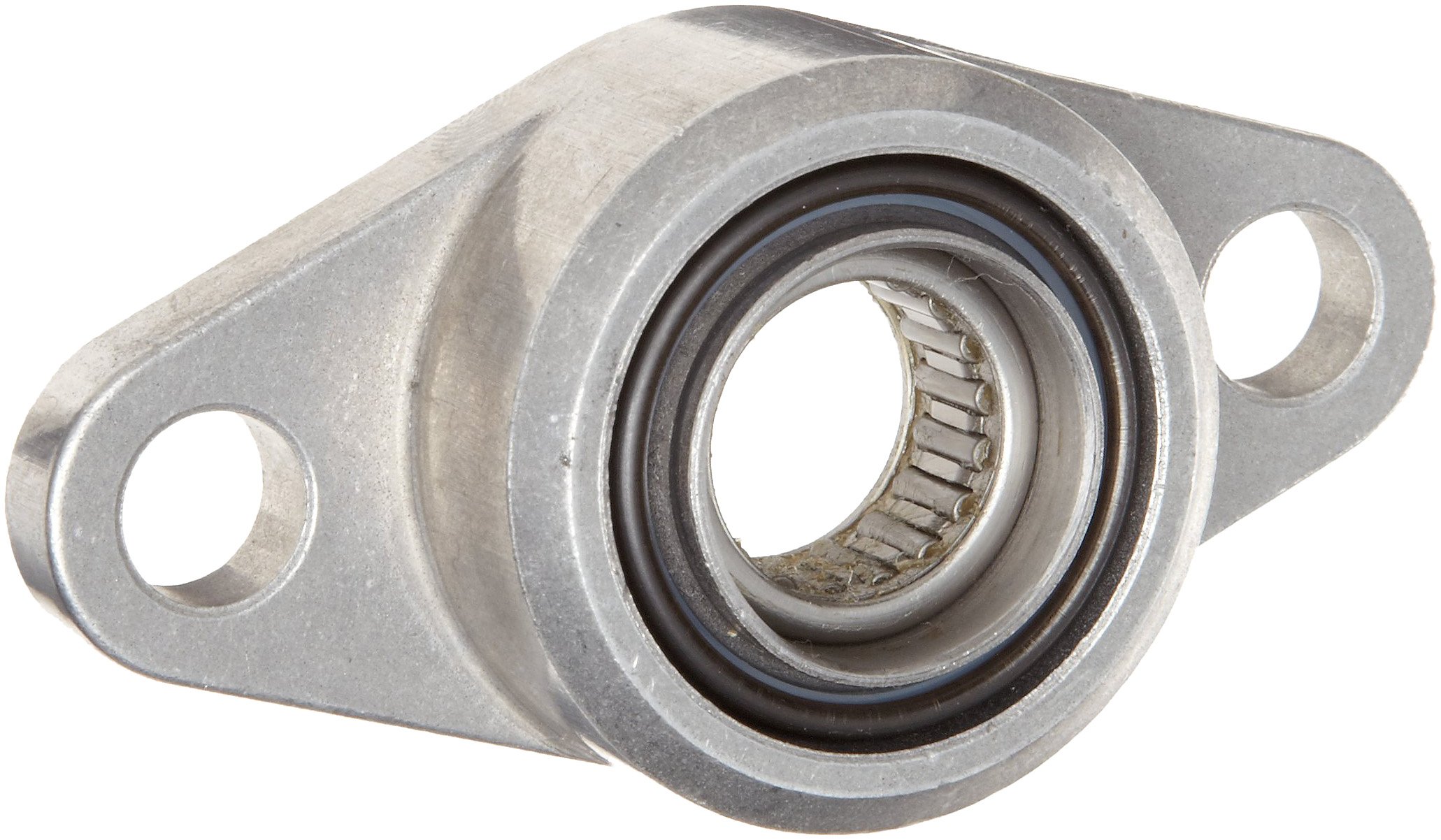

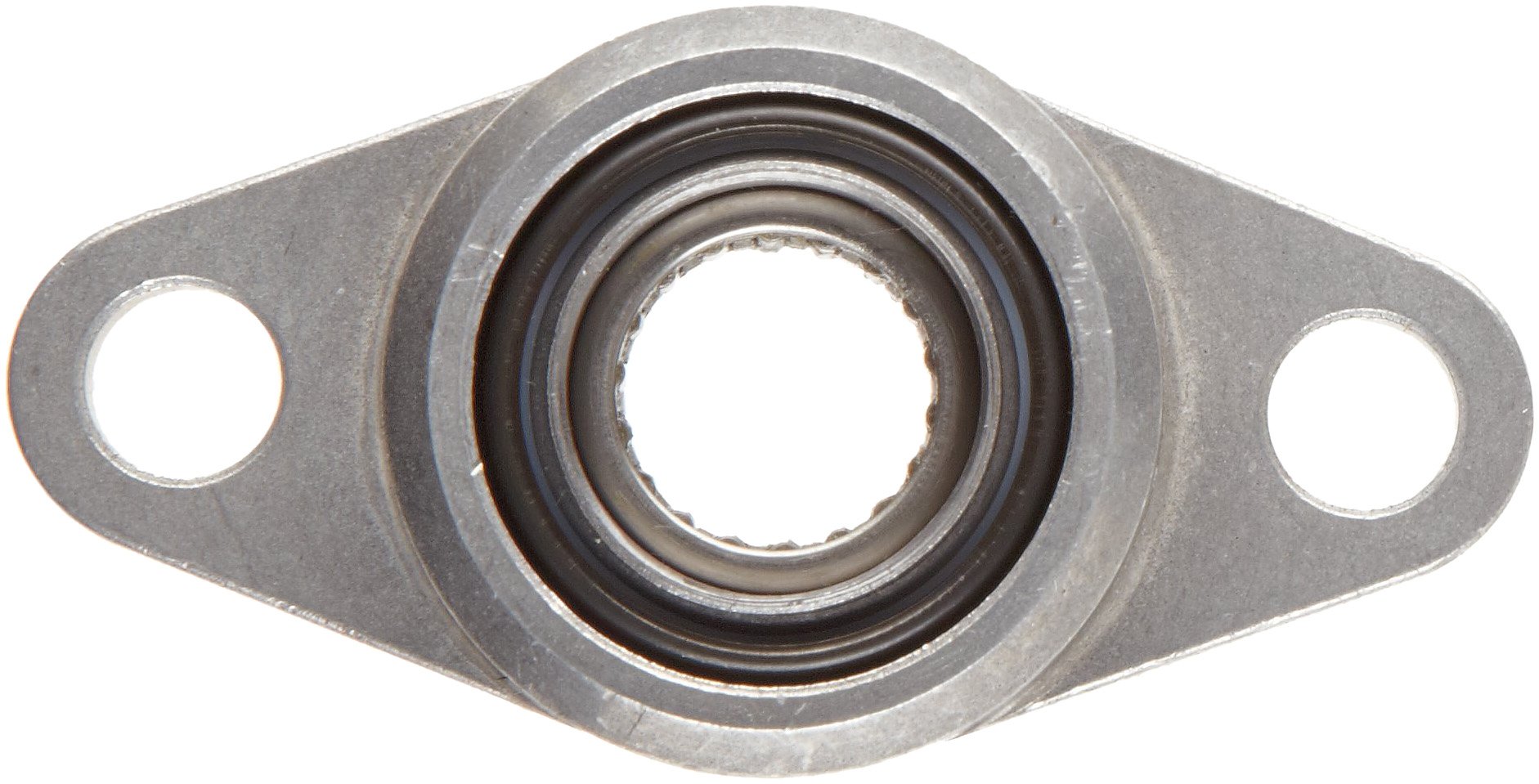

Spyraflo HF3-16M-N Self-Aligning, Needle-Roller Bearing With Aluminum 2-Bolt Hole, 16 mm Inner-Diameter Housing-Flange

Be the first to review this item


Specifications for this item
Overall Height
22  millimeters
Overall Width
41.5  millimeters
Bore Diameter
16  millimeters
Part Number
Flange Center to Center Length
63.5  millimeters
Brand Name
Flange Hole Size
10.5  millimeters
Max Rotational Speed
16000  RPM
Flange Overall Height
6.5  millimeters
Number of Items
Flange Type
2-Bolt Hole Housing Flange
Bore Diameter Tolerance
16.025 / 16.063  millimeters
41.5  millimeters
Static Load Capacity
450  Kilograms
Flange Thickness
6.5  millimeters
Dynamic Load Capacity
315  Kilograms
Flange Overall Length
82.5  millimeters
Overall Length
82.5  millimeters
System of Measurement

This item is no longer available

This item ships for FREE with 2-Day Shipping on orders over $50. (Details)

Want it delivered on Wed, Apr 29? Order in-stock items in the next 14 hrs 47 mins and choose One-Day Shipping at checkout.

  • Share

This item has already been added to

Update Quantity Cancel

Select a List Create New List

You can add a description later

Key Features

  • ± 5° Self-Alignment accommodating machining and assembly mis-alignment
  • Corrosion resistant, lightweight, approximately 50% of that of cast iron
  • Unique Design, Low Profile
  • High speed, high load applications
  • Minimum dynamic friction

Package Details

Shipping Weight: 0.3 pounds
Package Size: 3 x 2 x 1 inches

Product Description

The HF3-16M-N combines the Spyraflo Self-Aligning High Performance, Drawn-Cup, Needle-Roller bearing with their sintered aluminum 2-Bolt Hole Housing Flange. The unique final assembly offers design engineers a Low-Profile, Flange Mounted bearing that is lightweight, has clean lines and dimensional consistency. The hardened steel shaft acts as the inner bearing raceway on this narrow cross-section rolling element bearing with the needles being retained in a cage. The bearings are pre-lubricated with lithium-complex grease for optimum performance. high temperature grease, sealed and full-compliment bearing options are also available. Spyraflo Housing-Flanges are often able to replace more expensive, larger and heavier cast-iron ball bearing assemblies. The profile and performance of Spyraflo housing Flanges make them a very cost effective alternative to traditional Flange-Mounted bearing mounting challenges. Military Vehicles, Playground Equipment, Conveyors, Packaging Machines, Lawn Care Equipment, Loading Platforms and Radar equipment are among the wide cross-section of applications benefiting from the productivity and performance gains of Spyraflo Housing-Flanges.
