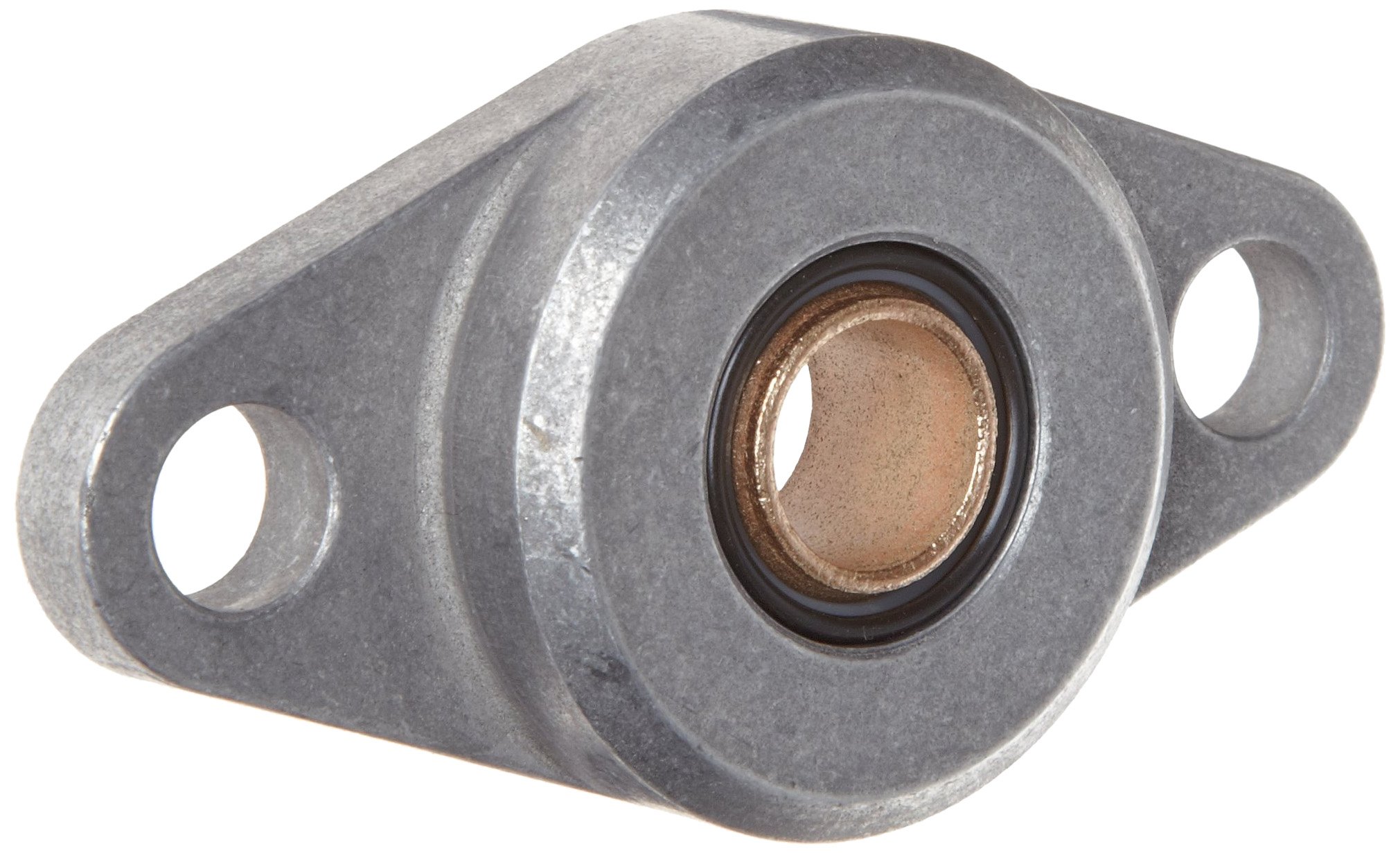

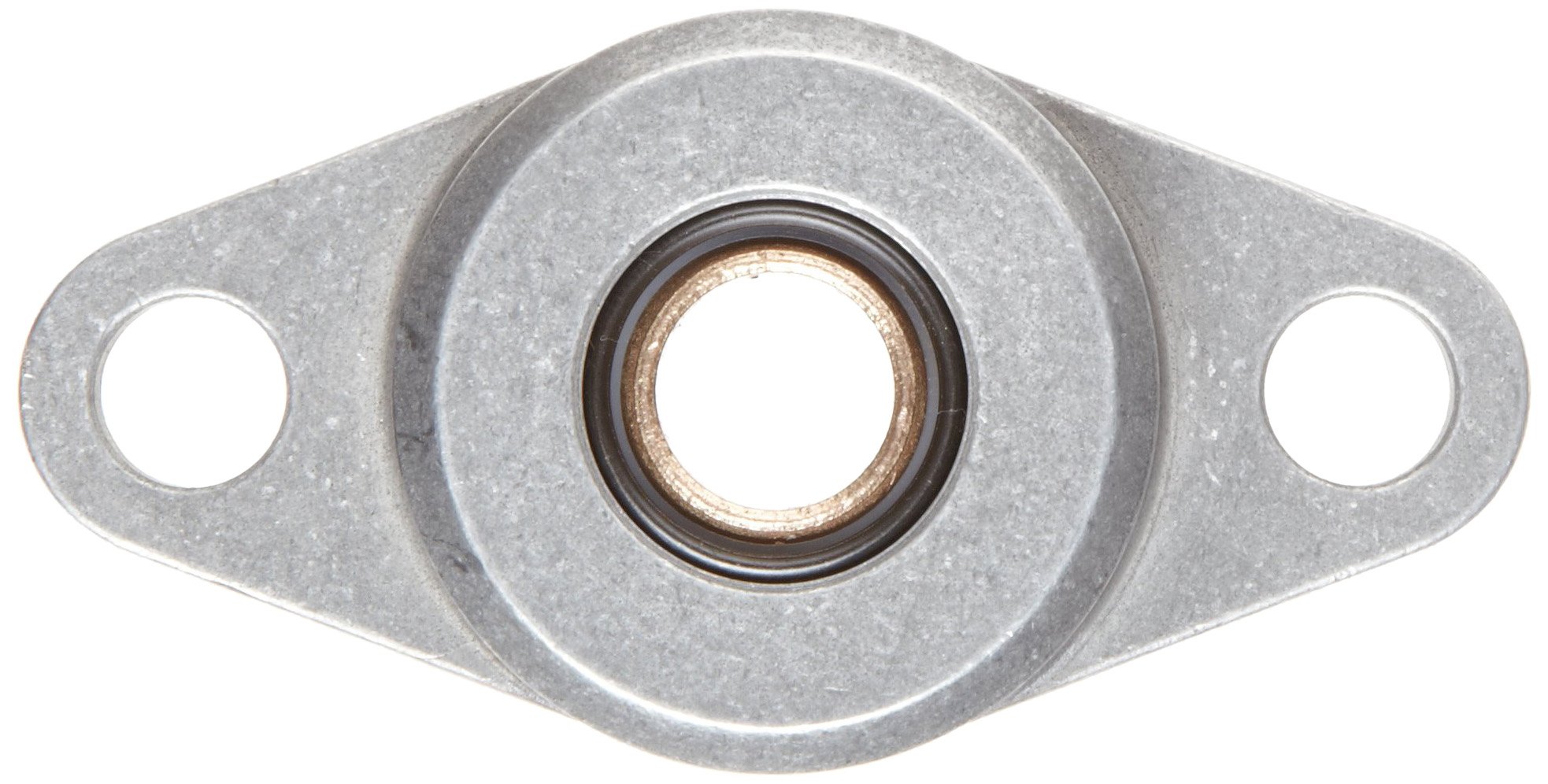

Spyraflo HF2-500-B Self-Aligning, SAE-840 Oil Impregnated Bronze Bearing With Aluminum 2-Bolt Hole, 1/2" Inner-Diameter Housing-Flange

Be the first to review this item

ASIN B003IPC0CU

Specifications for this item

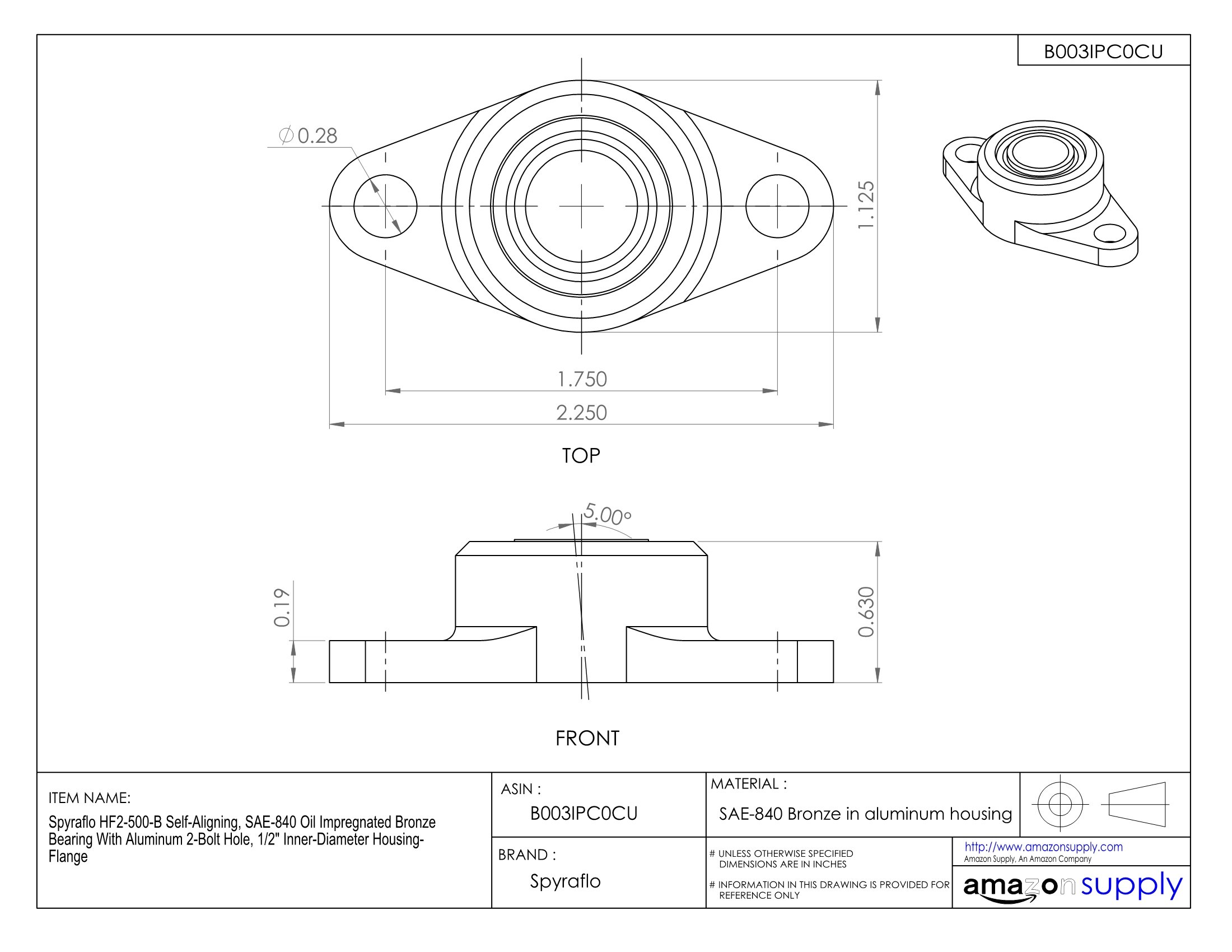

Overall Height
5/8  inches
Overall Width
1-1/8  inches
Bore Diameter
1/2  inches
Part Number
HF2-500-B
Flange Center to Center Length
1-3/4  inches
Brand Name
Spyraflo
Flange Hole Size
0.28  inches
Max Rotational Speed
7640  RPM
Flange Overall Height
3/16  inches
Number of Items
1
Flange Type
2-Bolt Hole Housing Flange
Bore Diameter Tolerance
0.5010 / 0.5017  inches
Material Type
SAE-840 Bronze in aluminum housing
Thickness
1-1/8  inches
UPC
872871001321
EAN
0872871001321
Static Load Capacity
485  pounds
Flange Thickness
3/16  inches
UNSPSC Code
31171500
Dynamic Load Capacity
340  pounds
Flange Overall Length
2-1/4  inches
Overall Length
2-1/4  inches
System of Measurement
Inch

This item is no longer available

This item ships for FREE with 2-Day Shipping on orders over $50. (Details)

Want it delivered on Wed, Dec 24? Order in-stock items in the next 18 hrs 49 mins and choose One-Day Shipping at checkout.

  • Share

This item has already been added to

Update Quantity Cancel

Select a List Create New List


You can add a description later

Key Features

  • Sintered aluminum housing for corrosion resistance and dimensional consistency
  • SAE 840 oil-impregnated bronze plain bearing insert for supporting moderate loads, moderate speeds, and rotational and oscillatory motion
  • Self-aligning bearing compensates for +/- 5 degrees of static misalignment
  • Operating temperatures range from -20 to 200 degrees F (-28 to 93 degrees C)
  • Straight bore fits conventional cylindrical shafts

Package Details

Shipping Weight: 0.5 pounds
Package Size: 2.5 x 1.3 x 0.7 inches

Product Description

This Spyraflo self-aligning SAE 840 oil-impregnated bronze housing-flange unit with an aluminum housing and two bolt holes is designed for mounting onto bearing surfaces perpendicular to the shaft axis. The housing is made of sintered aluminum for corrosion resistance and dimensional consistency, and is suitable for horizontal mounting. The bronze plain bearing insert in the housing is formed and sized to SAE (Society of Automotive Engineers) 840 specifications and supports moderate loads, moderate speeds, and rotational and oscillatory motion. The bronze is sintered for strength, durability, and corrosion resistance. This porous bronze bearing is vacuum-infused with a minimum volume of 25 percent oil, which remains in the pores of the bearing to provide lubricant from the bearing to the shaft during operation. The bearing insert is self-aligning and compensates for +/- 5 degrees of static misalignment. This plain bearing has a maximum load value of 2,000 psi (pounds per square inch), a maximum velocity value of 1,200 fpm (surface feet per minute), and a maximum load-at-velocity (PV) value of 25,000, and operates at temperatures ranging from -20 to 200 degrees F (-28 to 93 degrees C). Designed with a regular straight bore, this bearing fits to conventional cylindrical shafts. Plain flanged bearings are for use in various applications such as heavy-lifting equipment, pumps, aircraft, and motors, among others.

Mounted bearings combine a bearing mounted inside a housing unit. The bearing housing replaces the need for a casting or weldment to position the bearing securely for reliable operation, and its design determines the type of insert bearing. Insert bearings use rolling elements (ball, cylindrical, spherical, barrel, needle, spindled, or tapered) to maintain the separation between moving parts to reduce rotational friction, and to support radial and axial loads. Available in a variety of materials and mounting configurations, mounted bearings can be one- or two-piece, they can have an extended inner ring and locking device, and they can have seals and end caps that retain lubrication and protect the working parts of the bearing from environmental debris. Mounted bearings support shafts in a variety of mounting configurations (flange block, hanger, pillow block, and take-up block), and are used in a range of applications from light duty shaft guidance on conveyors to road building equipment and crushers.

Spyraflo manufactures bearings and bearing accessories. The company, founded in 1961 and headquartered in Peachtree City, GA, meets International Organization for Standardization (ISO) standard 9001:2008.
