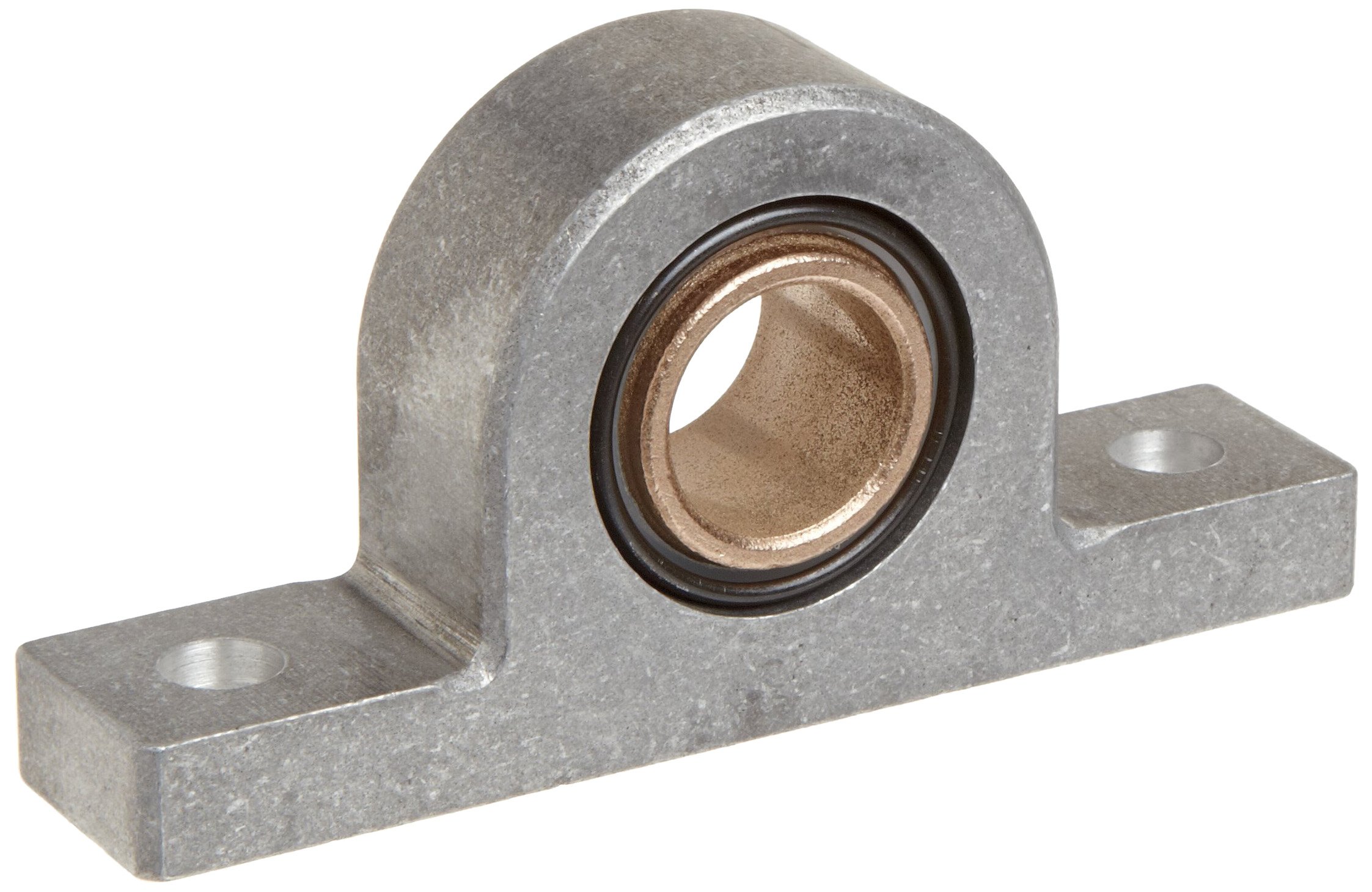

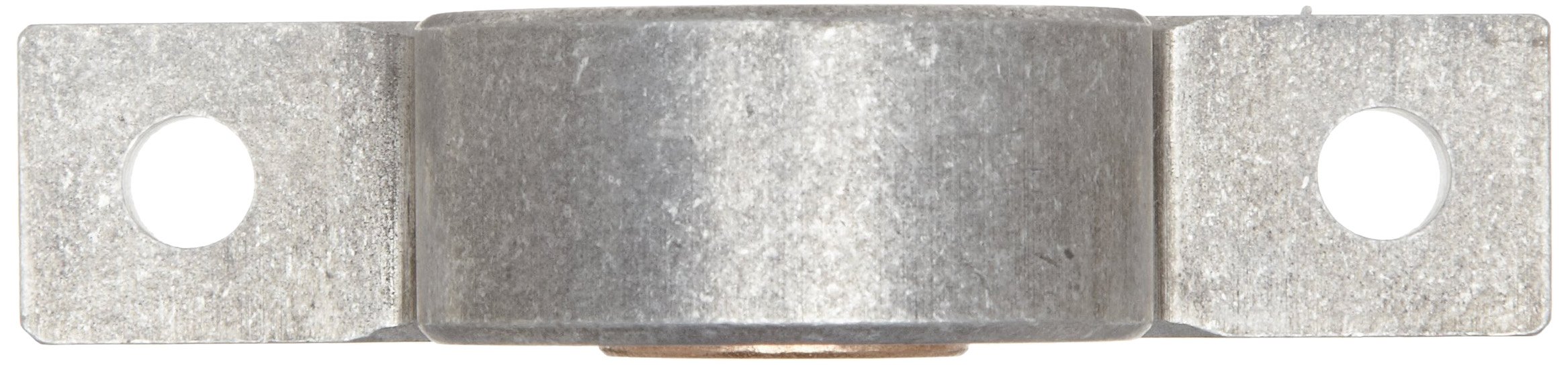

Spyraflo PB3-750-B SAE-840 Oil Impregnated Bronze Bearing Pillow Block, 2 Bolt Holes, 0.750" Bore Diameter, Aluminum, Inch

Be the first to review this item

ASIN B003DZ0SG0

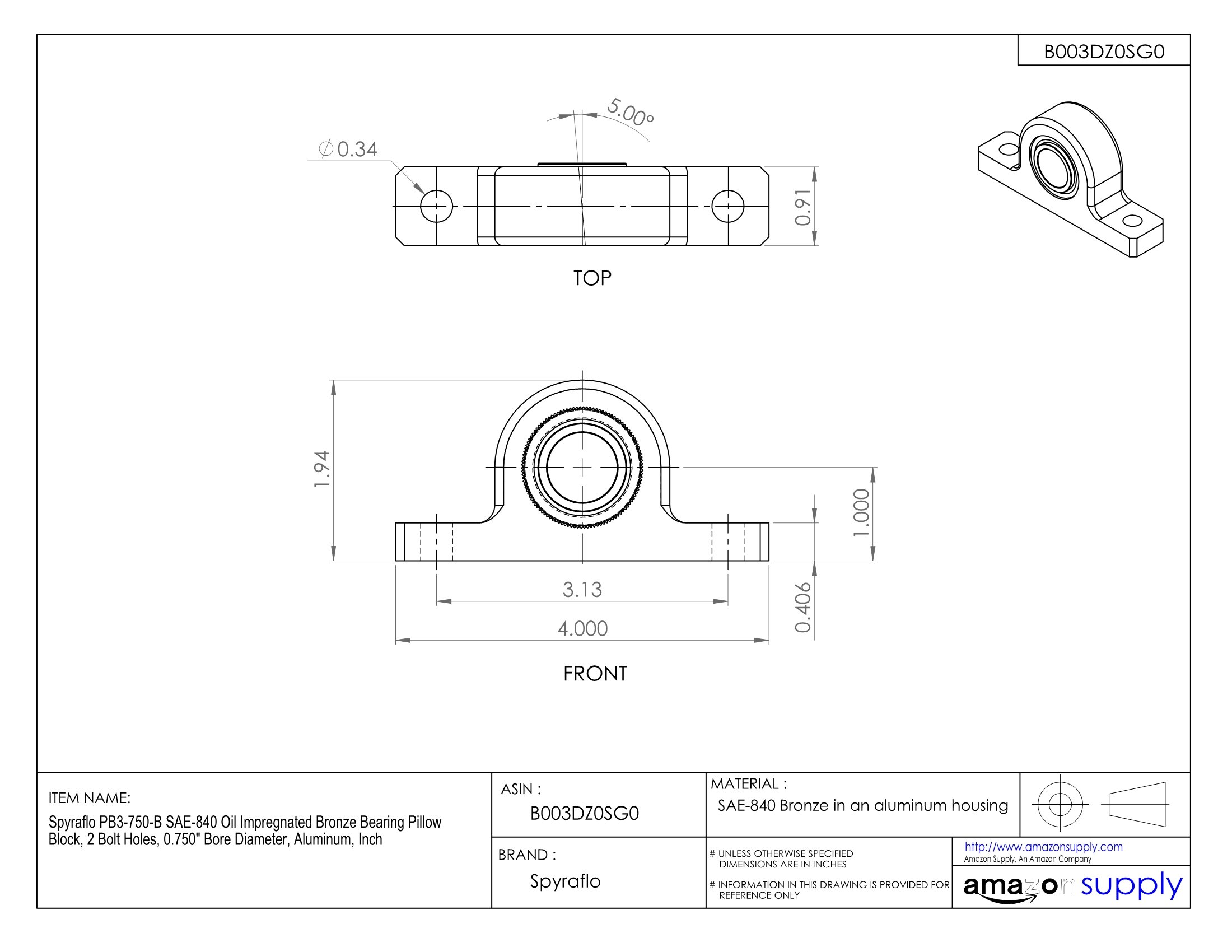

Specifications for this item
Overall Height
1-15/16  inches
Overall Width
29/32  inches
Flange Outside Diameter
29/32  inches
Bore Diameter
3/4  inches
Part Number
PB3-750-B
Flange Center to Center Length
3-1/8  inches
Brand Name
Spyraflo
Flange Hole Size
0.34  inches
Max Rotational Speed
5090  RPM
Flange Overall Height
1-15/16  inches
Number of Items
1
Flange Type
Pillow-Block
Bore Diameter Tolerance
0.7510 inches / 0.7520  inches
Material Type
SAE-840 Bronze in an aluminum housing
UPC
872871005763
Thickness
29/32  inches
EAN
0872871005763
Static Load Capacity
685  pounds
Load Capacity
480  pounds
Flange Thickness
5/16  inches
UNSPSC Code
31171511
Dynamic Load Capacity
480  pounds
Flange Overall Length
4  inches
Overall Length
4  inches
System of Measurement
Inch

This item is no longer available

This item ships for FREE with 2-Day Shipping on orders over $50. (Details)

Want it delivered on Fri, Oct 24? Order in-stock items in the next 20 hrs 35 mins and choose One-Day Shipping at checkout.

  • Share

This item has already been added to

Update Quantity Cancel

Select a List Create New List


You can add a description later

Key Features

  • Two-bolt housing with sleeve bearing insert for ready-to-mount installation
  • Sintered aluminum housing for high strength-to-weight ratio and corrosion resistance
  • 25 percent oil volume of SAE-840 bronze bearing helps ensure long bearing life
  • Narrow profile allows installation where guided shafts are close together
  • Permanently sealed and lubricated one-piece housing helps extend service life

Package Details

Shipping Weight: 0.1 pounds
Package Size: 3.1 x 3.1 x 0.8 inches

Product Description

This Spyraflo pillow block bearing has an aluminum housing and an oil-impregnated bronze bearing insert with a 0.750-inch bore diameter. It is suitable for supporting shafts that carry radial loads, such as in material handling. The one-piece sintered aluminum bearing housing is lightweight and corrosion resistant, has a flat square foot to help accurately align the housing, and has two bolt holes. The Society of American Engineers SAE-840 bronze sleeve bearing insert is oil impregnated, containing 25 percent oil volume within the porous structure of the insert to provide a film of lubricant between the bearing and shaft and help ensure long life. This bearing allows self-realignment of up to 5 degrees and compensates for static and dynamic alignment errors, it has an operating temperature range of -20 to 200 degrees F, and it is permanently sealed and lubricated to help extend service life. This sleeve bearing pillow block is suitable for use in material handling applications, such as conveyors.

Mounted bearings combine a bearing mounted inside a housing unit. The bearing housing replaces the need for a casting or weldment to position the bearing securely for reliable operation, and its design determines the type of insert bearing. Insert bearings use rolling elements (ball, cylindrical, spherical, barrel, needle, spindled, or tapered) to maintain the separation between moving parts to reduce rotational friction, and to support radial and axial loads. Available in a variety of materials and mounting configurations, mounted bearings can be one- or two-piece, they can have an extended inner ring and locking device, and they can have seals and end caps that retain lubrication and protect the working parts of the bearing from environmental debris. Mounted bearings support shafts in a variety of mounting configurations (flange block, hanger, pillow block, and take-up block), and are used in a range of applications from light duty shaft guidance on conveyors to road building equipment and crushers.

Spyraflo manufactures bearings and bearing accessories. The company, founded in 1961 and headquartered in Peachtree City, GA, meets International Organization for Standardization (ISO) standard 9001:2008.
