Spyraflo PB0-SR1810ZZS 5/16" Inner Diameter, Mounted Miniature Precision Ball Bearing In An Aluminum Housing
Be the first to review this item
ASIN B003JY79MQ
Specifications for this item
- Bolt Hole Spacing Width
- 1-1/8 inches
- Bore Diameter
- 5/16 inches
- Brand Name
- Spyraflo
- Dynamic Load Capacity
- 128 pounds
- EAN
- 0872871006340
- Flange Height
- 3/16 inches
- Flange Hole Size
- 1/8 inches
- Flange Length
- 1-7/16 inches
- Flange Overall Width
- 3/16 inches
- Flange Thickness
- 3/16 inches
- Flange Type
- Pillow-Block
- Height
- 3/4 inches
- Length
- 1-7/16 inches
- Load Capacity
- 128 pounds
- Material Type
- Aluminum
- Max Rotational Speed
- 40000 RPM
- Mfr Part #
- PB0-SR1810ZZS
- Number of Items
- 1
- Static Load Capacity
- 180 pounds
- System of Measurement
- Inch
- Thickness
- 3/16 inches
- UPC
- 872871006340
- Width
- 3/16 inches
In Stock (6)
This item ships for FREE with 2-Day Shipping on orders over $50. (Details)
Want it delivered on Tuesday, May 29? Order in-stock items in the next 11 hours 35 minutes and choose One-Day Shipping at checkout.
Key Features
- Quick and easy to install
- Savings on design, machining and assembly
- Ideal for Medical, Scientific and Pharmaceutical applications
- Precision ball bearing capability for hobbyists
- Stainless steel, double shield ball bearing, aluminum housing, high level of corrosion resistance
Package Details
Shipping Weight: 0.5 pounds
Product Description

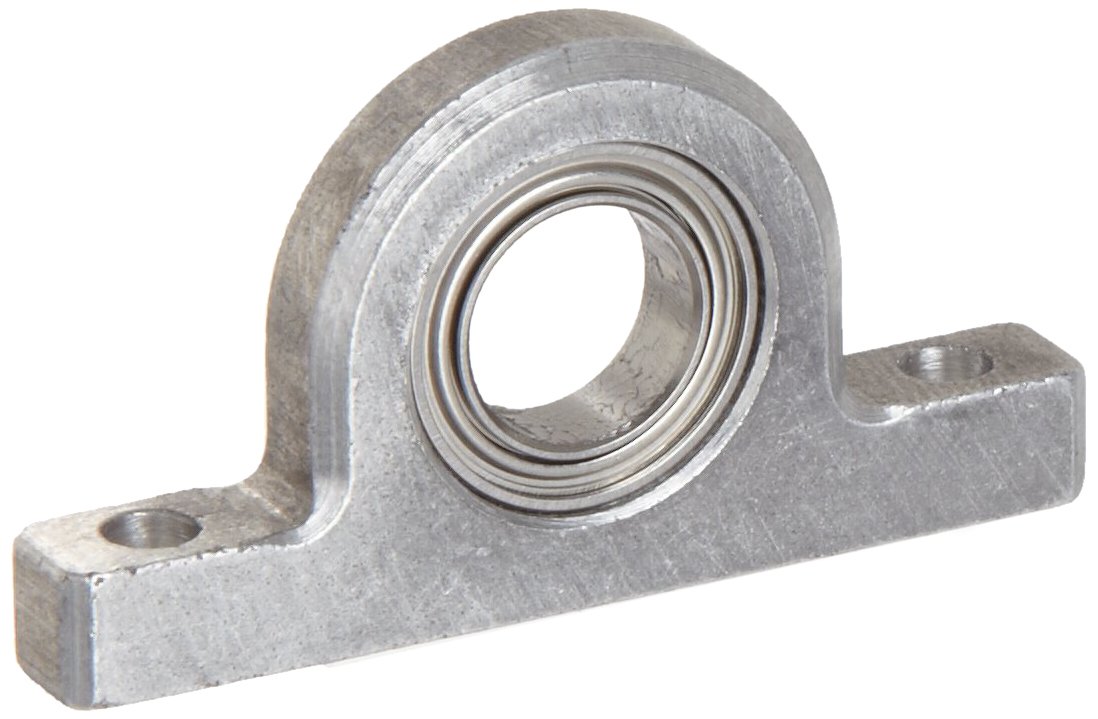

The Spyraflo PB0-SR1810ZZS is an efficient and cost effective solution to the challenge of mounting miniature ball bearings in a wide variety of applications. The unique Spyraflo assembly fills the previous void in the market place where, up until now, mounted ball bearings have only been available in shaft diameters greater than 1/2 inch. The assembly consists of a precision Japanese stainless steel ABEC 3 ball bearing mounted in a precision-machined, sintered aluminum pillow-block housing. The aluminum body and stainless steel bearing combination, together with the double shields, give the bearing a high level of corrosion resistance. In the past, when considering the use of miniature bearings for an assembly, one of the critical design elements was how, precisely, the bearings could be mounted. Typically, the mount had to be precision machined, particularly when using high-performance miniature bearings. previously this would have entailed an engineer designing, and then having the critical machining and bearing assembly carried out. The Spyraflo bearing eliminates this task-effectively and economically-just screw in place. The PB0-SR1810ZZS is the ideal bearing choice for medical, pharmaceutical, scientific and other precision-oriented fields. They are also in wide use in the expert model making and hobbyist world.
