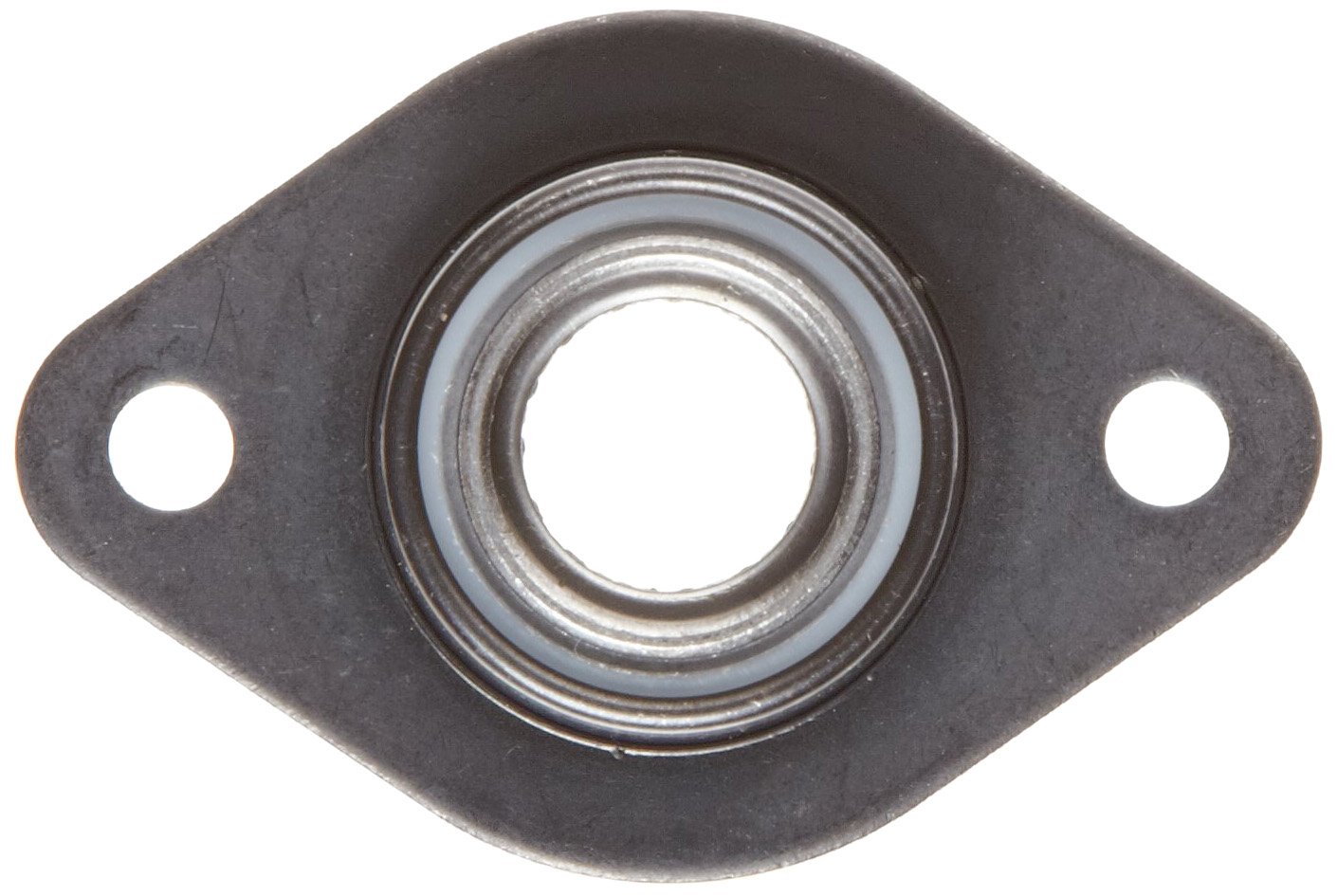

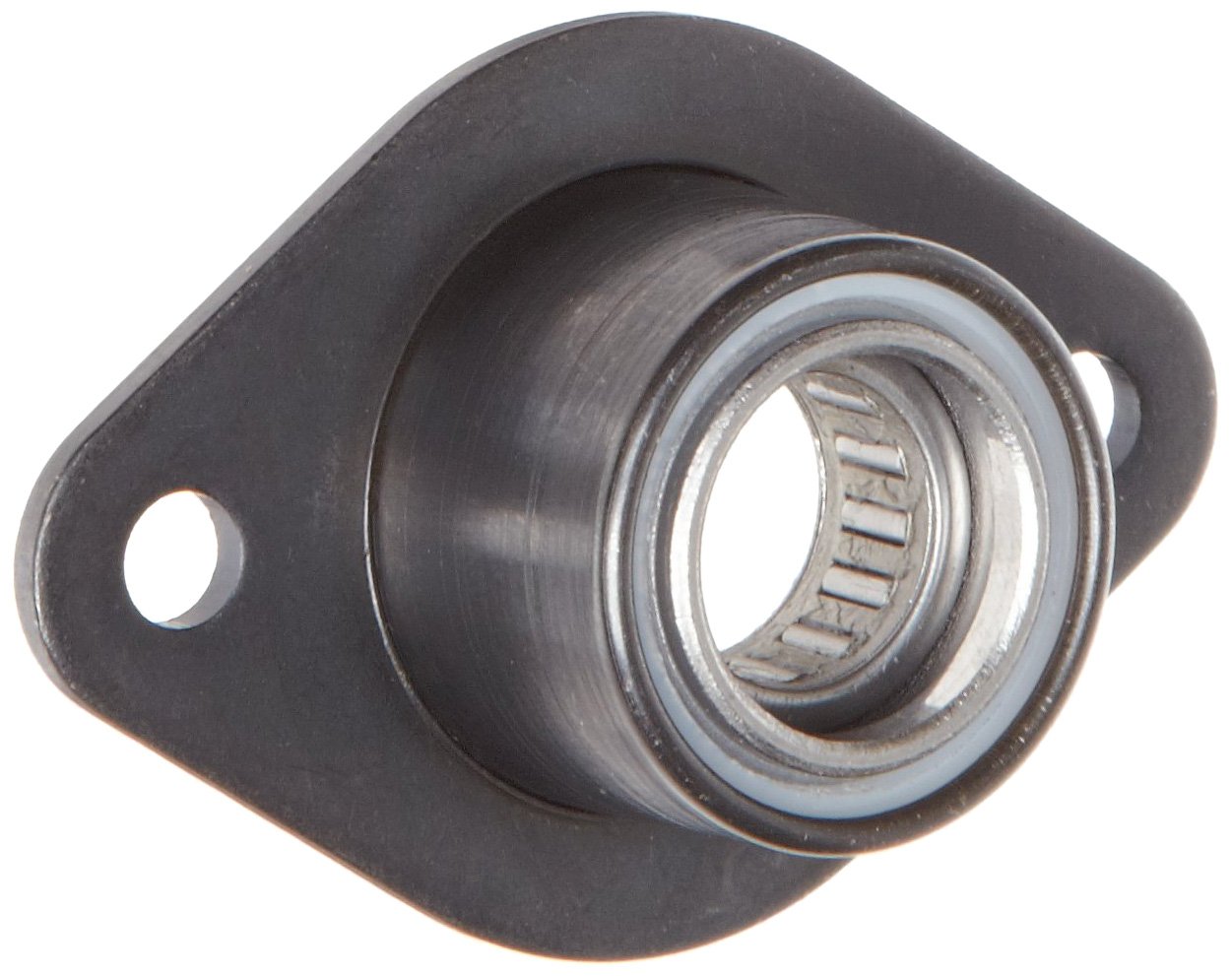

Spyraflo BFM-500-N Self-Aligning, Needle-Roller Bearing With 2-Bolt Hole, 1/2" Inner-Diameter Steel Flange

Be the first to review this item

ASIN B003IPC0YS

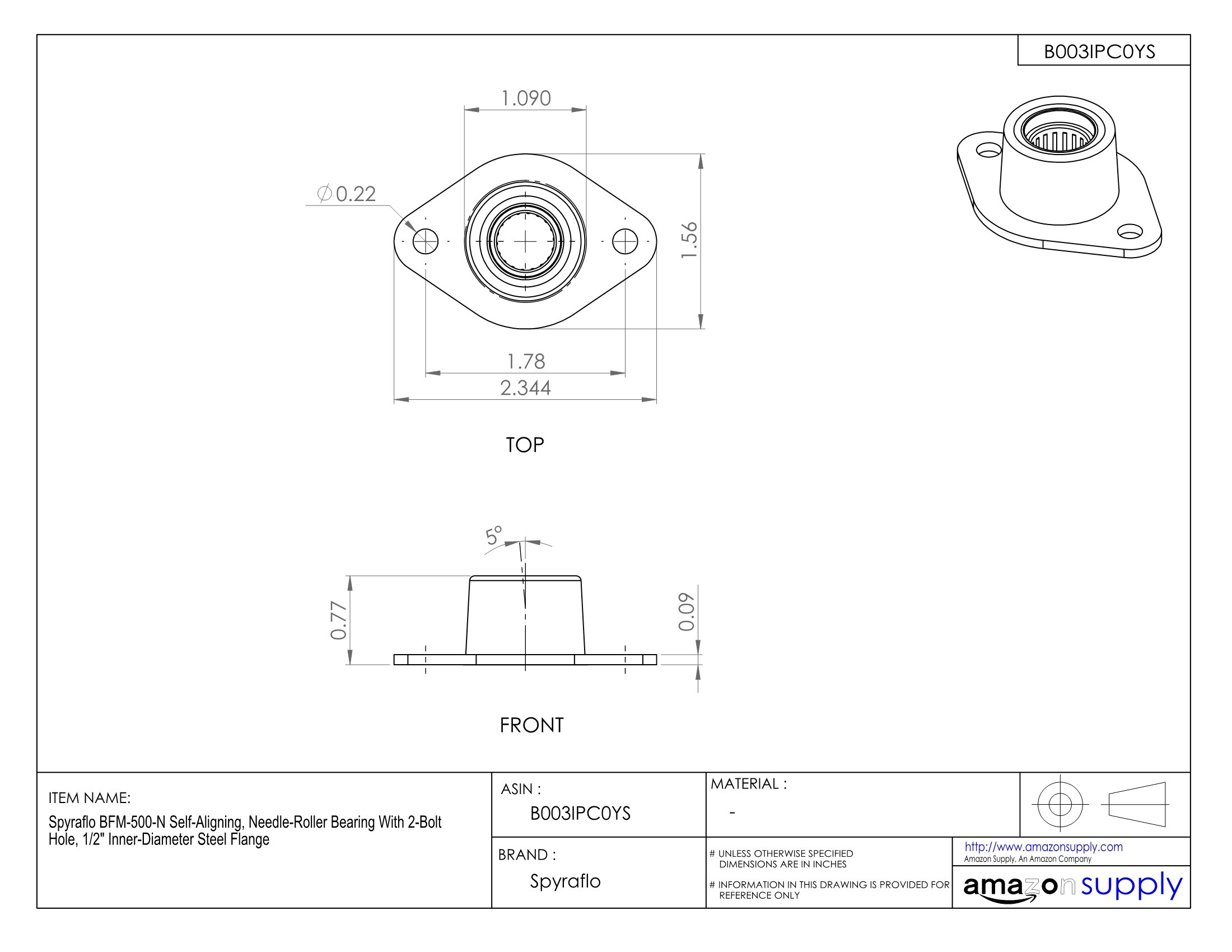

Specifications for this item
Overall Height
25/32  inches
Overall Width
1-9/16  inches
Bore Diameter
1/2  inches
Part Number
BFM-500-N
Flange Center to Center Length
1-25/32  inches
Brand Name
Spyraflo
Flange Hole Size
0.22  inches
Max Rotational Speed
22000  RPM
Flange Overall Height
25/32  inches
Number of Items
1
Flange Type
2-Bolt Hole Housing Flange
Bore Diameter Tolerance
0.5011 / 0.5033  inches
Thickness
1-9/16  inches
UPC
872871000065
EAN
0872871000065
Static Load Capacity
1355  pounds
Flange Thickness
0.09  inches
UNSPSC Code
31171500
Dynamic Load Capacity
950  pounds
Flange Overall Length
2-11/32  inches
Overall Length
2-11/32  inches
System of Measurement
Inch

This item is no longer available

This item ships for FREE with 2-Day Shipping on orders over $50. (Details)

Want it delivered on Thu, Jul 31? Order in-stock items in the next 7 hrs 35 mins and choose One-Day Shipping at checkout.

  • Share

This item has already been added to

Update Quantity Cancel

Select a List Create New List


You can add a description later

Key Features

  • Steel flanged housing for strength and resistance to shock
  • Drawn-cup needle roller bearing insert supports medium loads, high speeds, and rotational motion only
  • Self-aligning bearing compensates for +/- 5 degrees of static misalignment
  • Operating temperatures range from -22 to 212 degrees F (-30 to 100 degrees C)
  • Straight bore fits conventional cylindrical shafts

Package Details

Shipping Weight: 0.4 pounds
Package Size: 5.5 x 2.9 x 1.2 inches

Product Description

This Spyraflo self-aligning needle-roller bearing with steel flange and two bolt holes is designed for mounting onto bearing surfaces perpendicular to the shaft axis. The flange is made of steel for strength and resistance to shock. The drawn-cup needle roller bearing insert in the housing supports medium loads, high speeds, and rotational motion only. The needle rollers are retained in a cage and roll against hardened shafts that act as the inner bearing raceway. The bearing is prelubricated with lithium-complex grease. The bearing insert is self-aligning and compensates for +/- 5 degrees of static misalignment. This needle roller bearing operates under temperatures ranging from -22 to 212 degrees F (-30 to 100 degrees C). Designed with a regular straight bore, this bearing fits to conventional cylindrical shafts. Plain flanged bearings are for use in various applications such as heavy-lifting equipment, pumps, aircraft, and motors, among others.

Mounted bearings combine a bearing mounted inside a housing unit. The bearing housing replaces the need for a casting or weldment to position the bearing securely for reliable operation, and its design determines the type of insert bearing. Insert bearings use rolling elements (ball, cylindrical, spherical, barrel, needle, spindled, or tapered) to maintain the separation between moving parts to reduce rotational friction, and to support radial and axial loads. Available in a variety of materials and mounting configurations, mounted bearings can be one- or two-piece, they can have an extended inner ring and locking device, and they can have seals and end caps that retain lubrication and protect the working parts of the bearing from environmental debris. Mounted bearings support shafts in a variety of mounting configurations (flange block, hanger, pillow block, and take-up block), and are used in a range of applications from light duty shaft guidance on conveyors to road building equipment and crushers.

Spyraflo manufactures bearings and bearing accessories. The company, founded in 1961 and headquartered in Peachtree City, GA, meets International Organization for Standardization (ISO) standard 9001:2008.
