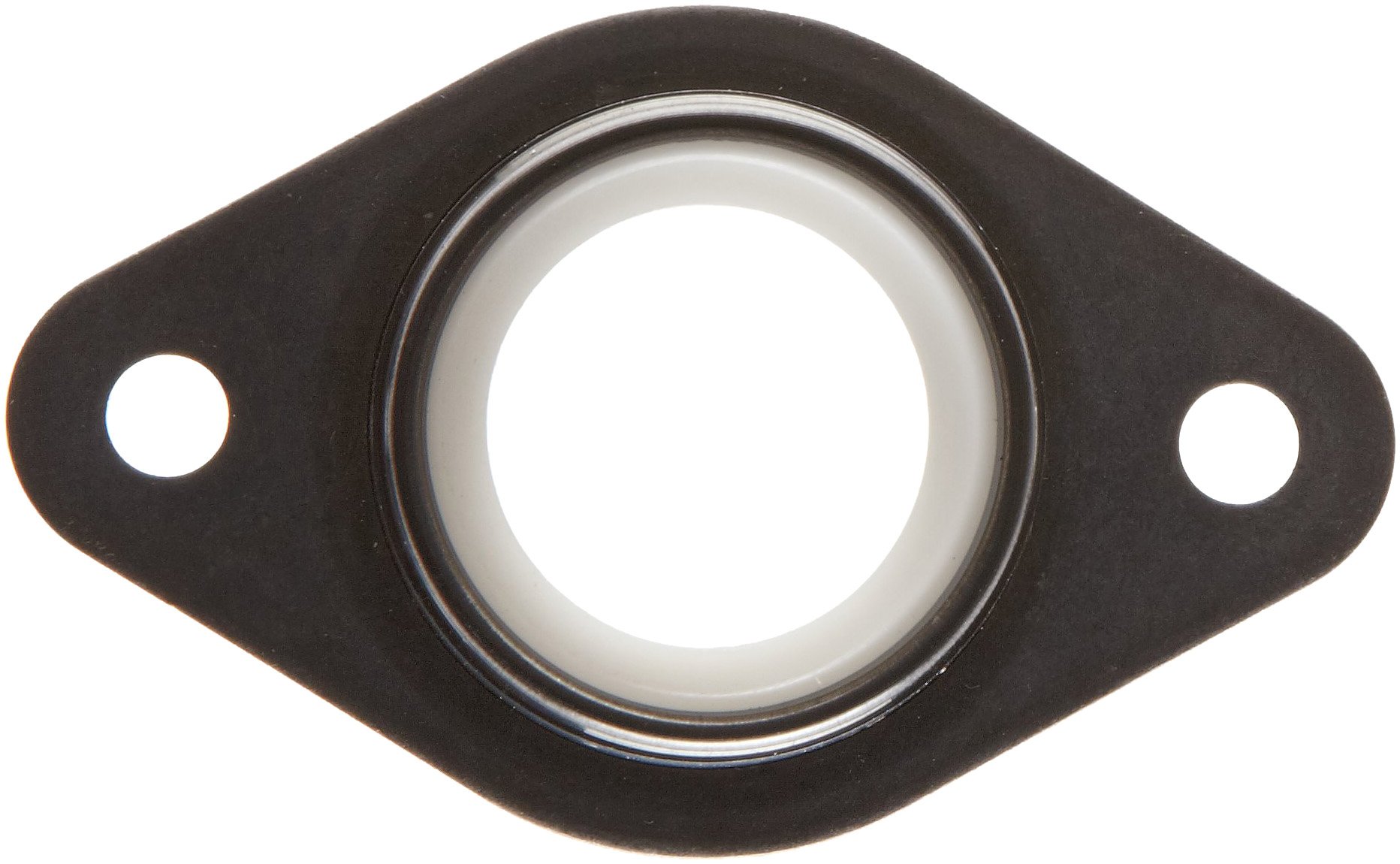

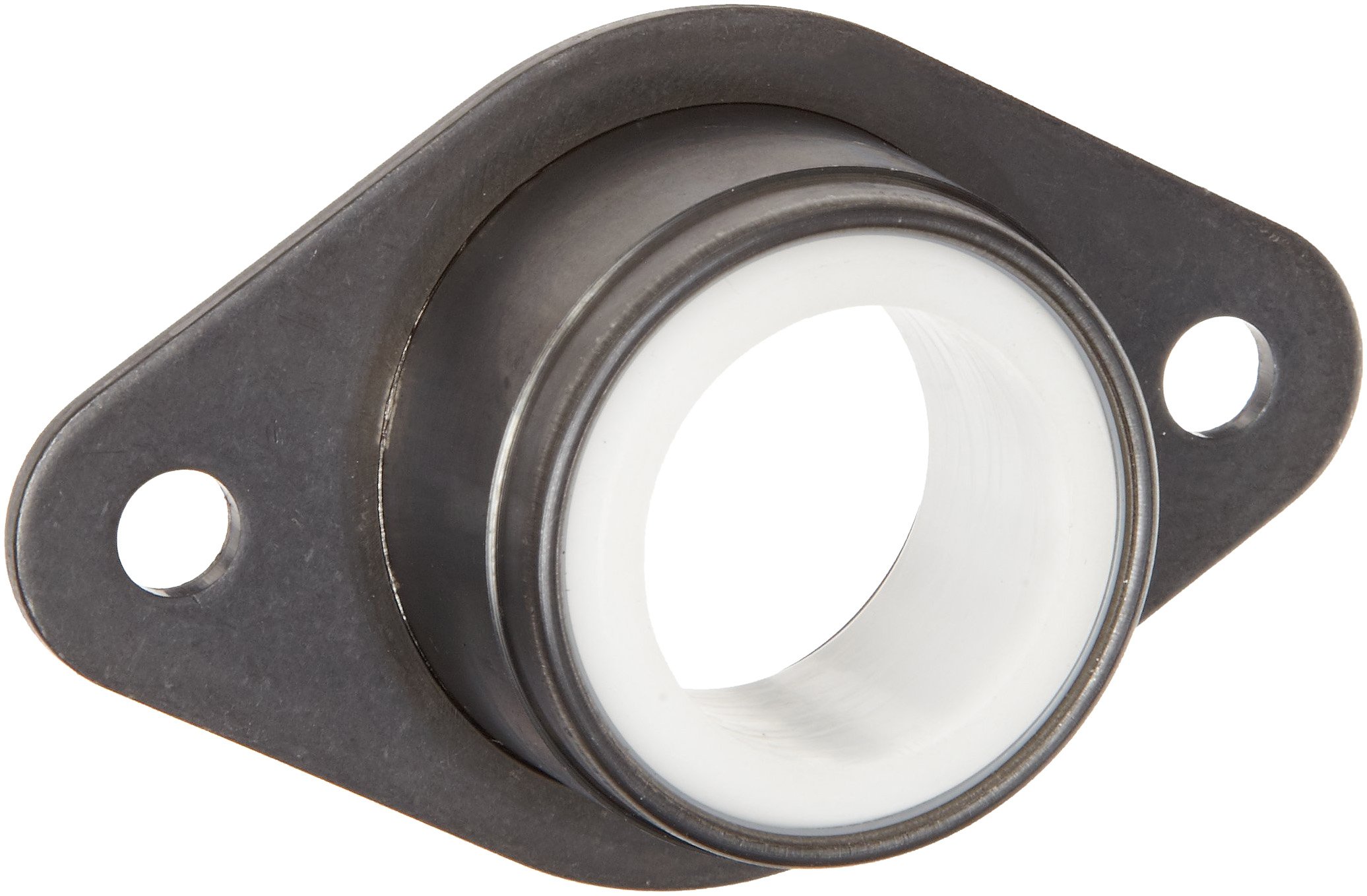

Spyraflo BFM-187-A Self-Aligning, Delrin Acetal Plastic Bearing With 2-Bolt Hole, 3/16" Inner-Diameter Steel Flange

Be the first to review this item

ASIN B003IPC1MY

Specifications for this item
Overall Height
9/32  inches
Overall Width
7/8  inches
Bore Diameter
3/16  inches
Part Number
BFM-187-A
Flange Center to Center Length
1-7/32  inches
Brand Name
Spyraflo
Flange Hole Size
0.22  inches
Max Rotational Speed
2010  RPM
Number of Items
1
Flange Type
2-Bolt Hole Steel Flange
Bore Diameter Tolerance
0.1885 / 0.1905  inches
Material Type
Delrin Acetal Plastic in a Steel Flange
Thickness
7/8  inches
UPC
872871003615
EAN
0872871003615
Static Load Capacity
50  pounds
Flange Thickness
0.05  inches
UNSPSC Code
31171500
Dynamic Load Capacity
50  pounds
Flange Overall Length
1-13/16  inches
Overall Length
1-13/16  inches
System of Measurement
Inch

This item is no longer available

This item is NOT eligible for "Free Standard Shipping on orders over $50.00" promotion. (Details)

  • Share

This item has already been added to

Update Quantity Cancel

Select a List Create New List


You can add a description later

Key Features

  • Steel flanged housing for strength and resistance to shock
  • Acetal polymer plain bearing insert for supporting light loads, moderate speeds, and rotational, oscillatory, or linear motions
  • Self-aligning bearing compensates for +/- 5 degrees of static misalignment
  • Operating temperatures range from -40 to 180 degrees F (-40 to 82 degrees C)
  • Straight bore fits conventional cylindrical shafts

Package Details

Shipping Weight: 0.25 pounds
Package Size: 2 x 2 x 0.5 inches

Product Description

This Spyraflo self-aligning Delrin acetal plastic bearing with steel flange and two bolt holes is designed for mounting onto bearing surfaces perpendicular to the shaft axis. The flange is made of steel for strength and resistance to shock. The acetyl polymer (Delrin) bearing insert in the housing supports light loads, moderate speeds, and rotational, oscillatory, or linear motions. This self-lubricating thermoplastic polymer bearing has a low coefficient of friction and does not exhibit stick-slip. The bearing is self-clinched in the steel flange for a secure fit and is replaceable. This flange unit is approved by the U.S. Food and Drug Administration (FDA), making it suitable for food and dairy applications. The bearing insert is self-aligning and compensates for +/- 5 degrees of static misalignment. This plain bearing has a maximum load value of 1,000 psi (pounds per square inch), a maximum velocity value of 100 fpm (surface feet per minute), and a maximum load-at-velocity (PV) value of 3,000, and operates at temperatures ranging from -40 to 180 degrees F (-40 to 82 degrees C). Designed with a regular straight bore, this bearing fits to conventional cylindrical shafts. Plain flanged bearings are for use in various applications such as heavy-lifting equipment, pumps, aircraft, and motors, among others.

Mounted bearings combine a bearing mounted inside a housing unit. The bearing housing replaces the need for a casting or weldment to position the bearing securely for reliable operation, and its design determines the type of insert bearing. Insert bearings use rolling elements (ball, cylindrical, spherical, barrel, needle, spindled, or tapered) to maintain the separation between moving parts to reduce rotational friction, and to support radial and axial loads. Available in a variety of materials and mounting configurations, mounted bearings can be one- or two-piece, they can have an extended inner ring and locking device, and they can have seals and end caps that retain lubrication and protect the working parts of the bearing from environmental debris. Mounted bearings support shafts in a variety of mounting configurations (flange block, hanger, pillow block, and take-up block), and are used in a range of applications from light duty shaft guidance on conveyors to road building equipment and crushers.

Spyraflo manufactures bearings and bearing accessories. The company, founded in 1961 and headquartered in Peachtree City, GA, meets International Organization for Standardization (ISO) standard 9001:2008.
