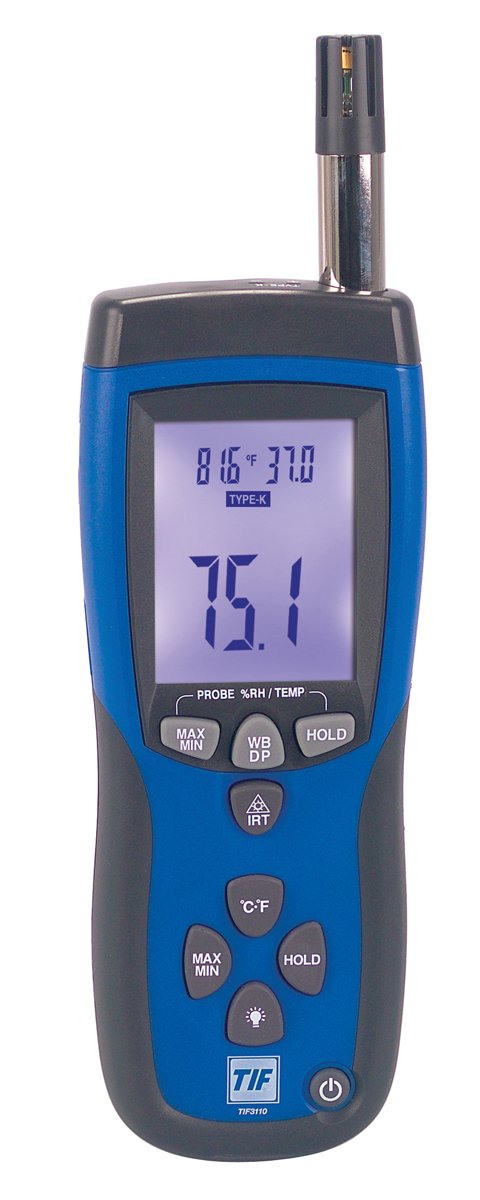

SPX Industrial TIF3110 Infrared Thermometer and Psychrometer with K-Type Thermocouple Input, -50 to 500 degrees C, -58 to 932 degrees F, Accuracy of + or - 2% of Reading, or + or - 2 Degrees C

Be the first to review this item

ASIN B005E2MXJ0

Specifications for this item
Number of Items
1
Part Number
TIF3110
UPC
687744601627
Brand Name
SPX Industrial
EAN
0687744601627
List price:
$260.95
Price:
$184.42
You save:
$76.53 (29%)
Quantity:

In Stock (1)

This item ships for FREE with 2-Day Shipping on orders over $50. (Details)

Want it delivered on Fri, Apr 25? Order in-stock items in the next 17 hrs 1 min and choose One-Day Shipping at checkout.

  • Share

This item has already been added to

Update Quantity Cancel

Select a List Create New List


You can add a description later

Key Features

  • Digital thermometer and psychrometer with K-type thermocouple probe input, for monitoring temperature and air quality in industrial applications
  • The infrared sensor measures temperature from -50 to 500 degrees C (-58 to 932 degrees F) with a best accuracy of + or - 2% of the reading, or + or - 2 degrees C (4 degrees F)
  • Infrared sensor measures temperature from a distance
  • Psychrometer measures ambient temperature, relative humidity, dew point temperature, and wet bulb temperature
  • Input for K-type thermocouple probe, for taking contact surface temperature measurements

Package Details

Shipping Weight: 3.65 pounds
Package Size: 15.7 x 11.4 x 4.3 inches

Product Description

The SPX TIF3110 infrared thermometer and psychrometer with K-type thermocouple input is for monitoring temperature and air quality in industrial applications. The infrared sensor measures temperature from -50 to 500 degrees C (-58 to 932 degrees F) with a best accuracy of + or - 2% of the reading, or + or - 2 degrees C (4 degrees F). The infrared sensor takes measurements from a distance for applications involving hard-to-reach, moving, hot, or electrified equipment. The psychrometer measures ambient temperature, relative humidity, dew point temperature, and wet bulb temperature. The thermometer has an input for a K-type thermocouple probe (not included) for taking contact surface temperature measurements. The LCD screen displays the current measurement or the high or low temperature reading for a session, and it can record the high or low temperature reading for future reference. The infrared sensor has a 30:1 distance-to-spot ratio, which means the measurement field measures approximately 30 feet in diameter when the target is 1 foot away. A built-in laser pointer helps improve aiming accuracy when taking infrared measurements. The hold button keeps a reading on the display so it can be recorded. The operator can choose to display readings in degrees Fahrenheit or Celsius. The thermometer operates on one 9V battery (included). A low-battery indicator alerts the operator when the battery needs to be replaced, and the thermometer will automatically turn off after 15 minutes of non-use to conserve battery life. A carrying case is included for transporting and storing the thermometer.

Specifications

Infrared thermometer temperature measurement range-50 to 500 degrees C (-58 to 932 degrees F)
Infrared thermometer accuracy+ or - 5 degrees C (9 degrees F) at -50 to -20 degrees C (-58 to -4 degrees F); + or - 2% of reading, or + or - 2 degrees C (4 degrees F) at -20 to 500 degrees C (-4 to 932 degrees F)
Infrared thermometer resolution0.1 degree C or F
K-type thermocouple temperature measurement range-100 to 1372 degrees C –(148 to 2501 degrees F)
K-type thermocouple accuracy+ or - 1% of reading + or - 1 degree C
K-type thermocouple thermometer resolution0.1 degree C or F
Ambient temperature measurement range-20 to 60 degrees C (-4 to 140 degrees F)
Ambient temperature accuracy+ or - 1 degree C or 2 degrees F
Ambient temperature resolution0.01 degree C or F
Distance-to-spot ratio30:1
Relative humidity measurement range0 to 100%
Relative humidity accuracy, at 10 to 90% relative humidity+ or - 2% of reading
Wet bulb temperature measurement range-21.6 to 60 degrees C (-6.88 to 140 degrees F)
Dew point temperature measurement range-68 to 60 degrees C (-90.4 to 140 degree F)
Power supply9V battery (one, included)
Weight9.8 oz.
Dimensions*7.9 x 2.9 x 1.9 in. (H x W x D)

*H is height, the vertical distance from the lowest to highest point; W is width, the horizontal distance from left to right; D is depth, the horizontal distance from front to back.

Digital infrared thermometers measure the temperature of surfaces from a distance. They may measure temperature in Celsius, Fahrenheit, or both. Infrared (IR) thermometers work by focusing the infrared radiation emitted by a surface onto a detector called a thermopile. The thermopile turns the heat into electricity, which is measured and converted to a temperature reading. The reading is then displayed on an LCD display. IR thermometers are used to measure temperature when an object is fragile, as in ear thermometers, or dangerous to be near, as in the case of industrial equipment.

SPX manufactures tools and test instruments for the food service, transportation, and energy industries. The company, founded in 1912, is headquartered in Charlotte, NC.

What's in the Box?
  • SPX TIF3110 infrared thermometer and psychrometer
  • 9V battery
  • Carrying case
  • Instructions
