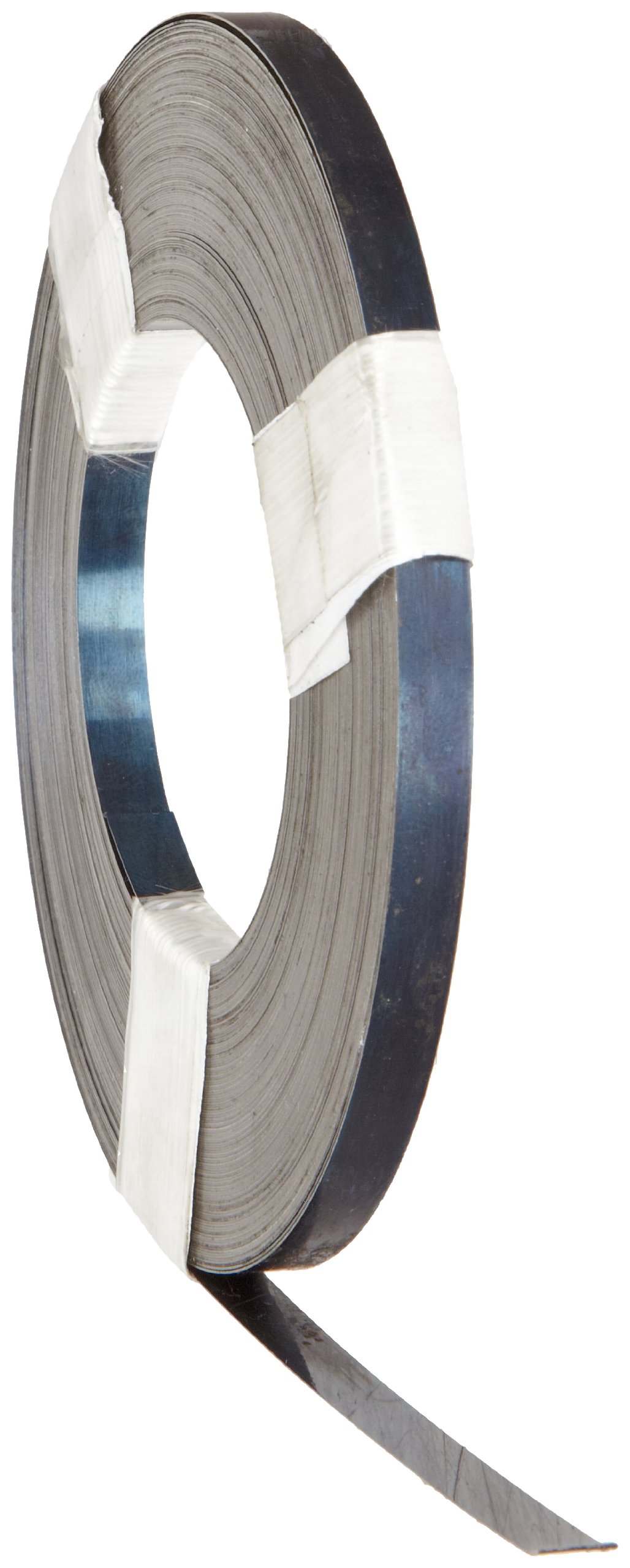

Spring Steel 1095 Shim Stock Coil, Blue Tempered, Polished Finish, MIL-S-7947, AISI 1095

Be the first to review this item

ASIN B005EI6CRS

Specifications for this item
Number of Items
1
Indentation Hardness
48-51 rockwell_c
Width Tolerance
+/-0.005  inches
Item Shape
Shim Stock
Color Name
Blue
Material Type
Carbon Steel
Brand Name
Small Parts
Length Tolerance
+1  inches
Exterior Finish
Polished
Specification Met
MIL-S-7947
Temper
Spring
Grade
1095
UNSPSC Code
31231400
System of Measurement
Inch

This item is no longer available

This item is NOT eligible for "Free Standard Shipping on orders over $50.00" promotion. (Details)

  • Share

This item has already been added to

Update Quantity Cancel

Select a List Create New List


You can add a description later

Key Features

  • Spring steel 1095 shim stock offers high wear resistance and strength
  • Blue temper provides the highest hardness and yield strength ratings of the available tempers
  • Conforms to specifications AMS 5122 and MIL-S-7947
  • Rockwell hardness of C48 to C51

Product Description

The spring steel 1095 shim stock coil has been blue tempered for the best dimensional stability of all tempers and provides high wear resistance and strength due to the material’s high carbon content. The material has been blue tempered, strengthening the material to the highest hardness and yield strength ratings possible for rigidity during use. The material has a blue finish. This coil has a Rockwell hardness rating of C48 to C51 and conforms to SAE Aerospace Materials Standards (AMS) 5122 and United States Military Standard (MIL SPEC) S-7947.

Shim stock is fabricated by cold rolling, which is the process of reducing a material’s thickness by passing it between two rollers. Cold rolling can cause a temper to form in the material, increasing the yield strength (the amount of force necessary to permanently bend or deform the material) as well as hardness ratings of the material. The higher its hardness and yield strength ratings, the more likely the shim is to preserve its thickness and shape over time while in use, but the harder it will be to bend and shape. Quarter-hard tempered material provides the lowest hardness and yield strength ratings and the greatest ductility of the tempers, with half-hard, three-quarters-hard, full-hard, spring, and blue tempered material respectively increasing in hardness and yield strength. Annealed shim stock has been heated and cooled to remove any temper and reinstate the material’s natural formability (ability to be bent) after it has been cold rolled.

Shim stock, which is sold in either sheets or rolls, is a very thin material that can be cut, sawed, stamped, milled, or bored into specific shapes. These fabricated pieces, also called shims, can be placed between objects for a variety of uses, including added support, improved leveling, increased insulation, tighter sealing, and better spacing. Shims can also be used to fill in gaps between machine parts that are prone to wear, avoiding costly replacement parts and lost production time. While most shim stock is sold in standard thicknesses of solid material, shim stock with laminated layers is composed of stacked foil sheets that have been pressed and heated together and that peel off to adjust the shim’s thickness to the application.
