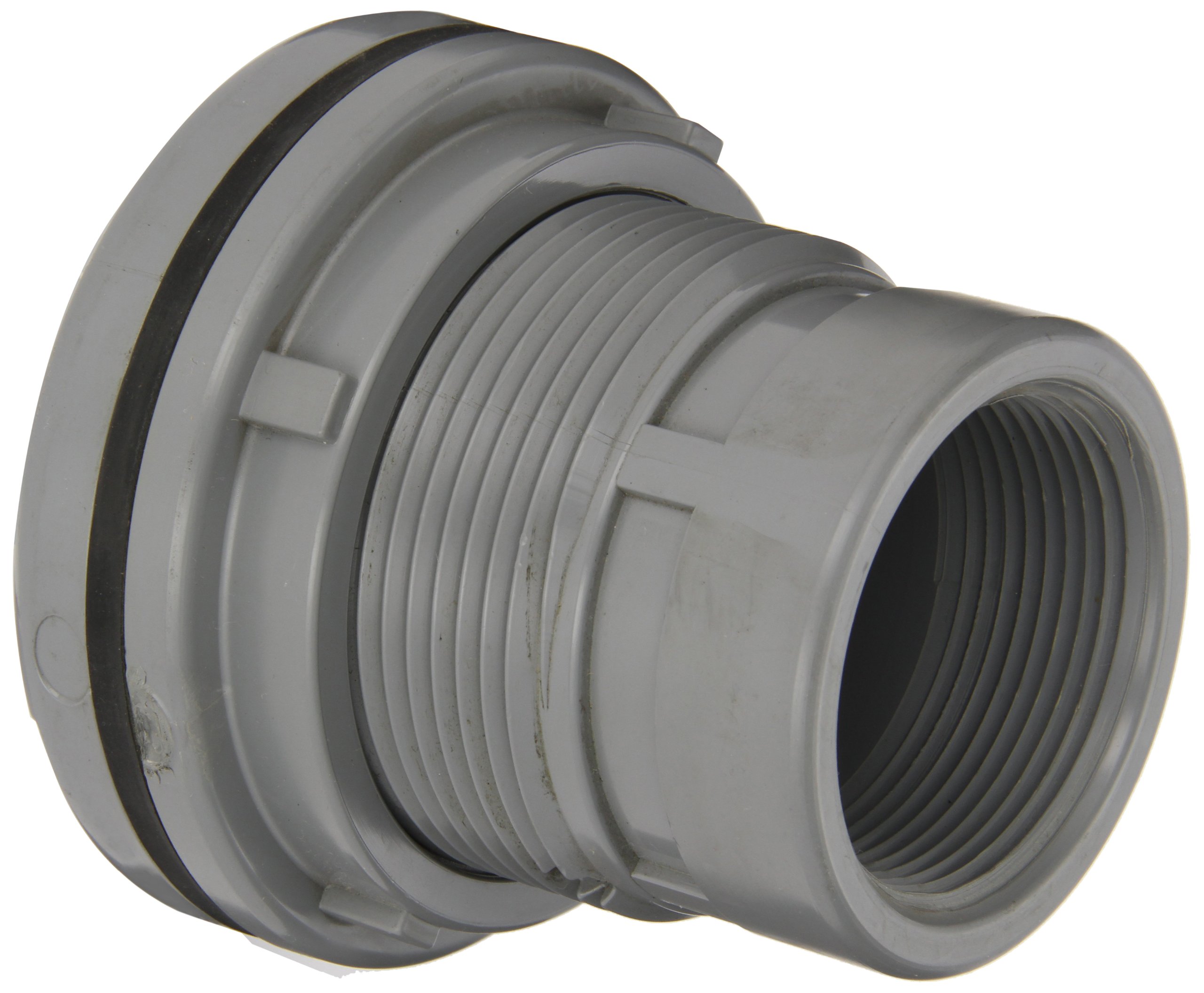

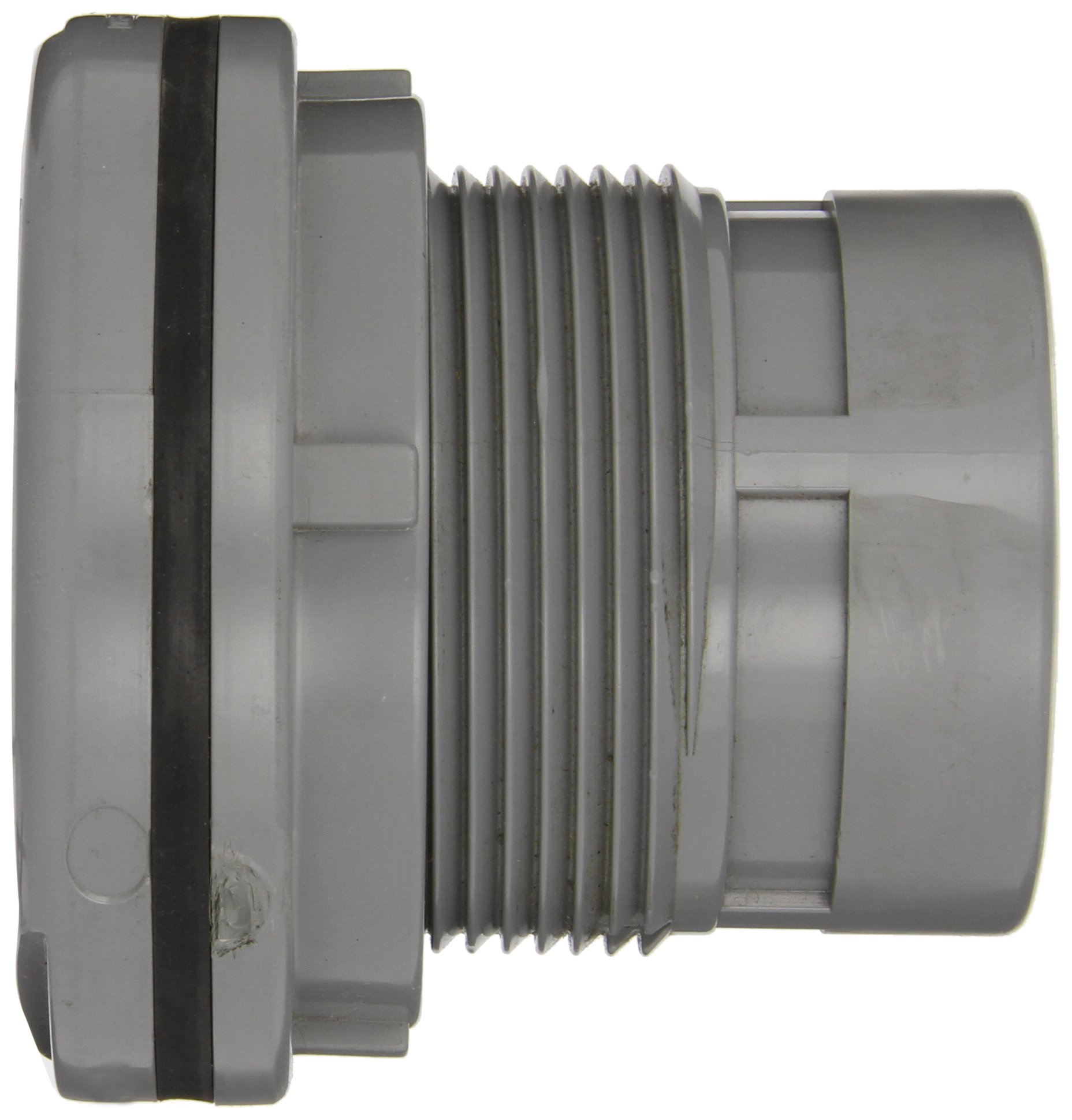

Spears 8172-C Series CPVC Bulkhead Tank Adapter, Schedule 80, Gray, 3" NPT Female

Be the first to review this item

ASIN B009F2CES0

Product Specifications
Part Number
8172-030C
Number of Items
1
Size Name
3"
UPC
054211963197
EAN
0054211963197
Specification for this product family (See all  products)
Item Shape
Adapter
Material Type
CPVC (Chlorinated Polyvinyl Chloride)
Color Name
Gray
Brand Name
Spears Manufacturing
Manufacturer Series Number
8172-C
Schedule
80
Connector Type
NPT Female
UNSPSC Code
40183100
Style Name
Threaded

This item is no longer available

This item ships for FREE with 2-Day Shipping on orders over $50. (Details)

Want it delivered on Fri, Nov 28? Order in-stock items in the next 10 hrs 25 mins and choose One-Day Shipping at checkout.

  • Share

This item has already been added to

Update Quantity Cancel

Select a List Create New List


You can add a description later

Key Features

  • Bulkhead adapter for connecting two tubes through a tank wall
  • Female NPT threads for connecting to male threaded tubes
  • CPVC for better heat and corrosion resistance than PVC
  • Maximum internal pressure rating of 150 psi at 73 degrees F and a maximum fluid service temperature of 200 degrees F
  • Meets ASTM 1785 for quality assurance and NSF certification for potable water

Package Details

Shipping Weight: 3.1 pounds
Package Size: 8.3 x 6.7 x 6.5 inches

Product Description

This Spears bulkhead tank adapter fitting, in gray, is made of schedule 80 CPVC, has female NPT connections, and is suitable for use in high-temperature chemical industrial applications. This bulkhead adapter fitting connects two tubes through a tank wall. The female National Pipe Taper (NPT) threads connect to male NPT threaded tubes, creating a tighter seal than straight threads. This schedule 80 (thick wall) fitting is made of CPVC (chlorinated polyvinyl chloride) for corrosion resistance, high strength, and less weight than fittings made from metal. It includes a gasket made of neoprene, or polychloroprene, which is a synthetic rubber with good chemical stability and flexibility over a wide temperature range. This fitting has a maximum internal pressure rating of 150 pounds per square inch (psi) at 73 degrees F and a maximum fluid service temperature of 200 degrees F. It meets American Society for Testing and Materials International (ASTM) 1785 standards for quality assurance and National Sanitation Foundation International (NSF) certification for potable water service. This bulkhead tank adapter fitting is suitable for use in high-temperature chemical industrial applications.

Tube fittings are components used for connecting, branching, terminating, and changing the direction of tubing in pneumatic and hydraulic systems. They are made of brass, stainless steel, PBT (polybutylene terephthalate), and other materials that resist corrosion and wear. Tube fittings have various types of connections, including threaded, welded, barbed, and push-to-connect (also called one-touch). Push-to-connect connections do not require tools or sealants. Tube fittings are used in various applications, including machine tools, airplane and truck controls, and automated production lines, among others.

Spears Manufacturing produces thermoplastic fittings and valves for fluid, drain, waste, and vent systems. The company, founded in 1969 and headquartered in Sylmar, CA, meets International Organization for Standardization (ISO) standard 9001.
