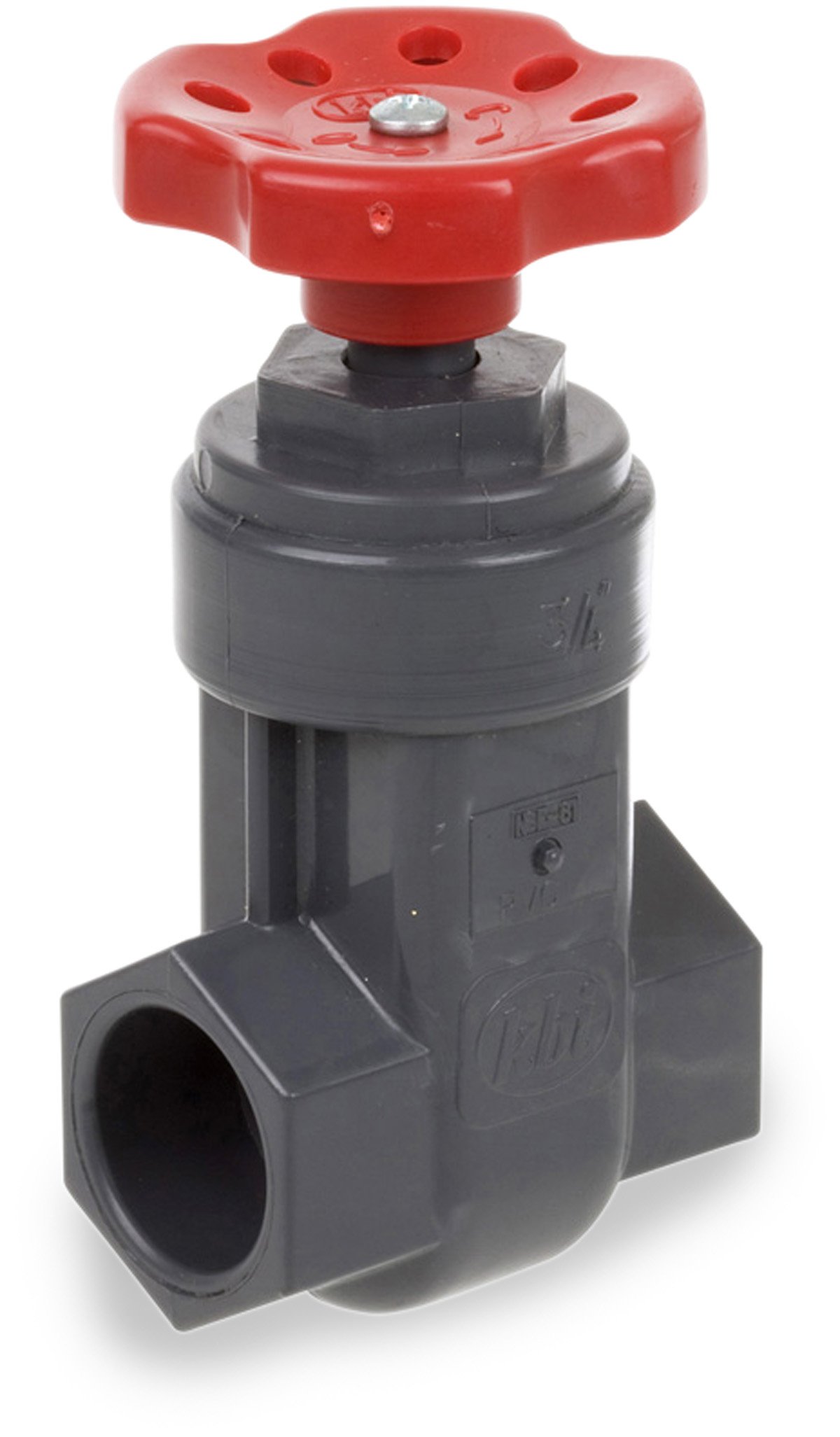

Click for larger image and other views Image is representative of the product family. Select individual products in the table below for more specific images and product specifications

How can we improve our images or Product Specifications?

Smith-Cooper International 4102 Series PVC Gate Valve, Inline, Slip

Be the first to review this item

Product Specifications
Manufacturer Series Number
4102
Item Shape
Inline
Material Type
PVC (Polyvinyl Chloride)
Style Name
Slip-On
Connector Type
Slip
UNSPSC Code
40141613
Brand Name
Smith-Cooper International
System of Measurement
Inch

This item is no longer available

These items ship for FREE with 2-Day Shipping on orders over $50. (Details)

Want it delivered on Fri, Aug 29? Order in-stock items in the next 3 hrs 58 mins and choose One-Day Shipping at checkout.

  • Share
Currently showing 1-3 of 3
Connection Size Mfr Part # ASIN

The Amazon Standard Item Number (ASIN) uniquely identifies
the item in the AmazonSupply.com (and Amazon) catalog.

Available

If an item is currently out of stock, but has an estimated lead time, you can place an order now and we will ship it as soon as it is available.
You can also order more than we currently have in stock.
Read more about back orders in our help section.

Price
All All
Currently showing 1-3 of 3
3/4" 02254102I B00835RP7U yes $13.84 Buy Options
1-1/4" 02254102L B00835RQ6A yes $22.82 Buy Options
2" 02254102N B00835RQH4 yes $33.98 Buy Options

Key Features

  • PVC for corrosion resistance, high strength, and less weight than fittings made from metal
  • Slip openings for connecting to male unthreaded pipes or fitting
  • Hand wheel for manual on/off control

Product Description

The Smith-Cooper International 4102 series inline gate valve has slip connections on both ends. The slip ends connect to pipes with a smooth bore for enhanced flow. The valve body is made of PVC for corrosion resistance, high strength, and less weight than fittings made from metal. PVC can be connected to other materials such as steel, copper, or cast iron using transition fittings, and it is suitable for cold water, venting, and waste applications. This valve has a hand wheel for manual on/off control.

Gate valves control flow in a piping system by lifting a gate out of the path of steam, fluids, or gases. They are designed to block or permit flow, as the vibrations and force of flow repeatedly striking a partly lowered gate can damage the gate and seats. To accommodate different flows and pressure requirements, gates come in four types: solid wedge (appropriate for almost all liquid service), flexible wedge (appropriate for steam service), split wedge (appropriate for normal temperature, non-condensing gas and liquid service, including corrosive service), and parallel disc (appropriate for high and low pressure applications). Hand wheels or levers activate the screw mechanism in the valve’s bonnet, which comes in various designs, to open and close the gate. Union bonnets are preferable for building service piping, threaded-in (or screw-in) bonnets work well for lighter-duty usage, and bolted body-bonnet connections are used primarily in iron multi-turn valves. Most gate valves have either a rising stem, which moves up and down with the gate, or a non-rising stem, which remains fixed in place. When closed, the gate and its seats form tight planar sealing surfaces, ideal for linear liquid flow. Gate valves are used in air, gas, liquid, and steam applications.

Smith-Cooper manufactures a wide variety of pipe fittings and valves. The company is headquartered in Commerce, California, and meets relevant ANSI, ASTM, and International Organization for Standardization (ISO) 9002 standards.
