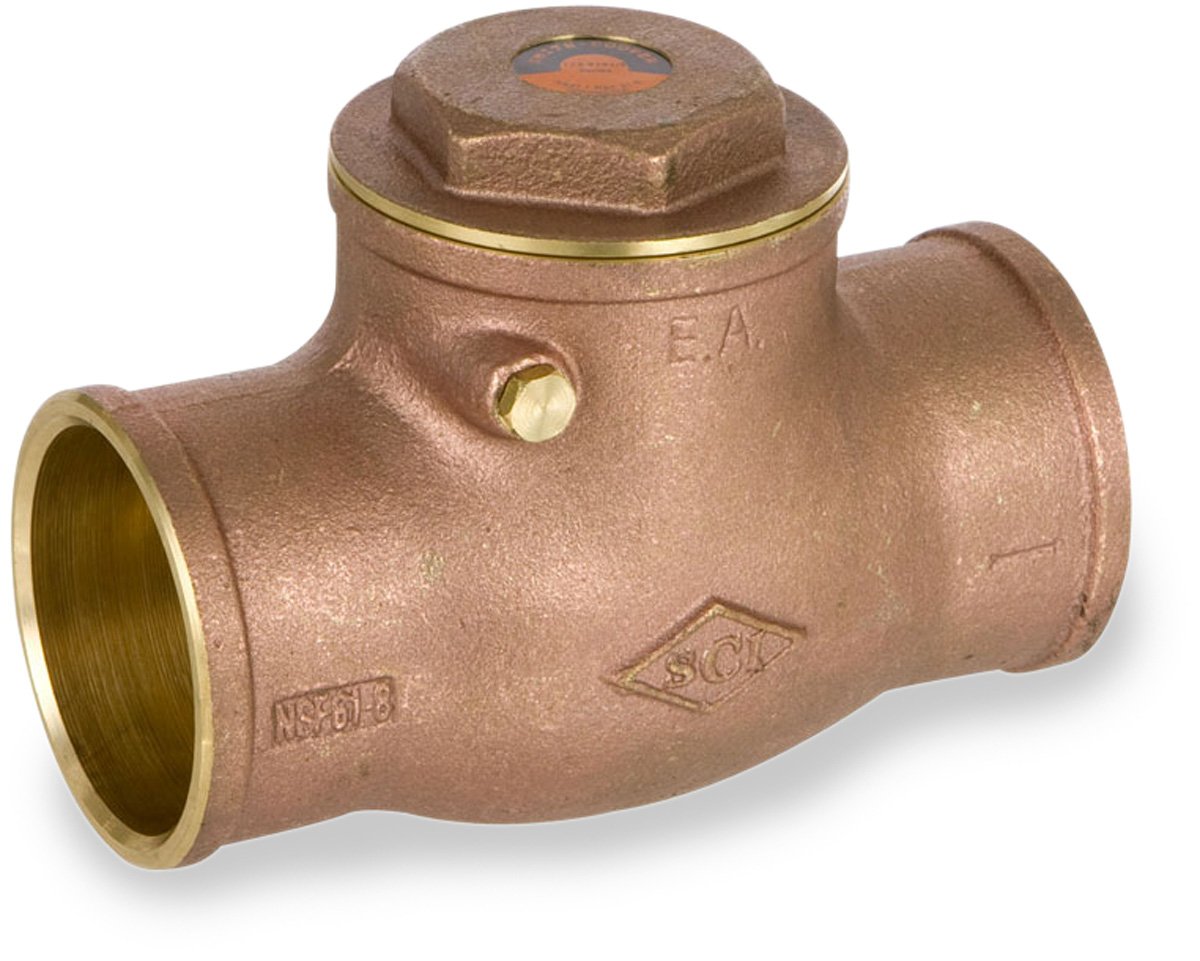

Smith-Cooper International 9192L Series Brass Swing Check Valve, Potable Water Service, Solder End

Be the first to review this item

Product Specifications
Manufacturer Series Number
9192L
Upper Temperature Range
350  Degrees Fahrenheit
Material Type
Brass
Style Name
Solder
Connector Type
Solder End
UNSPSC Code
40141600
Brand Name
Smith-Cooper International
System of Measurement
Inch

This item is no longer available

These items ship for FREE with 2-Day Shipping on orders over $50. (Details)

Want it delivered on Thu, Oct 23? Order in-stock items in the next 4 hrs 3 mins and choose One-Day Shipping at checkout.

  • Share
Currently showing 1-8 of 8
Size name Number of items ASIN

The Amazon Standard Item Number (ASIN) uniquely identifies
the item in the AmazonSupply.com (and Amazon) catalog.

Available

If an item is currently out of stock, but has an estimated lead time, you can place an order now and we will ship it as soon as it is available.
You can also order more than we currently have in stock.
Read more about back orders in our help section.

Price
All All
Currently showing 1-8 of 8
1" 1 B00835PRJI Usually ships in 1 to 2 months $13.11 Buy Options
1-1/2" 1 B00835PSXI yes $14.54 Buy Options
1-1/4" 1 B00835PRQ6 yes $24.00 Buy Options
1/2" 1 B00835PR8Y yes $8.40 Buy Options
2" 1 B00835PT2S Usually ships in 1 to 2 months $41.28 Buy Options
2-1/2" 1 B00835PTA0 yes $23.15 Buy Options
3" 1 B00835PTFA yes $78.41 Buy Options
3/4" 1 B00835PRES yes $10.13 Buy Options

Key Features

  • Made from brass for higher corrosion resistance than steel
  • Solder connection is heat to seal the joint with a filler material to prevent leaks
  • Maximum pressure ratings of 200 psig for WOG and 125 psig for SWP
  • Maximum working temperature of 350 degrees Fahrenheit
  • Meets NSF/ANSI 61-8 for quality assurance and is certified to California AB1953

Product Description

The Smith-Cooper International 9192L series swing check valve for potable water service is made of brass for corrosion resistance, ductility at high temperatures, and low magnetic permeability. Brass can be connected to copper, brass, plastic, aluminum, and welded steel. It has a forged brass disc and solder end connections on both ends. Solder ends are heat to seal the joint with a filler material to prevent leaks. This valve has maximum pressure ratings of 200 pounds per square inch (gauge) (psig) for water, oil, and gas (WOG), and the maximum working temperature is 350 degrees Fahrenheit. This valve meets National Sanitation Foundation (NSF)/American National Standards Institute (ANSI) 61-8 for quality assurance, and is certified to California AB1953

Check valves have two ports and restrict the flow of fluids and other loose materials through a pipe or passageway to one direction. Flow enters through one port and exits through the other, closing when flow reverses or stops. Two common types of check valves are ball cone valves and swing check valves. A ball cone valve utilizes a spring-loaded ball seated against a cone-shaped interior surface to stop the flow of fluid in a forward direction, and a swing check valve has a movable disc on a hinge to block reverse flow. Check valves are rated by their cracking pressure (the minimum upstream pressure required for the valve to operate), and they are used in various water, gas, air, and steam lines.

Smith-Cooper manufactures a wide variety of pipe fittings and valves. The company is headquartered in Commerce, California, and meets relevant ANSI, ASTM, and International Organization for Standardization (ISO) 9002 standards.
