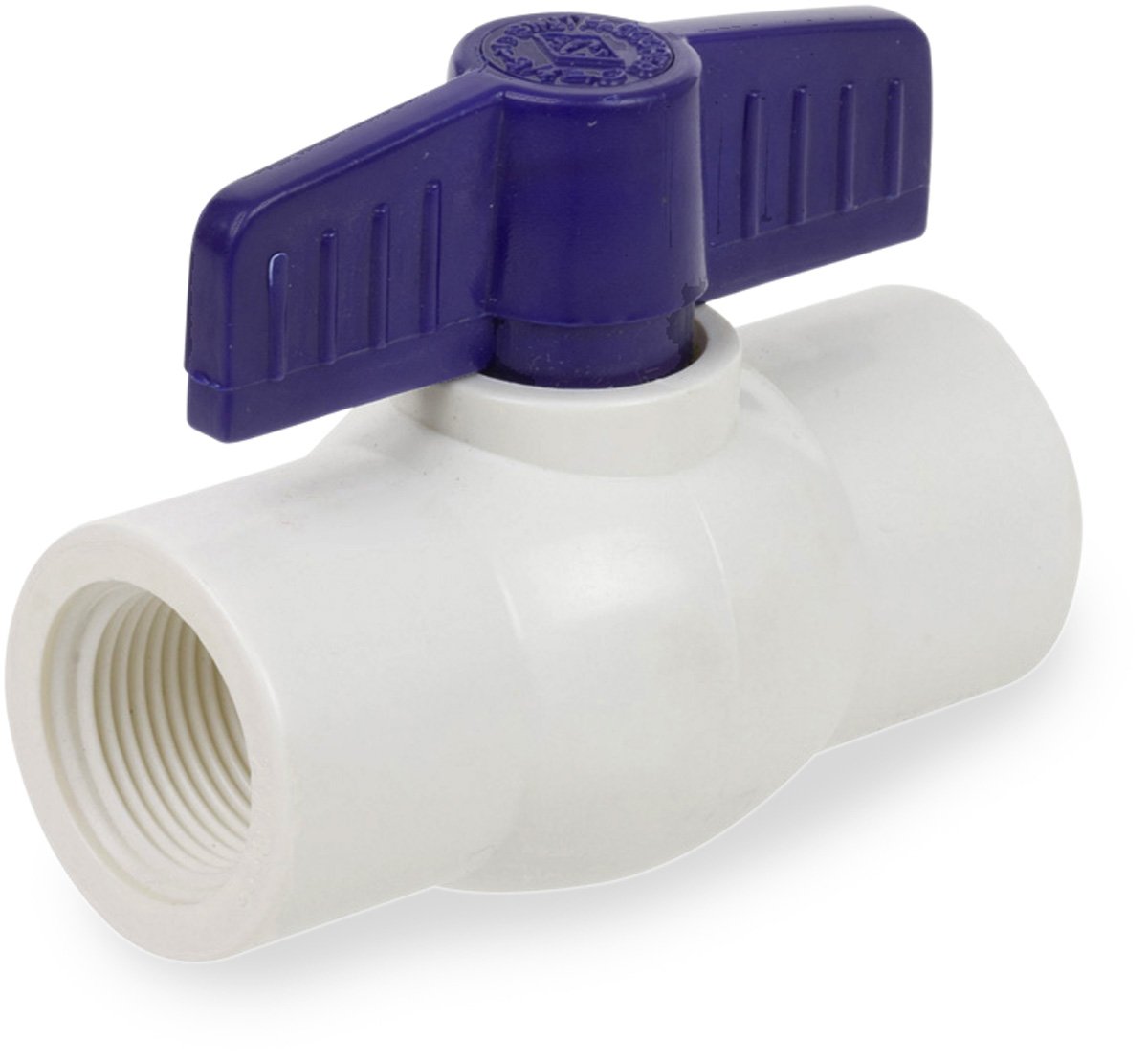

Smith-Cooper International 9521 Series PVC Ball Valve, Inline, T-Handle, NPT Female

Be the first to review this item

Product Specifications
Item Shape
Inline
Seat Material Type
PTFE
Color Name
White
Material Type
Polyvinyl Chloride (PVC)
Handle Type
T-Handle
Brand Name
Smith-Cooper International
Manufacturer Series Number
9521
Upper Temperature Range
110  Degrees Fahrenheit
Ball Material Type
PVC
Maximum Pressure
150  PSI
Connector Type
NPT Female
Style Name
Threaded
System of Measurement
Inch
LowerTemperature Range
0  Degrees Fahrenheit

This item is no longer available

These items ship for FREE with 2-Day Shipping on orders over $50. (Details)

Want it delivered on Thu, Apr 24? Order in-stock items in the next 8 hrs 30 mins and choose One-Day Shipping at checkout.

  • Share
Currently showing 1-6 of 6
Connection Size End-to-End Length Pkg Qty Mfr Part # ASIN

The Amazon Standard Item Number (ASIN) uniquely identifies
the item in the AmazonSupply.com (and Amazon) catalog.

Available

If an item is currently out of stock, but has an estimated lead time, you can place an order now and we will ship it as soon as it is available.
You can also order more than we currently have in stock.
Read more about back orders in our help section.

Price
All All All All
Currently showing 1-6 of 6
1/2" 3.04" 1 02939521G B00835S2J0 13 $3.16 Buy Options
3/4" 3.56" 1 02939521I B00835S2TK 11 $4.15 Buy Options
1" 4.22" 1 02939521K B00835S330 1 $5.43 Buy Options
1-1/4" 4.83" 1 02939521L B00835S3AS 1 $6.95 Buy Options
1-1/2" 5.13" 1 02939521M B00835S3H6 2 $10.71 Buy Options
2" 5.82" 1 02939521N B00835S3NK 2 $11.25 Buy Options

Key Features

  • PVC for corrosion resistance, high strength, and less weight than fittings made from metal
  • T-handle for manual on/off control
  • PTFE seats reduce the risk of leakage
  • Maximum pressure rating of 150 psig for WOG and 110 psig for WSP
  • Female NPT threads for connecting to male threaded pipes

Product Description

The Smith-Cooper International 9521 series PVC inline ball valve has a t-handle and National Pipe Taper (NPT) female threads on both ends. This valve body is made of PVC for corrosion resistance, high strength, and less weight than fittings made from metal. PVC can be connected to other materials such as steel, copper, or cast iron using transition fittings. It is suitable for cold water, venting, and waste applications. This valve has a t-handle for manual on/off control. Polytetrafluoroethylene (PTFE) seats reduce the risk of leakage. One-piece body design reduces possibility of shell leakage. This valve has female NPT threads for connecting to male threaded pipes, creating a tighter seal than straight threads. The maximum pressure rating is 150 pounds per square inch (psi), and the maximum temperature is 110 degree Fahrenheit. This valve meets National Sanitation Foundation/American National Standards Institute (NSF/ANSI) 14 standards for quality assurance.

Ball valves use a spherical disc to control the flow between pipes, tubes, or hoses. Flow is allowed when the hole that pierces the ball-shaped disc is in line with the inlet and outlet of the valve. Flow is blocked when the ball is horizontally swiveled 90 degrees, so that the hole of the ball is perpendicular to the opening of the valve. Ball valves can be referred to as full port or reduced port (also known as regular or standard port) depending on the inner diameter of the valve. A ball valve is full port if the hole of the ball is the same size as the inner diameter of the connecting pipeline (resulting in lower friction) and is reduced port if the hole of the valve is one pipe size smaller than the pipe, resulting in less flow through the valve than through the shaft of the pipe. Ball valves may have a handle or lever that aligns with the ball's position (open or closed) for manual operation. They are primarily used in air, gas, liquid, and steam applications.

Smith-Cooper manufactures a wide variety of pipe fittings and valves. The company is headquartered in Commerce, California, and meets relevant ANSI, ASTM, and International Organization for Standardization (ISO) 9002 standards.
