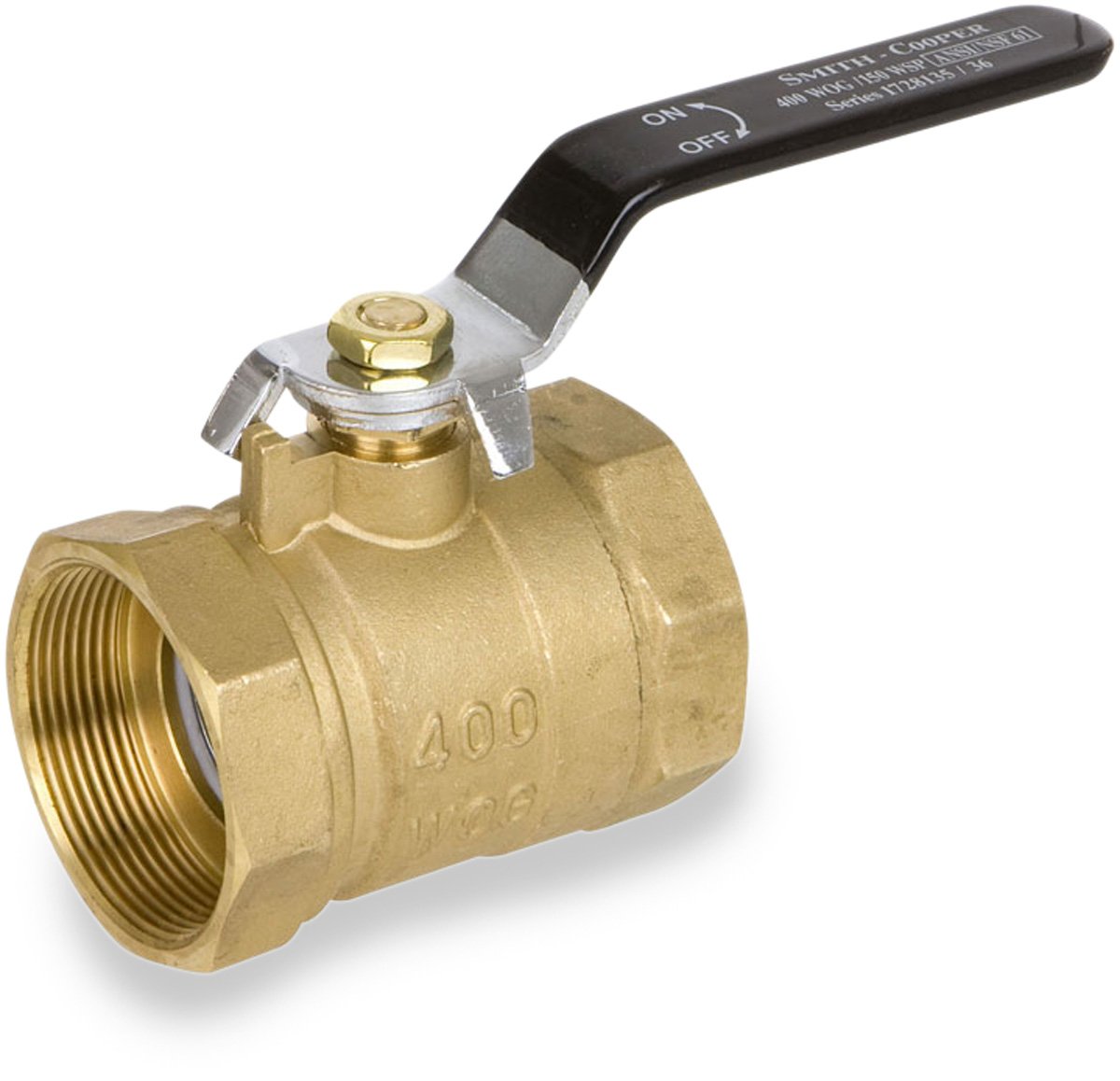

Click for larger image and other views Image is representative of the product family. Select individual products in the table below for more specific images and product specifications

How can we improve our images or Product Specifications?

Smith-Cooper International 8135 Series Brass Ball Valve, Inline, Lever Handle, NPT Female

Be the first to review this item

Product Specifications
Item Shape
Inline
Seal Material Type
PTFE
Seat Material Type
PTFE
Material Type
Brass
Construction Type
Full Port
Maximum Steam Pressure Description
150 pounds_per_square_inch
Handle Type
Lever Handle
Brand Name
Smith-Cooper International
Manufacturer Series Number
8135
Maximum Pressure
400  PSI
Connector Type
NPT Female
UNSPSC Code
40141607
Style Name
Threaded
System of Measurement
Inch

This item is no longer available

These items ship for FREE with 2-Day Shipping on orders over $50. (Details)

Want it delivered on Tue, Nov 25? Order in-stock items in the next 24 mins and choose One-Day Shipping at checkout.

  • Share
Currently showing 1-11 of 11
Size name Number of items ASIN

The Amazon Standard Item Number (ASIN) uniquely identifies
the item in the AmazonSupply.com (and Amazon) catalog.

Available

If an item is currently out of stock, but has an estimated lead time, you can place an order now and we will ship it as soon as it is available.
You can also order more than we currently have in stock.
Read more about back orders in our help section.

Price
All All
Currently showing 1-11 of 11
1" 1 B00835ONB6 yes $8.68 Buy Options
1-1/2" 1 B00835ONRA yes $17.32 Buy Options
1-1/4" 1 B00835ONIY yes $12.54 Buy Options
1/2" 1 B00835OMXU yes $4.67 Buy Options
1/4" 1 B00835OMG2 yes $5.41 Buy Options
2" 1 B00835ONZW yes $23.25 Buy Options
2-1/2" 1 B00835OO7Y yes $50.68 Buy Options
3" 1 B00835OOJ2 Usually ships in 1 to 2 months $71.18 Buy Options
3/4" 1 B00835ON4S yes $6.50 Buy Options
3/8" 1 B00835OMOO yes $5.58 Buy Options
4" 1 B00835OOTW yes $107.82 Buy Options

Key Features

  • Brass for corrosion resistance, ductility at high temperatures, and low magnetic permeability
  • Lever handle for manual on/off control
  • PTFE seats and stem packing reduce the risk of leakage
  • Maximum pressure rating of 400 psig for WOG and 150 psig for WSP
  • Female NPT threads for connecting to male threaded pipes

Product Description

The Smith-Cooper International 8135 series brass inline ball valve has a lever handle and National Pipe Taper (NPT) female threads on both ends. This valve body is made of brass for corrosion resistance, ductility at high temperatures, and low magnetic permeability. Brass can be connected to copper, brass, plastic, aluminum, and welded steel. This valve has a lever handle for manual on/off control. Polytetrafluoroethylene (PTFE) seats reduce the risk of leakage. The valve is full port for reduced friction; its inner diameter is the same as the inner diameter of the pipe it connects to for maximum operating efficiency. This valve has female NPT threads for connecting to male threaded pipes, creating a tighter seal than straight threads. The maximum pressure rating is 400 pounds per square inch (gauge) (psig) for water, oil, and gas (WOG), and 150 psig for working steam pressure (WSP).

Ball valves use a spherical disc to control the flow between pipes, tubes, or hoses. Flow is allowed when the hole that pierces the ball-shaped disc is in line with the inlet and outlet of the valve. Flow is blocked when the ball is horizontally swiveled 90 degrees, so that the hole of the ball is perpendicular to the opening of the valve. Ball valves can be referred to as full port or reduced port (also known as regular or standard port) depending on the inner diameter of the valve. A ball valve is full port if the hole of the ball is the same size as the inner diameter of the connecting pipeline (resulting in lower friction) and is reduced port if the hole of the valve is one pipe size smaller than the pipe, resulting in less flow through the valve than through the shaft of the pipe. Ball valves may have a handle or lever that aligns with the ball's position (open or closed) for manual operation. They are primarily used in air, gas, liquid, and steam applications.

Smith-Cooper manufactures a wide variety of pipe fittings and valves. The company is headquartered in Commerce, California, and meets relevant ANSI, ASTM, and International Organization for Standardization (ISO) 9002 standards.
