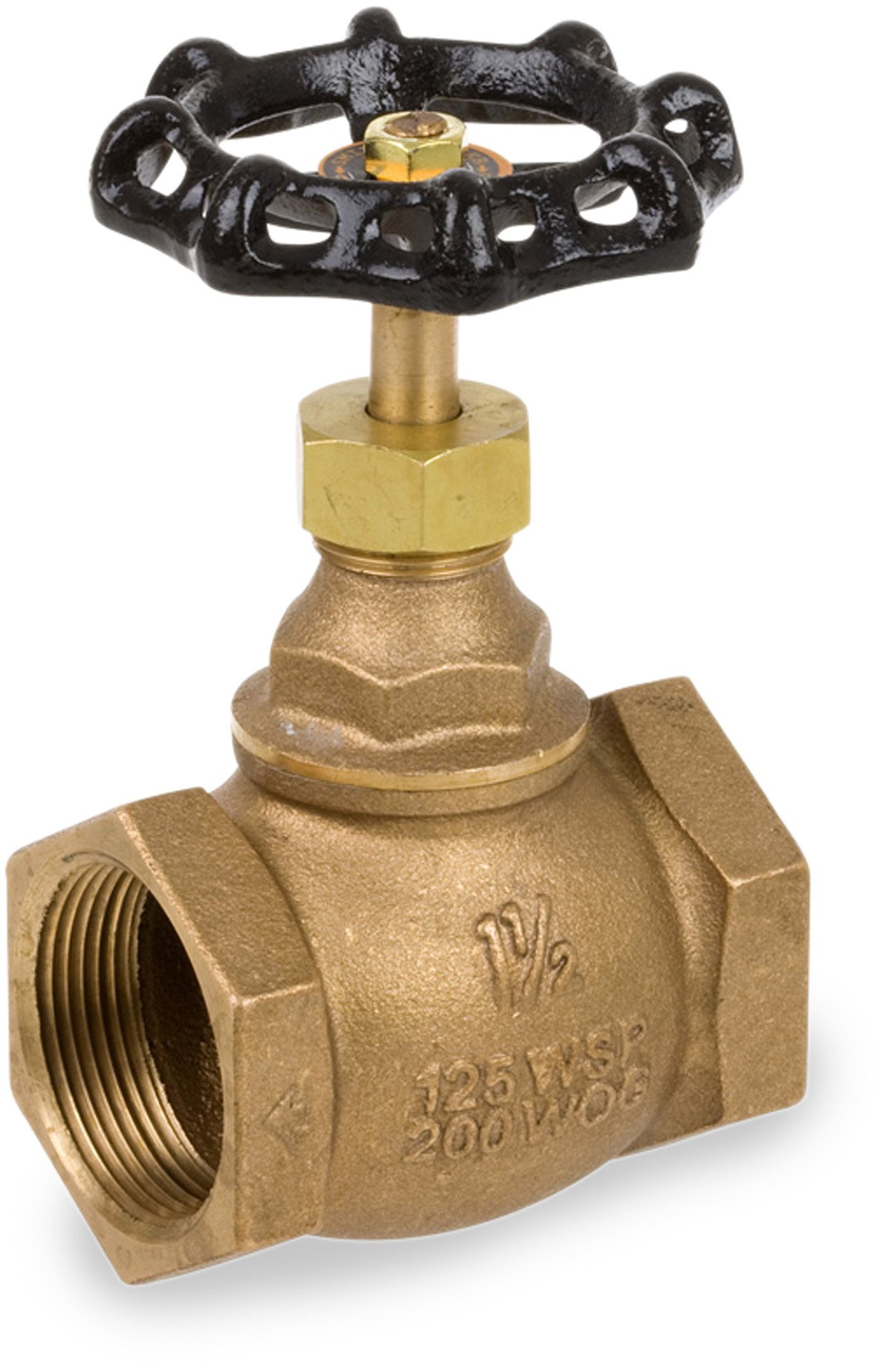

Smith-Cooper International 4101 Series Bronze Globe Valve, Inline, NPT Female

Be the first to review this item

Product Specifications
Item Shape
Inline
Seat Material Type
Hard Seat
Material Type
Bronze
Brand Name
Smith-Cooper International
Manufacturer Series Number
4101
Upper Temperature Range
350  Degrees Fahrenheit
Connector Type
NPT Female
UNSPSC Code
40141611
Style Name
Threaded
System of Measurement
Inch

This item is no longer available

These items ship for FREE with 2-Day Shipping on orders over $50. (Details)

Want it delivered on Mon, Dec 1? Order in-stock items in the next 1 day 14 hrs 24 mins and choose One-Day Shipping at checkout.

  • Share
Currently showing 1-6 of 6
Connection Size Mfr Part # ASIN

The Amazon Standard Item Number (ASIN) uniquely identifies
the item in the AmazonSupply.com (and Amazon) catalog.

Available

If an item is currently out of stock, but has an estimated lead time, you can place an order now and we will ship it as soon as it is available.
You can also order more than we currently have in stock.
Read more about back orders in our help section.

Price
All All
Currently showing 1-6 of 6
3/8" 01764101E B00835PDZQ yes $9.91 Buy Options
1/2" 01764101G B00835PEBY yes $8.54 Buy Options
3/4" 01764101I B00835PFEK Usually ships in 1 to 2 months $9.84 Buy Options
1" 01764101K B00835PFU4 yes $16.28 Buy Options
1-1/4" 01764101L B00835PFZY yes $22.32 Buy Options
2" 01764101N B00835PGJ4 yes $45.23 Buy Options

Key Features

  • Inline globe valve with non-rising stem for on/off actuation and flow control (throttling) in a pipeline
  • Bronze valve body for higher strength and corrosion resistance than brass
  • Brass stem and disc for higher corrosion resistance than steel
  • Female National Pipe Taper (NPT) threads for connecting to male threaded pipes
  • 200 pounds per square inch (gauge) (psig) for water, oil, and gas (WOG) and 125 psig for steam working pressure (SWP)

Product Description

The Smith-Cooper 4101 Series inline bronze globe valve has a non-rising stem and female National Pipe Taper (NPT) threads on both ends, and is used to control flow (throttling) in a pipeline or water plumbing system. The valve body is constructed of 85-5-5-5 bronze for higher strength and corrosion resistance than brass, and its brass stem and disc provides corrosion resistance, ductility at high temperatures, and low magnetic. This valve has maximum pressure ratings of 200 pounds per square inch (gauge) (psig) for water, oil, and gas (WOG) and 125 psig for steam working pressure (SWP). The valve has female NPT threads on both ends for connecting to male pipes with tighter seals than straight threads. This valve meets standards Manufacturers Standardization Society MSS SP-80 for quality assurance.

Globe valves control flow rates in a piping system by the lift of a vertical stem and disk, which must be turned to open and close the valve. A seated disc extends into the center of the valve to act as a plug to restrict or open the flow path, depending on how tightly the valve stem is turned. The stem on globe valves can be either rising (moves up as the valve opens) to indicate if the flow is on or off, or non-rising (stem height remains constant when the valve is either open or closed) for use in small spaces. Globe valves are used in various water, gas, air, and steam piping systems that require frequent throttling operations.

Smith-Cooper manufactures a wide variety of pipe fittings and valves. The company is headquartered in Commerce, California, and meets relevant ANSI, ASTM, and International Organization for Standardization (ISO) 9002 standards.
