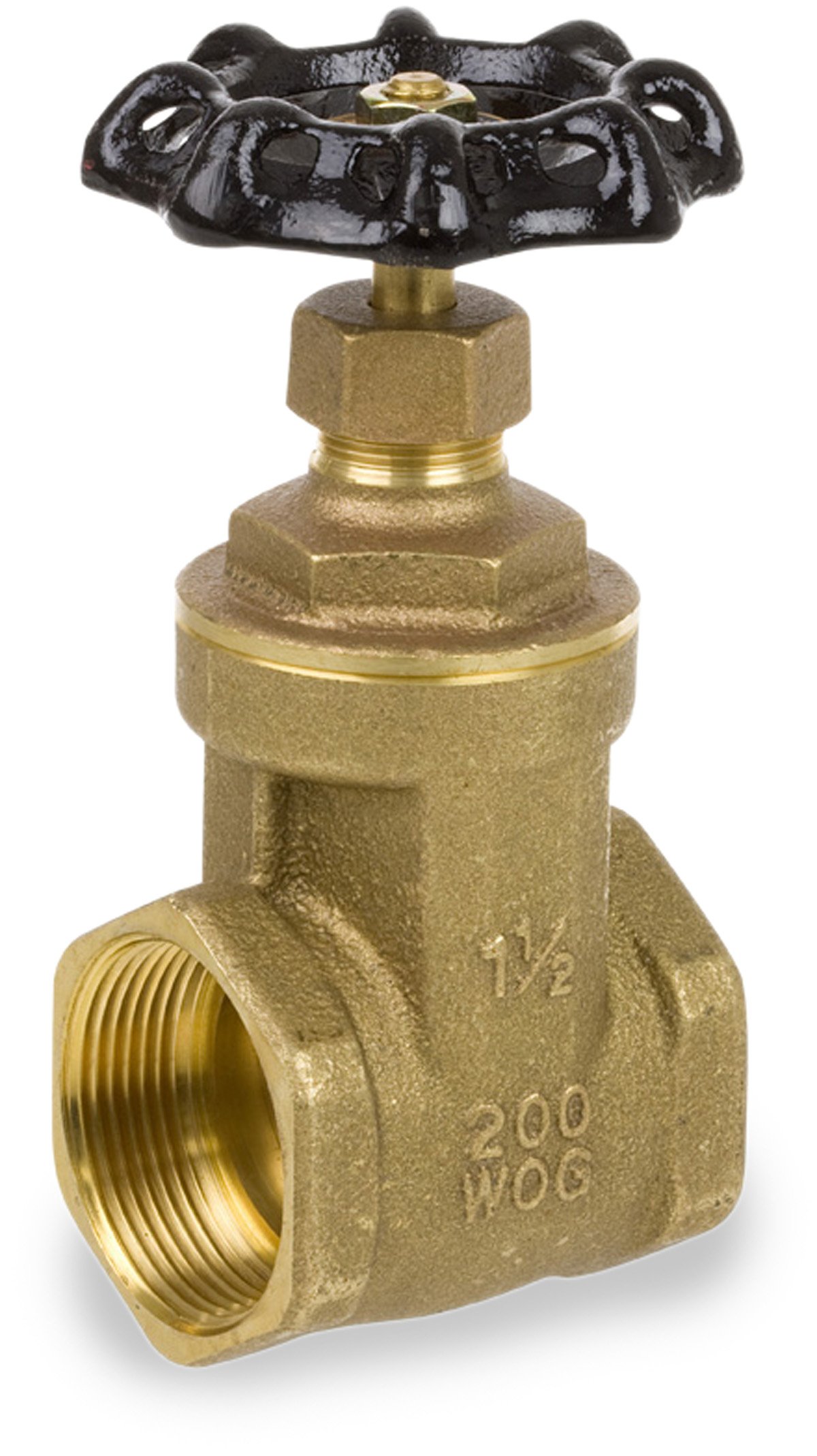

Click for larger image and other views Image is representative of the product family. Select individual products in the table below for more specific images and product specifications

How can we improve our images or Product Specifications?

Smith-Cooper International 8501L Series Brass Gate Valve, Potable Water Service, Non-Rising Stem, Inline, NPT Female

Be the first to review this item

Product Specifications
Manufacturer Series Number
8501L
Upper Temperature Range
350  Degrees Fahrenheit
Item Shape
Inline
Material Type
Brass
Style Name
Threaded
Connector Type
NPT Female
Structure Description
Non-Rising Stem
Brand Name
Smith-Cooper International
System of Measurement
Inch

This item is no longer available

These items ship for FREE with 2-Day Shipping on orders over $50. (Details)

Want it delivered on Fri, Apr 18? Order in-stock items in the next 1 hr 26 mins and choose One-Day Shipping at checkout.

  • Share
Currently showing 1-11 of 11
Connection Size Mfr Part # ASIN

The Amazon Standard Item Number (ASIN) uniquely identifies
the item in the AmazonSupply.com (and Amazon) catalog.

Available

If an item is currently out of stock, but has an estimated lead time, you can place an order now and we will ship it as soon as it is available.
You can also order more than we currently have in stock.
Read more about back orders in our help section.

Price
All All
Currently showing 1-11 of 11
1/4" 01718501CL B00835PGT4 1 $10.48 Buy Options
3/8" 01718501EL B00835PH0C 1 $10.48 Buy Options
1/2" 01718501GL B00835PH7U 1 $10.01 Buy Options
3/4" 01718501IL B00835PHFC 1 $14.02 Buy Options
1" 01718501KL B00835PHNE 1 $21.53 Buy Options
1-1/4" 01718501LL B00835PHSY 1 $28.28 Buy Options
1-1/2" 01718501ML B00835PI10 Usually ships in 3 to 5 weeks $32.59 Buy Options
2" 01718501NL B00835PI7E 1 $48.67 Buy Options
2-1/2" 01718501PL B00835PIF6 1 $88.92 Buy Options
3" 01718501QL B00835PIKQ 1 $114.50 Buy Options
4" 01718501TL B00835PIS8 1 $205.38 Buy Options

Key Features

  • Made from brass for higher corrosion resistance than steel
  • Non-rising brass stem stays fixed in place when gate is raised or lowered for low clearance use
  • Female National Pipe Taper (NPT) threads for connecting to male threaded pipes
  • 200 pounds per square inch (gauge) (psig) for water, oil, and gas (WOG)
  • Top-mounted hand wheel for lowering and lifting the gate

Product Description

The Smith-Cooper International 8501L series brass gate valve has a non-rising stem, and female National Pipe Taper (NPT) threads on both ends. It has a screwed bonnet, and its brass construction provides corrosion resistance, ductility at high temperatures, and low magnetic permeability. Brass can be connected to copper, brass, plastic, aluminum, and welded steel. The non-rising brass stem stays fixed in place when the gate is raised or lowered, making it suitable for low clearance or underground use. The stem includes PTFE internal packing to help prevent leaking. This valve has a maximum pressure rating of 200 pounds per square inch (gauge) (psig) for water, oil, and gas (WOG). This valve has female NPT threads on both ends for connecting to male pipes with tighter seals than straight threads. Mounted on top of the valve, a manually operated hand wheel activates the inside screw mechanism, which lifts and lowers the gate to start and stop the flow between the connected pipes. This valve meets National Sanitation Foundation (NSF)/American National Standards Institute (ANSI) 61-8 standards for quality assurance, and is certified to California AB1953.

Gate valves control flow in a piping system by lifting a gate out of the path of steam, fluids, or gases. They are designed to block or permit flow, as the vibrations and force of flow repeatedly striking a partly lowered gate can damage the gate and seats. To accommodate different flows and pressure requirements, gates come in four types: solid wedge (appropriate for almost all liquid service), flexible wedge (appropriate for steam service), split wedge (appropriate for normal temperature, non-condensing gas and liquid service, including corrosive service), and parallel disc (appropriate for high and low pressure applications). Hand wheels or levers activate the screw mechanism in the valve’s bonnet, which comes in various designs, to open and close the gate. Union bonnets are preferable for building service piping, threaded-in (or screw-in) bonnets work well for lighter-duty usage, and bolted body-bonnet connections are used primarily in iron multi-turn valves. Most gate valves have either a rising stem, which moves up and down with the gate, or a non-rising stem, which remains fixed in place. When closed, the gate and its seats form tight planar sealing surfaces, ideal for linear liquid flow. Gate valves are used in air, gas, liquid, and steam applications.

Smith-Cooper manufactures a wide variety of pipe fittings and valves. The company is headquartered in Commerce, California, and meets relevant ANSI, ASTM, and International Organization for Standardization (ISO) 9002 standards.
