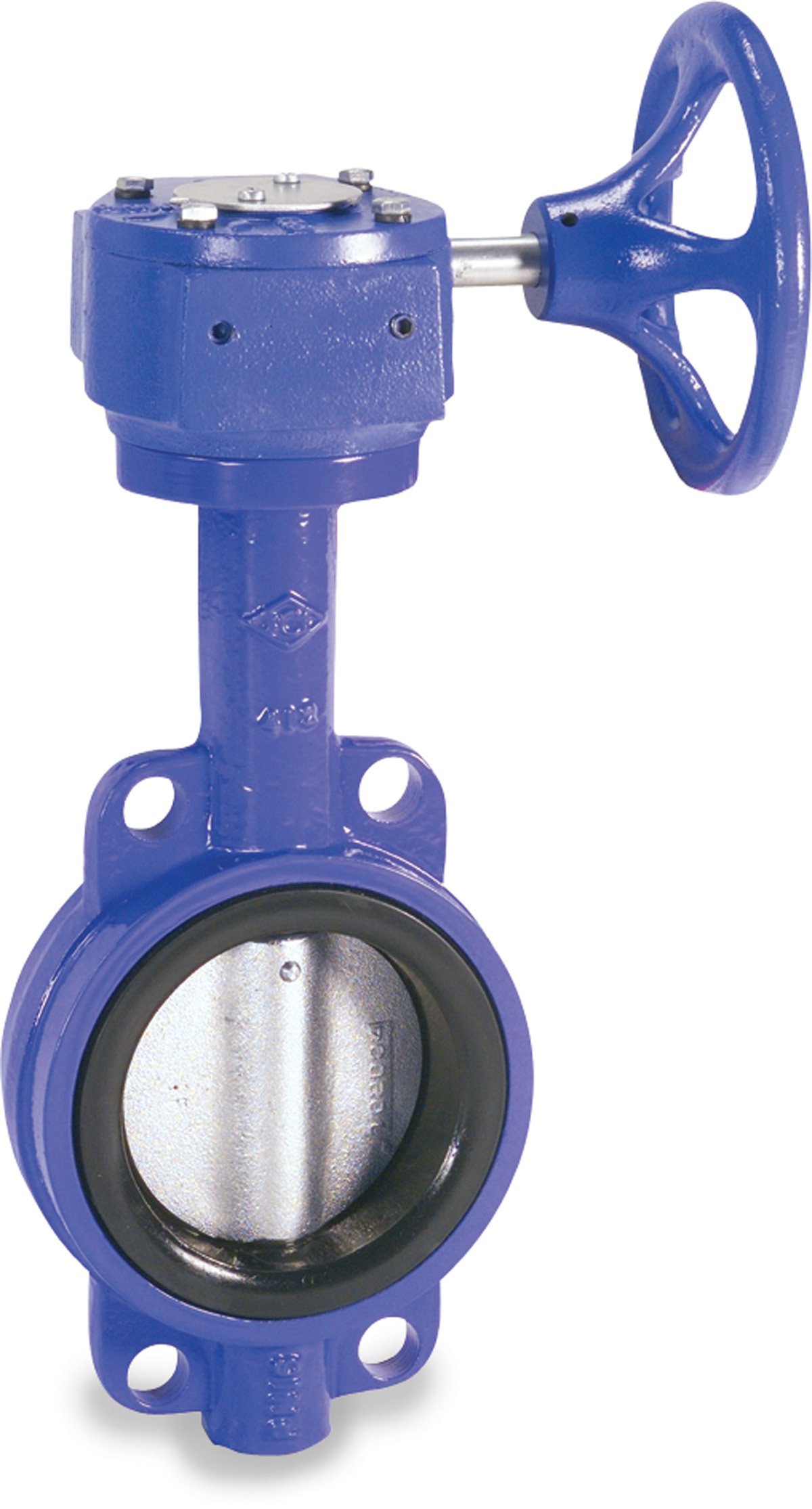

Click for larger image and other views Image is representative of the product family. Select individual products in the table below for more specific images and product specifications

How can we improve our images or Product Specifications?

Smith-Cooper International 160 Series Iron Butterfly Valve, Wafer Style, Nickel Plated Ductile Iron Disc, Buna-N Seat, Gear Operator

Be the first to review this item

Product Specifications
Manufacturer Series Number
160
Upper Temperature Range
150  Degrees Fahrenheit
Seat Material Type
Buna-N
Material Type
Iron
Handle Type
Gear Operator
Structure Description
Wafer Style
Brand Name
Smith-Cooper International

This item is no longer available

These items ship for FREE with 2-Day Shipping on orders over $50. (Details)

Want it delivered on Thu, Apr 17? Order in-stock items in the next 8 hrs 40 mins and choose One-Day Shipping at checkout.

  • Share
Currently showing 1-11 of 11
Connection Size Height Mfr Part # ASIN

The Amazon Standard Item Number (ASIN) uniquely identifies
the item in the AmazonSupply.com (and Amazon) catalog.

Available

If an item is currently out of stock, but has an estimated lead time, you can place an order now and we will ship it as soon as it is available.
You can also order more than we currently have in stock.
Read more about back orders in our help section.

Price
All All All
Currently showing 1-11 of 11
2" 9.5" 0160WDNG020 B00835LLUM 1 $68.81 Buy Options
2-1/2" 10.4" 0160WDNG025 B00835LMRO 1 $72.31 Buy Options
3" 10.9" 0160WDNG030 B00835LNNC 1 $81.77 Buy Options
4" 12.4" 0160WDNG040 B00835LOBI 1 $99.75 Buy Options
5" 13.4" 0160WDNG050 B00835LP4O 1 $113.98 Buy Options
6" 14.4" 0160WDNG060 B00835LPQC Usually ships in 3 to 5 weeks $127.71 Buy Options
8" 17.1" 0160WDNG080 B00835LQK2 Usually ships in 3 to 5 weeks $163.74 Buy Options
10" 19.5" 0160WDNG100 B00835LR6U 1 $268.79 Buy Options
12" 22.8" 0160WDNG120 B00835LS8C Usually ships in 3 to 5 weeks $287.00 Buy Options
14" 25" 0160WDNG140 B00835LSXM Usually ships in 3 to 5 weeks $436.07 Buy Options
16" 27.9" 0160WDNG160 B00835LTHC Usually ships in 3 to 5 weeks $831.93 Buy Options

Key Features

  • Wafer-style design for a seal against two-way pressure to prevent backflow in single-direction systems
  • Made of iron for compressive strength and more flexible and elastic than cast iron; Buna-N seats provide high tensile strength and resistant to oil, fuel, and other chemicals
  • Gear operator with a handwheel for manual flow control
  • Maximum pressure of 200 pounds per square inch (psi); Upper temperature range of 150 degrees Fahrenheit.
  • Flanged connection surrounds the body for bolting to pipes

Product Description

This Smith-Cooper International 160 series wafer style butterfly valve is made of iron for compressive strength and resistance to wear. It has a gear operator handle, Buna-N seat, a nickel plated ductile iron disc, and flanged connections on both ends. This wafer-style valve fits between two pipe flanges and is designed to retain a seal against two-way pressure to prevent backflow in single-direction systems. The disc is made of nickel plated ductile iron for compressive strength, corrosion resistance, and more flexibility and elasticity than cast iron. Buna-N seats are high tensile strength and resistant to oil, fuel, and other chemicals. The gear operator with a handwheel rotates the disc in the valve seat to fully open, regulate, or stop flow through the valve. This valve has a maximum pressure of 200 pounds per square inch (psi), and an upper temperature range of 150 degrees Fahrenheit. Flanged connections surround the valve body on both sides for bolting to pipes and for easier installation and maintenance than welded connections.

Butterfly valves are used to regulate flow between pipes, tubes, and hoses by rotating a lens-shaped disc in the center of the valve and are suited for high-capacity, low-pressure applications. When the valve is fully opened, the disc face is parallel to the inlet and outlet of the valve, and when the valve is closed, the disc face is perpendicular to the opening of the valve. Butterfly valves may have a handle or lever that aligns with the disc position (open or closed) for manual flow control. They are primarily used in applications including agriculture, water treatment, fire protection, compressed air or gas, and vacuum service.

Smith-Cooper manufactures a wide variety of pipe fittings and valves. The company is headquartered in Commerce, California, and meets relevant ANSI, ASTM, and International Organization for Standardization (ISO) 9002 standards.
