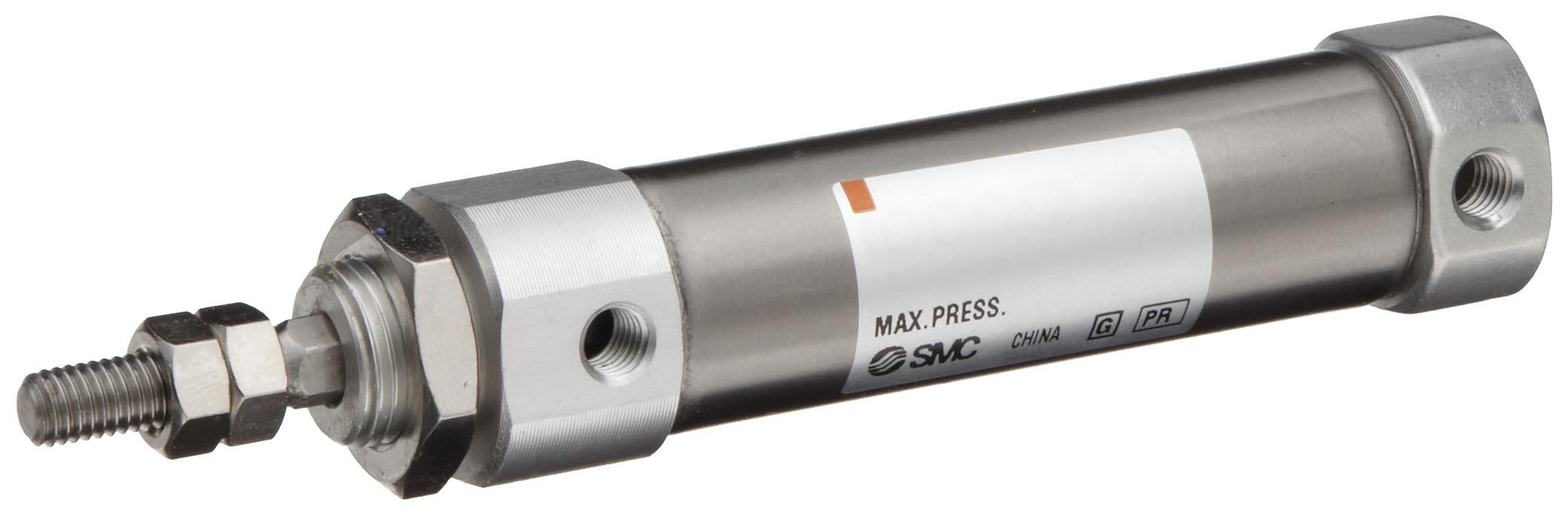

SMC CJ2 Series Stainless Steel Air Cylinder with Non-Rotating Rod, Compact, Double Acting, Basic Style Mounting, Not Switch Ready, Cushioned

Be the first to review this item

Product Specifications
Item Shape
Compact
Seal Material Type
NBR
Cushion Material Type
Rubber
Switch Type
Not Switch Ready
Material Type
Stainless Steel
Construction Type
Single Rod
Brand Name
SMC Corporation
Maximum Temperature
70  Degrees Celsius
Manufacturer Series Number
CJ2
Upper Temperature Range
158  Degrees Fahrenheit
Actuator Material Type
Stainless
Mounting Type
Basic Style
UNSPSC Code
24111802
Maximum Working Pressure
102  PSI
System of Measurement
Metric
LowerTemperature Range
14  Degrees Fahrenheit

This item is no longer available

These items ship for FREE with 2-Day Shipping on orders over $50. (Details)

Want it delivered on Mon, Nov 3? Order in-stock items in the next 1 day 3 hrs 58 mins and choose One-Day Shipping at checkout.

  • Share
Currently showing 1-2 of 2
Bore Size Stroke Length Rod Thread Length Port Size Pkg Qty Mfr Part # ASIN

The Amazon Standard Item Number (ASIN) uniquely identifies
the item in the AmazonSupply.com (and Amazon) catalog.

Available

If an item is currently out of stock, but has an estimated lead time, you can place an order now and we will ship it as soon as it is available.
You can also order more than we currently have in stock.
Read more about back orders in our help section.

Price
All All All All All All
Currently showing 1-2 of 2
16 mm 30 mm 15 mm M5 x 0.8 1 CJ2KB16-30 B005JGMI7I Usually ships in 5 to 8 weeks $25.57 Buy Options
16 mm 45 mm 15 mm M5 x 0.8 1 CJ2KB16-45 B005JGMJEU yes $22.84 Buy Options

Key Features

  • Double-acting air (pneumatic) cylinder with two air ports for pushing and pulling the piston rod in both directions
  • Miniature compact body with non-rotating piston rod for stability in linear applications
  • Stainless steel body and piston rod for resistance to corrosion and scaling
  • Basic-style mounting with rod end and mounting nuts for bracket additions (sold separately)
  • Rubber cushioning to dampen the sound of the piston striking the end caps

Product Description

This SMC double-acting CJ2 Series air cylinder has a compact body, basic-style mounting, and rubber cushioning to absorb kinetic energy and reduce noise during operation. The air cylinder (also called a pneumatic cylinder) has a stainless-steel body and non-rotating single piston rod to help resist corrosion and scaling. The double-acting air cylinder uses airflow through two air ports on opposite ends of the cylinder barrel to push out and retract the piston rod to produce continued movement. Rubber bumpers (cushions) are standard to this series to absorb kinetic energy and to dampen the sound of the piston striking the air cylinder’s end caps, and it has nitrile butadiene rubber (NBR) seals to contain air and protect the barrel and piston rod. The air cylinder has basic-style mounting and includes mounting and rod end nuts to hold brackets (sold separately) in place. The maximum pressure of the pneumatic cylinder is 102 pounds per square inch (psi), and it has a temperature range of 14 to 158 degrees F. This non-repairable air cylinder is suitable for use in light-duty applications and in small spaces.

Pneumatic actuators fall into two classes: linear and rotary. Linear actuators move objects in straight lines, while rotary actuators turn objects, or rotate them in varying directions. Air cylinders (also called pneumatic cylinders), the most common type of linear actuators, use pressurized air to pull and push piston rods in and out of cylinder barrels. This motion moves mechanisms connected to the rods, or (for detached items) directs or blocks travel using rod-attached plates. Air cylinders execute pushing, pulling, lifting, lowering, pressing, and stopping functions, and they come in several different body types, including round, compact, tie-rod, guided, slide, and clamp. Pneumatic cylinders can be either single acting, with one compressed air port to push the rod in a single direction and a spring to return the rod, or double acting, with two compressed air ports on opposite ends of the cylinder to both extend and retract the rod. For quieter piston operation, air cylinders can come with cushioning in one or both ends of their barrels. Several mounting styles are available both for attaching the air cylinder ends to moving components in a pneumatic system and for mounting to rigid surfaces. Air cylinders are used in industrialized automation tasks in automotive, food processing, material handling, and robotics applications, among others.

SMC Corporation manufactures actuators, valves, airline equipment, connector fittings, electrical products, vacuum products, dryers, temperature control chillers, and accessories. SMC Corporation of America is headquartered in Noblesville, IN, and meets International Organization for Standardization (ISO) 9000:2000 standards.
