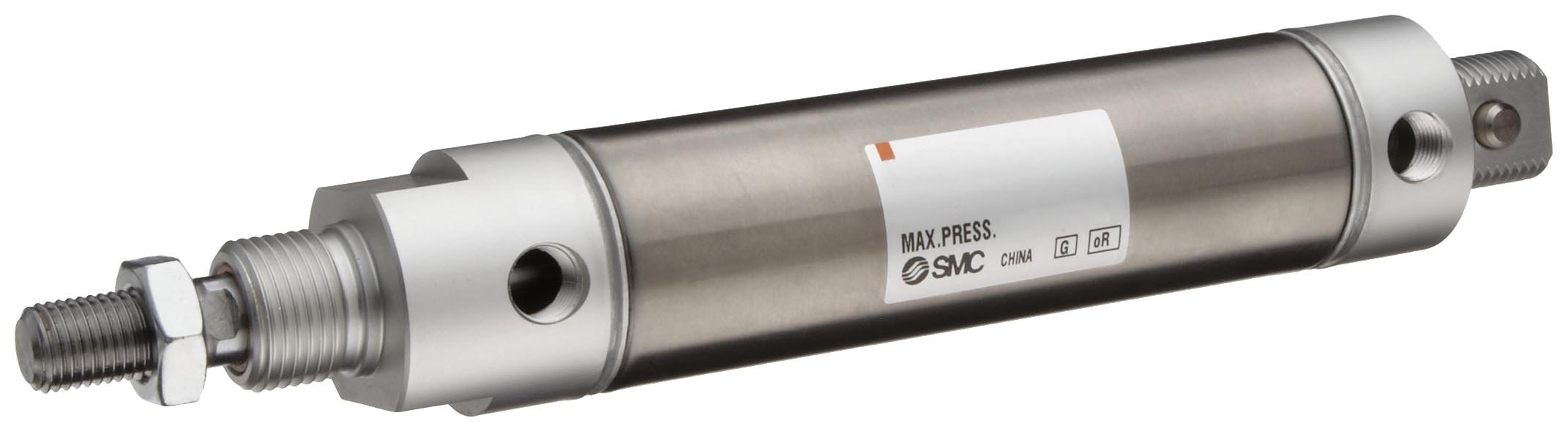

Click for larger image and other views Image is representative of the product family. Select individual products in the table below for more specific images and product specifications

How can we improve our images or Product Specifications?

SMC NCM Series Stainless Steel Air Cylinder, Round Body, Double Acting, Rear Pivot Mounting, Switch Ready, Cushioned

Be the first to review this item

Product Specifications
Item Shape
Round Body
Seal Material Type
NBR
Cushion Material Type
Rubber
Switch Type
Switch Ready
Material Type
Stainless Steel
Construction Type
Single Rod
Brand Name
SMC Corporation
Maximum Temperature
60  Degrees Celsius
Manufacturer Series Number
NCM
Upper Temperature Range
140  Degrees Fahrenheit
Mounting Type
Rear Pivot
UNSPSC Code
24111802
Maximum Working Pressure
247  PSI
System of Measurement
Inch
LowerTemperature Range
41  Degrees Fahrenheit

This item is no longer available

These items ship for FREE with 2-Day Shipping on orders over $50. (Details)

Want it delivered on Tue, Sep 23? Order in-stock items in the next 14 hrs 43 mins and choose One-Day Shipping at checkout.

  • Share
Currently showing 1-7 of 7
Bore Size Stroke Length Rod Diameter Rod Thread Length Port Size Pkg Qty Mfr Part # ASIN

The Amazon Standard Item Number (ASIN) uniquely identifies
the item in the AmazonSupply.com (and Amazon) catalog.

Available

If an item is currently out of stock, but has an estimated lead time, you can place an order now and we will ship it as soon as it is available.
You can also order more than we currently have in stock.
Read more about back orders in our help section.

Price
All All All All All All All
Currently showing 1-7 of 7
1-1/2" 3" 0.437" 0.75" 1/8" NPT 1 NCDMC150-0300C B005JGQM8O yes $52.95 Buy Options
1-1/2" 6" 0.437" 0.75" 1/8" NPT 1 NCDMC150-0600C B005JGQMN4 yes $56.85 Buy Options
1-1/4" 2" 0.437" 0.75" 1/8" NPT 1 NCDMC125-0200C B005JGQLZ8 yes $41.00 Buy Options
1-1/2" 4" 0.437" 0.75" 1/8" NPT 1 NCDMC150-0400C B005JGQMEI yes $56.42 Buy Options
1-1/2" 2" 0.437" 0.75" 1/8" NPT 1 NCDMC150-0200C B005JGQM52 yes $50.89 Buy Options
1-1/4" 4" 0.437" 0.75" 1/8" NPT 1 NCDMC125-0400C B005JGQM1Q yes $50.37 Buy Options
3/4" 4" 0.25" 0.5" 1/8" NPT 1 NCDMC075-0400C B005JGQLPI yes $31.12 Buy Options

Key Features

  • Double-acting air (pneumatic) cylinder with two air ports for pushing and pulling the piston rod in both directions
  • Round body with a single piston rod for use in linear applications
  • Stainless steel body for resistance to corrosion and scaling
  • Switch ready with magnet sensor installed for connecting to electrical circuits for automation
  • Rear pivot mounting secures cylinder end while allowing the body to move back and forth

Product Description

This SMC double-acting NCM Series air cylinder has a round body, rear pivot mounting, and comes "switch ready" for connecting to mechanical proximity and limit switches for precise timing in automated linear applications. The double-acting air cylinder (also called a pneumatic cylinder) uses airflow through two air ports on opposite ends of the cylinder barrel to push out and retract the piston rod to produce continued movement. The air cylinder has a stainless-steel body to help resist corrosion and scaling, and it comes with a single piston rod. Rubber bumpers (cushions) are standard to this series to absorb kinetic energy and to dampen the sound of the piston striking the air cylinder’s end caps. Nitrile butadiene rubber (NBR) seals that contain air help to protect the barrel and piston rod. This air cylinder is "switch ready" with a magnet sensor installed for connecting to electrical circuits for pneumatic automation. It has a rear pivot mounting to secure the air cylinder’s blind end to flat surfaces with a one- or two-piece pivot bracket (sold separately) and it comes with a preinstalled pin that allows the rod end to move back and forth for optimum positioning. The maximum pressure of the pneumatic cylinder is 250 pounds per square inch (psi), and it has a temperature range of 40 to 140 degrees F. This non-repairable air cylinder is suitable for use in a variety of general purpose linear applications.

Pneumatic actuators fall into two classes: linear and rotary. Linear actuators move objects in straight lines, while rotary actuators turn objects, or rotate them in varying directions. Air cylinders (also called pneumatic cylinders), the most common type of linear actuators, use pressurized air to pull and push piston rods in and out of cylinder barrels. This motion moves mechanisms connected to the rods, or (for detached items) directs or blocks travel using rod-attached plates. Air cylinders execute pushing, pulling, lifting, lowering, pressing, and stopping functions, and they come in several different body types, including round, compact, tie-rod, guided, slide, and clamp. Pneumatic cylinders can be either single acting, with one compressed air port to push the rod in a single direction and a spring to return the rod, or double acting, with two compressed air ports on opposite ends of the cylinder to both extend and retract the rod. For quieter piston operation, air cylinders can come with cushioning in one or both ends of their barrels. Several mounting styles are available both for attaching the air cylinder ends to moving components in a pneumatic system and for mounting to rigid surfaces. Air cylinders are used in industrialized automation tasks in automotive, food processing, material handling, and robotics applications, among others.

SMC Corporation manufactures actuators, valves, airline equipment, connector fittings, electrical products, vacuum products, dryers, temperature control chillers, and accessories. SMC Corporation of America is headquartered in Noblesville, IN, and meets International Organization for Standardization (ISO) 9000:2000 standards.
