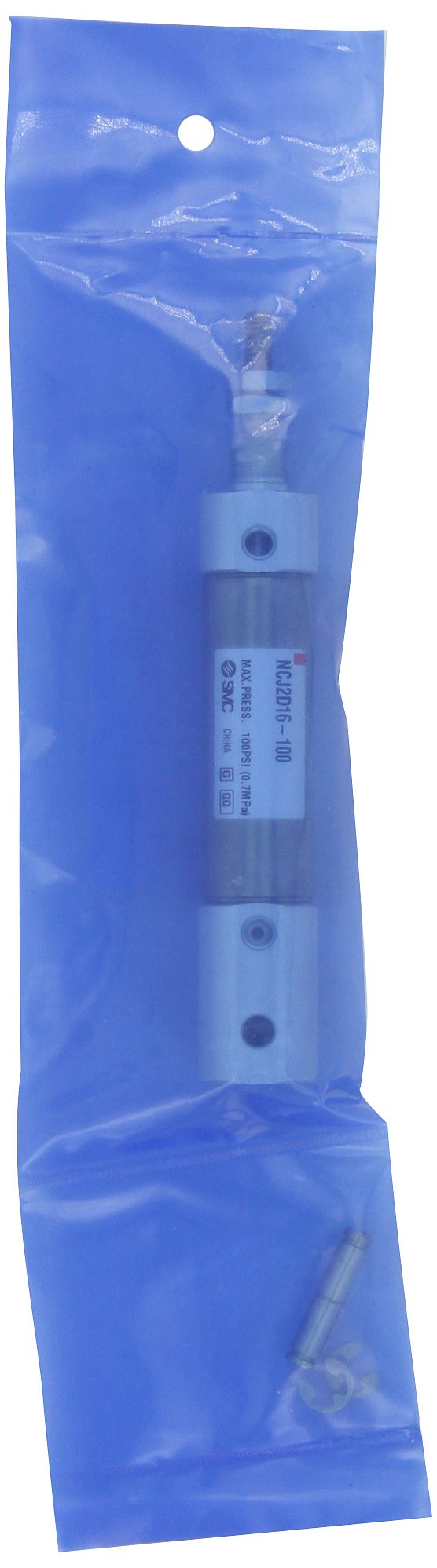

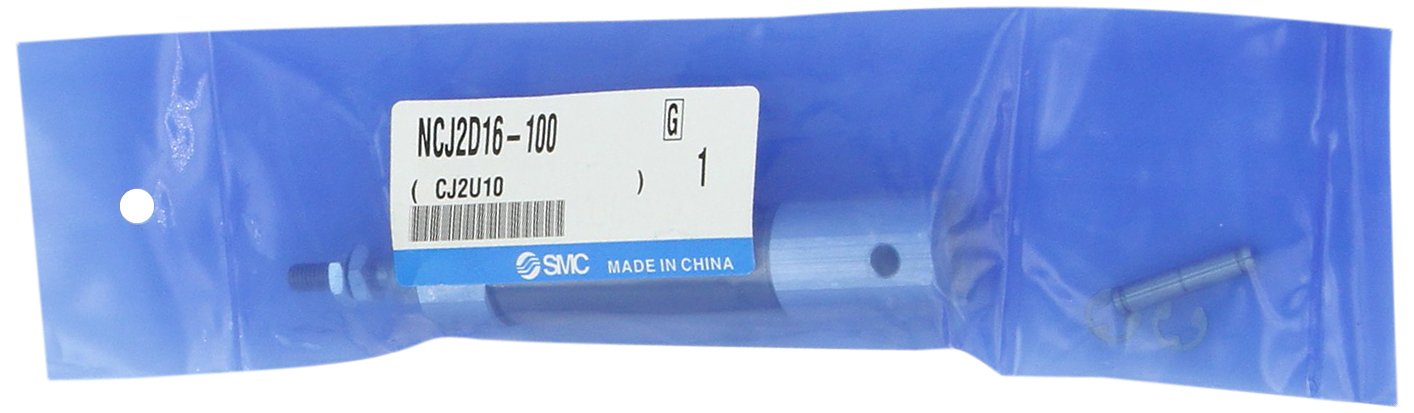

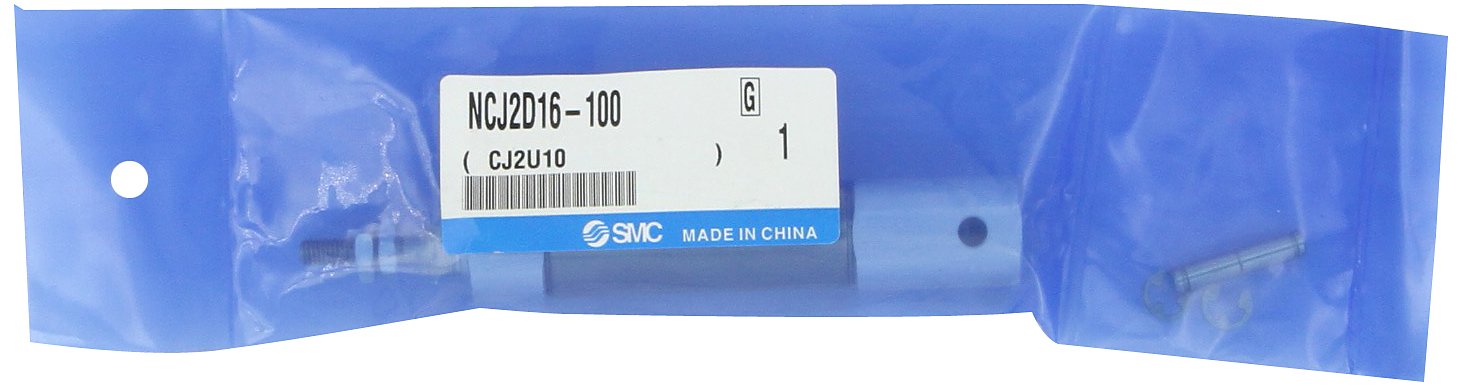

SMC NCJ2 Series Stainless Steel Air Cylinder, Round Body, Double Acting, Double Clevis Mounting, Not Switch Ready, Cushioned

Be the first to review this item

Product Specifications
Item Shape
Round Body
Cushion Material Type
Rubber
Switch Type
Not Switch Ready
Material Type
Stainless Steel
Construction Type
Single Rod
Brand Name
SMC Corporation
Maximum Temperature
70  Degrees Celsius
Manufacturer Series Number
NCJ2
Upper Temperature Range
158  Degrees Fahrenheit
Mounting Type
Double Clevis
UNSPSC Code
24111802
Maximum Working Pressure
102  PSI
System of Measurement
Inch
LowerTemperature Range
14  Degrees Fahrenheit

This item is no longer available

These items ship for FREE with 2-Day Shipping on orders over $50. (Details)

Want it delivered on Thu, Oct 23? Order in-stock items in the next 7 hrs 46 mins and choose One-Day Shipping at checkout.

  • Share
Currently showing 1-4 of 4
Bore Size Stroke Length Rod Diameter Rod Thread Length Port Size Pkg Qty Mfr Part # ASIN

The Amazon Standard Item Number (ASIN) uniquely identifies
the item in the AmazonSupply.com (and Amazon) catalog.

Available

If an item is currently out of stock, but has an estimated lead time, you can place an order now and we will ship it as soon as it is available.
You can also order more than we currently have in stock.
Read more about back orders in our help section.

Price
All All All All All All All
Currently showing 1-4 of 4
3/8" 1/2" 0.157" 0.60" 10-32 UNF 1 NCJ2D10-050 B005JGQU86 yes $15.75 Buy Options
5/8" 1" 0.196" 0.60" 10-32 UNF 1 NCJ2D16-100 B005JGQUKY yes $15.25 Buy Options
5/8" 1-1/2" 0.196" 0.60" 10-32 UNF 1 NCJ2D16-150 B005JGQUR2 yes $15.86 Buy Options
5/8" 1/2" 0.196" 0.60" 10-32 UNF 1 NCJ2D16-050 B005JGQUE0 yes $14.65 Buy Options

Key Features

  • Double-acting air (pneumatic) cylinder with two air ports for pushing and pulling the piston rod in both directions
  • Miniature round body with a single piston rod for use in linear applications
  • Stainless steel body and piston rod for resistance to corrosion and scaling
  • Double clevis mounting style for securing both cylinder ends while allowing back and forth motion
  • Rubber cushioning to dampen the sound of the piston striking the end caps

Product Description

This SMC double-acting NCJ2 Series air cylinder has a round body, double clevis mounting, and rubber cushioning to absorb kinetic energy and reduce noise during operation. The air cylinder (also called a pneumatic cylinder) has a stainless-steel body and single piston rod to help resist corrosion and scaling. The double-acting air cylinder uses airflow through two air ports on opposite ends of the cylinder barrel to push out and retract the piston rod to produce continued movement. Rubber bumpers (cushions) come standard with this series to absorb kinetic energy and to dampen the sound of the piston striking the end caps. Nitrile butadiene rubber (NBR) seals that contain air help protect the barrel and piston rod. It has double clevis mounting to secure both ends of the cylinder while still allowing a degree of back and forth motion. The maximum pressure of the pneumatic cylinder is 100 pounds per square inch (psi), and it has a temperature range of 14 to 158 degrees F. This non-repairable air cylinder is suitable for use in light-duty applications and in small spaces.

Pneumatic actuators fall into two classes: linear and rotary. Linear actuators move objects in straight lines, while rotary actuators turn objects, or rotate them in varying directions. Air cylinders (also called pneumatic cylinders), the most common type of linear actuators, use pressurized air to pull and push piston rods in and out of cylinder barrels. This motion moves mechanisms connected to the rods, or (for detached items) directs or blocks travel using rod-attached plates. Air cylinders execute pushing, pulling, lifting, lowering, pressing, and stopping functions, and they come in several different body types, including round, compact, tie-rod, guided, slide, and clamp. Pneumatic cylinders can be either single acting, with one compressed air port to push the rod in a single direction and a spring to return the rod, or double acting, with two compressed air ports on opposite ends of the cylinder to both extend and retract the rod. For quieter piston operation, air cylinders can come with cushioning in one or both ends of their barrels. Several mounting styles are available both for attaching the air cylinder ends to moving components in a pneumatic system and for mounting to rigid surfaces. Air cylinders are used in industrialized automation tasks in automotive, food processing, material handling, and robotics applications, among others.

SMC Corporation manufactures actuators, valves, airline equipment, connector fittings, electrical products, vacuum products, dryers, temperature control chillers, and accessories. SMC Corporation of America is headquartered in Noblesville, IN, and meets International Organization for Standardization (ISO) 9000:2000 standards.
