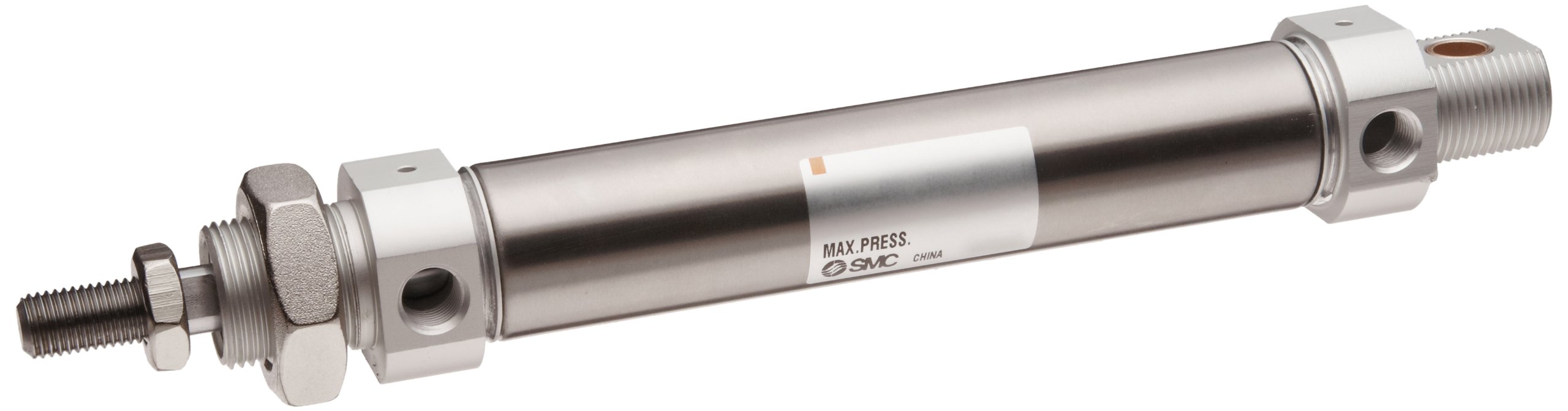

SMC C85 Series Stainless Steel ISO Air Cylinder, Round body, Double Acting, Clevis Mounting, Switch Ready, Cushioned

Be the first to review this item

Product Specifications
Item Shape
Round body
Seal Material Type
NBR
Cushion Material Type
Cushioned
Switch Type
Switch Ready
Material Type
Stainless Steel
Construction Type
Single Rod
Brand Name
SMC Corporation
Maximum Temperature
60  Degrees Celsius
Manufacturer Series Number
C85
Upper Temperature Range
140  Degrees Fahrenheit
Specification Met
ISO 6432, CETOP RP52P
Actuator Material Type
Stainless
Mounting Type
Clevis
UNSPSC Code
24111802
Maximum Working Pressure
145  PSI
System of Measurement
Metric
LowerTemperature Range
14  Degrees Fahrenheit

This item is no longer available

These items ship for FREE with 2-Day Shipping on orders over $50. (Details)

Want it delivered on Mon, Sep 22? Order in-stock items in the next 1 day 13 hrs 41 mins and choose One-Day Shipping at checkout.

  • Share
Currently showing 1-5 of 5
Bore Size Stroke Length Rod Diameter Rod Thread Length Port Size Pkg Qty Mfr Part # ASIN

The Amazon Standard Item Number (ASIN) uniquely identifies
the item in the AmazonSupply.com (and Amazon) catalog.

Available

If an item is currently out of stock, but has an estimated lead time, you can place an order now and we will ship it as soon as it is available.
You can also order more than we currently have in stock.
Read more about back orders in our help section.

Price
All All All All All All All
Currently showing 1-5 of 5
25 mm 80 mm 10 mm 22 mm 1/8" Straight Thread 1 CD85N25-80C-B B005JGKB2C yes $38.16 Buy Options
25 mm 100 mm 10 mm 22 mm 1/8" Straight Thread 1 CD85N25-100C-B B005JGK9IS yes $71.10 Buy Options
25 mm 80 mm 10 mm 22 mm 1/8" Straight Thread 1 CD85N25-80-B B005JGKABE yes $16.56 Buy Options
16 mm 80 mm 6 mm 16 mm M5 x 0.8 1 CD85N16-80-B B005JGK7C6 yes $48.12 Buy Options
25 mm 100 mm 10 mm 22 mm 1/8" Straight Thread 1 CD85N25-100-B B005JGK8DY yes $57.65 Buy Options

Key Features

  • Double-acting air (pneumatic) cylinder with two air ports for pushing and pulling the piston rod in both directions
  • Round body with a single piston rod for linear applications
  • Stainless steel for resistance to corrosion and scaling with a chrome-plated steel piston rod
  • Clevis mounting to secure secures the cylinder while allowing the body to move back and forth
  • Switch ready with magnet sensor installed for connecting to electrical circuits for automation

Product Description

This SMC double-acting C85 Series air cylinder has a round body, clevis mounting, and comes "switch ready" for connecting to mechanical proximity and limit switches for precise timing in automated applications. The air cylinder (also called a pneumatic cylinder) has a stainless-steel body and a chrome-plated steel single piston rod to help resist corrosion and tarnishing. The double-acting air cylinder uses airflow through two air ports on opposite ends of the cylinder barrel to push out and retract the piston rod to produce continued movement. The air cylinder has rubber or air cushioning inside the cylinder barrel to absorb kinetic energy and to dampen the sound of the piston striking the end caps, and it has nitrile butadiene rubber (NBR) seals to contain air and prevent fine dust particles from entering the barrel. This air cylinder is "switch ready" with a magnet sensor installed for connecting to electrical circuits for pneumatic automation. The clevis mounting secures the air cylinder’s blind end to a flat surface with a one- or two-piece bracket (sold separately), allowing the rod end to move back and forth for optimum positioning. The maximum pressure of the pneumatic cylinder is 145 pounds per square inch (psi), and it has a temperature range of 14 to 140 degrees F. This non-repairable air cylinder meets the International Standards Organization (ISO) 6432 standard for quality assurance and is suitable for use in dust-heavy applications, such as in woodshops or agriculture, or in highly sensitive environments, among others.

Pneumatic actuators fall into two classes: linear and rotary. Linear actuators move objects in straight lines, while rotary actuators turn objects, or rotate them in varying directions. Air cylinders (also called pneumatic cylinders), the most common type of linear actuators, use pressurized air to pull and push piston rods in and out of cylinder barrels. This motion moves mechanisms connected to the rods, or (for detached items) directs or blocks travel using rod-attached plates. Air cylinders execute pushing, pulling, lifting, lowering, pressing, and stopping functions, and they come in several different body types, including round, compact, tie-rod, guided, slide, and clamp. Pneumatic cylinders can be either single acting, with one compressed air port to push the rod in a single direction and a spring to return the rod, or double acting, with two compressed air ports on opposite ends of the cylinder to both extend and retract the rod. For quieter piston operation, air cylinders can come with cushioning in one or both ends of their barrels. Several mounting styles are available both for attaching the air cylinder ends to moving components in a pneumatic system and for mounting to rigid surfaces. Air cylinders are used in industrialized automation tasks in automotive, food processing, material handling, and robotics applications, among others.

SMC Corporation manufactures actuators, valves, airline equipment, connector fittings, electrical products, vacuum products, dryers, temperature control chillers, and accessories. SMC Corporation of America is headquartered in Noblesville, IN, and meets International Organization for Standardization (ISO) 9000:2000 standards.
